Namespace http://diggsml.org/schemas/3
Annotations
Pressure, stress, or elastic modulus: Force per unit area. Fundamental quantity in mechanics, fluid mechanics, and geotechnical engineering. Common units include pascal (Pa), kilopascal (kPa), megapascal (MPa), pound per square inch (psi), kip per square inch (ksi), bar, atmosphere (atm), kilogram-force per square centimetre (kgf/cm²), and millimetre of mercury (mmHg).

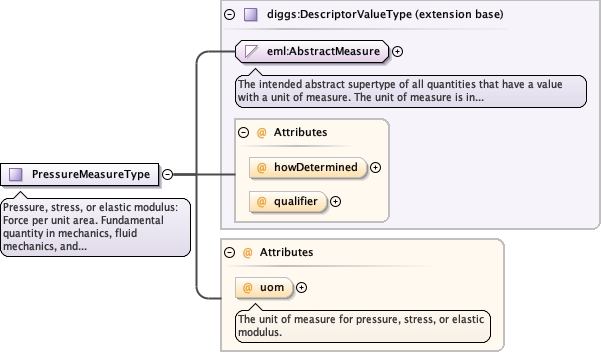

Diagram
Type extension of diggs:DescriptorValueType
Type hierarchy
Used by
Elements
diggs:AbstractPileType/diggs:allowableDrivingStress diggs:AbstractSamplingActivityType/diggs:coringPushPressure diggs:AbstractSamplingActivityType/diggs:coringPushPressureMax diggs:AbstractSamplingActivityType/diggs:coringPushPressureMin diggs:AdvancementType/diggs:downthrustPressure diggs:AdvancementType/diggs:fluidPressurePump diggs:AdvancementType/diggs:hammerPressure diggs:AdvancementType/diggs:restrainingPressure diggs:AdvancementType/diggs:torquePressure diggs:BackPressureIncrementType/diggs:backPressureApplied diggs:BackPressureIncrementType/diggs:chamberPressureApplied diggs:CBRIncrementType/diggs:calculatedStress diggs:CompressionIncrementType/diggs:stress diggs:ConsolidationTestTrialType/diggs:finalStress diggs:ConsolidationTestTrialType/diggs:loadingStress diggs:ConsolidationTestType/diggs:estimatedPreConsolidationStress diggs:ConsolidationTestType/diggs:swellingPressure diggs:CushionElementType/diggs:elasticModulus diggs:DesignGroutMixType/diggs:strengthDesign diggs:DirectShearTestIncrementType/diggs:normalStress diggs:DirectShearTestIncrementType/diggs:shearStress diggs:DirectShearTestType/diggs:normalStressApplied diggs:DirectShearTestType/diggs:peakShearStress diggs:DirectShearTestType/diggs:residualShearStress diggs:DrillRigType/diggs:baselineCrowdPressure diggs:DrillRigType/diggs:baselineTorquePressure diggs:DrillRigType/diggs:groundBearingPressure diggs:DrillRigType/diggs:maxHydPressure diggs:EnvironmentType/diggs:barometricPressure diggs:FlatPlateDilatometerTestType/diggs:deltaA diggs:FlatPlateDilatometerTestType/diggs:deltaB diggs:FlatPlateDilatometerTestType/diggs:zm diggs:FlowReadingType/diggs:gaugePressure diggs:FractureObservationType/diggs:wallStrength diggs:GroutMixerType/diggs:outletPressure diggs:GroutPumpType/diggs:maxPressure diggs:GroutSpecificationType/diggs:strength90Percent diggs:GroutSpecificationType/diggs:strengthAverage diggs:GroutSpecificationType/diggs:strengthMinimum diggs:GroutStageType/diggs:hydrostaticColumnPressure diggs:GroutStageType/diggs:maxHeaderPressureAtZeroFlow diggs:GroutStageType/diggs:staticLineResistanceAtZeroFlow diggs:GroutingPerformanceSpecificationType/diggs:groutedSoilCPTTip90Percent diggs:GroutingPerformanceSpecificationType/diggs:groutedSoilCPTTipAverage diggs:GroutingPerformanceSpecificationType/diggs:groutedSoilCPTTipMinimum diggs:GroutingPerformanceSpecificationType/diggs:groutedSoilConfinedCompressiveStrength90Percent diggs:GroutingPerformanceSpecificationType/diggs:groutedSoilConfinedCompressiveStrengthAverage diggs:GroutingPerformanceSpecificationType/diggs:groutedSoilConfinedCompressiveStrengthMinimum diggs:GroutingPerformanceSpecificationType/diggs:groutedSoilShearStrength90Percent diggs:GroutingPerformanceSpecificationType/diggs:groutedSoilShearStrengthAverage diggs:GroutingPerformanceSpecificationType/diggs:groutedSoilShearStrengthMinimum diggs:GroutingPerformanceSpecificationType/diggs:groutedSoilUnconfinedCompressiveStrength90Percent diggs:GroutingPerformanceSpecificationType/diggs:groutedSoilUnconfinedCompressiveStrengthAverage diggs:GroutingPerformanceSpecificationType/diggs:groutedSoilUnconfinedCompressiveStrengthMinimum diggs:InsituCBRTestType/diggs:surchargePressure diggs:LabCBRTestTrialType/diggs:surchargePressure diggs:LabPermeabilityTestType/diggs:backPressure diggs:LabPermeabilityTestType/diggs:effectiveConsolidationStress diggs:LineLossDataType/diggs:lineLoss diggs:LineLossDataType/diggs:p1 diggs:LineLossDataType/diggs:p2 diggs:LugeonStepType/diggs:pressure diggs:LugeonTestType/diggs:pMax diggs:MembraneInfoType/diggs:membraneYoungsModulus diggs:MixedGrout-SoilSpecificationType/diggs:strengthMinimum diggs:PDARecordType/diggs:elasticModulus diggs:PDARecordType/diggs:pressureAtHammer diggs:PileDrivingRecordType/diggs:pressureAtHammer diggs:PorePressureDissipationTestType/diggs:estimatedU0 diggs:PorePressureDissipationTestType/diggs:estimatedU50 diggs:PorePressureElementType/diggs:poreCapacity diggs:PressuremeterTestTrialType/diggs:meanPressure diggs:PressuremeterTestTrialType/diggs:pressureRange diggs:PressuremeterTestTrialType/diggs:shearModulus diggs:ShearingIncrementType/diggs:deviatorStress diggs:ShearingIncrementType/diggs:inducedPoreWaterPressure diggs:ShearingIncrementType/diggs:totalCellPressure diggs:ShearingIncrementType/diggs:totalPoreWaterPressure diggs:SwellTestConsolidationStageType/diggs:finalStress diggs:SwellTestConsolidationStageType/diggs:loadingStress diggs:SwellTestIncrementType/diggs:seatingPressure diggs:TriaxialTestConsolidationStageType/diggs:effectiveStressEndofConsolidationStage diggs:TriaxialTestSaturationStageType/diggs:maximumBackPressureApplied diggs:TriaxialTestShearStageType/diggs:deviatorStressAtFailure diggs:TriaxialTestShearStageType/diggs:inducedPorewaterPressureAtFailure diggs:TriaxialTestShearStageType/diggs:porewaterPressureStartOfShearing diggs:TriaxialTestShearStageType/diggs:totalCellPressureDuringShearStage diggs:TriaxialTestShearStageType/diggs:totalPorewaterPressureAtFailure diggs:TriaxialTestShearStageType/diggs:undrainedShearStrengthAtFailure diggs_geo:BackPressureIncrementType/diggs_geo:backPressureApplied diggs_geo:BackPressureIncrementType/diggs_geo:chamberPressureApplied diggs_geo:CBRIncrementType/diggs_geo:calculatedStress diggs_geo:CompressionIncrementType/diggs_geo:stress diggs_geo:ConsolidationTestTrialType/diggs_geo:appliedLoad diggs_geo:ConsolidationTestTrialType/diggs_geo:finalStess diggs_geo:ConsolidationTestTrialType/diggs_geo:loadingStess diggs_geo:ConsolidationTestType/diggs_geo:estimatedPreConsolidationStress diggs_geo:ConsolidationTestType/diggs_geo:swellingPressure diggs_geo:DirectShearTestIncrementType/diggs_geo:normalStress diggs_geo:DirectShearTestIncrementType/diggs_geo:shearStress diggs_geo:DirectShearTestType/diggs_geo:normalStressApplied diggs_geo:DirectShearTestType/diggs_geo:peakShearStress diggs_geo:DirectShearTestType/diggs_geo:residualShearStress diggs_geo:FlatPlateDilatometerTestType/diggs_geo:deltaA diggs_geo:FlatPlateDilatometerTestType/diggs_geo:deltaB diggs_geo:FlatPlateDilatometerTestType/diggs_geo:zm diggs_geo:InsituCBRTestType/diggs_geo:surchargePressure diggs_geo:LabCBRTestTrialType/diggs_geo:surchargePressure diggs_geo:LabPermeabilityTestType/diggs_geo:backPressure diggs_geo:LabPermeabilityTestType/diggs_geo:effectiveConsolidationStress diggs_geo:MembraneInfoType/diggs_geo:membraneYoungsModulus diggs_geo:PorePressureDissipationTestType/diggs_geo:estimatedU0 diggs_geo:PorePressureDissipationTestType/diggs_geo:estimatedU50 diggs_geo:PorePressureElementType/diggs_geo:poreCapacity diggs_geo:ShearingIncrementType/diggs_geo:deviatorStress diggs_geo:ShearingIncrementType/diggs_geo:inducedPoreWaterPressure diggs_geo:ShearingIncrementType/diggs_geo:totalPoreWaterPressure diggs_geo:TriaxialTestConsolidationStageType/diggs_geo:effectiveStressEndofConsolidationStage diggs_geo:TriaxialTestSaturationStageType/diggs_geo:maximumBackPressureApplied diggs_geo:TriaxialTestShearStageType/diggs_geo:deviatorStressAtFailure diggs_geo:TriaxialTestShearStageType/diggs_geo:inducedPorewaterPressureAtFailure diggs_geo:TriaxialTestShearStageType/diggs_geo:porewaterPressureStartOfShearing diggs_geo:TriaxialTestShearStageType/diggs_geo:totalCellPressureDuringShearStage diggs_geo:TriaxialTestShearStageType/diggs_geo:totalPorewaterPressureAtFailure diggs_geo:TriaxialTestShearStageType/diggs_geo:undrainedShearStrengthAtFailure
Complex Types
diggs:GroutPressureMeasureType diggs:ReadingMeasureType diggs_geo:ReadingMeasureType
Attributes
Source
<complexType name= "PressureMeasureType" >
<annotation >
<documentation > Pressure, stress, or elastic modulus: Force per unit area. Fundamental quantity in mechanics, fluid mechanics, and geotechnical engineering. Common units include pascal (Pa), kilopascal (kPa), megapascal (MPa), pound per square inch (psi), kip per square inch (ksi), bar, atmosphere (atm), kilogram-force per square centimetre (kgf/cm²), and millimetre of mercury (mmHg). </documentation>
</annotation>
<simpleContent >
<extension base= "diggs:DescriptorValueType" >
<attribute name= "uom" type= "diggs:PressureUomEnumType" >
<annotation >
<documentation > The unit of measure for pressure, stress, or elastic modulus. </documentation>
</annotation>
</attribute>
</extension>
</simpleContent>
</complexType>
