Element diggs:PressuremeterTestTrialType / diggs:trialNo
Namespace http://diggsml.org/schemas/3
Annotations

Pressuremeter loading or reloading cycle.
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element name="trialNo" type="positiveInteger" minOccurs="0">
  <annotation>
    <documentation>Pressuremeter loading or reloading cycle.</documentation>
  </annotation>
</element>

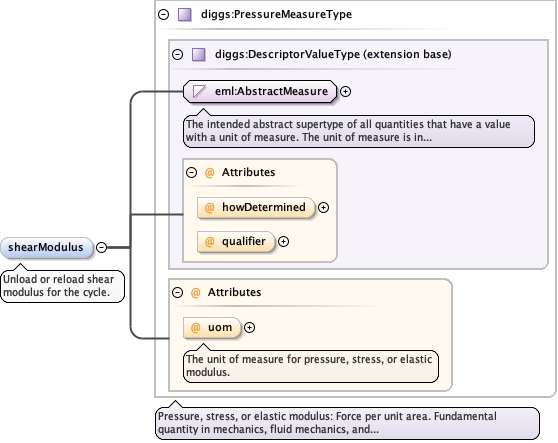

Element diggs:PressuremeterTestTrialType / diggs:shearModulus
Namespace http://diggsml.org/schemas/3
Annotations

Unload or reload shear modulus for the
cycle.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element name="shearModulus" type="diggs:PressureMeasureType" minOccurs="0">
  <annotation>
    <documentation>Unload or reload shear modulus for the cycle.</documentation>
  </annotation>
</element>
Element diggs:PressuremeterTestTrialType / diggs:meanStrain
Namespace http://diggsml.org/schemas/3
Annotations

Mean strain.
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
Source

<element name="meanStrain" type="double" minOccurs="0">
  <annotation>
    <documentation>Mean strain.</documentation>
  </annotation>
</element>
Element diggs:PressuremeterTestTrialType / diggs:strainRange
Namespace http://diggsml.org/schemas/3
Annotations

Strain range or amplitude.
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
Source

<element name="strainRange" type="double" minOccurs="0">
  <annotation>
    <documentation>Strain range or amplitude.</documentation>
  </annotation>
</element>
Element diggs:PressuremeterTestTrialType / diggs:meanPressure
Namespace http://diggsml.org/schemas/3
Annotations

Mean pressure.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element name="meanPressure" type="diggs:PressureMeasureType" minOccurs="0">
  <annotation>
    <documentation>Mean pressure.</documentation>
  </annotation>
</element>

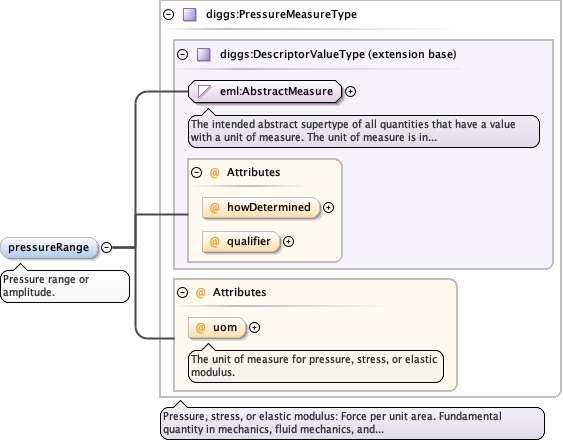

Element diggs:PressuremeterTestTrialType / diggs:pressureRange
Namespace http://diggsml.org/schemas/3
Annotations

Pressure range or amplitude.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element name="pressureRange" type="diggs:PressureMeasureType" minOccurs="0">
  <annotation>
    <documentation>Pressure range or amplitude.</documentation>
  </annotation>
</element>
Element diggs:PressuremeterTestTrialType / diggs:linearity
Namespace http://diggsml.org/schemas/3
Annotations

Linearity exponent (from Bolton and Whittle,
1999)
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
Source

<element name="linearity" type="double" minOccurs="0">
  <annotation>
    <documentation>Linearity exponent (from Bolton and Whittle, 1999)</documentation>
  </annotation>
</element>

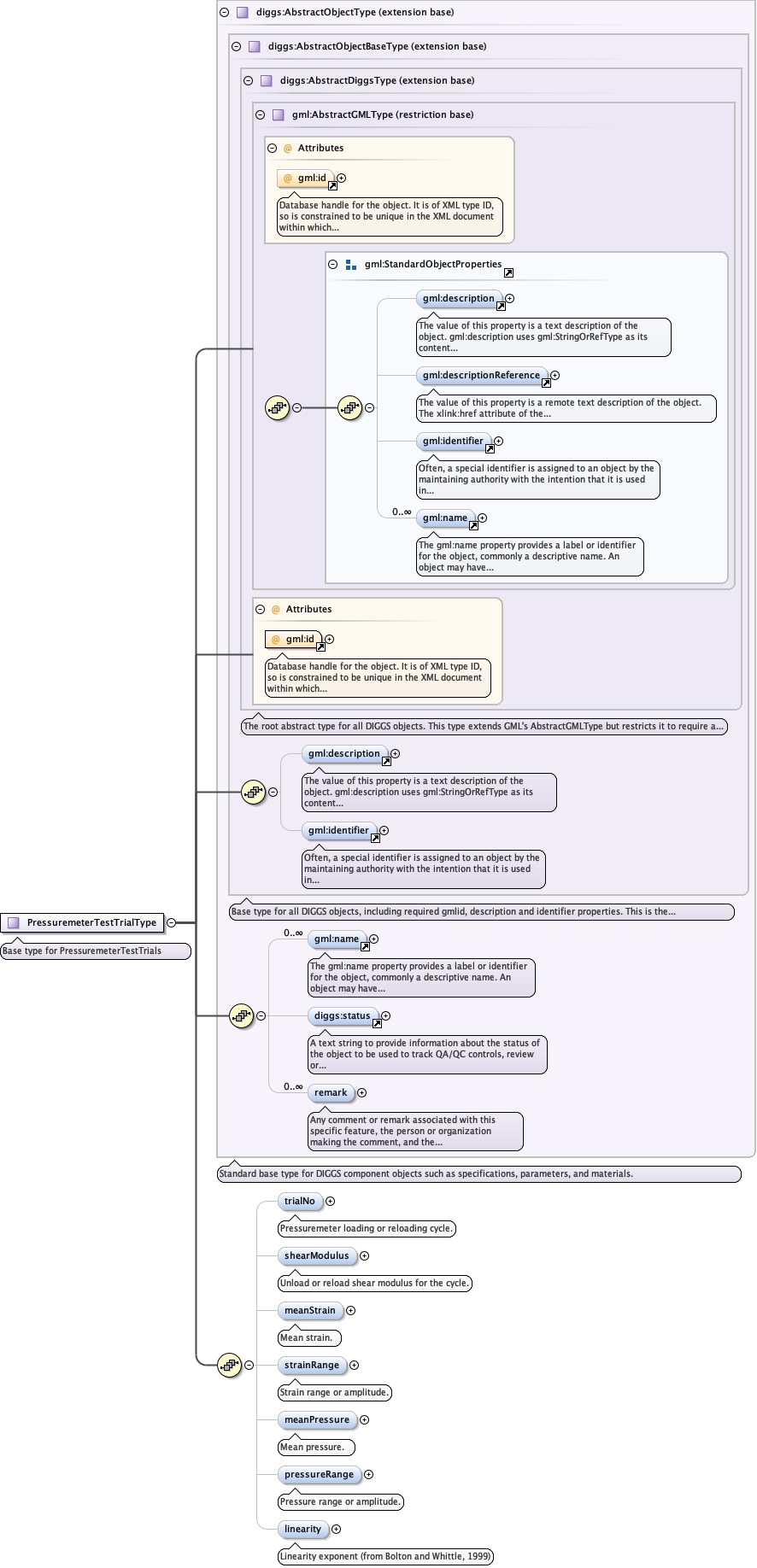

Complex Type diggs:PressuremeterTestTrialType
Namespace http://diggsml.org/schemas/3
Annotations

Base type for PressuremeterTestTrials
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeExtProcedures_xsd_Complex_Type_diggs_PressuremeterTestTrialType.tmp#PressuremeterTestTrialType_trialNoExtProcedures_xsd_Complex_Type_diggs_PressuremeterTestTrialType.tmp#PressuremeterTestTrialType_shearModulusExtProcedures_xsd_Complex_Type_diggs_PressuremeterTestTrialType.tmp#PressuremeterTestTrialType_meanStrainExtProcedures_xsd_Complex_Type_diggs_PressuremeterTestTrialType.tmp#PressuremeterTestTrialType_strainRangeExtProcedures_xsd_Complex_Type_diggs_PressuremeterTestTrialType.tmp#PressuremeterTestTrialType_meanPressureExtProcedures_xsd_Complex_Type_diggs_PressuremeterTestTrialType.tmp#PressuremeterTestTrialType_pressureRangeExtProcedures_xsd_Complex_Type_diggs_PressuremeterTestTrialType.tmp#PressuremeterTestTrialType_linearity
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:linearity, diggs:meanPressure, diggs:meanStrain, diggs:pressureRange, diggs:remark, diggs:shearModulus, diggs:status, diggs:strainRange, diggs:trialNo, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="PressuremeterTestTrialType">
  <annotation>
    <documentation>Base type for PressuremeterTestTrials</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element name="trialNo" type="positiveInteger" minOccurs="0">
          <annotation>
            <documentation>Pressuremeter loading or reloading cycle.</documentation>
          </annotation>
        </element>
        <element name="shearModulus" type="diggs:PressureMeasureType" minOccurs="0">
          <annotation>
            <documentation>Unload or reload shear modulus for the cycle.</documentation>
          </annotation>
        </element>
        <element name="meanStrain" type="double" minOccurs="0">
          <annotation>
            <documentation>Mean strain.</documentation>
          </annotation>
        </element>
        <element name="strainRange" type="double" minOccurs="0">
          <annotation>
            <documentation>Strain range or amplitude.</documentation>
          </annotation>
        </element>
        <element name="meanPressure" type="diggs:PressureMeasureType" minOccurs="0">
          <annotation>
            <documentation>Mean pressure.</documentation>
          </annotation>
        </element>
        <element name="pressureRange" type="diggs:PressureMeasureType" minOccurs="0">
          <annotation>
            <documentation>Pressure range or amplitude.</documentation>
          </annotation>
        </element>
        <element name="linearity" type="double" minOccurs="0">
          <annotation>
            <documentation>Linearity exponent (from Bolton and Whittle, 1999)</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
