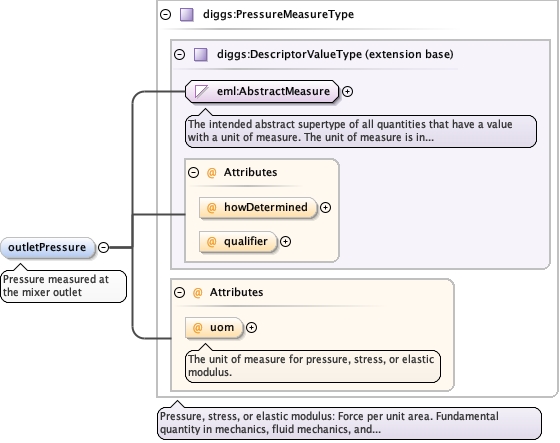

Element diggs:GroutMixerType / diggs:outletPressure
Namespace http://diggsml.org/schemas/3
Annotations

Pressure measured at the mixer outlet
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element minOccurs="0" name="outletPressure" type="diggs:PressureMeasureType">
  <annotation>
    <documentation>Pressure measured at the mixer outlet</documentation>
  </annotation>
</element>

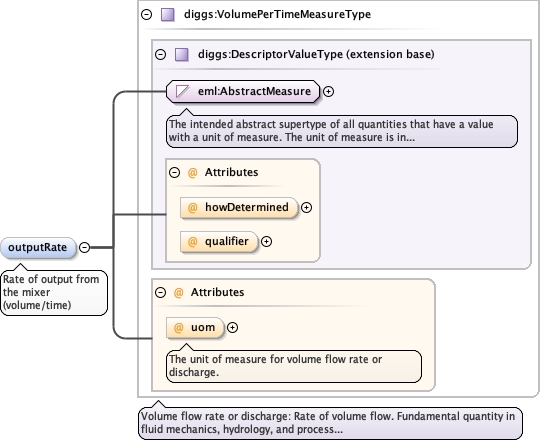

Element diggs:GroutMixerType / diggs:outputRate
Namespace http://diggsml.org/schemas/3
Annotations

Rate of output from the mixer
(volume/time)
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimeMeasureType.tmp#VolumePerTimeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimeMeasureType.tmp#VolumePerTimeMeasureType
Type diggs:VolumePerTimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerTimeUomEnumType optional
The unit of measure for volume flow rate or discharge.
Source

<element minOccurs="0" name="outputRate" type="diggs:VolumePerTimeMeasureType">
  <annotation>
    <documentation>Rate of output from the mixer (volume/time)</documentation>
  </annotation>
</element>
Element diggs:GroutMixerType / diggs:agitatorVolume
Namespace http://diggsml.org/schemas/3
Annotations

Maximum capacity of the agitator.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType
Type diggs:VolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumeUomEnumType optional
The unit of measure for volume or cubic measure.
Source

<element minOccurs="0" name="agitatorVolume" type="diggs:VolumeMeasureType" maxOccurs="1">
  <annotation>
    <documentation>Maximum capacity of the agitator.</documentation>
  </annotation>
</element>

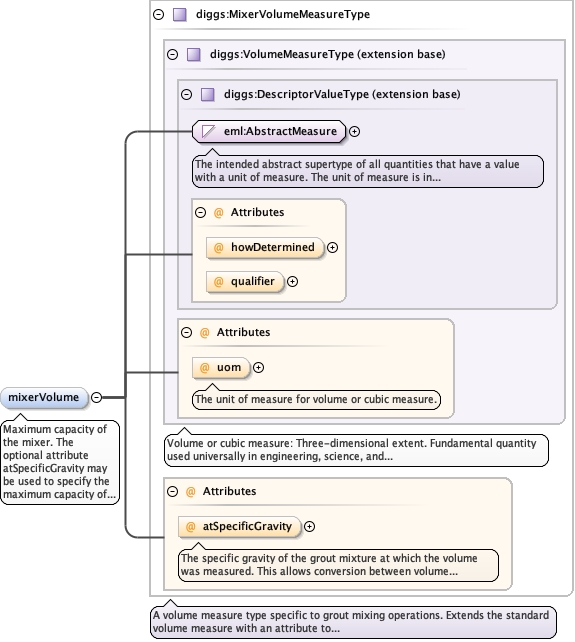

Element diggs:GroutMixerType / diggs:mixerVolume
Namespace http://diggsml.org/schemas/3
Annotations

Maximum capacity of the mixer. The optional attribute
atSpecificGravity may be used to specify the maximum capacity of the
mixer for a particular specific gravity of the grout
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureTypeMeasureTypes_xsd_Complex_Type_diggs_MixerVolumeMeasureType.tmp#MixerVolumeMeasureType_atSpecificGravityMeasureTypes_xsd_Complex_Type_diggs_MixerVolumeMeasureType.tmp#MixerVolumeMeasureType
Type diggs:MixerVolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use Annotation
atSpecificGravity double optional
The specific gravity of the grout mixture at which the volume was measured. This allows conversion between volume measurements at different mix densities. Typical values range from 1.0 (water) to 2.0+ for dense cement grouts.
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumeUomEnumType optional
The unit of measure for volume or cubic measure.
Source

<element minOccurs="0" name="mixerVolume" maxOccurs="unbounded" type="diggs:MixerVolumeMeasureType">
  <annotation>
    <documentation>Maximum capacity of the mixer. The optional attribute atSpecificGravity may be used to specify the maximum capacity of the mixer for a particular specific gravity of the grout</documentation>
  </annotation>
</element>
Element diggs:GroutMixerType / diggs:agitatorSpeed
Namespace http://diggsml.org/schemas/3
Annotations

Rotational speed of the agitator
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_AngularVelocityMeasureType.tmp#AngularVelocityMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_AngularVelocityMeasureType.tmp#AngularVelocityMeasureType
Type diggs:AngularVelocityMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:AngularVelocityUomEnumType optional
The unit of measure for angular velocity or rotational speed.
Source

<element minOccurs="0" name="agitatorSpeed" type="diggs:AngularVelocityMeasureType">
  <annotation>
    <documentation>Rotational speed of the agitator</documentation>
  </annotation>
</element>

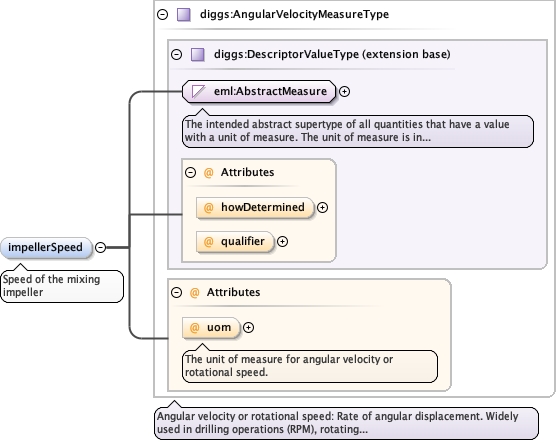

Element diggs:GroutMixerType / diggs:impellerSpeed
Namespace http://diggsml.org/schemas/3
Annotations

Speed of the mixing impeller
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_AngularVelocityMeasureType.tmp#AngularVelocityMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_AngularVelocityMeasureType.tmp#AngularVelocityMeasureType
Type diggs:AngularVelocityMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:AngularVelocityUomEnumType optional
The unit of measure for angular velocity or rotational speed.
Source

<element minOccurs="0" name="impellerSpeed" type="diggs:AngularVelocityMeasureType">
  <annotation>
    <documentation>Speed of the mixing impeller</documentation>
  </annotation>
</element>

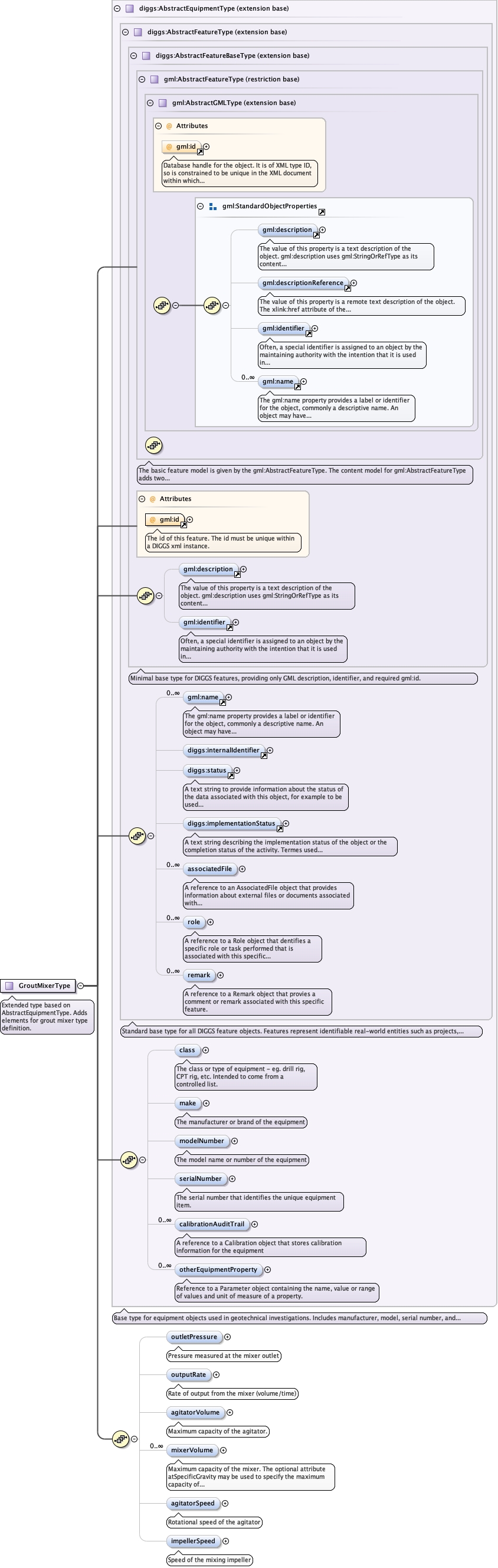

Complex Type diggs:GroutMixerType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractEquipmentType. Adds elements for grout mixer type definition.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_classAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_makeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_modelNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_serialNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_calibrationAuditTrailAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_otherEquipmentPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentTypeGrouting_xsd_Complex_Type_diggs_GroutMixerType.tmp#GroutMixerType_outletPressureGrouting_xsd_Complex_Type_diggs_GroutMixerType.tmp#GroutMixerType_outputRateGrouting_xsd_Complex_Type_diggs_GroutMixerType.tmp#GroutMixerType_agitatorVolumeGrouting_xsd_Complex_Type_diggs_GroutMixerType.tmp#GroutMixerType_mixerVolumeGrouting_xsd_Complex_Type_diggs_GroutMixerType.tmp#GroutMixerType_agitatorSpeedGrouting_xsd_Complex_Type_diggs_GroutMixerType.tmp#GroutMixerType_impellerSpeed
Type extension of diggs:AbstractEquipmentType
Type hierarchy
Used by
Model
Children diggs:agitatorSpeed, diggs:agitatorVolume, diggs:associatedFile, diggs:calibrationAuditTrail, diggs:class, diggs:impellerSpeed, diggs:implementationStatus, diggs:internalIdentifier, diggs:make, diggs:mixerVolume, diggs:modelNumber, diggs:otherEquipmentProperty, diggs:outletPressure, diggs:outputRate, diggs:remark, diggs:role, diggs:serialNumber, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="GroutMixerType">
  <annotation>
    <documentation>Extended type based on AbstractEquipmentType. Adds elements for grout mixer type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractEquipmentType">
      <sequence>
        <element minOccurs="0" name="outletPressure" type="diggs:PressureMeasureType">
          <annotation>
            <documentation>Pressure measured at the mixer outlet</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="outputRate" type="diggs:VolumePerTimeMeasureType">
          <annotation>
            <documentation>Rate of output from the mixer (volume/time)</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="agitatorVolume" type="diggs:VolumeMeasureType" maxOccurs="1">
          <annotation>
            <documentation>Maximum capacity of the agitator.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="mixerVolume" maxOccurs="unbounded" type="diggs:MixerVolumeMeasureType">
          <annotation>
            <documentation>Maximum capacity of the mixer. The optional attribute atSpecificGravity may be used to specify the maximum capacity of the mixer for a particular specific gravity of the grout</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="agitatorSpeed" type="diggs:AngularVelocityMeasureType">
          <annotation>
            <documentation>Rotational speed of the agitator</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="impellerSpeed" type="diggs:AngularVelocityMeasureType">
          <annotation>
            <documentation>Speed of the mixing impeller</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
