Element diggs:LugeonTestType / diggs:depthToGroundWater
Namespace http://diggsml.org/schemas/3
Annotations

Distance from ground surface to the top of the saturated
zone (water table)

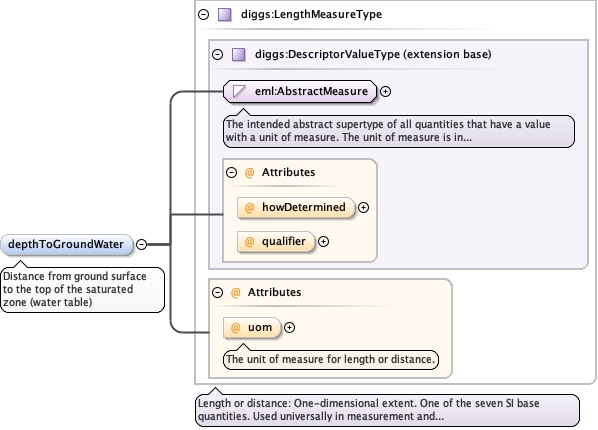

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="depthToGroundWater" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Distance from ground surface to the top of the saturated zone (water table)</documentation>
  </annotation>
</element>
Element diggs:LugeonTestType / diggs:pressureMeasurementConfiguration
Namespace http://diggsml.org/schemas/3
Annotations

Describes how pressure is measured during the test; from
a controlled list. Allowed values are: - pressure gauge - borehole
transducer
Diagram
DiagramExtProcedures_xsd_Simple_Type_diggs_pressureMeasurementConfigurationEnumType.tmp#pressureMeasurementConfigurationEnumType
Type diggs:pressureMeasurementConfigurationEnumType
Properties
content simple
minOccurs 0
Facets
enumeration pressure gauge
pressure gauge - pressure gauge value.
enumeration borehole transducer
borehole transducer - borehole transducer value.
Source

<element minOccurs="0" name="pressureMeasurementConfiguration" type="diggs:pressureMeasurementConfigurationEnumType">
  <annotation>
    <documentation>Describes how pressure is measured during the test; from a controlled list. Allowed values are: - pressure gauge - borehole transducer</documentation>
  </annotation>
</element>
Element diggs:LugeonTestType / diggs:pressureGaugeHeight
Namespace http://diggsml.org/schemas/3
Annotations

Height above ground surface to the pressure gauge
location, if pressure gauge is used instead of a borehole
transducer

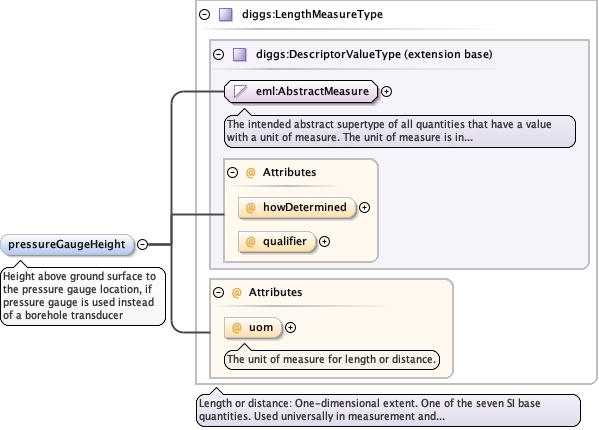

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="pressureGaugeHeight" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Height above ground surface to the pressure gauge location, if pressure gauge is used instead of a borehole transducer</documentation>
  </annotation>
</element>
Element diggs:LugeonTestType / diggs:pMax
Namespace http://diggsml.org/schemas/3
Annotations

The maximum test pressure, defined so that it does not
exceed the in-situ minimum stress, thus avoiding hydraulic
fracturing.

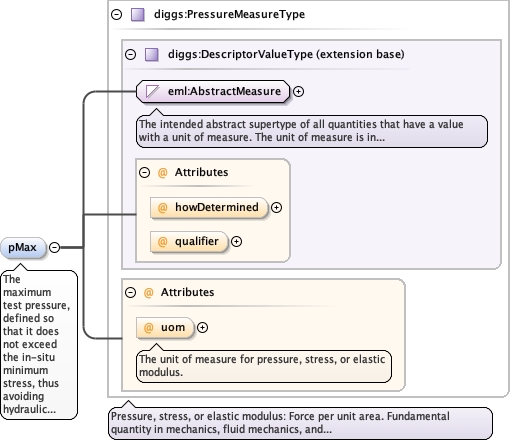

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element minOccurs="0" name="pMax" type="diggs:PressureMeasureType">
  <annotation>
    <documentation>The maximum test pressure, defined so that it does not exceed the in-situ minimum stress, thus avoiding hydraulic fracturing.</documentation>
  </annotation>
</element>
Element diggs:LugeonTestType / diggs:lugeonStep
Namespace http://diggsml.org/schemas/3
Annotations

Contains properties for each step of the lugeeon test run
at various injection pressures. There are typically five steps in a
lugeon test.

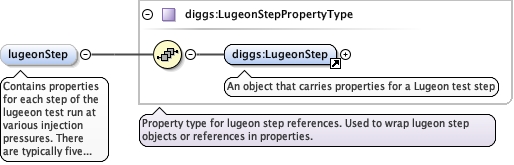

Diagram
DiagramExtProcedures_xsd_Element_diggs_LugeonStep.tmp#LugeonStepExtProcedures_xsd_Complex_Type_diggs_LugeonStepPropertyType.tmp#LugeonStepPropertyType
Type diggs:LugeonStepPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:LugeonStep
Instance

<diggs:lugeonStep xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:LugeonStep gml:id="">{1,1}</diggs:LugeonStep>
</diggs:lugeonStep>
Source

<element maxOccurs="unbounded" minOccurs="0" name="lugeonStep" type="diggs:LugeonStepPropertyType">
  <annotation>
    <documentation>Contains properties for each step of the lugeeon test run at various injection pressures. There are typically five steps in a lugeon test.</documentation>
  </annotation>
</element>
Complex Type diggs:LugeonTestType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractInsituTestProcedureType. Adds elements for lugeon test type definition.

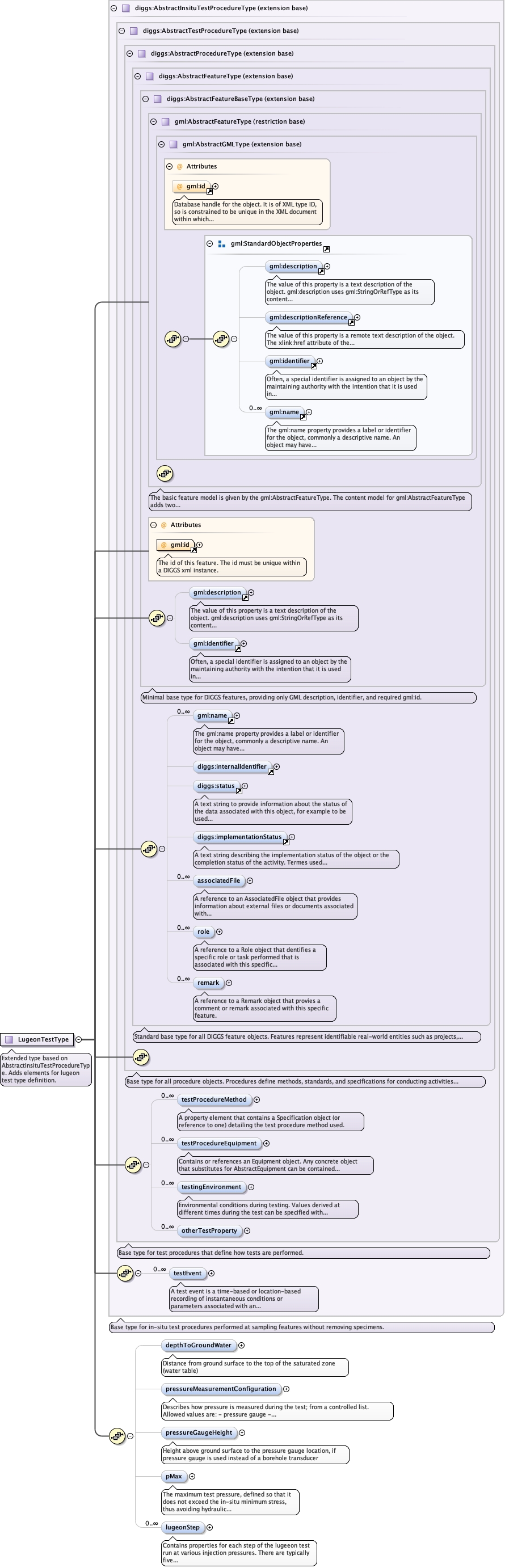

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEventAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureTypeExtProcedures_xsd_Complex_Type_diggs_LugeonTestType.tmp#LugeonTestType_depthToGroundWaterExtProcedures_xsd_Complex_Type_diggs_LugeonTestType.tmp#LugeonTestType_pressureMeasurementConfigurationExtProcedures_xsd_Complex_Type_diggs_LugeonTestType.tmp#LugeonTestType_pressureGaugeHeightExtProcedures_xsd_Complex_Type_diggs_LugeonTestType.tmp#LugeonTestType_pMaxExtProcedures_xsd_Complex_Type_diggs_LugeonTestType.tmp#LugeonTestType_lugeonStep
Type extension of diggs:AbstractInsituTestProcedureType
Type hierarchy
Properties
mixed false
Used by
Model
Children diggs:associatedFile, diggs:depthToGroundWater, diggs:implementationStatus, diggs:internalIdentifier, diggs:lugeonStep, diggs:otherTestProperty, diggs:pMax, diggs:pressureGaugeHeight, diggs:pressureMeasurementConfiguration, diggs:remark, diggs:role, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType mixed="false" name="LugeonTestType">
  <annotation>
    <documentation>Extended type based on AbstractInsituTestProcedureType. Adds elements for lugeon test type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractInsituTestProcedureType">
      <sequence>
        <element minOccurs="0" name="depthToGroundWater" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Distance from ground surface to the top of the saturated zone (water table)</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pressureMeasurementConfiguration" type="diggs:pressureMeasurementConfigurationEnumType">
          <annotation>
            <documentation>Describes how pressure is measured during the test; from a controlled list. Allowed values are: - pressure gauge - borehole transducer</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pressureGaugeHeight" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Height above ground surface to the pressure gauge location, if pressure gauge is used instead of a borehole transducer</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pMax" type="diggs:PressureMeasureType">
          <annotation>
            <documentation>The maximum test pressure, defined so that it does not exceed the in-situ minimum stress, thus avoiding hydraulic fracturing.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="lugeonStep" type="diggs:LugeonStepPropertyType">
          <annotation>
            <documentation>Contains properties for each step of the lugeeon test run at various injection pressures. There are typically five steps in a lugeon test.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
