Element diggs:DesignGroutMixType / diggs:placementDescription
Namespace http://diggsml.org/schemas/3
Annotations

Description of general location of grout mix on project
site.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="placementDescription" type="string">
  <annotation>
    <documentation>Description of general location of grout mix on project site.</documentation>
  </annotation>
</element>

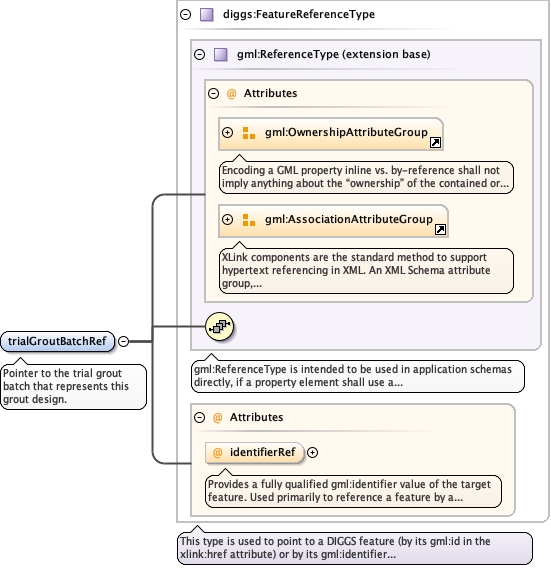

Element diggs:DesignGroutMixType / diggs:trialGroutBatchRef
Namespace http://diggsml.org/schemas/3
Annotations

Pointer to the trial grout batch that represents this
grout design.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_ReferenceType.tmp#ReferenceTypeCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType_identifierRefCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType
Type diggs:FeatureReferenceType
Type hierarchy
Properties
content complex
minOccurs 1
Model
Attributes
QName Type Fixed Default Use Annotation
identifierRef diggs:IdentifierReferenceType optional
Provides a fully qualified gml:identifier value of the target
feature. Used primarily to reference a feature by a globally unique
identifier as opposed to the gml:id
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element minOccurs="1" name="trialGroutBatchRef" type="diggs:FeatureReferenceType">
  <annotation>
    <appinfo>diggs:TrialGroutBatch</appinfo>
    <documentation>Pointer to the trial grout batch that represents this grout design.</documentation>
  </annotation>
</element>

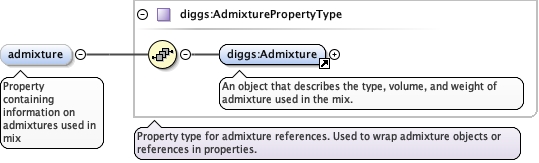

Element diggs:DesignGroutMixType / diggs:admixture
Namespace http://diggsml.org/schemas/3
Annotations

Property containing information on admixtures
used in mix
Diagram
DiagramGrouting_xsd_Element_diggs_Admixture.tmp#AdmixtureGrouting_xsd_Complex_Type_diggs_AdmixturePropertyType.tmp#AdmixturePropertyType
Type diggs:AdmixturePropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Admixture
Instance

<diggs:admixture xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Admixture gml:id="">{1,1}</diggs:Admixture>
</diggs:admixture>
Source

<element minOccurs="0" name="admixture" type="diggs:AdmixturePropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>Property containing information on admixtures used in mix</documentation>
  </annotation>
</element>

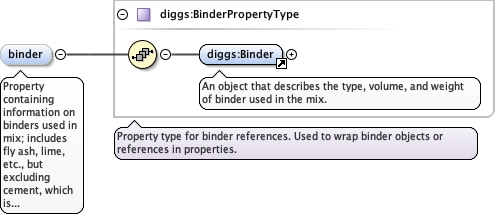

Element diggs:DesignGroutMixType / diggs:binder
Namespace http://diggsml.org/schemas/3
Annotations

Property containing information on binders used
in mix; includes fly ash, lime, etc., but excluding cement,
which is recorded in its own component property
Diagram
DiagramGrouting_xsd_Element_diggs_Binder.tmp#BinderGrouting_xsd_Complex_Type_diggs_BinderPropertyType.tmp#BinderPropertyType
Type diggs:BinderPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Binder
Instance

<diggs:binder xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Binder gml:id="">{1,1}</diggs:Binder>
</diggs:binder>
Source

<element minOccurs="0" name="binder" type="diggs:BinderPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>Property containing information on binders used in mix; includes fly ash, lime, etc., but excluding cement, which is recorded in its own component property</documentation>
  </annotation>
</element>

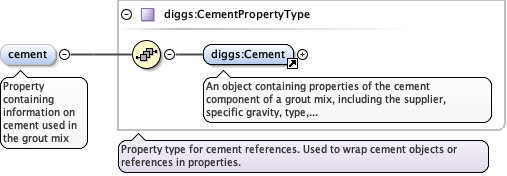

Element diggs:DesignGroutMixType / diggs:cement
Namespace http://diggsml.org/schemas/3
Annotations

Property containing information on cement used in
the grout mix
Diagram
DiagramGrouting_xsd_Element_diggs_Cement.tmp#CementGrouting_xsd_Complex_Type_diggs_CementPropertyType.tmp#CementPropertyType
Type diggs:CementPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Cement
Instance

<diggs:cement xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Cement gml:id="">{1,1}</diggs:Cement>
</diggs:cement>
Source

<element minOccurs="0" name="cement" type="diggs:CementPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>Property containing information on cement used in the grout mix</documentation>
  </annotation>
</element>

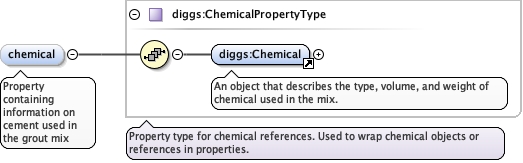

Element diggs:DesignGroutMixType / diggs:chemical
Namespace http://diggsml.org/schemas/3
Annotations

Property containing information on cement used in
the grout mix
Diagram
DiagramGrouting_xsd_Element_diggs_Chemical.tmp#ChemicalGrouting_xsd_Complex_Type_diggs_ChemicalPropertyType.tmp#ChemicalPropertyType
Type diggs:ChemicalPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Chemical
Instance

<diggs:chemical xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Chemical gml:id="">{1,1}</diggs:Chemical>
</diggs:chemical>
Source

<element minOccurs="0" name="chemical" type="diggs:ChemicalPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>Property containing information on cement used in the grout mix</documentation>
  </annotation>
</element>

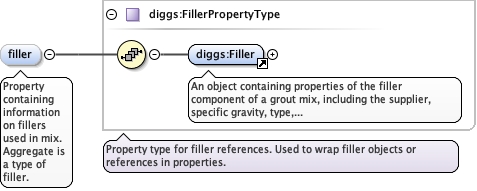

Element diggs:DesignGroutMixType / diggs:filler
Namespace http://diggsml.org/schemas/3
Annotations

Property containing information on fillers used
in mix. Aggregate is a type of filler.
Diagram
DiagramGrouting_xsd_Element_diggs_Filler.tmp#FillerGrouting_xsd_Complex_Type_diggs_FillerPropertyType.tmp#FillerPropertyType
Type diggs:FillerPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Filler
Instance

<diggs:filler xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Filler gml:id="">{1,1}</diggs:Filler>
</diggs:filler>
Source

<element minOccurs="0" name="filler" type="diggs:FillerPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>Property containing information on fillers used in mix. Aggregate is a type of filler.</documentation>
  </annotation>
</element>

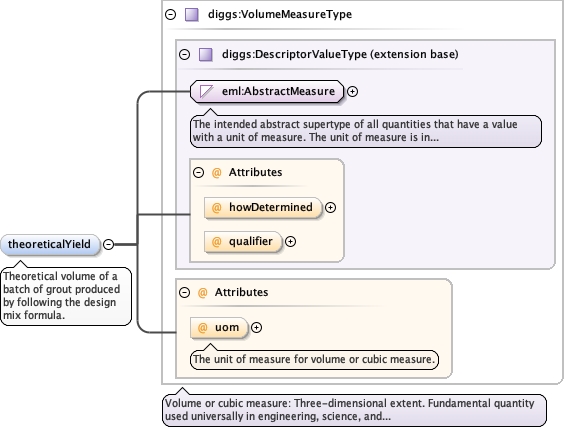

Element diggs:DesignGroutMixType / diggs:theoreticalYield
Namespace http://diggsml.org/schemas/3
Annotations

Theoretical volume of a batch of grout produced
by following the design mix formula.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType
Type diggs:VolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumeUomEnumType optional
The unit of measure for volume or cubic measure.
Source

<element minOccurs="0" name="theoreticalYield" type="diggs:VolumeMeasureType">
  <annotation>
    <documentation>Theoretical volume of a batch of grout produced by following the design mix formula.</documentation>
  </annotation>
</element>

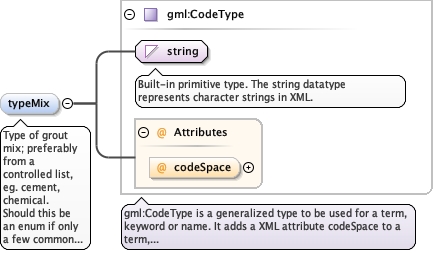

Element diggs:DesignGroutMixType / diggs:typeMix
Namespace http://diggsml.org/schemas/3
Annotations

Type of grout mix; preferably from a controlled
list, eg. cement, chemical.

Should this be an enum if only a few common
choices?
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="typeMix" type="gml:CodeType">
  <annotation>
    <documentation>Type of grout mix; preferably from a controlled list, eg. cement, chemical.</documentation>
    <documentation>Should this be an enum if only a few common choices?</documentation>
  </annotation>
</element>

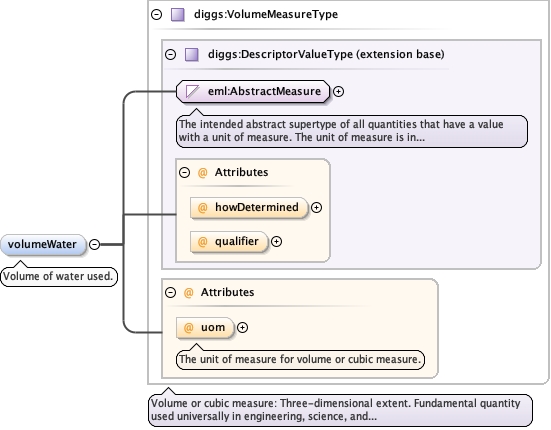

Element diggs:DesignGroutMixType / diggs:volumeWater
Namespace http://diggsml.org/schemas/3
Annotations

Volume of water used.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType
Type diggs:VolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumeUomEnumType optional
The unit of measure for volume or cubic measure.
Source

<element minOccurs="0" name="volumeWater" type="diggs:VolumeMeasureType">
  <annotation>
    <documentation>Volume of water used.</documentation>
  </annotation>
</element>

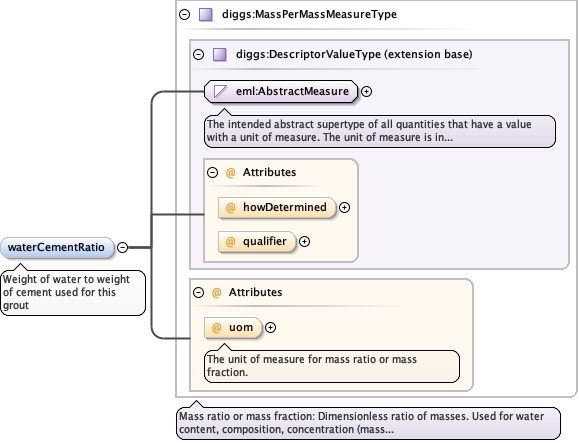

Element diggs:DesignGroutMixType / diggs:waterCementRatio
Namespace http://diggsml.org/schemas/3
Annotations

Weight of water to weight of cement used for this
grout
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_MassPerMassMeasureType.tmp#MassPerMassMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_MassPerMassMeasureType.tmp#MassPerMassMeasureType
Type diggs:MassPerMassMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:MassPerMassUomEnumType optional
The unit of measure for mass ratio or mass fraction.
Source

<element minOccurs="0" name="waterCementRatio" type="diggs:MassPerMassMeasureType">
  <annotation>
    <documentation>Weight of water to weight of cement used for this grout</documentation>
  </annotation>
</element>
Element diggs:DesignGroutMixType / diggs:wtCementPerGalH2O
Namespace http://diggsml.org/schemas/3
Annotations

Weight of cement used per gallon of
water.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType
Type diggs:ForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForceUomEnumType optional
The unit of measure for force.
Source

<element minOccurs="0" name="wtCementPerGalH2O" type="diggs:ForceMeasureType">
  <annotation>
    <documentation>Weight of cement used per gallon of water.</documentation>
  </annotation>
</element>

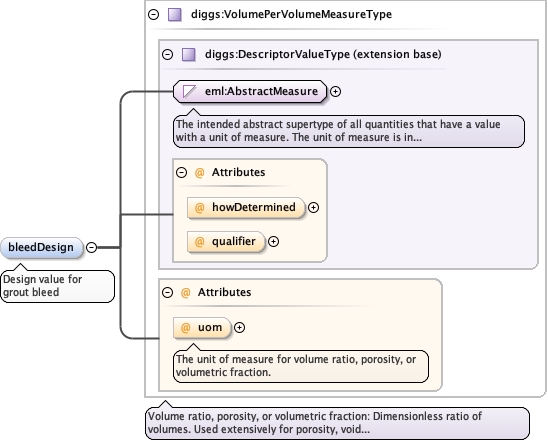

Element diggs:DesignGroutMixType / diggs:bleedDesign
Namespace http://diggsml.org/schemas/3
Annotations

Design value for grout bleed
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerVolumeMeasureType.tmp#VolumePerVolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumePerVolumeMeasureType.tmp#VolumePerVolumeMeasureType
Type diggs:VolumePerVolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerVolumeUomEnumType optional
The unit of measure for volume ratio, porosity, or volumetric fraction.
Source

<element minOccurs="0" name="bleedDesign" type="diggs:VolumePerVolumeMeasureType">
  <annotation>
    <documentation>Design value for grout bleed</documentation>
  </annotation>
</element>

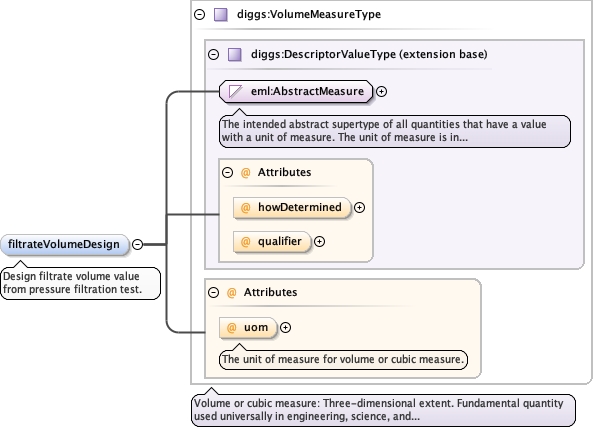

Element diggs:DesignGroutMixType / diggs:filtrateVolumeDesign
Namespace http://diggsml.org/schemas/3
Annotations

Design filtrate volume value from pressure filtration
test.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType
Type diggs:VolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumeUomEnumType optional
The unit of measure for volume or cubic measure.
Source

<element minOccurs="0" name="filtrateVolumeDesign" type="diggs:VolumeMeasureType">
  <annotation>
    <documentation>Design filtrate volume value from pressure filtration test.</documentation>
  </annotation>
</element>

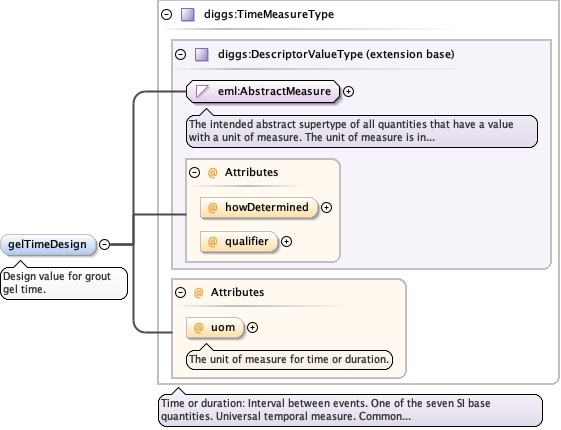

Element diggs:DesignGroutMixType / diggs:gelTimeDesign
Namespace http://diggsml.org/schemas/3
Annotations

Design value for grout gel time.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_TimeMeasureType.tmp#TimeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_TimeMeasureType.tmp#TimeMeasureType
Type diggs:TimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:TimeUomEnumType optional
The unit of measure for time or duration.
Source

<element minOccurs="0" name="gelTimeDesign" type="diggs:TimeMeasureType">
  <annotation>
    <documentation>Design value for grout gel time.</documentation>
  </annotation>
</element>
Element diggs:DesignGroutMixType / diggs:marshFunnelTimeDesign
Namespace http://diggsml.org/schemas/3
Annotations

Design value for grout shrinkage.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_TimeMeasureType.tmp#TimeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_TimeMeasureType.tmp#TimeMeasureType
Type diggs:TimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:TimeUomEnumType optional
The unit of measure for time or duration.
Source

<element minOccurs="0" name="marshFunnelTimeDesign" type="diggs:TimeMeasureType">
  <annotation>
    <documentation>Design value for grout shrinkage.</documentation>
  </annotation>
</element>

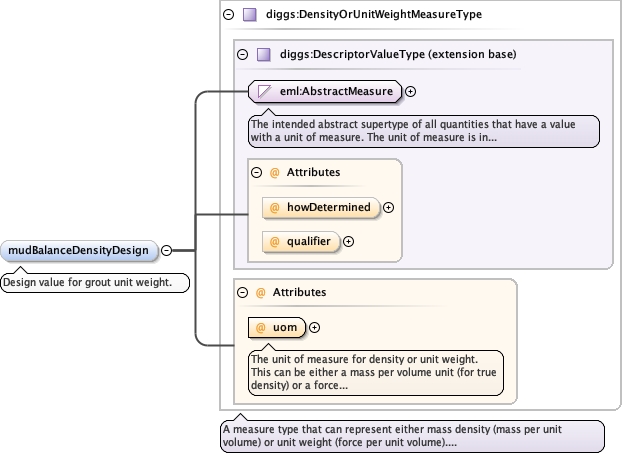

Element diggs:DesignGroutMixType / diggs:mudBalanceDensityDesign
Namespace http://diggsml.org/schemas/3
Annotations

Design value for grout unit weight.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType
Type diggs:DensityOrUnitWeightMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:DiggsDensityOrUnitWeightUomEnumType required
The unit of measure for density or unit weight. This can be either a mass per volume unit (for true density) or a force per volume unit (for unit weight).
Source

<element minOccurs="0" name="mudBalanceDensityDesign" type="diggs:DensityOrUnitWeightMeasureType">
  <annotation>
    <documentation>Design value for grout unit weight.</documentation>
  </annotation>
</element>

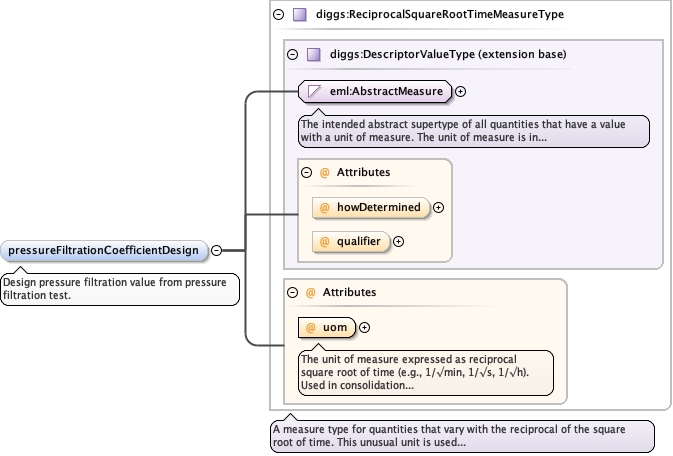

Element diggs:DesignGroutMixType / diggs:pressureFiltrationCoefficientDesign
Namespace http://diggsml.org/schemas/3
Annotations

Design pressure filtration value from pressure filtration
test.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ReciprocalSquareRootTimeMeasureType.tmp#ReciprocalSquareRootTimeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ReciprocalSquareRootTimeMeasureType.tmp#ReciprocalSquareRootTimeMeasureType
Type diggs:ReciprocalSquareRootTimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:DiggsReciprocalSquareRootTimeUomEnumType required
The unit of measure expressed as reciprocal square root of time (e.g., 1/√min, 1/√s, 1/√h). Used in consolidation theory and filtration analysis.
Source

<element minOccurs="0" name="pressureFiltrationCoefficientDesign" type="diggs:ReciprocalSquareRootTimeMeasureType">
  <annotation>
    <documentation>Design pressure filtration value from pressure filtration test.</documentation>
  </annotation>
</element>

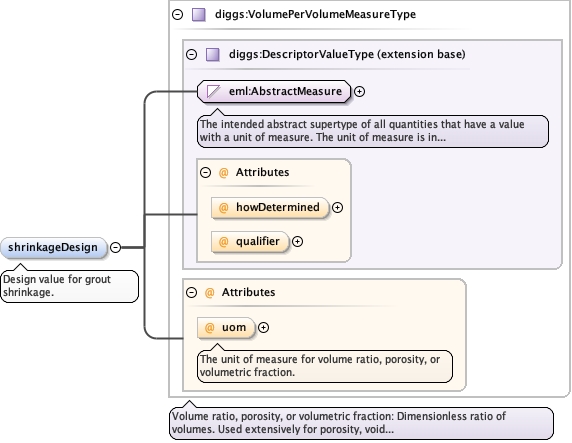

Element diggs:DesignGroutMixType / diggs:shrinkageDesign
Namespace http://diggsml.org/schemas/3
Annotations

Design value for grout shrinkage.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerVolumeMeasureType.tmp#VolumePerVolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumePerVolumeMeasureType.tmp#VolumePerVolumeMeasureType
Type diggs:VolumePerVolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerVolumeUomEnumType optional
The unit of measure for volume ratio, porosity, or volumetric fraction.
Source

<element minOccurs="0" name="shrinkageDesign" type="diggs:VolumePerVolumeMeasureType">
  <annotation>
    <documentation>Design value for grout shrinkage.</documentation>
  </annotation>
</element>

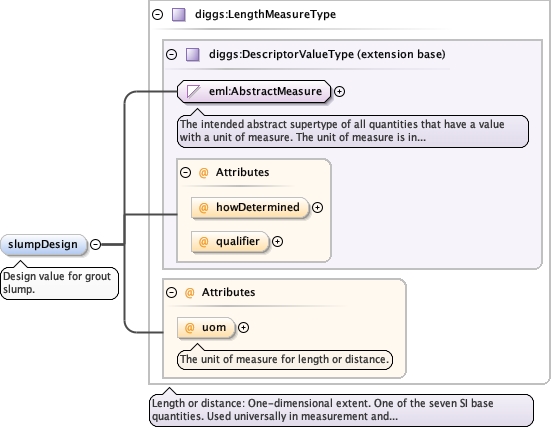

Element diggs:DesignGroutMixType / diggs:slumpDesign
Namespace http://diggsml.org/schemas/3
Annotations

Design value for grout slump.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="slumpDesign" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Design value for grout slump.</documentation>
  </annotation>
</element>

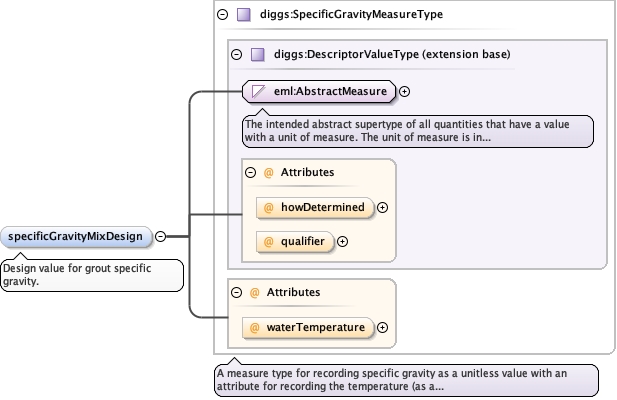

Element diggs:DesignGroutMixType / diggs:specificGravityMixDesign
Namespace http://diggsml.org/schemas/3
Annotations

Design value for grout specific gravity.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_SpecificGravityMeasureType.tmp#SpecificGravityMeasureType_waterTemperatureMeasureTypes_xsd_Complex_Type_diggs_SpecificGravityMeasureType.tmp#SpecificGravityMeasureType
Type diggs:SpecificGravityMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
Source

<element minOccurs="0" name="specificGravityMixDesign" type="diggs:SpecificGravityMeasureType">
  <annotation>
    <documentation>Design value for grout specific gravity.</documentation>
  </annotation>
</element>

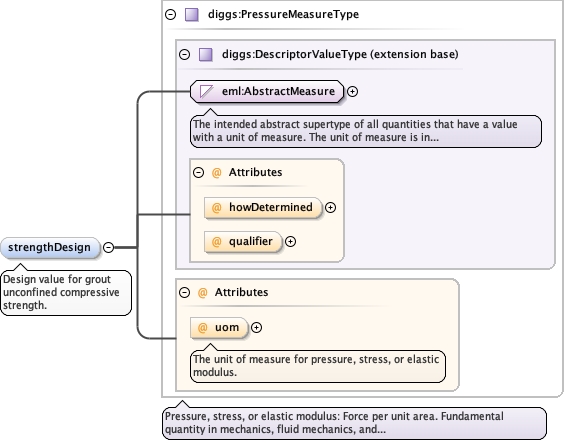

Element diggs:DesignGroutMixType / diggs:strengthDesign
Namespace http://diggsml.org/schemas/3
Annotations

Design value for grout unconfined compressive strength.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element minOccurs="0" name="strengthDesign" type="diggs:PressureMeasureType">
  <annotation>
    <documentation>Design value for grout unconfined compressive strength.</documentation>
  </annotation>
</element>

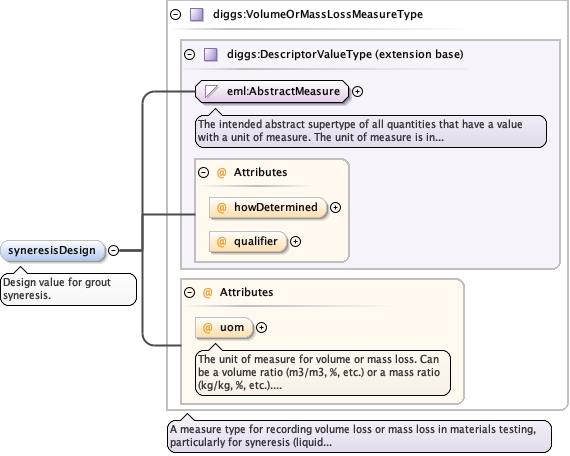

Element diggs:DesignGroutMixType / diggs:syneresisDesign
Namespace http://diggsml.org/schemas/3
Annotations

Design value for grout syneresis.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumeOrMassLossMeasureType.tmp#VolumeOrMassLossMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumeOrMassLossMeasureType.tmp#VolumeOrMassLossMeasureType
Type diggs:VolumeOrMassLossMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:DiggsVolumeOrMassLossMeasureUomEnumType optional
The unit of measure for volume or mass loss. Can be a volume ratio (m3/m3, %, etc.) or a mass ratio (kg/kg, %, etc.). The choice depends on whether volume change or mass change is being measured.
Source

<element minOccurs="0" name="syneresisDesign" type="diggs:VolumeOrMassLossMeasureType">
  <annotation>
    <documentation>Design value for grout syneresis.</documentation>
  </annotation>
</element>

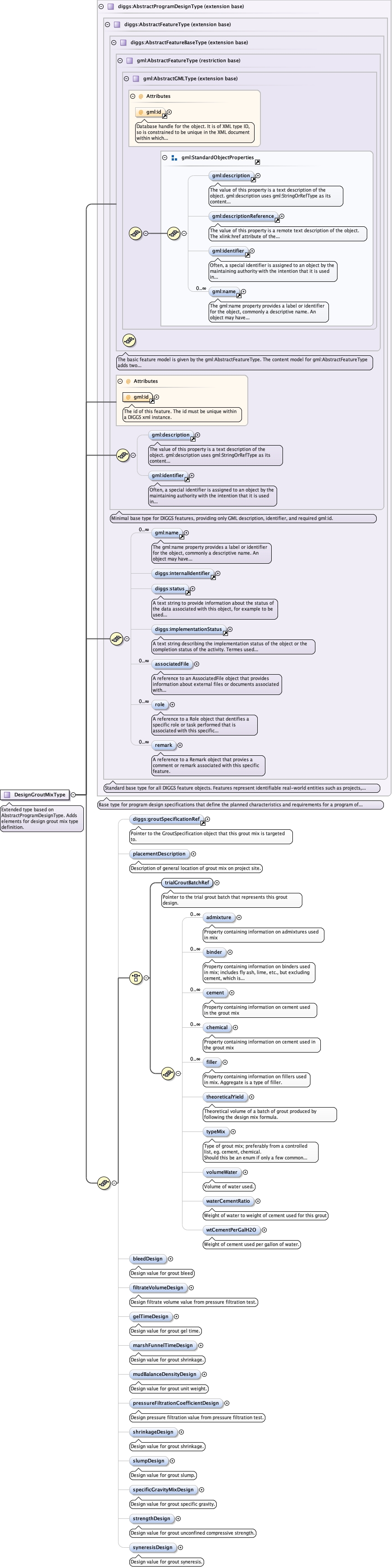

Complex Type diggs:DesignGroutMixType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractProgramDesignType. Adds elements for design grout mix type definition.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramDesignType.tmp#AbstractProgramDesignTypeGrouting_xsd_Element_diggs_groutSpecificationRef.tmp#groutSpecificationRefGrouting_xsd_Complex_Type_diggs_DesignGroutMixType.tmp#DesignGroutMixType_placementDescriptionGrouting_xsd_Complex_Type_diggs_DesignGroutMixType.tmp#DesignGroutMixType_trialGroutBatchRefGrouting_xsd_Complex_Type_diggs_DesignGroutMixType.tmp#DesignGroutMixType_admixtureGrouting_xsd_Complex_Type_diggs_DesignGroutMixType.tmp#DesignGroutMixType_binderGrouting_xsd_Complex_Type_diggs_DesignGroutMixType.tmp#DesignGroutMixType_cementGrouting_xsd_Complex_Type_diggs_DesignGroutMixType.tmp#DesignGroutMixType_chemicalGrouting_xsd_Complex_Type_diggs_DesignGroutMixType.tmp#DesignGroutMixType_fillerGrouting_xsd_Complex_Type_diggs_DesignGroutMixType.tmp#DesignGroutMixType_theoreticalYieldGrouting_xsd_Complex_Type_diggs_DesignGroutMixType.tmp#DesignGroutMixType_typeMixGrouting_xsd_Complex_Type_diggs_DesignGroutMixType.tmp#DesignGroutMixType_volumeWaterGrouting_xsd_Complex_Type_diggs_DesignGroutMixType.tmp#DesignGroutMixType_waterCementRatioGrouting_xsd_Complex_Type_diggs_DesignGroutMixType.tmp#DesignGroutMixType_wtCementPerGalH2OGrouting_xsd_Complex_Type_diggs_DesignGroutMixType.tmp#DesignGroutMixType_bleedDesignGrouting_xsd_Complex_Type_diggs_DesignGroutMixType.tmp#DesignGroutMixType_filtrateVolumeDesignGrouting_xsd_Complex_Type_diggs_DesignGroutMixType.tmp#DesignGroutMixType_gelTimeDesignGrouting_xsd_Complex_Type_diggs_DesignGroutMixType.tmp#DesignGroutMixType_marshFunnelTimeDesignGrouting_xsd_Complex_Type_diggs_DesignGroutMixType.tmp#DesignGroutMixType_mudBalanceDensityDesignGrouting_xsd_Complex_Type_diggs_DesignGroutMixType.tmp#DesignGroutMixType_pressureFiltrationCoefficientDesignGrouting_xsd_Complex_Type_diggs_DesignGroutMixType.tmp#DesignGroutMixType_shrinkageDesignGrouting_xsd_Complex_Type_diggs_DesignGroutMixType.tmp#DesignGroutMixType_slumpDesignGrouting_xsd_Complex_Type_diggs_DesignGroutMixType.tmp#DesignGroutMixType_specificGravityMixDesignGrouting_xsd_Complex_Type_diggs_DesignGroutMixType.tmp#DesignGroutMixType_strengthDesignGrouting_xsd_Complex_Type_diggs_DesignGroutMixType.tmp#DesignGroutMixType_syneresisDesign
Type extension of diggs:AbstractProgramDesignType
Type hierarchy
Used by
Model
Children diggs:admixture, diggs:associatedFile, diggs:binder, diggs:bleedDesign, diggs:cement, diggs:chemical, diggs:filler, diggs:filtrateVolumeDesign, diggs:gelTimeDesign, diggs:groutSpecificationRef, diggs:implementationStatus, diggs:internalIdentifier, diggs:marshFunnelTimeDesign, diggs:mudBalanceDensityDesign, diggs:placementDescription, diggs:pressureFiltrationCoefficientDesign, diggs:remark, diggs:role, diggs:shrinkageDesign, diggs:slumpDesign, diggs:specificGravityMixDesign, diggs:status, diggs:strengthDesign, diggs:syneresisDesign, diggs:theoreticalYield, diggs:trialGroutBatchRef, diggs:typeMix, diggs:volumeWater, diggs:waterCementRatio, diggs:wtCementPerGalH2O, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="DesignGroutMixType">
  <annotation>
    <documentation>Extended type based on AbstractProgramDesignType. Adds elements for design grout mix type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractProgramDesignType">
      <sequence>
        <element minOccurs="0" ref="diggs:groutSpecificationRef">
          <annotation>
            <appinfo>diggs:GroutSpecification</appinfo>
            <documentation>Pointer to the GroutSpecification object that this grout mix is targeted to.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="placementDescription" type="string">
          <annotation>
            <documentation>Description of general location of grout mix on project site.</documentation>
          </annotation>
        </element>
        <choice>
          <element minOccurs="1" name="trialGroutBatchRef" type="diggs:FeatureReferenceType">
            <annotation>
              <appinfo>diggs:TrialGroutBatch</appinfo>
              <documentation>Pointer to the trial grout batch that represents this grout design.</documentation>
            </annotation>
          </element>
          <sequence>
            <element minOccurs="0" name="admixture" type="diggs:AdmixturePropertyType" maxOccurs="unbounded">
              <annotation>
                <documentation>Property containing information on admixtures used in mix</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="binder" type="diggs:BinderPropertyType" maxOccurs="unbounded">
              <annotation>
                <documentation>Property containing information on binders used in mix; includes fly ash, lime, etc., but excluding cement, which is recorded in its own component property</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="cement" type="diggs:CementPropertyType" maxOccurs="unbounded">
              <annotation>
                <documentation>Property containing information on cement used in the grout mix</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="chemical" type="diggs:ChemicalPropertyType" maxOccurs="unbounded">
              <annotation>
                <documentation>Property containing information on cement used in the grout mix</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="filler" type="diggs:FillerPropertyType" maxOccurs="unbounded">
              <annotation>
                <documentation>Property containing information on fillers used in mix. Aggregate is a type of filler.</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="theoreticalYield" type="diggs:VolumeMeasureType">
              <annotation>
                <documentation>Theoretical volume of a batch of grout produced by following the design mix formula.</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="typeMix" type="gml:CodeType">
              <annotation>
                <documentation>Type of grout mix; preferably from a controlled list, eg. cement, chemical.</documentation>
                <documentation>Should this be an enum if only a few common choices?</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="volumeWater" type="diggs:VolumeMeasureType">
              <annotation>
                <documentation>Volume of water used.</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="waterCementRatio" type="diggs:MassPerMassMeasureType">
              <annotation>
                <documentation>Weight of water to weight of cement used for this grout</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="wtCementPerGalH2O" type="diggs:ForceMeasureType">
              <annotation>
                <documentation>Weight of cement used per gallon of water.</documentation>
              </annotation>
            </element>
          </sequence>
        </choice>
        <element minOccurs="0" name="bleedDesign" type="diggs:VolumePerVolumeMeasureType">
          <annotation>
            <documentation>Design value for grout bleed</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="filtrateVolumeDesign" type="diggs:VolumeMeasureType">
          <annotation>
            <documentation>Design filtrate volume value from pressure filtration test.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="gelTimeDesign" type="diggs:TimeMeasureType">
          <annotation>
            <documentation>Design value for grout gel time.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="marshFunnelTimeDesign" type="diggs:TimeMeasureType">
          <annotation>
            <documentation>Design value for grout shrinkage.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="mudBalanceDensityDesign" type="diggs:DensityOrUnitWeightMeasureType">
          <annotation>
            <documentation>Design value for grout unit weight.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pressureFiltrationCoefficientDesign" type="diggs:ReciprocalSquareRootTimeMeasureType">
          <annotation>
            <documentation>Design pressure filtration value from pressure filtration test.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="shrinkageDesign" type="diggs:VolumePerVolumeMeasureType">
          <annotation>
            <documentation>Design value for grout shrinkage.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="slumpDesign" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Design value for grout slump.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="specificGravityMixDesign" type="diggs:SpecificGravityMeasureType">
          <annotation>
            <documentation>Design value for grout specific gravity.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="strengthDesign" type="diggs:PressureMeasureType">
          <annotation>
            <documentation>Design value for grout unconfined compressive strength.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="syneresisDesign" type="diggs:VolumeOrMassLossMeasureType">
          <annotation>
            <documentation>Design value for grout syneresis.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
