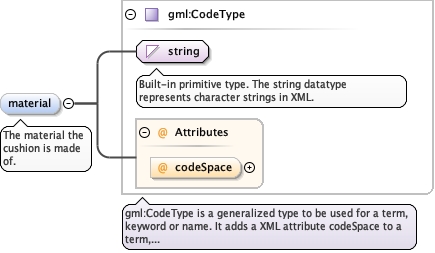

Element diggs:CushionElementType / diggs:material
Namespace http://diggsml.org/schemas/3
Annotations

The material the cushion is made of.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="material" type="gml:CodeType">
  <annotation>
    <documentation>The material the cushion is made of.</documentation>
  </annotation>
</element>
Element diggs:CushionElementType / diggs:noLayers
Namespace http://diggsml.org/schemas/3
Annotations

The number of layers of this element in the
cushion.
Diagram
Diagram
Type integer
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="noLayers" type="integer">
  <annotation>
    <documentation>The number of layers of this element in the cushion.</documentation>
  </annotation>
</element>

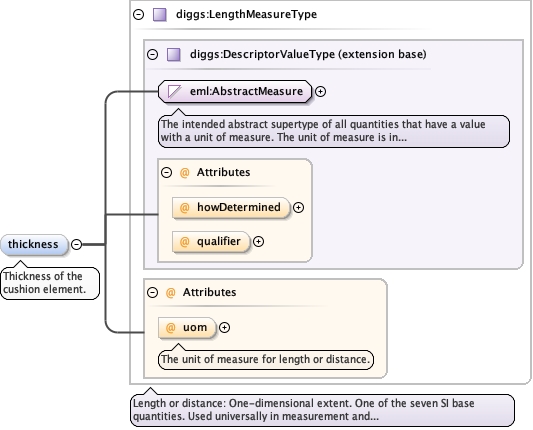

Element diggs:CushionElementType / diggs:thickness
Namespace http://diggsml.org/schemas/3
Annotations

Thickness of the cushion element.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="thickness" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Thickness of the cushion element.</documentation>
  </annotation>
</element>

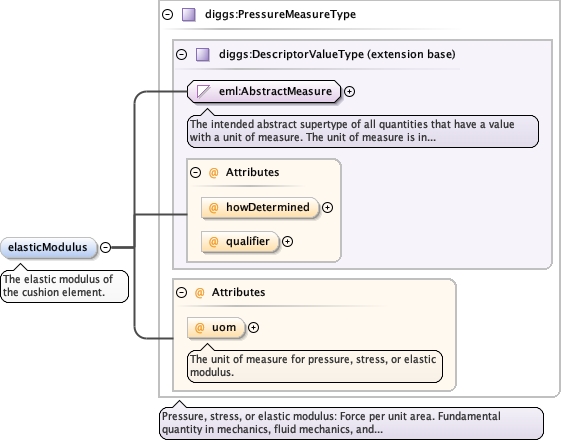

Element diggs:CushionElementType / diggs:elasticModulus
Namespace http://diggsml.org/schemas/3
Annotations

The elastic modulus of the cushion
element.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element minOccurs="0" name="elasticModulus" type="diggs:PressureMeasureType">
  <annotation>
    <documentation>The elastic modulus of the cushion element.</documentation>
  </annotation>
</element>

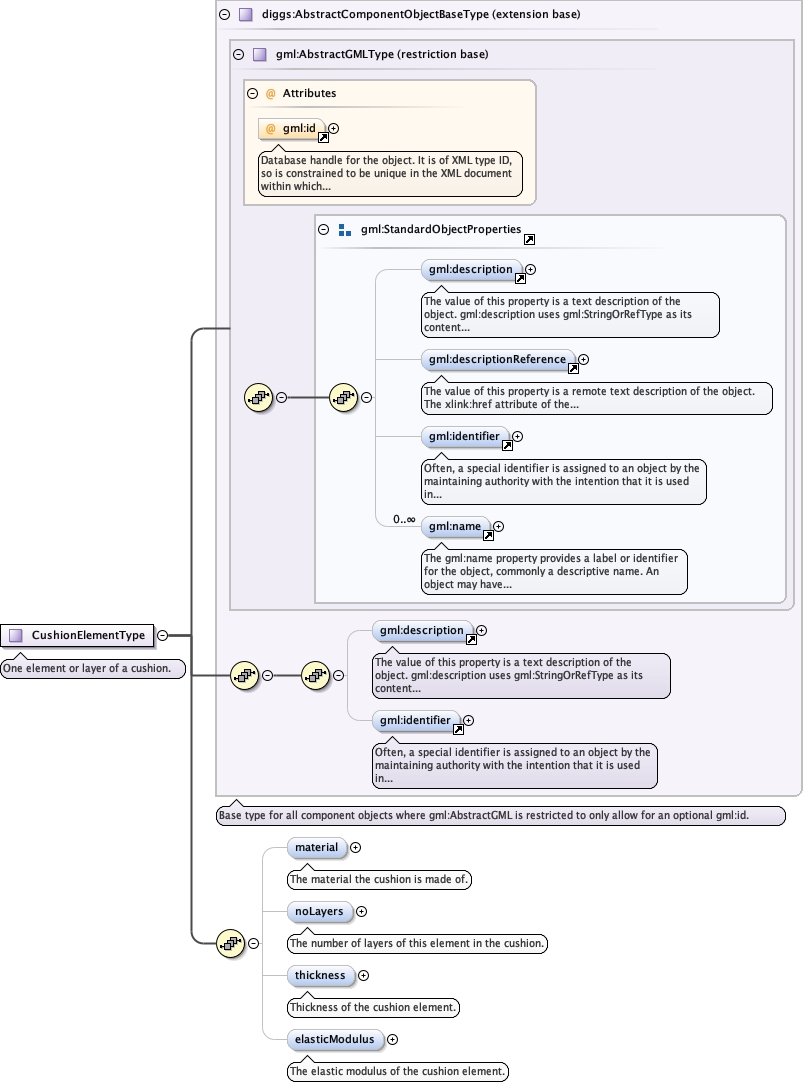

Complex Type diggs:CushionElementType
Namespace http://diggsml.org/schemas/3
Annotations

One element or layer of a cushion.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeDeepFoundation_xsd_Complex_Type_diggs_CushionElementType.tmp#CushionElementType_materialDeepFoundation_xsd_Complex_Type_diggs_CushionElementType.tmp#CushionElementType_noLayersDeepFoundation_xsd_Complex_Type_diggs_CushionElementType.tmp#CushionElementType_thicknessDeepFoundation_xsd_Complex_Type_diggs_CushionElementType.tmp#CushionElementType_elasticModulus
Type extension of diggs:AbstractComponentObjectBaseType
Type hierarchy
Used by
Model
Children diggs:elasticModulus, diggs:material, diggs:noLayers, diggs:thickness, gml:description, gml:identifier
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="CushionElementType">
  <annotation>
    <documentation>One element or layer of a cushion.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractComponentObjectBaseType">
      <sequence>
        <element minOccurs="0" name="material" type="gml:CodeType">
          <annotation>
            <documentation>The material the cushion is made of.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="noLayers" type="integer">
          <annotation>
            <documentation>The number of layers of this element in the cushion.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="thickness" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Thickness of the cushion element.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="elasticModulus" type="diggs:PressureMeasureType">
          <annotation>
            <documentation>The elastic modulus of the cushion element.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
