Complex Type diggs:AbstractComponentObjectBaseType

Namespace

http://diggsml.org/schemas/3

Annotations

Base type for all component objects where gml:AbstractGML is restricted to only allow for an optional gml:id.

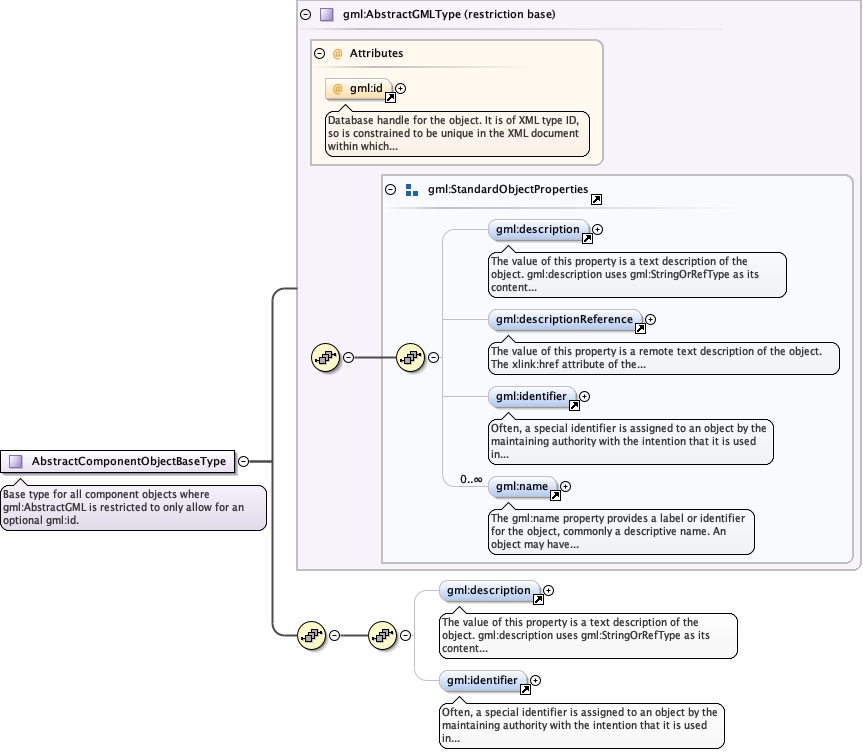

Diagram

Type

restriction of gml:AbstractGMLType

Type hierarchy

gml:AbstractGMLType
- diggs:AbstractComponentObjectBaseType

Properties

abstract

true

Used by

Complex Types

diggs:AbstractComponentObjectType, diggs:AbstractPDAInfoType, diggs:AxisLocationType, diggs:ColorComponentsType, diggs:ComponentPropertiesType, diggs:ConfigurationType, diggs:ConstituentType, diggs:CushionElementType, diggs:CutoffWallSectionDepthType, diggs:DocumentInformationType, diggs:DriveSetType, diggs:EnvironmentType, diggs:FrostHeaveTrialType, diggs:GP_LocationType, diggs:LaboratoryTestEventType, diggs:LastBlowsDataType, diggs:LithPropertiesType, diggs:OffsetParametersType, diggs:ParameterType, diggs:ParticleSizeDistributionType, diggs:PlacedObservationType, diggs:PlatformMovementType, diggs:PlatformType, diggs:PropertyType, diggs:ReceiverInfoType, diggs:SampleDimensionsType, diggs:SensorSpacingType, diggs:SourceInfoType, diggs:SpliceType, diggs:StrikerPlateType, diggs:TaperType, diggs_geo:DriveSetType

Model

gml:description{0,1} , gml:identifier{0,1}

Children

gml:description, gml:identifier

Attributes

QName

Type

Use

Annotation

gml:id

optional

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

Source

<complexType name="AbstractComponentObjectBaseType" abstract="true">
  <annotation>
    <documentation>Base type for all component objects where gml:AbstractGML is restricted to only allow for an optional gml:id.</documentation>
  </annotation>
  <complexContent>
    <restriction base="gml:AbstractGMLType">
      <sequence>
        <sequence>
          <element minOccurs="0" ref="gml:description"/>
          <element minOccurs="0" ref="gml:identifier"/>
        </sequence>
      </sequence>
    </restriction>
  </complexContent>
</complexType>
