Element diggs:LineLossDataType / diggs:flowRate
Namespace http://diggsml.org/schemas/3
Annotations

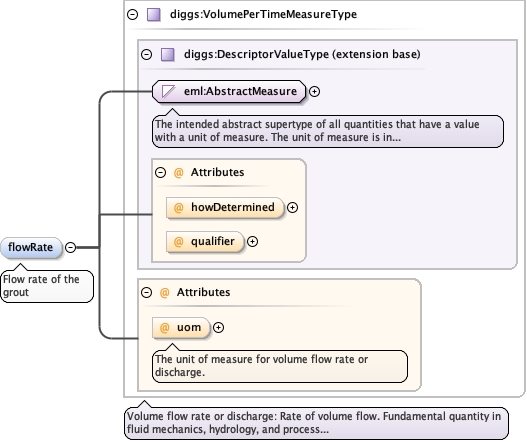

Flow rate of the grout
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimeMeasureType.tmp#VolumePerTimeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimeMeasureType.tmp#VolumePerTimeMeasureType
Type diggs:VolumePerTimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerTimeUomEnumType optional
The unit of measure for volume flow rate or discharge.
Source

<element name="flowRate" type="diggs:VolumePerTimeMeasureType" minOccurs="0">
  <annotation>
    <documentation>Flow rate of the grout</documentation>
  </annotation>
</element>
Element diggs:LineLossDataType / diggs:p1
Namespace http://diggsml.org/schemas/3
Annotations

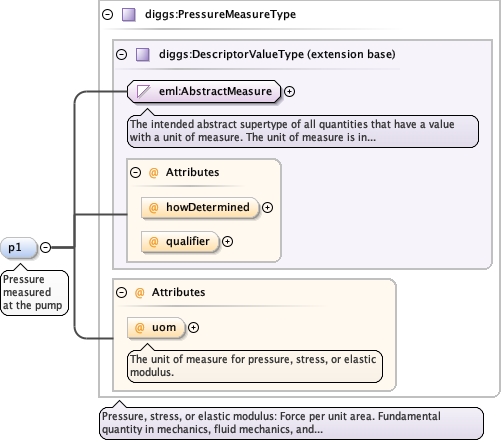

Pressure measured at the pump
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element minOccurs="0" name="p1" type="diggs:PressureMeasureType">
  <annotation>
    <documentation>Pressure measured at the pump</documentation>
  </annotation>
</element>
Element diggs:LineLossDataType / diggs:p2
Namespace http://diggsml.org/schemas/3
Annotations

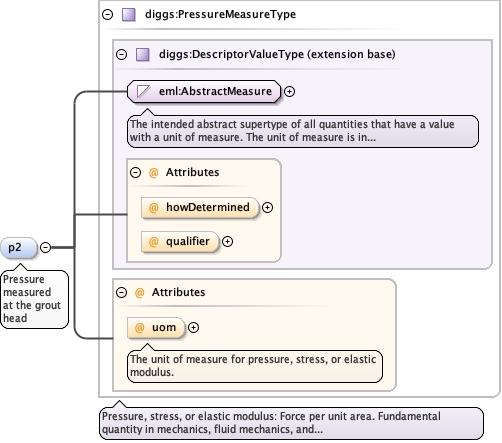

Pressure measured at the grout head
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element minOccurs="0" name="p2" type="diggs:PressureMeasureType">
  <annotation>
    <documentation>Pressure measured at the grout head</documentation>
  </annotation>
</element>
Element diggs:LineLossDataType / diggs:lineLoss
Namespace http://diggsml.org/schemas/3
Annotations

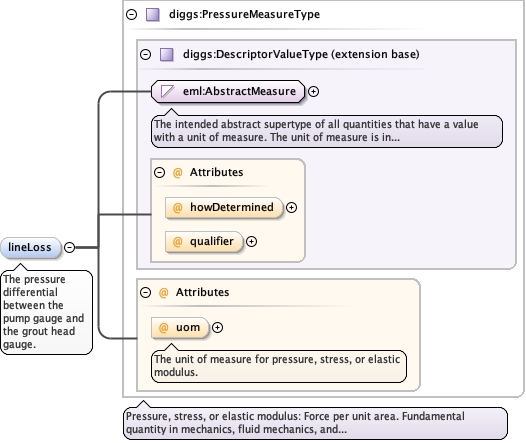

The pressure differential between the pump gauge and the
grout head gauge.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element name="lineLoss" type="diggs:PressureMeasureType" minOccurs="0">
  <annotation>
    <documentation>The pressure differential between the pump gauge and the grout head gauge.</documentation>
  </annotation>
</element>
Element diggs:LineLossDataType / diggs:lineLossNormalized
Namespace http://diggsml.org/schemas/3
Annotations

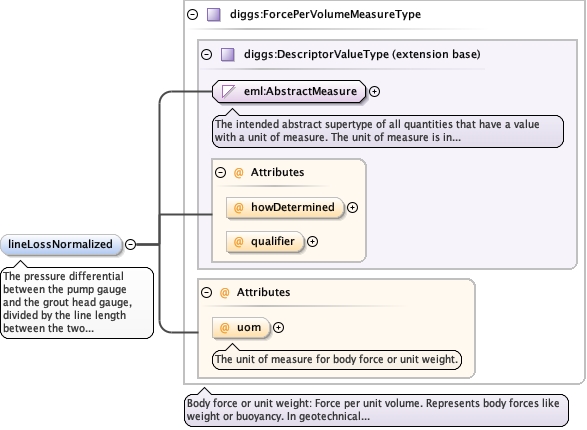

The pressure differential between the pump gauge and the
grout head gauge, divided by the line length between the two
gauges.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForcePerVolumeMeasureType.tmp#ForcePerVolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForcePerVolumeMeasureType.tmp#ForcePerVolumeMeasureType
Type diggs:ForcePerVolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForcePerVolumeUomEnumType optional
The unit of measure for body force or unit weight.
Source

<element name="lineLossNormalized" type="diggs:ForcePerVolumeMeasureType" minOccurs="0">
  <annotation>
    <documentation>The pressure differential between the pump gauge and the grout head gauge, divided by the line length between the two gauges.</documentation>
  </annotation>
</element>
Complex Type diggs:LineLossDataType
Namespace http://diggsml.org/schemas/3
Annotations

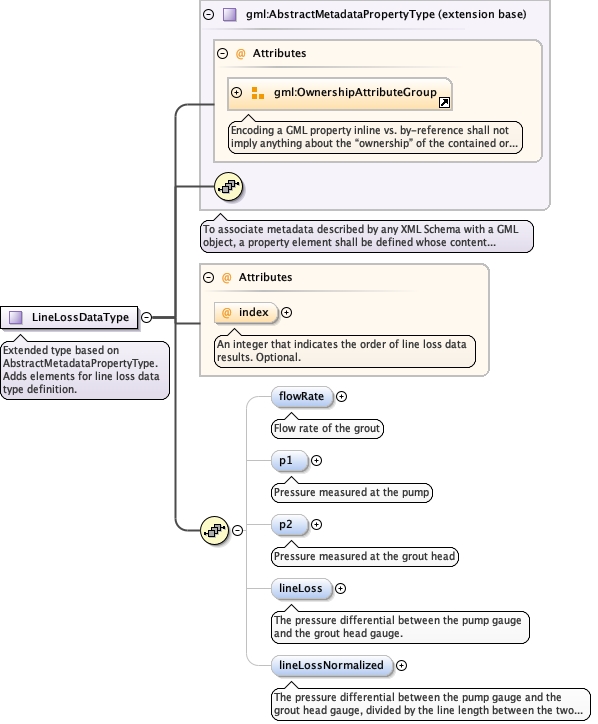

Extended type based on AbstractMetadataPropertyType. Adds elements for line loss data type definition.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractMetadataPropertyType.tmp#AbstractMetadataPropertyTypeGrouting_xsd_Complex_Type_diggs_LineLossDataType.tmp#LineLossDataType_indexGrouting_xsd_Complex_Type_diggs_LineLossDataType.tmp#LineLossDataType_flowRateGrouting_xsd_Complex_Type_diggs_LineLossDataType.tmp#LineLossDataType_p1Grouting_xsd_Complex_Type_diggs_LineLossDataType.tmp#LineLossDataType_p2Grouting_xsd_Complex_Type_diggs_LineLossDataType.tmp#LineLossDataType_lineLossGrouting_xsd_Complex_Type_diggs_LineLossDataType.tmp#LineLossDataType_lineLossNormalized
Type extension of gml:AbstractMetadataPropertyType
Type hierarchy
Used by
Model
Children diggs:flowRate, diggs:lineLoss, diggs:lineLossNormalized, diggs:p1, diggs:p2
Attributes
QName Type Default Use Annotation
index positiveInteger optional
An integer that indicates the order of line loss data results. Optional.
owns boolean false optional
Source

<complexType name="LineLossDataType">
  <annotation>
    <documentation>Extended type based on AbstractMetadataPropertyType. Adds elements for line loss data type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="gml:AbstractMetadataPropertyType">
      <sequence>
        <element name="flowRate" type="diggs:VolumePerTimeMeasureType" minOccurs="0">
          <annotation>
            <documentation>Flow rate of the grout</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="p1" type="diggs:PressureMeasureType">
          <annotation>
            <documentation>Pressure measured at the pump</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="p2" type="diggs:PressureMeasureType">
          <annotation>
            <documentation>Pressure measured at the grout head</documentation>
          </annotation>
        </element>
        <element name="lineLoss" type="diggs:PressureMeasureType" minOccurs="0">
          <annotation>
            <documentation>The pressure differential between the pump gauge and the grout head gauge.</documentation>
          </annotation>
        </element>
        <element name="lineLossNormalized" type="diggs:ForcePerVolumeMeasureType" minOccurs="0">
          <annotation>
            <documentation>The pressure differential between the pump gauge and the grout head gauge, divided by the line length between the two gauges.</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="index" type="positiveInteger" use="optional">
        <annotation>
          <documentation>An integer that indicates the order of line loss data results. Optional.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Attribute diggs:LineLossDataType / @index
Namespace No namespace
Annotations

An integer that indicates the order of line loss data results. Optional.
Type positiveInteger
Properties
use optional
Used by
Complex Type diggs:LineLossDataType
Source

<attribute name="index" type="positiveInteger" use="optional">
  <annotation>
    <documentation>An integer that indicates the order of line loss data results. Optional.</documentation>
  </annotation>
</attribute>
