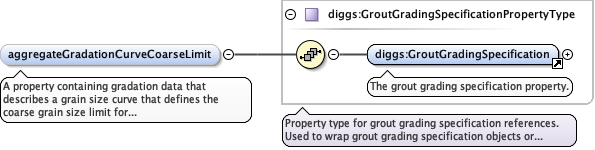

Element diggs:GroutSpecificationType / diggs:aggregateGradationCurveCoarseLimit
Namespace http://diggsml.org/schemas/3
Annotations

A property containing gradation data that describes a
grain size curve that defines the coarse grain size limit for grout
aggregate.
Diagram
DiagramGrouting_xsd_Element_diggs_GroutGradingSpecification.tmp#GroutGradingSpecificationGrouting_xsd_Complex_Type_diggs_GroutGradingSpecificationPropertyType.tmp#GroutGradingSpecificationPropertyType
Type diggs:GroutGradingSpecificationPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:GroutGradingSpecification
Instance

<diggs:aggregateGradationCurveCoarseLimit xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:GroutGradingSpecification gml:id="">{1,1}</diggs:GroutGradingSpecification>
</diggs:aggregateGradationCurveCoarseLimit>
Source

<element minOccurs="0" name="aggregateGradationCurveCoarseLimit" type="diggs:GroutGradingSpecificationPropertyType">
  <annotation>
    <documentation>A property containing gradation data that describes a grain size curve that defines the coarse grain size limit for grout aggregate.</documentation>
  </annotation>
</element>

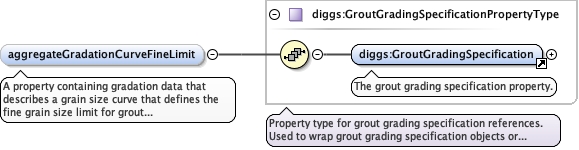

Element diggs:GroutSpecificationType / diggs:aggregateGradationCurveFineLimit
Namespace http://diggsml.org/schemas/3
Annotations

A property containing gradation data that describes a
grain size curve that defines the fine grain size limit for grout
aggregate.
Diagram
DiagramGrouting_xsd_Element_diggs_GroutGradingSpecification.tmp#GroutGradingSpecificationGrouting_xsd_Complex_Type_diggs_GroutGradingSpecificationPropertyType.tmp#GroutGradingSpecificationPropertyType
Type diggs:GroutGradingSpecificationPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:GroutGradingSpecification
Instance

<diggs:aggregateGradationCurveFineLimit xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:GroutGradingSpecification gml:id="">{1,1}</diggs:GroutGradingSpecification>
</diggs:aggregateGradationCurveFineLimit>
Source

<element minOccurs="0" name="aggregateGradationCurveFineLimit" type="diggs:GroutGradingSpecificationPropertyType">
  <annotation>
    <documentation>A property containing gradation data that describes a grain size curve that defines the fine grain size limit for grout aggregate.</documentation>
  </annotation>
</element>

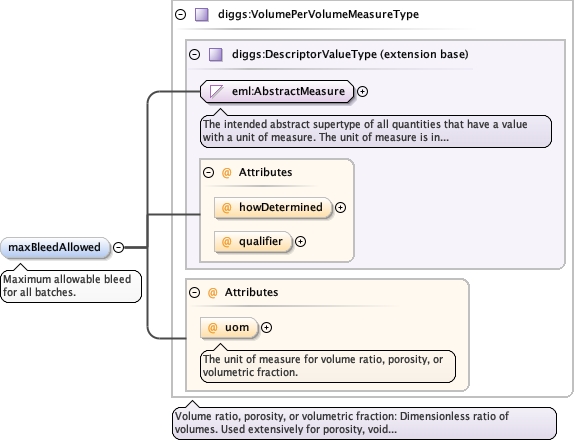

Element diggs:GroutSpecificationType / diggs:maxBleedAllowed
Namespace http://diggsml.org/schemas/3
Annotations

Maximum allowable bleed for all batches.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerVolumeMeasureType.tmp#VolumePerVolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumePerVolumeMeasureType.tmp#VolumePerVolumeMeasureType
Type diggs:VolumePerVolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerVolumeUomEnumType optional
The unit of measure for volume ratio, porosity, or volumetric fraction.
Source

<element minOccurs="0" name="maxBleedAllowed" type="diggs:VolumePerVolumeMeasureType">
  <annotation>
    <documentation>Maximum allowable bleed for all batches.</documentation>
  </annotation>
</element>

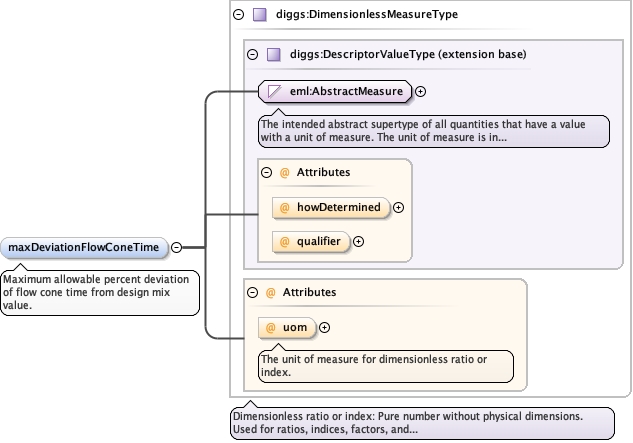

Element diggs:GroutSpecificationType / diggs:maxDeviationFlowConeTime
Namespace http://diggsml.org/schemas/3
Annotations

Maximum allowable percent deviation of flow cone time
from design mix value.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_DimensionlessMeasureType.tmp#DimensionlessMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_DimensionlessMeasureType.tmp#DimensionlessMeasureType
Type diggs:DimensionlessMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:DimensionlessUomEnumType optional
The unit of measure for dimensionless ratio or index.
Source

<element minOccurs="0" name="maxDeviationFlowConeTime" type="diggs:DimensionlessMeasureType">
  <annotation>
    <documentation>Maximum allowable percent deviation of flow cone time from design mix value.</documentation>
  </annotation>
</element>

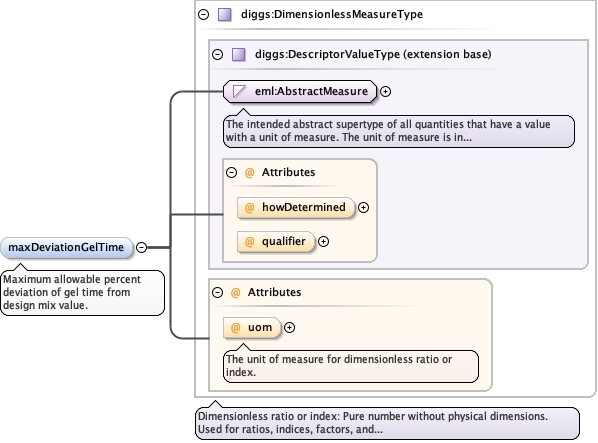

Element diggs:GroutSpecificationType / diggs:maxDeviationGelTime
Namespace http://diggsml.org/schemas/3
Annotations

Maximum allowable percent deviation of gel time from
design mix value.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_DimensionlessMeasureType.tmp#DimensionlessMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_DimensionlessMeasureType.tmp#DimensionlessMeasureType
Type diggs:DimensionlessMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:DimensionlessUomEnumType optional
The unit of measure for dimensionless ratio or index.
Source

<element minOccurs="0" name="maxDeviationGelTime" type="diggs:DimensionlessMeasureType">
  <annotation>
    <documentation>Maximum allowable percent deviation of gel time from design mix value.</documentation>
  </annotation>
</element>

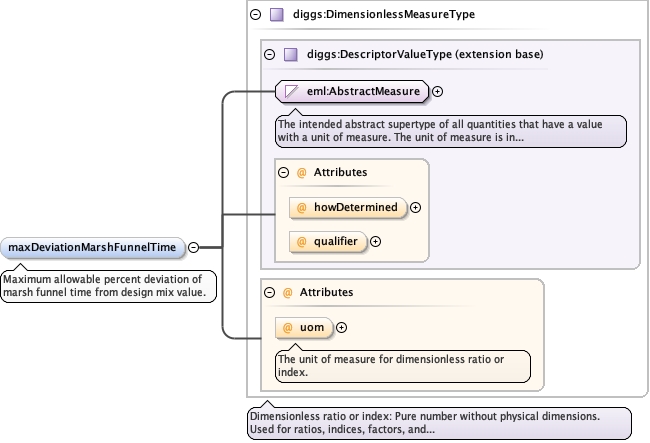

Element diggs:GroutSpecificationType / diggs:maxDeviationMarshFunnelTime
Namespace http://diggsml.org/schemas/3
Annotations

Maximum allowable percent deviation of marsh funnel time
from design mix value.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_DimensionlessMeasureType.tmp#DimensionlessMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_DimensionlessMeasureType.tmp#DimensionlessMeasureType
Type diggs:DimensionlessMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:DimensionlessUomEnumType optional
The unit of measure for dimensionless ratio or index.
Source

<element minOccurs="0" name="maxDeviationMarshFunnelTime" type="diggs:DimensionlessMeasureType">
  <annotation>
    <documentation>Maximum allowable percent deviation of marsh funnel time from design mix value.</documentation>
  </annotation>
</element>

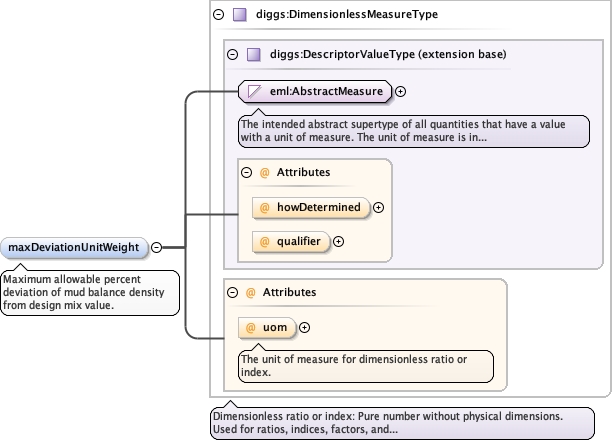

Element diggs:GroutSpecificationType / diggs:maxDeviationUnitWeight
Namespace http://diggsml.org/schemas/3
Annotations

Maximum allowable percent deviation of mud balance
density from design mix value.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_DimensionlessMeasureType.tmp#DimensionlessMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_DimensionlessMeasureType.tmp#DimensionlessMeasureType
Type diggs:DimensionlessMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:DimensionlessUomEnumType optional
The unit of measure for dimensionless ratio or index.
Source

<element minOccurs="0" name="maxDeviationUnitWeight" type="diggs:DimensionlessMeasureType">
  <annotation>
    <documentation>Maximum allowable percent deviation of mud balance density from design mix value.</documentation>
  </annotation>
</element>

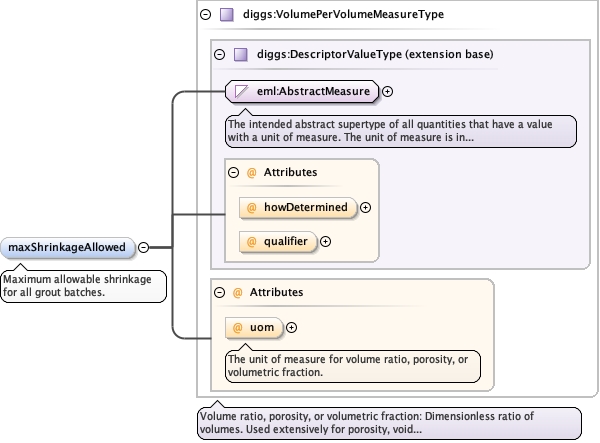

Element diggs:GroutSpecificationType / diggs:maxShrinkageAllowed
Namespace http://diggsml.org/schemas/3
Annotations

Maximum allowable shrinkage for all grout
batches.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerVolumeMeasureType.tmp#VolumePerVolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumePerVolumeMeasureType.tmp#VolumePerVolumeMeasureType
Type diggs:VolumePerVolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerVolumeUomEnumType optional
The unit of measure for volume ratio, porosity, or volumetric fraction.
Source

<element minOccurs="0" name="maxShrinkageAllowed" type="diggs:VolumePerVolumeMeasureType">
  <annotation>
    <documentation>Maximum allowable shrinkage for all grout batches.</documentation>
  </annotation>
</element>

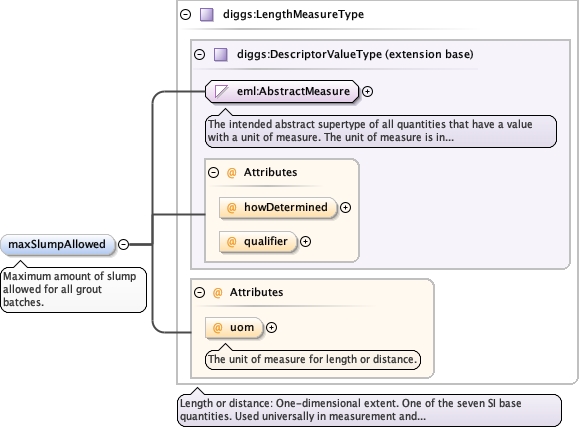

Element diggs:GroutSpecificationType / diggs:maxSlumpAllowed
Namespace http://diggsml.org/schemas/3
Annotations

Maximum amount of slump allowed for all grout
batches.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="maxSlumpAllowed" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Maximum amount of slump allowed for all grout batches.</documentation>
  </annotation>
</element>

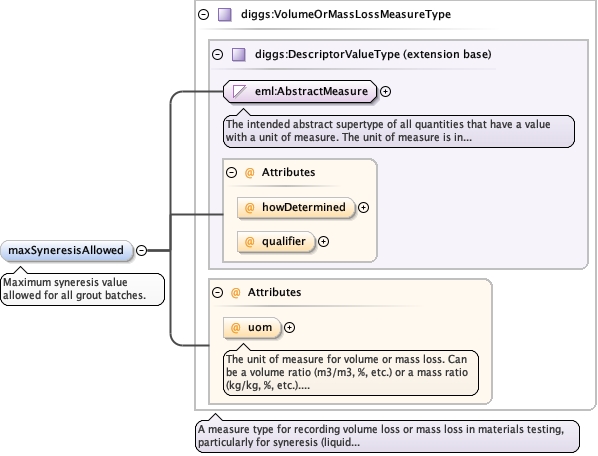

Element diggs:GroutSpecificationType / diggs:maxSyneresisAllowed
Namespace http://diggsml.org/schemas/3
Annotations

Maximum syneresis value allowed for all grout
batches.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumeOrMassLossMeasureType.tmp#VolumeOrMassLossMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumeOrMassLossMeasureType.tmp#VolumeOrMassLossMeasureType
Type diggs:VolumeOrMassLossMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:DiggsVolumeOrMassLossMeasureUomEnumType optional
The unit of measure for volume or mass loss. Can be a volume ratio (m3/m3, %, etc.) or a mass ratio (kg/kg, %, etc.). The choice depends on whether volume change or mass change is being measured.
Source

<element minOccurs="0" name="maxSyneresisAllowed" type="diggs:VolumeOrMassLossMeasureType">
  <annotation>
    <documentation>Maximum syneresis value allowed for all grout batches.</documentation>
  </annotation>
</element>
Element diggs:GroutSpecificationType / diggs:strengthAverage
Namespace http://diggsml.org/schemas/3
Annotations

Minimum average strength allowed for all grout
batches.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element minOccurs="0" name="strengthAverage" type="diggs:PressureMeasureType">
  <annotation>
    <documentation>Minimum average strength allowed for all grout batches.</documentation>
  </annotation>
</element>

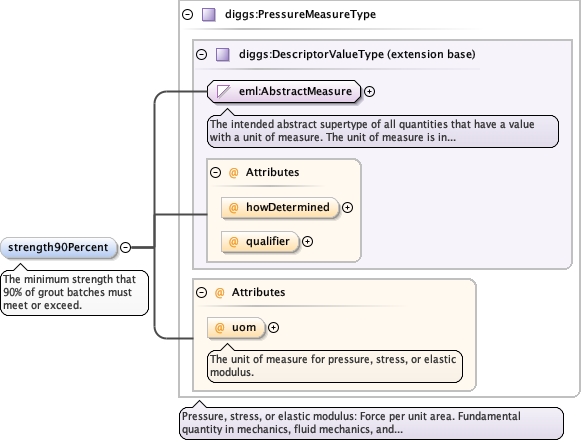

Element diggs:GroutSpecificationType / diggs:strength90Percent
Namespace http://diggsml.org/schemas/3
Annotations

The minimum strength that 90% of grout batches must meet
or exceed.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element minOccurs="0" name="strength90Percent" type="diggs:PressureMeasureType">
  <annotation>
    <documentation>The minimum strength that 90% of grout batches must meet or exceed.</documentation>
  </annotation>
</element>

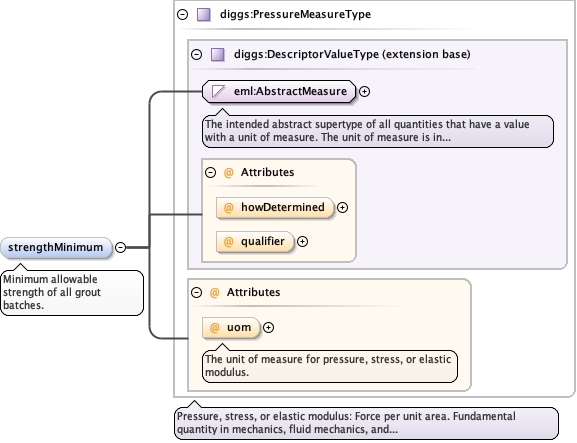

Element diggs:GroutSpecificationType / diggs:strengthMinimum
Namespace http://diggsml.org/schemas/3
Annotations

Minimum allowable strength of all grout
batches.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element minOccurs="0" name="strengthMinimum" type="diggs:PressureMeasureType">
  <annotation>
    <documentation>Minimum allowable strength of all grout batches.</documentation>
  </annotation>
</element>

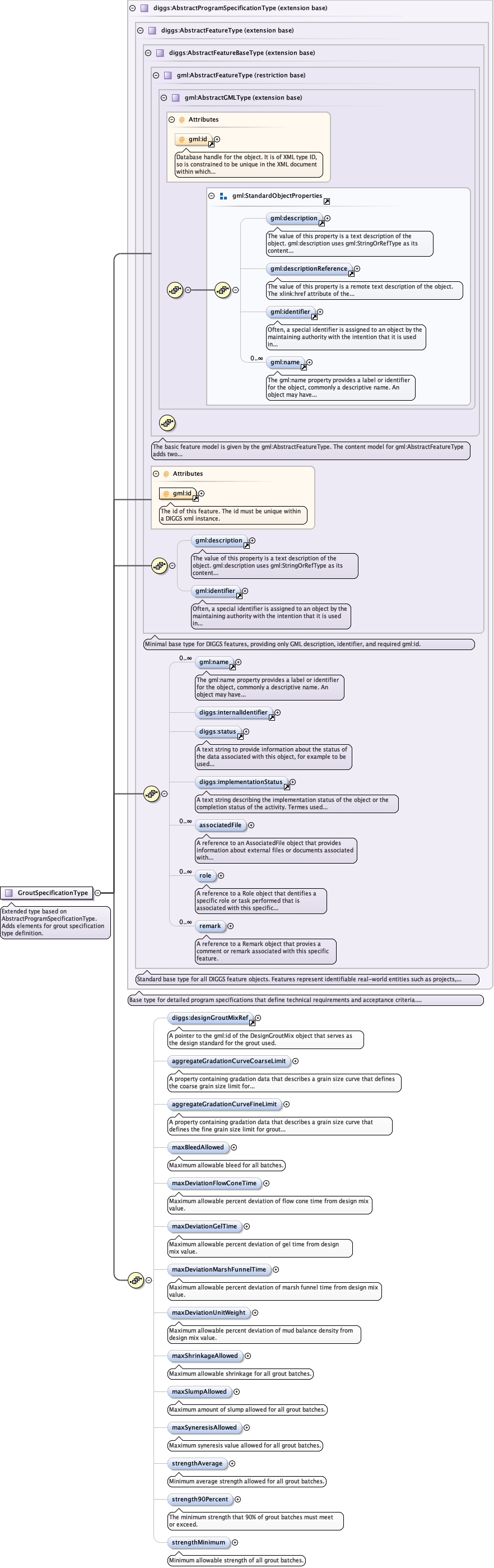

Complex Type diggs:GroutSpecificationType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractProgramSpecificationType. Adds elements for grout specification type definition.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramSpecificationType.tmp#AbstractProgramSpecificationTypeGrouting_xsd_Element_diggs_designGroutMixRef.tmp#designGroutMixRefGrouting_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_aggregateGradationCurveCoarseLimitGrouting_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_aggregateGradationCurveFineLimitGrouting_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_maxBleedAllowedGrouting_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_maxDeviationFlowConeTimeGrouting_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_maxDeviationGelTimeGrouting_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_maxDeviationMarshFunnelTimeGrouting_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_maxDeviationUnitWeightGrouting_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_maxShrinkageAllowedGrouting_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_maxSlumpAllowedGrouting_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_maxSyneresisAllowedGrouting_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_strengthAverageGrouting_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_strength90PercentGrouting_xsd_Complex_Type_diggs_GroutSpecificationType.tmp#GroutSpecificationType_strengthMinimum
Type extension of diggs:AbstractProgramSpecificationType
Type hierarchy
Used by
Model
Children diggs:aggregateGradationCurveCoarseLimit, diggs:aggregateGradationCurveFineLimit, diggs:associatedFile, diggs:designGroutMixRef, diggs:implementationStatus, diggs:internalIdentifier, diggs:maxBleedAllowed, diggs:maxDeviationFlowConeTime, diggs:maxDeviationGelTime, diggs:maxDeviationMarshFunnelTime, diggs:maxDeviationUnitWeight, diggs:maxShrinkageAllowed, diggs:maxSlumpAllowed, diggs:maxSyneresisAllowed, diggs:remark, diggs:role, diggs:status, diggs:strength90Percent, diggs:strengthAverage, diggs:strengthMinimum, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="GroutSpecificationType">
  <annotation>
    <documentation>Extended type based on AbstractProgramSpecificationType. Adds elements for grout specification type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractProgramSpecificationType">
      <sequence>
        <element minOccurs="0" ref="diggs:designGroutMixRef"/>
        <element minOccurs="0" name="aggregateGradationCurveCoarseLimit" type="diggs:GroutGradingSpecificationPropertyType">
          <annotation>
            <documentation>A property containing gradation data that describes a grain size curve that defines the coarse grain size limit for grout aggregate.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="aggregateGradationCurveFineLimit" type="diggs:GroutGradingSpecificationPropertyType">
          <annotation>
            <documentation>A property containing gradation data that describes a grain size curve that defines the fine grain size limit for grout aggregate.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="maxBleedAllowed" type="diggs:VolumePerVolumeMeasureType">
          <annotation>
            <documentation>Maximum allowable bleed for all batches.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="maxDeviationFlowConeTime" type="diggs:DimensionlessMeasureType">
          <annotation>
            <documentation>Maximum allowable percent deviation of flow cone time from design mix value.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="maxDeviationGelTime" type="diggs:DimensionlessMeasureType">
          <annotation>
            <documentation>Maximum allowable percent deviation of gel time from design mix value.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="maxDeviationMarshFunnelTime" type="diggs:DimensionlessMeasureType">
          <annotation>
            <documentation>Maximum allowable percent deviation of marsh funnel time from design mix value.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="maxDeviationUnitWeight" type="diggs:DimensionlessMeasureType">
          <annotation>
            <documentation>Maximum allowable percent deviation of mud balance density from design mix value.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="maxShrinkageAllowed" type="diggs:VolumePerVolumeMeasureType">
          <annotation>
            <documentation>Maximum allowable shrinkage for all grout batches.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="maxSlumpAllowed" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Maximum amount of slump allowed for all grout batches.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="maxSyneresisAllowed" type="diggs:VolumeOrMassLossMeasureType">
          <annotation>
            <documentation>Maximum syneresis value allowed for all grout batches.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="strengthAverage" type="diggs:PressureMeasureType">
          <annotation>
            <documentation>Minimum average strength allowed for all grout batches.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="strength90Percent" type="diggs:PressureMeasureType">
          <annotation>
            <documentation>The minimum strength that 90% of grout batches must meet or exceed.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="strengthMinimum" type="diggs:PressureMeasureType">
          <annotation>
            <documentation>Minimum allowable strength of all grout batches.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
