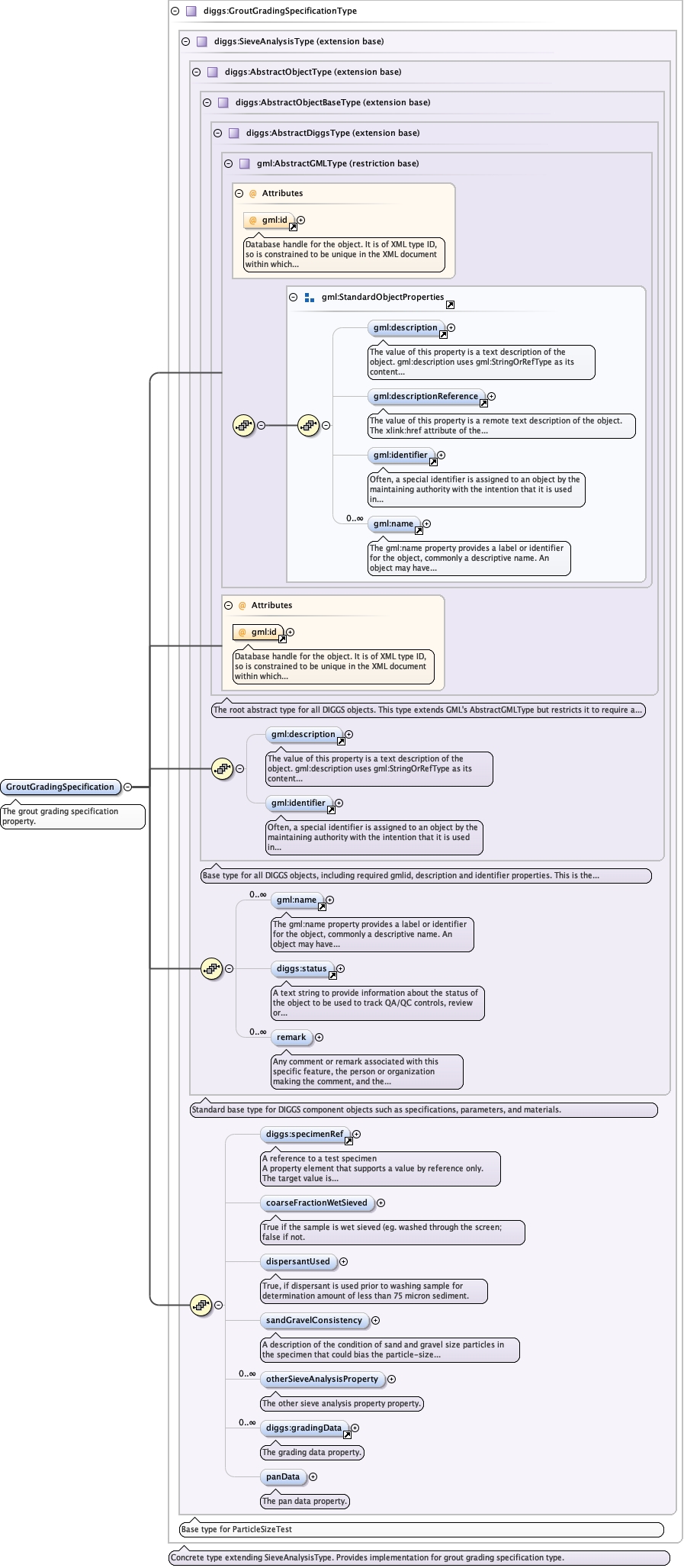

Schema documentation for component diggs:GroutGradingSpecification

<diggs:GroutGradingSpecification gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:specimenRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:specimenRef>
  <diggs:coarseFractionWetSieved>{0,1}</diggs:coarseFractionWetSieved>
  <diggs:dispersantUsed>{0,1}</diggs:dispersantUsed>
  <diggs:sandGravelConsistency codeSpace="">{0,1}</diggs:sandGravelConsistency>
  <diggs:otherSieveAnalysisProperty>{0,unbounded}</diggs:otherSieveAnalysisProperty>
  <diggs:gradingData>{0,unbounded}</diggs:gradingData>
  <diggs:panData>{0,1}</diggs:panData>
</diggs:GroutGradingSpecification>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="GroutGradingSpecification" type="diggs:GroutGradingSpecificationType"> <annotation> <documentation>The grout grading specification property.</documentation> </annotation> </element>
