Namespace http://diggsml.org/schemas/3
Annotations
The area of the site treated by a rigid inclusion system: the ground improvement
footprint that includes the rigid columns and may extend beyond an associated
foundation or embankment. Although its featureExtent inherits from
AbstractPlanarSamplingFeature and so may be any surface geometry, it is typically a
PlanarSurface in a 2D CRS, since the elevation of the footprint is of no relevance.

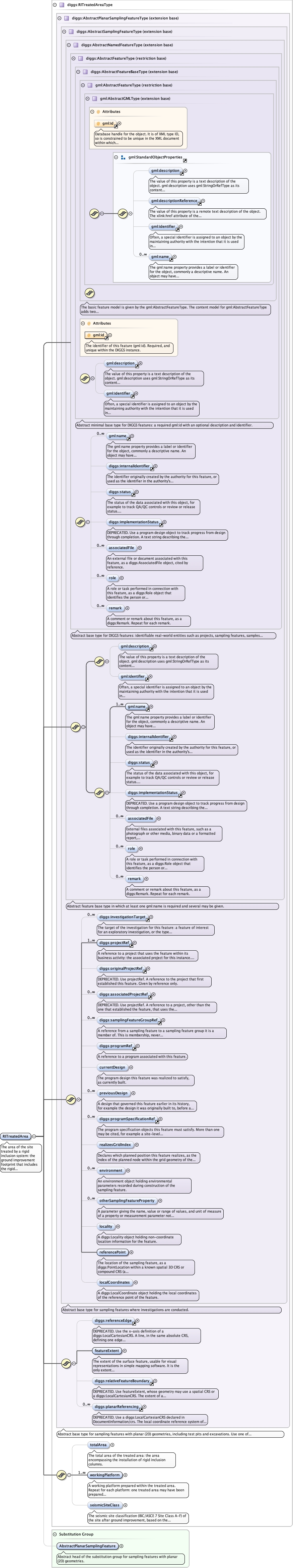

Diagram
Type diggs:RITreatedAreaType
Type hierarchy
Properties
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name+ ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:investigationTarget* ,
diggs:projectRef+ ,
diggs:originalProjectRef{0,1} ,
diggs:associatedProjectRef* ,
diggs:samplingFeatureGroupRef* ,
diggs:programRef{0,1} ,
diggs:currentDesign{0,1} ,
diggs:previousDesign* ,
diggs:programSpecificationRef* ,
diggs:realizesGridIndex{0,1} ,
diggs:environment* ,
diggs:otherSamplingFeatureProperty* ,
diggs:locality{0,1} ,
diggs:referencePoint ,
diggs:localCoordinates{0,1} ,
diggs:referenceEdge{0,1} ,
diggs:featureExtent ,
diggs:relativeFeatureBoundary{0,1} ,
diggs:planarReferencing* ,
diggs:totalArea{0,1} ,
diggs:workingPlatform+ ,
diggs:seismicSiteClass{0,1}
Children diggs:associatedFile diggs:associatedProjectRef diggs:currentDesign diggs:environment diggs:featureExtent diggs:implementationStatus diggs:internalIdentifier diggs:investigationTarget diggs:localCoordinates diggs:locality diggs:originalProjectRef diggs:otherSamplingFeatureProperty diggs:planarReferencing diggs:previousDesign diggs:programRef diggs:programSpecificationRef diggs:projectRef diggs:realizesGridIndex diggs:referenceEdge diggs:referencePoint diggs:relativeFeatureBoundary diggs:remark diggs:role diggs:samplingFeatureGroupRef diggs:seismicSiteClass diggs:status diggs:totalArea diggs:workingPlatform gml:description gml:identifier gml:name
Instance
<diggs:RITreatedArea gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:href= "" nilReason= "" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {1,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:investigationTarget > {0,unbounded} </diggs:investigationTarget>
<diggs:projectRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {1,unbounded} </diggs:projectRef>
<diggs:originalProjectRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,1} </diggs:originalProjectRef>
<diggs:associatedProjectRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:associatedProjectRef>
<diggs:samplingFeatureGroupRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:samplingFeatureGroupRef>
<diggs:programRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,1} </diggs:programRef>
<diggs:currentDesign xlink:href= "" nilReason= "" owns= "false" > {0,1} </diggs:currentDesign>
<diggs:previousDesign xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:previousDesign>
<diggs:programSpecificationRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:programSpecificationRef>
<diggs:realizesGridIndex dimension= "2" > {0,1} </diggs:realizesGridIndex>
<diggs:environment xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:environment>
<diggs:otherSamplingFeatureProperty > {0,unbounded} </diggs:otherSamplingFeatureProperty>
<diggs:locality > {0,1} </diggs:locality>
<diggs:referencePoint owns= "false" xlink:href= "" nilReason= "" > {1,1} </diggs:referencePoint>
<diggs:localCoordinates > {0,1} </diggs:localCoordinates>
<diggs:referenceEdge owns= "false" xlink:href= "" nilReason= "" > {0,1} </diggs:referenceEdge>
<diggs:featureExtent owns= "false" xlink:href= "" nilReason= "" > {1,1} </diggs:featureExtent>
<diggs:relativeFeatureBoundary owns= "false" xlink:href= "" nilReason= "" > {0,1} </diggs:relativeFeatureBoundary>
<diggs:planarReferencing xlink:href= "" nilReason= "" > {0,unbounded} </diggs:planarReferencing>
<diggs:totalArea howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:totalArea>
<diggs:workingPlatform > {1,unbounded} </diggs:workingPlatform>
<diggs:seismicSiteClass > {0,1} </diggs:seismicSiteClass>
</diggs:RITreatedArea>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element name= "RITreatedArea" type= "diggs:RITreatedAreaType" substitutionGroup= "diggs:AbstractPlanarSamplingFeature" >
<annotation >
<documentation > The area of the site treated by a rigid inclusion system: the ground improvement footprint that includes the rigid columns and may extend beyond an associated foundation or embankment. Although its featureExtent inherits from AbstractPlanarSamplingFeature and so may be any surface geometry, it is typically a PlanarSurface in a 2D CRS, since the elevation of the footprint is of no relevance. </documentation>
</annotation>
</element>
