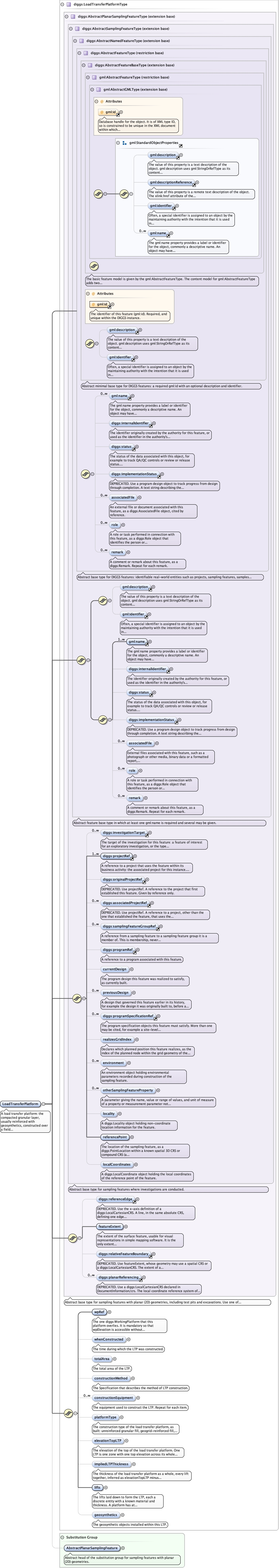

Schema documentation for component diggs:LoadTransferPlatform

A load transfer platform: the compacted granular layer, usually reinforced with geosynthetics, constructed over a field of rigid inclusions to distribute structural loads onto the column heads. It is a planar sampling feature, not an installation, because it is constructed over the columns as a distinct layer rather than within the rigid inclusion system. It cites the system it belongs to, as a statement of membership, through the inherited optional diggs:samplingFeatureGroupRef. The rigid inclusions beneath a platform are not enumerated here: each column cites its platform through diggs:RIColumnType/ltpRef. Where ltpRef is absent, membership falls back to testing the column's referencePoint against the featureExtent of the platform, which is an inference rather than a statement.

<diggs:LoadTransferPlatform gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{1,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:investigationTarget>{0,unbounded}</diggs:investigationTarget>
  <diggs:projectRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:projectRef>
  <diggs:originalProjectRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:originalProjectRef>
  <diggs:associatedProjectRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:associatedProjectRef>
  <diggs:samplingFeatureGroupRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:samplingFeatureGroupRef>
  <diggs:programRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:programRef>
  <diggs:currentDesign xlink:href="" nilReason="" owns="false">{0,1}</diggs:currentDesign>
  <diggs:previousDesign xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:previousDesign>
  <diggs:programSpecificationRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:programSpecificationRef>
  <diggs:realizesGridIndex dimension="2">{0,1}</diggs:realizesGridIndex>
  <diggs:environment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:environment>
  <diggs:otherSamplingFeatureProperty>{0,unbounded}</diggs:otherSamplingFeatureProperty>
  <diggs:locality>{0,1}</diggs:locality>
  <diggs:referencePoint owns="false" xlink:href="" nilReason="">{1,1}</diggs:referencePoint>
  <diggs:localCoordinates>{0,1}</diggs:localCoordinates>
  <diggs:referenceEdge owns="false" xlink:href="" nilReason="">{0,1}</diggs:referenceEdge>
  <diggs:featureExtent owns="false" xlink:href="" nilReason="">{1,1}</diggs:featureExtent>
  <diggs:relativeFeatureBoundary owns="false" xlink:href="" nilReason="">{0,1}</diggs:relativeFeatureBoundary>
  <diggs:planarReferencing xlink:href="" nilReason="">{0,unbounded}</diggs:planarReferencing>
  <diggs:wpRef xlink:href="" nilReason="" owns="false">{1,1}</diggs:wpRef>
  <diggs:whenConstructed>{0,1}</diggs:whenConstructed>
  <diggs:totalArea howDetermined="" qualifier="" uom="">{0,1}</diggs:totalArea>
  <diggs:constructionMethod xlink:href="" nilReason="" owns="false">{0,1}</diggs:constructionMethod>
  <diggs:constructionEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:constructionEquipment>
  <diggs:platformType>{0,1}</diggs:platformType>
  <diggs:elevationTopLTP owns="false" xlink:href="" nilReason="">{0,1}</diggs:elevationTopLTP>
  <diggs:impliedLTPThickness howDetermined="" qualifier="" uom="">{0,1}</diggs:impliedLTPThickness>
  <diggs:lifts>{1,1}</diggs:lifts>
  <diggs:geosynthetics>{0,1}</diggs:geosynthetics>
</diggs:LoadTransferPlatform>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="LoadTransferPlatform" type="diggs:LoadTransferPlatformType" substitutionGroup="diggs:AbstractPlanarSamplingFeature"> <annotation> <documentation>A load transfer platform: the compacted granular layer, usually reinforced with geosynthetics, constructed over a field of rigid inclusions to distribute structural loads onto the column heads. It is a planar sampling feature, not an installation, because it is constructed over the columns as a distinct layer rather than within the rigid inclusion system. It cites the system it belongs to, as a statement of membership, through the inherited optional diggs:samplingFeatureGroupRef. The rigid inclusions beneath a platform are not enumerated here: each column cites its platform through diggs:RIColumnType/ltpRef. Where ltpRef is absent, membership falls back to testing the column's referencePoint against the featureExtent of the platform, which is an inference rather than a statement.</documentation> </annotation> </element>
