Namespace http://diggsml.org/schemas/3
Annotations
A generic 2D sampling feature that represents a 2D sampling space. The featureExtent
can be a PlanarSurface (simple cross-sections or maps), where the surface is
entirely coplanar, or a MultiPlanarSurface, where the surface consists of several
coplanar patches (dog-leg sections or non-coplanar surfaces).

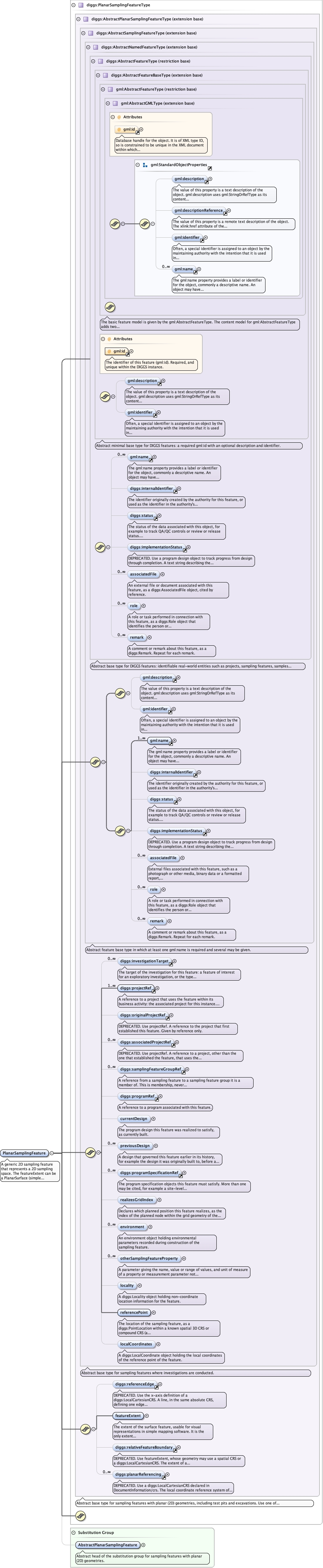

Diagram
Type diggs:PlanarSamplingFeatureType
Type hierarchy
Properties
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name+ ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:investigationTarget* ,
diggs:projectRef+ ,
diggs:originalProjectRef{0,1} ,
diggs:associatedProjectRef* ,
diggs:samplingFeatureGroupRef* ,
diggs:programRef{0,1} ,
diggs:currentDesign{0,1} ,
diggs:previousDesign* ,
diggs:programSpecificationRef* ,
diggs:realizesGridIndex{0,1} ,
diggs:environment* ,
diggs:otherSamplingFeatureProperty* ,
diggs:locality{0,1} ,
diggs:referencePoint ,
diggs:localCoordinates{0,1} ,
diggs:referenceEdge{0,1} ,
diggs:featureExtent ,
diggs:relativeFeatureBoundary{0,1} ,
diggs:planarReferencing*
Children diggs:associatedFile diggs:associatedProjectRef diggs:currentDesign diggs:environment diggs:featureExtent diggs:implementationStatus diggs:internalIdentifier diggs:investigationTarget diggs:localCoordinates diggs:locality diggs:originalProjectRef diggs:otherSamplingFeatureProperty diggs:planarReferencing diggs:previousDesign diggs:programRef diggs:programSpecificationRef diggs:projectRef diggs:realizesGridIndex diggs:referenceEdge diggs:referencePoint diggs:relativeFeatureBoundary diggs:remark diggs:role diggs:samplingFeatureGroupRef diggs:status gml:description gml:identifier gml:name
Instance
<diggs:PlanarSamplingFeature gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:href= "" nilReason= "" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {1,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:investigationTarget > {0,unbounded} </diggs:investigationTarget>
<diggs:projectRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {1,unbounded} </diggs:projectRef>
<diggs:originalProjectRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,1} </diggs:originalProjectRef>
<diggs:associatedProjectRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:associatedProjectRef>
<diggs:samplingFeatureGroupRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:samplingFeatureGroupRef>
<diggs:programRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,1} </diggs:programRef>
<diggs:currentDesign xlink:href= "" nilReason= "" owns= "false" > {0,1} </diggs:currentDesign>
<diggs:previousDesign xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:previousDesign>
<diggs:programSpecificationRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:programSpecificationRef>
<diggs:realizesGridIndex dimension= "2" > {0,1} </diggs:realizesGridIndex>
<diggs:environment xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:environment>
<diggs:otherSamplingFeatureProperty > {0,unbounded} </diggs:otherSamplingFeatureProperty>
<diggs:locality > {0,1} </diggs:locality>
<diggs:referencePoint owns= "false" xlink:href= "" nilReason= "" > {1,1} </diggs:referencePoint>
<diggs:localCoordinates > {0,1} </diggs:localCoordinates>
<diggs:referenceEdge owns= "false" xlink:href= "" nilReason= "" > {0,1} </diggs:referenceEdge>
<diggs:featureExtent owns= "false" xlink:href= "" nilReason= "" > {1,1} </diggs:featureExtent>
<diggs:relativeFeatureBoundary owns= "false" xlink:href= "" nilReason= "" > {0,1} </diggs:relativeFeatureBoundary>
<diggs:planarReferencing xlink:href= "" nilReason= "" > {0,unbounded} </diggs:planarReferencing>
</diggs:PlanarSamplingFeature>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element name= "PlanarSamplingFeature" substitutionGroup= "diggs:AbstractPlanarSamplingFeature" type= "diggs:PlanarSamplingFeatureType" >
<annotation >
<documentation > A generic 2D sampling feature that represents a 2D sampling space. The featureExtent can be a PlanarSurface (simple cross-sections or maps), where the surface is entirely coplanar, or a MultiPlanarSurface, where the surface consists of several coplanar patches (dog-leg sections or non-coplanar surfaces). </documentation>
</annotation>
</element>
