Schema documentation for component diggs:ColorObservation

Showing:

Annotations

Attributes

Diagrams

Instances

Model

Properties

Source

Used by

Element diggs:ColorObservation

Namespace

http://diggsml.org/schemas/3

Annotations

A description of the color of the material encountered over one zone or interval.
Several colors can be described within a single observation.

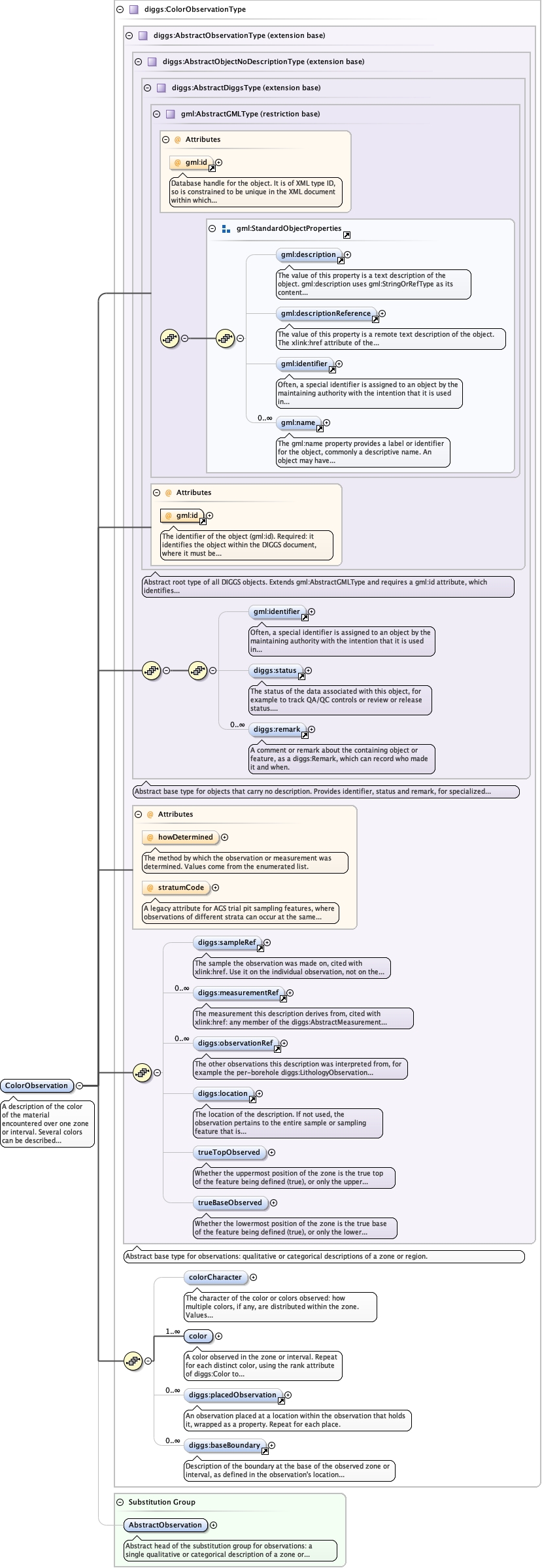

Diagram

Type

diggs:ColorObservationType

Type hierarchy

gml:AbstractGMLType
- diggs:AbstractDiggsType
  - diggs:AbstractObjectNoDescriptionType
    - diggs:AbstractObservationType
      - diggs:ColorObservationType

Properties

content

complex

Substitution Group Affiliation

diggs:AbstractObservation

Used by

Complex Type

diggs:ColorObservationPropertyType

Model

gml:identifier{0,1} , diggs:status{0,1} , diggs:remark* , diggs:sampleRef{0,1} , diggs:measurementRef* , diggs:observationRef* , diggs:location{0,1} , diggs:trueTopObserved{0,1} , diggs:trueBaseObserved{0,1} , diggs:colorCharacter{0,1} , diggs:color+ , diggs:placedObservation* , diggs:baseBoundary*

Children

diggs:baseBoundary, diggs:color, diggs:colorCharacter, diggs:location, diggs:measurementRef, diggs:observationRef, diggs:placedObservation, diggs:remark, diggs:sampleRef, diggs:status, diggs:trueBaseObserved, diggs:trueTopObserved, gml:identifier

Instance

<diggs:ColorObservation howDetermined="" gml:id="" stratumCode="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:sampleRef xlink:href="" identifierRef="" nilReason="" owns="false" percentage="">{0,1}</diggs:sampleRef>
  <diggs:measurementRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:measurementRef>
  <diggs:observationRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:observationRef>
  <diggs:location owns="false" xlink:href="" nilReason="">{0,1}</diggs:location>
  <diggs:trueTopObserved>{0,1}</diggs:trueTopObserved>
  <diggs:trueBaseObserved>{0,1}</diggs:trueBaseObserved>
  <diggs:colorCharacter>{0,1}</diggs:colorCharacter>
  <diggs:color>{1,unbounded}</diggs:color>
  <diggs:placedObservation>{0,unbounded}</diggs:placedObservation>
  <diggs:baseBoundary>{0,unbounded}</diggs:baseBoundary>
</diggs:ColorObservation>

Attributes

QName

Type

Use

Annotation

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

howDetermined

diggs:DescriptorMethodEnumType

optional

The method by which the observation or measurement was determined.
Values come from the enumerated list.

stratumCode

string

optional

A legacy attribute for AGS trial pit sampling features, where
observations of different strata can occur at the same depth in a pit: a
reference letter or number whose sole purpose is to link the stratum on
the face sketch of the trial pit to the observation.

Source

<element name="ColorObservation" type="diggs:ColorObservationType" substitutionGroup="diggs:AbstractObservation">
  <annotation>
    <documentation>A description of the color of the material encountered over one zone or interval. Several colors can be described within a single observation.</documentation>
  </annotation>
</element>
