Namespace http://diggsml.org/schemas/3
Annotations
An installation within a borehole or sounding, used to observe, withdraw or inject
fluids. A well is a sampling feature in its own right and must cite its parent
borehole or sounding in the mandatory samplingFeatureRef property.

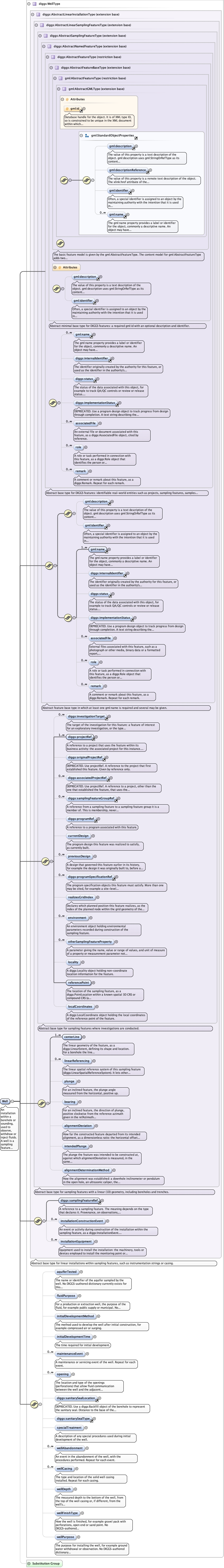

Diagram
Type diggs:WellType
Type hierarchy
Properties
content
complex
abstract
false
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name+ ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:investigationTarget* ,
diggs:projectRef+ ,
diggs:originalProjectRef{0,1} ,
diggs:associatedProjectRef* ,
diggs:samplingFeatureGroupRef* ,
diggs:programRef{0,1} ,
diggs:currentDesign{0,1} ,
diggs:previousDesign* ,
diggs:programSpecificationRef* ,
diggs:realizesGridIndex{0,1} ,
diggs:environment* ,
diggs:otherSamplingFeatureProperty* ,
diggs:locality{0,1} ,
diggs:referencePoint ,
diggs:localCoordinates{0,1} ,
diggs:centerLine+ ,
diggs:linearReferencing* ,
diggs:plunge{0,1} ,
diggs:bearing{0,1} ,
diggs:alignmentDeviation{0,1} ,
diggs:intendedPlunge{0,1} ,
diggs:alignmentDeterminationMethod{0,1} ,
diggs:samplingFeatureRef ,
diggs:installationConstructionEvent* ,
diggs:installationEquipment* ,
diggs:aquiferTested{0,1} ,
diggs:fluidPurpose{0,1} ,
diggs:initialDevelopmentMethod{0,1} ,
diggs:initialDevelopmentTime{0,1} ,
diggs:maintenanceEvent* ,
diggs:opening* ,
diggs:sanitarySealLocation{0,1} ,
diggs:sanitarySealType{0,1} ,
diggs:specialTreatment{0,1} ,
diggs:wellAbandonment* ,
diggs:wellCasing* ,
diggs:wellDepth{0,1} ,
diggs:wellFinishType{0,1} ,
diggs:wellPurpose{0,1}
Children diggs:alignmentDeterminationMethod diggs:alignmentDeviation diggs:aquiferTested diggs:associatedFile diggs:associatedProjectRef diggs:bearing diggs:centerLine diggs:currentDesign diggs:environment diggs:fluidPurpose diggs:implementationStatus diggs:initialDevelopmentMethod diggs:initialDevelopmentTime diggs:installationConstructionEvent diggs:installationEquipment diggs:intendedPlunge diggs:internalIdentifier diggs:investigationTarget diggs:linearReferencing diggs:localCoordinates diggs:locality diggs:maintenanceEvent diggs:opening diggs:originalProjectRef diggs:otherSamplingFeatureProperty diggs:plunge diggs:previousDesign diggs:programRef diggs:programSpecificationRef diggs:projectRef diggs:realizesGridIndex diggs:referencePoint diggs:remark diggs:role diggs:samplingFeatureGroupRef diggs:samplingFeatureRef diggs:sanitarySealLocation diggs:sanitarySealType diggs:specialTreatment diggs:status diggs:wellAbandonment diggs:wellCasing diggs:wellDepth diggs:wellFinishType diggs:wellPurpose gml:description gml:identifier gml:name
Instance
<diggs:Well gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:href= "" nilReason= "" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {1,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:investigationTarget > {0,unbounded} </diggs:investigationTarget>
<diggs:projectRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {1,unbounded} </diggs:projectRef>
<diggs:originalProjectRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,1} </diggs:originalProjectRef>
<diggs:associatedProjectRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:associatedProjectRef>
<diggs:samplingFeatureGroupRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:samplingFeatureGroupRef>
<diggs:programRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,1} </diggs:programRef>
<diggs:currentDesign xlink:href= "" nilReason= "" owns= "false" > {0,1} </diggs:currentDesign>
<diggs:previousDesign xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:previousDesign>
<diggs:programSpecificationRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:programSpecificationRef>
<diggs:realizesGridIndex dimension= "2" > {0,1} </diggs:realizesGridIndex>
<diggs:environment xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:environment>
<diggs:otherSamplingFeatureProperty > {0,unbounded} </diggs:otherSamplingFeatureProperty>
<diggs:locality > {0,1} </diggs:locality>
<diggs:referencePoint owns= "false" xlink:href= "" nilReason= "" > {1,1} </diggs:referencePoint>
<diggs:localCoordinates > {0,1} </diggs:localCoordinates>
<diggs:centerLine owns= "false" xlink:href= "" nilReason= "" > {1,unbounded} </diggs:centerLine>
<diggs:linearReferencing > {0,unbounded} </diggs:linearReferencing>
<diggs:plunge howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:plunge>
<diggs:bearing howDetermined= "" qualifier= "" refAzimuth= "" uom= "" > {0,1} </diggs:bearing>
<diggs:alignmentDeviation howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:alignmentDeviation>
<diggs:intendedPlunge howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:intendedPlunge>
<diggs:alignmentDeterminationMethod codeSpace= "" > {0,1} </diggs:alignmentDeterminationMethod>
<diggs:samplingFeatureRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {1,1} </diggs:samplingFeatureRef>
<diggs:installationConstructionEvent > {0,unbounded} </diggs:installationConstructionEvent>
<diggs:installationEquipment xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:installationEquipment>
<diggs:aquiferTested codeSpace= "" > {0,1} </diggs:aquiferTested>
<diggs:fluidPurpose codeSpace= "" > {0,1} </diggs:fluidPurpose>
<diggs:initialDevelopmentMethod xlink:href= "" nilReason= "" owns= "false" > {0,1} </diggs:initialDevelopmentMethod>
<diggs:initialDevelopmentTime > {0,1} </diggs:initialDevelopmentTime>
<diggs:maintenanceEvent > {0,unbounded} </diggs:maintenanceEvent>
<diggs:opening > {0,unbounded} </diggs:opening>
<diggs:sanitarySealLocation owns= "false" xlink:href= "" nilReason= "" > {0,1} </diggs:sanitarySealLocation>
<diggs:sanitarySealType codeSpace= "" > {0,1} </diggs:sanitarySealType>
<diggs:specialTreatment > {0,1} </diggs:specialTreatment>
<diggs:wellAbandonment > {0,unbounded} </diggs:wellAbandonment>
<diggs:wellCasing > {0,unbounded} </diggs:wellCasing>
<diggs:wellDepth howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:wellDepth>
<diggs:wellFinishType codeSpace= "" > {0,1} </diggs:wellFinishType>
<diggs:wellPurpose codeSpace= "" > {0,1} </diggs:wellPurpose>
</diggs:Well>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element abstract= "false" name= "Well" substitutionGroup= "diggs:AbstractLinearInstallation" type= "diggs:WellType" >
<annotation >
<documentation > An installation within a borehole or sounding, used to observe, withdraw or inject fluids. A well is a sampling feature in its own right and must cite its parent borehole or sounding in the mandatory samplingFeatureRef property. </documentation>
</annotation>
</element>
