Schema documentation for component diggs:sanitarySealLocation

Showing:

Annotations

Attributes

Diagrams

Instances

Model

Properties

Source

Used by

Element diggs:sanitarySealLocation

Namespace

http://diggsml.org/schemas/3

Annotations

DEPRECATED. Use a diggs:Backfill object of the borehole to represent the sanitary
seal. Distance to the base of the sanitary seal, measured in the borehole's linear
reference system.

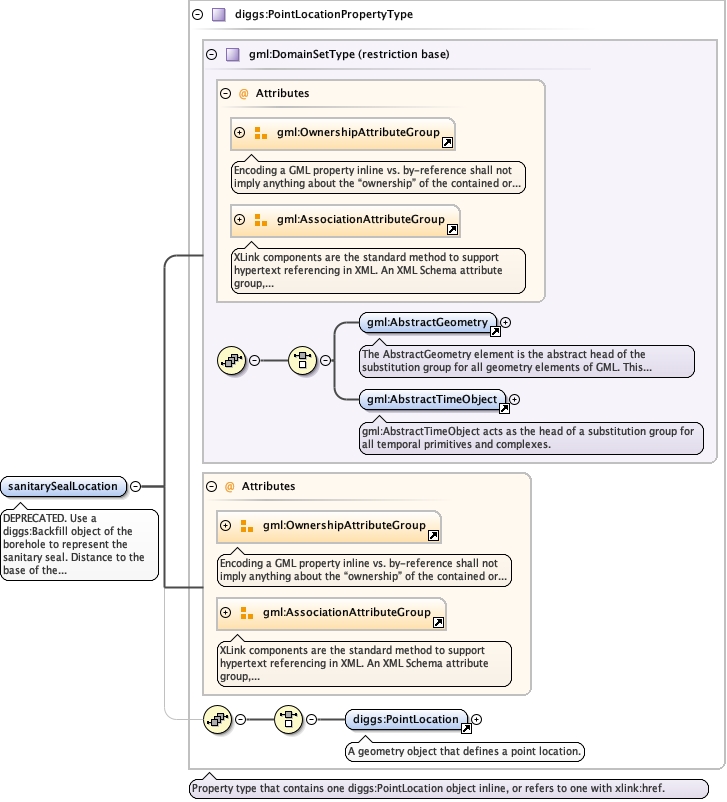

Diagram

Type

diggs:PointLocationPropertyType

Type hierarchy

gml:DomainSetType
- diggs:PointLocationPropertyType

Properties

content

complex

Used by

Complex Type

diggs:WellType

Model

(diggs:PointLocation)

Children

diggs:PointLocation

Instance

<diggs:sanitarySealLocation owns="false" xlink:href="" nilReason="" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:PointLocation axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PointLocation>
</diggs:sanitarySealLocation>

Attributes

QName	Type	Default	Use
nilReason	gml:NilReasonType		optional
owns	boolean	false	optional
xlink:href	anyURI		optional

Source

<element name="sanitarySealLocation" type="diggs:PointLocationPropertyType">
  <annotation>
    <appinfo>
      <diggs:deprecated since="3.0.0" replacedBy="diggs:Backfill" note="a Backfill object of the borehole representing the sanitary seal"/>
    </appinfo>
    <documentation>DEPRECATED. Use a diggs:Backfill object of the borehole to represent the sanitary seal. Distance to the base of the sanitary seal, measured in the borehole's linear reference system.</documentation>
  </annotation>
</element>
