Schema documentation for component diggs:DesignRITreatedArea

The site-wide design for a rigid inclusion foundation system: the design properties that hold across the whole system, from which zone- and element-level designs depart. It is a thin carrier and does not contain the column, LTP or grout designs, which are declared as siblings under the program. A diggs:DesignRIColumn or diggs:DesignRILTP for a particular zone cites this object through basedOnRef, and property resolution runs most-specific-first: a zone design that states no value for a property inherits the value stated here.

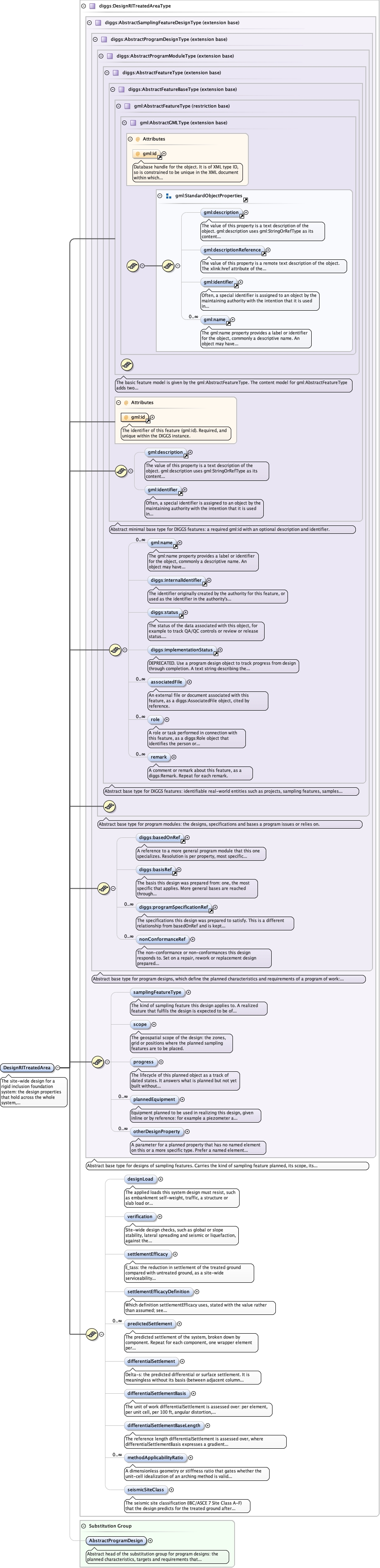

<diggs:DesignRITreatedArea gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:basedOnRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basedOnRef>
  <diggs:basisRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basisRef>
  <diggs:programSpecificationRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:programSpecificationRef>
  <diggs:nonConformanceRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:nonConformanceRef>
  <diggs:samplingFeatureType codeSpace="">{0,1}</diggs:samplingFeatureType>
  <diggs:scope>{0,1}</diggs:scope>
  <diggs:progress>{0,1}</diggs:progress>
  <diggs:plannedEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:plannedEquipment>
  <diggs:otherDesignProperty>{0,unbounded}</diggs:otherDesignProperty>
  <diggs:designLoad>{0,1}</diggs:designLoad>
  <diggs:verification>{0,1}</diggs:verification>
  <diggs:settlementEfficacy howDetermined="" qualifier="" uom="">{0,1}</diggs:settlementEfficacy>
  <diggs:settlementEfficacyDefinition codeSpace="">{0,1}</diggs:settlementEfficacyDefinition>
  <diggs:predictedSettlement>{0,unbounded}</diggs:predictedSettlement>
  <diggs:differentialSettlement howDetermined="" qualifier="" uom="">{0,1}</diggs:differentialSettlement>
  <diggs:differentialSettlementBasis codeSpace="">{0,1}</diggs:differentialSettlementBasis>
  <diggs:differentialSettlementBaseLength howDetermined="" qualifier="" uom="">{0,1}</diggs:differentialSettlementBaseLength>
  <diggs:methodApplicabilityRatio>{0,unbounded}</diggs:methodApplicabilityRatio>
  <diggs:seismicSiteClass>{0,1}</diggs:seismicSiteClass>
</diggs:DesignRITreatedArea>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="DesignRITreatedArea" type="diggs:DesignRITreatedAreaType" substitutionGroup="diggs:AbstractProgramDesign"> <annotation> <documentation>The site-wide design for a rigid inclusion foundation system: the design properties that hold across the whole system, from which zone- and element-level designs depart. It is a thin carrier and does not contain the column, LTP or grout designs, which are declared as siblings under the program. A diggs:DesignRIColumn or diggs:DesignRILTP for a particular zone cites this object through basedOnRef, and property resolution runs most-specific-first: a zone design that states no value for a property inherits the value stated here.</documentation> </annotation> </element>
