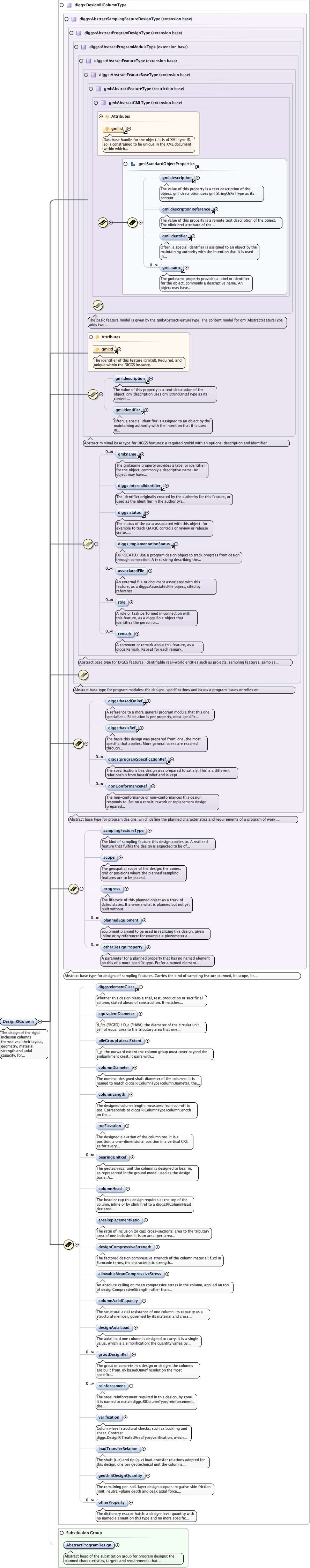

Schema documentation for component diggs:DesignRIColumn

The design of the rigid inclusion columns themselves: their layout, geometry, material strength and axial capacity, for whatever population the inherited scope declares: a site-wide population, one zone or a single column. It carries the uniform values shared by every column in scope. Where a column differs from the rest, plan it as its own diggs:DesignRIColumn, scoped to that column through scope/targetPosition, with a basedOnRef to the design it departs from so that it inherits everything it does not restate.

<diggs:DesignRIColumn gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:basedOnRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basedOnRef>
  <diggs:basisRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basisRef>
  <diggs:programSpecificationRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:programSpecificationRef>
  <diggs:nonConformanceRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:nonConformanceRef>
  <diggs:samplingFeatureType codeSpace="">{0,1}</diggs:samplingFeatureType>
  <diggs:scope>{0,1}</diggs:scope>
  <diggs:progress>{0,1}</diggs:progress>
  <diggs:plannedEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:plannedEquipment>
  <diggs:otherDesignProperty>{0,unbounded}</diggs:otherDesignProperty>
  <diggs:elementClass>{0,1}</diggs:elementClass>
  <diggs:equivalentDiameter howDetermined="" qualifier="" uom="">{0,1}</diggs:equivalentDiameter>
  <diggs:pileGroupLateralExtent howDetermined="" qualifier="" uom="">{0,1}</diggs:pileGroupLateralExtent>
  <diggs:columnDiameter howDetermined="" qualifier="" uom="">{0,1}</diggs:columnDiameter>
  <diggs:columnLength howDetermined="" qualifier="" uom="">{0,1}</diggs:columnLength>
  <diggs:toeElevation owns="false" xlink:href="" nilReason="">{0,1}</diggs:toeElevation>
  <diggs:bearingUnitRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:bearingUnitRef>
  <diggs:columnHead xlink:href="" nilReason="">{0,1}</diggs:columnHead>
  <diggs:areaReplacementRatio howDetermined="" qualifier="" uom="">{0,1}</diggs:areaReplacementRatio>
  <diggs:designCompressiveStrength howDetermined="" qualifier="" uom="">{0,1}</diggs:designCompressiveStrength>
  <diggs:allowableMeanCompressiveStress howDetermined="" qualifier="" uom="">{0,1}</diggs:allowableMeanCompressiveStress>
  <diggs:columnAxialCapacity howDetermined="" qualifier="" uom="">{0,1}</diggs:columnAxialCapacity>
  <diggs:designAxialLoad howDetermined="" qualifier="" uom="">{0,1}</diggs:designAxialLoad>
  <diggs:groutDesignRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:groutDesignRef>
  <diggs:reinforcement xlink:href="" nilReason="">{0,unbounded}</diggs:reinforcement>
  <diggs:verification>{0,1}</diggs:verification>
  <diggs:loadTransferRelation>{0,1}</diggs:loadTransferRelation>
  <diggs:geoUnitDesignQuantity>{0,1}</diggs:geoUnitDesignQuantity>
  <diggs:otherProperty>{0,unbounded}</diggs:otherProperty>
</diggs:DesignRIColumn>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="DesignRIColumn" type="diggs:DesignRIColumnType" substitutionGroup="diggs:AbstractProgramDesign"> <annotation> <documentation>The design of the rigid inclusion columns themselves: their layout, geometry, material strength and axial capacity, for whatever population the inherited scope declares: a site-wide population, one zone or a single column. It carries the uniform values shared by every column in scope. Where a column differs from the rest, plan it as its own diggs:DesignRIColumn, scoped to that column through scope/targetPosition, with a basedOnRef to the design it departs from so that it inherits everything it does not restate.</documentation> </annotation> </element>
