Namespace http://diggsml.org/schemas/3
Annotations
A generic 3D sampling feature that represents a volume that defines the sampling
space. Its featureExtent uses Solid geometry.

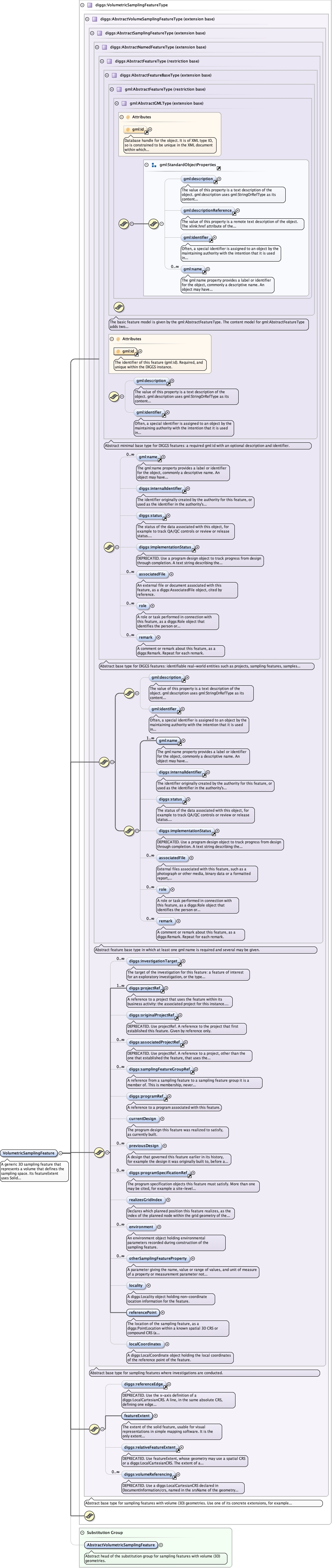

Diagram
Type diggs:VolumetricSamplingFeatureType
Type hierarchy
Properties
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name+ ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:investigationTarget* ,
diggs:projectRef+ ,
diggs:originalProjectRef{0,1} ,
diggs:associatedProjectRef* ,
diggs:samplingFeatureGroupRef* ,
diggs:programRef{0,1} ,
diggs:currentDesign{0,1} ,
diggs:previousDesign* ,
diggs:programSpecificationRef* ,
diggs:realizesGridIndex{0,1} ,
diggs:environment* ,
diggs:otherSamplingFeatureProperty* ,
diggs:locality{0,1} ,
diggs:referencePoint ,
diggs:localCoordinates{0,1} ,
diggs:referenceEdge{0,1} ,
diggs:featureExtent ,
diggs:relativeFeatureExtent{0,1} ,
diggs:volumeReferencing*
Children diggs:associatedFile diggs:associatedProjectRef diggs:currentDesign diggs:environment diggs:featureExtent diggs:implementationStatus diggs:internalIdentifier diggs:investigationTarget diggs:localCoordinates diggs:locality diggs:originalProjectRef diggs:otherSamplingFeatureProperty diggs:previousDesign diggs:programRef diggs:programSpecificationRef diggs:projectRef diggs:realizesGridIndex diggs:referenceEdge diggs:referencePoint diggs:relativeFeatureExtent diggs:remark diggs:role diggs:samplingFeatureGroupRef diggs:status diggs:volumeReferencing gml:description gml:identifier gml:name
Instance
<diggs:VolumetricSamplingFeature gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:href= "" nilReason= "" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {1,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:investigationTarget > {0,unbounded} </diggs:investigationTarget>
<diggs:projectRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {1,unbounded} </diggs:projectRef>
<diggs:originalProjectRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,1} </diggs:originalProjectRef>
<diggs:associatedProjectRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:associatedProjectRef>
<diggs:samplingFeatureGroupRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:samplingFeatureGroupRef>
<diggs:programRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,1} </diggs:programRef>
<diggs:currentDesign xlink:href= "" nilReason= "" owns= "false" > {0,1} </diggs:currentDesign>
<diggs:previousDesign xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:previousDesign>
<diggs:programSpecificationRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:programSpecificationRef>
<diggs:realizesGridIndex dimension= "2" > {0,1} </diggs:realizesGridIndex>
<diggs:environment xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:environment>
<diggs:otherSamplingFeatureProperty > {0,unbounded} </diggs:otherSamplingFeatureProperty>
<diggs:locality > {0,1} </diggs:locality>
<diggs:referencePoint owns= "false" xlink:href= "" nilReason= "" > {1,1} </diggs:referencePoint>
<diggs:localCoordinates > {0,1} </diggs:localCoordinates>
<diggs:referenceEdge owns= "false" xlink:href= "" nilReason= "" > {0,1} </diggs:referenceEdge>
<diggs:featureExtent owns= "false" xlink:href= "" nilReason= "" > {1,1} </diggs:featureExtent>
<diggs:relativeFeatureExtent owns= "false" xlink:href= "" nilReason= "" > {0,1} </diggs:relativeFeatureExtent>
<diggs:volumeReferencing xlink:href= "" nilReason= "" > {0,unbounded} </diggs:volumeReferencing>
</diggs:VolumetricSamplingFeature>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element name= "VolumetricSamplingFeature" substitutionGroup= "diggs:AbstractVolumetricSamplingFeature" type= "diggs:VolumetricSamplingFeatureType" >
<annotation >
<documentation > A generic 3D sampling feature that represents a volume that defines the sampling space. Its featureExtent uses Solid geometry. </documentation>
</annotation>
</element>
