Element diggs:volumeReferencing
Namespace http://diggsml.org/schemas/3
Annotations

DEPRECATED. Use a diggs:LocalCartesianCRS declared in
DocumentInformation/crs, named in the srsName of the geometry held by featureExtent.
The local coordinate reference system of a volumetric feature that uses relative
coordinates.

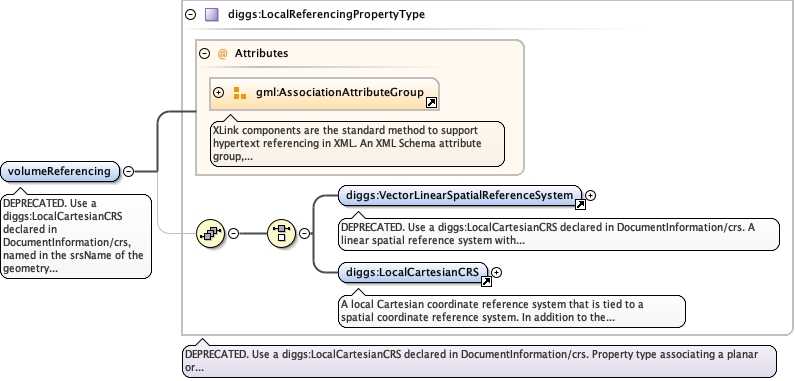

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupLinearReferencing_xsd_Element_diggs_VectorLinearSpatialReferenceSystem.tmp#VectorLinearSpatialReferenceSystemLocalReferencing_xsd_Element_diggs_LocalCartesianCRS.tmp#LocalCartesianCRSExtSamplingFeatures_xsd_Complex_Type_diggs_LocalReferencingPropertyType.tmp#LocalReferencingPropertyType
Type diggs:LocalReferencingPropertyType
Properties
content complex
Used by
Model
Children diggs:LocalCartesianCRS, diggs:VectorLinearSpatialReferenceSystem
Instance

<diggs:volumeReferencing xlink:href="" nilReason="" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:VectorLinearSpatialReferenceSystem gml:id="">{1,1}</diggs:VectorLinearSpatialReferenceSystem>
  <diggs:LocalCartesianCRS gml:id="">{1,1}</diggs:LocalCartesianCRS>
</diggs:volumeReferencing>
Attributes
QName Type Use
nilReason gml:NilReasonType optional
xlink:href anyURI optional
Source

<element name="volumeReferencing" type="diggs:LocalReferencingPropertyType">
  <annotation>
    <appinfo>
      <diggs:deprecated since="3.0.0" replacedBy="diggs:LocalCartesianCRS" note="a diggs:LocalCartesianCRS declared in DocumentInformation/crs"/>
    </appinfo>
    <documentation>DEPRECATED. Use a diggs:LocalCartesianCRS declared in DocumentInformation/crs, named in the srsName of the geometry held by featureExtent. The local coordinate reference system of a volumetric feature that uses relative coordinates.</documentation>
  </annotation>
</element>
