Element diggs:LocalCartesianCRS
Namespace http://diggsml.org/schemas/3
Annotations

A local Cartesian coordinate reference system that is tied to a spatial coordinate
reference system. In addition to the coordinate system and datum of a GML
engineering CRS, it gives the spatial location of its origin and the spatial
location and direction of each axis, so that local coordinates can be transformed to
spatial coordinates.

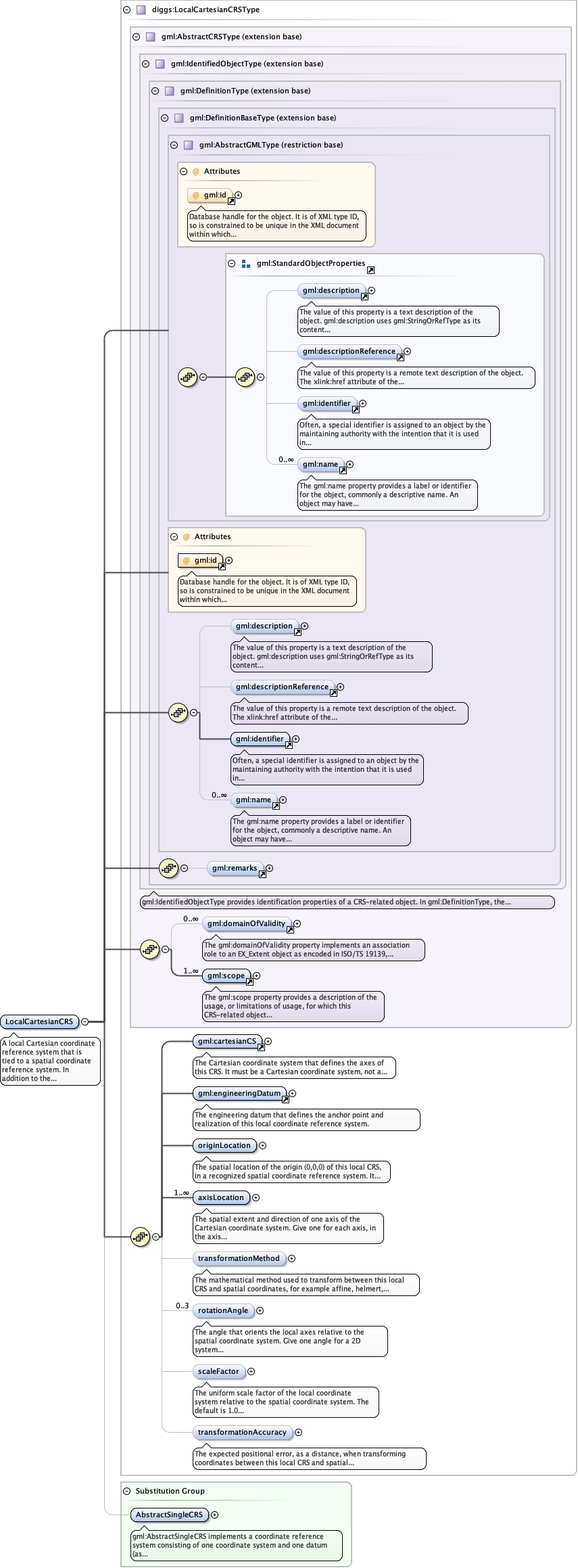

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Complex_Type_gml_DefinitionBaseType.tmp#DefinitionBaseTypegml3_2Profile_diggs_xsd_Element_gml_remarks.tmp#remarksgml3_2Profile_diggs_xsd_Complex_Type_gml_DefinitionType.tmp#DefinitionTypegml3_2Profile_diggs_xsd_Complex_Type_gml_IdentifiedObjectType.tmp#IdentifiedObjectTypegml3_2Profile_diggs_xsd_Element_gml_domainOfValidity.tmp#domainOfValiditygml3_2Profile_diggs_xsd_Element_gml_scope.tmp#scopegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractCRSType.tmp#AbstractCRSTypegml3_2Profile_diggs_xsd_Element_gml_cartesianCS.tmp#http___www.opengis.net_gml_3.2_cartesianCSgml3_2Profile_diggs_xsd_Element_gml_engineeringDatum_1.tmp#http___www.opengis.net_gml_3.2_engineeringDatumLocalReferencing_xsd_Complex_Type_diggs_LocalCartesianCRSType.tmp#LocalCartesianCRSType_originLocationLocalReferencing_xsd_Complex_Type_diggs_LocalCartesianCRSType.tmp#LocalCartesianCRSType_axisLocationLocalReferencing_xsd_Complex_Type_diggs_LocalCartesianCRSType.tmp#LocalCartesianCRSType_transformationMethodLocalReferencing_xsd_Complex_Type_diggs_LocalCartesianCRSType.tmp#LocalCartesianCRSType_rotationAngleLocalReferencing_xsd_Complex_Type_diggs_LocalCartesianCRSType.tmp#LocalCartesianCRSType_scaleFactorLocalReferencing_xsd_Complex_Type_diggs_LocalCartesianCRSType.tmp#LocalCartesianCRSType_transformationAccuracyLocalReferencing_xsd_Complex_Type_diggs_LocalCartesianCRSType.tmp#LocalCartesianCRSTypegml3_2Profile_diggs_xsd_Element_gml_AbstractSingleCRS.tmp#AbstractSingleCRS
Type diggs:LocalCartesianCRSType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children diggs:axisLocation, diggs:originLocation, diggs:rotationAngle, diggs:scaleFactor, diggs:transformationAccuracy, diggs:transformationMethod, gml:cartesianCS, gml:description, gml:descriptionReference, gml:domainOfValidity, gml:engineeringDatum, gml:identifier, gml:name, gml:remarks, gml:scope
Instance

<diggs:LocalCartesianCRS gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:descriptionReference xlink:href="" nilReason="" owns="false">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{1,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:remarks>{0,1}</gml:remarks>
  <gml:domainOfValidity xlink:href="" nilReason="">{0,unbounded}</gml:domainOfValidity>
  <gml:scope>{1,unbounded}</gml:scope>
  <gml:cartesianCS xlink:href="" nilReason="">{1,1}</gml:cartesianCS>
  <gml:engineeringDatum xlink:href="" nilReason="">{1,1}</gml:engineeringDatum>
  <diggs:originLocation owns="false" xlink:href="" nilReason="">{1,1}</diggs:originLocation>
  <diggs:axisLocation xlink:href="" nilReason="">{1,unbounded}</diggs:axisLocation>
  <diggs:transformationMethod codeSpace="">{0,1}</diggs:transformationMethod>
  <diggs:rotationAngle howDetermined="" qualifier="" uom="">{0,3}</diggs:rotationAngle>
  <diggs:scaleFactor>{0,1}</diggs:scaleFactor>
  <diggs:transformationAccuracy howDetermined="" qualifier="" uom="">{0,1}</diggs:transformationAccuracy>
</diggs:LocalCartesianCRS>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="LocalCartesianCRS" substitutionGroup="gml:AbstractSingleCRS" type="diggs:LocalCartesianCRSType">
  <annotation>
    <documentation>A local Cartesian coordinate reference system that is tied to a spatial coordinate reference system. In addition to the coordinate system and datum of a GML engineering CRS, it gives the spatial location of its origin and the spatial location and direction of each axis, so that local coordinates can be transformed to spatial coordinates.</documentation>
  </annotation>
</element>
