Element gml:cartesianCS
Namespace http://www.opengis.net/gml/3.2
Annotations

gml:cartesianCS is an association role to the Cartesian coordinate system used
by this CRS.

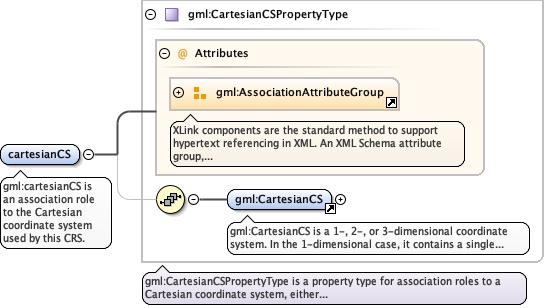

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_CartesianCS_1.tmp#CartesianCSgml3_2Profile_diggs_xsd_Complex_Type_gml_CartesianCSPropertyType.tmp#CartesianCSPropertyType
Type gml:CartesianCSPropertyType
Properties
content complex
Used by
Complex Types diggs:LocalCartesianCRSType, gml:EngineeringCRSType
Model
gml:CartesianCS
Children gml:CartesianCS
Instance

<gml:cartesianCS xlink:href="" nilReason="" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:CartesianCS aggregationType="" gml:id="">{1,1}</gml:CartesianCS>
</gml:cartesianCS>
Attributes
QName Type Use
nilReason gml:NilReasonType optional
xlink:href anyURI optional
Source

<element name="cartesianCS" type="gml:CartesianCSPropertyType">
  <annotation>
    <documentation>gml:cartesianCS is an association role to the Cartesian coordinate system used by this CRS.</documentation>
  </annotation>
</element>
