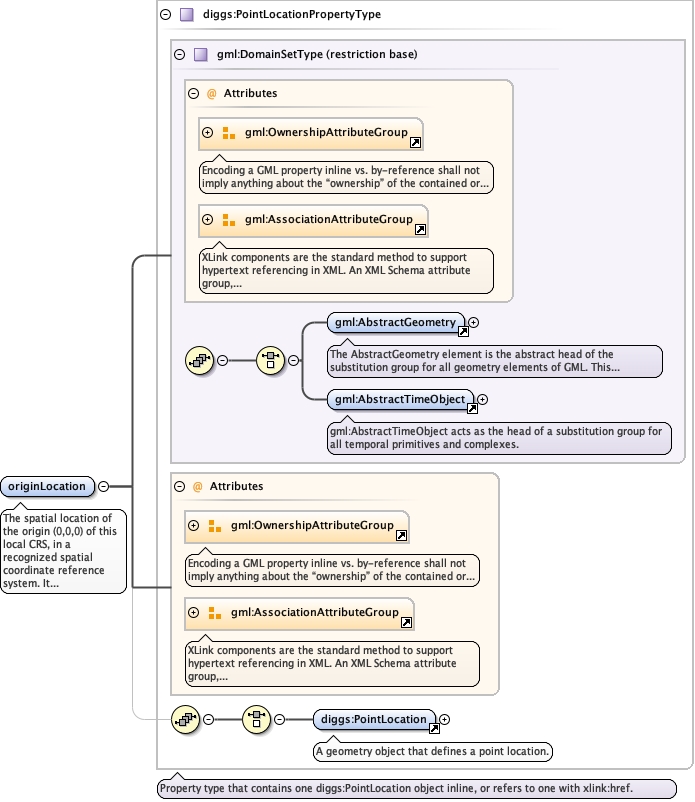

Element diggs:LocalCartesianCRSType / diggs:originLocation
Namespace http://diggsml.org/schemas/3
Annotations

The spatial location of the origin (0,0,0) of this local CRS, in a
recognized spatial coordinate reference system. It anchors the
transformation from local to spatial coordinates.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupCore_xsd_Element_diggs_PointLocation.tmp#PointLocationCore_xsd_Complex_Type_diggs_PointLocationPropertyType.tmp#PointLocationPropertyType
Type diggs:PointLocationPropertyType
Type hierarchy
Properties
content complex
Model
Children diggs:PointLocation
Instance

<diggs:originLocation owns="false" xlink:href="" nilReason="" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:PointLocation axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PointLocation>
</diggs:originLocation>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element name="originLocation" type="diggs:PointLocationPropertyType">
  <annotation>
    <documentation>The spatial location of the origin (0,0,0) of this local CRS, in a recognized spatial coordinate reference system. It anchors the transformation from local to spatial coordinates.</documentation>
  </annotation>
</element>

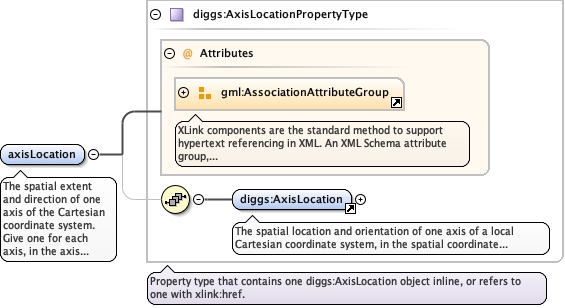

Element diggs:LocalCartesianCRSType / diggs:axisLocation
Namespace http://diggsml.org/schemas/3
Annotations

The spatial extent and direction of one axis of the Cartesian
coordinate system. Give one for each axis, in the axis order of the
Cartesian coordinate system.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupLocalReferencing_xsd_Element_diggs_AxisLocation.tmp#AxisLocationLocalReferencing_xsd_Complex_Type_diggs_AxisLocationPropertyType.tmp#AxisLocationPropertyType
Type diggs:AxisLocationPropertyType
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children diggs:AxisLocation
Instance

<diggs:axisLocation xlink:href="" nilReason="" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AxisLocation gml:id="">{1,1}</diggs:AxisLocation>
</diggs:axisLocation>
Attributes
QName Type Use
nilReason gml:NilReasonType optional
xlink:href anyURI optional
Source

<element name="axisLocation" type="diggs:AxisLocationPropertyType" minOccurs="1" maxOccurs="unbounded">
  <annotation>
    <documentation>The spatial extent and direction of one axis of the Cartesian coordinate system. Give one for each axis, in the axis order of the Cartesian coordinate system.</documentation>
  </annotation>
</element>

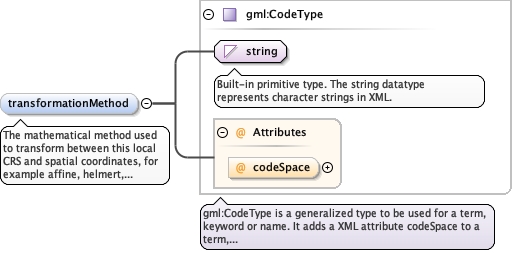

Element diggs:LocalCartesianCRSType / diggs:transformationMethod
Namespace http://diggsml.org/schemas/3
Annotations

The mathematical method used to transform between this local CRS and
spatial coordinates, for example affine, helmert,
direct-linear-referencing or polynomial. No DIGGS-authored
dictionary currently exists for this element.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="transformationMethod" type="gml:CodeType" minOccurs="0">
  <annotation>
    <documentation>The mathematical method used to transform between this local CRS and spatial coordinates, for example affine, helmert, direct-linear-referencing or polynomial. No DIGGS-authored dictionary currently exists for this element.</documentation>
  </annotation>
</element>

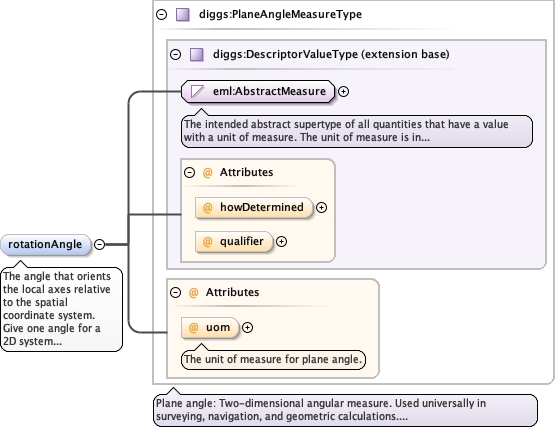

Element diggs:LocalCartesianCRSType / diggs:rotationAngle
Namespace http://diggsml.org/schemas/3
Annotations

The angle that orients the local axes relative to the spatial
coordinate system. Give one angle for a 2D system (rotation about
the vertical axis) and up to three for a 3D system (for example
Euler angles, or rotations about the X, Y and Z axes);
transformationMethod determines how multiple angles are interpreted.
Repeat for each angle.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType
Type diggs:PlaneAngleMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 3
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PlaneAngleUomEnumType optional
The unit of measure for plane angle.
Source

<element name="rotationAngle" type="diggs:PlaneAngleMeasureType" minOccurs="0" maxOccurs="3">
  <annotation>
    <documentation>The angle that orients the local axes relative to the spatial coordinate system. Give one angle for a 2D system (rotation about the vertical axis) and up to three for a 3D system (for example Euler angles, or rotations about the X, Y and Z axes); transformationMethod determines how multiple angles are interpreted. Repeat for each angle.</documentation>
  </annotation>
</element>

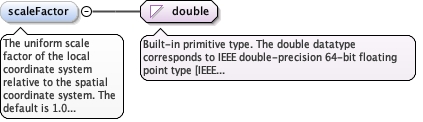

Element diggs:LocalCartesianCRSType / diggs:scaleFactor
Namespace http://diggsml.org/schemas/3
Annotations

The uniform scale factor of the local coordinate system relative to
the spatial coordinate system. The default is 1.0 (no scaling). A
value above 1.0 means local coordinates represent larger distances
than the corresponding spatial coordinates, and a value below 1.0
smaller distances.
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
default 1.0
Source

<element name="scaleFactor" type="double" minOccurs="0" default="1.0">
  <annotation>
    <documentation>The uniform scale factor of the local coordinate system relative to the spatial coordinate system. The default is 1.0 (no scaling). A value above 1.0 means local coordinates represent larger distances than the corresponding spatial coordinates, and a value below 1.0 smaller distances.</documentation>
  </annotation>
</element>

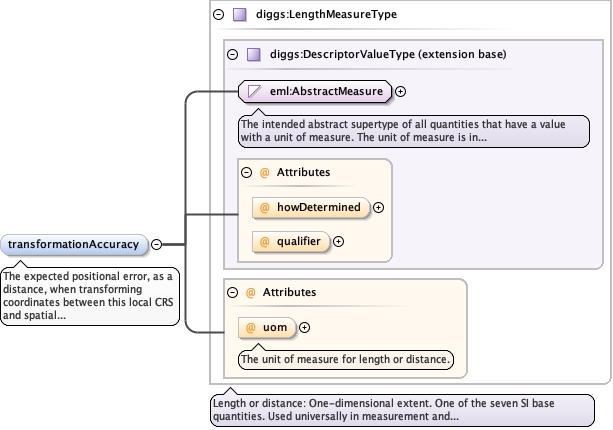

Element diggs:LocalCartesianCRSType / diggs:transformationAccuracy
Namespace http://diggsml.org/schemas/3
Annotations

The expected positional error, as a distance, when transforming
coordinates between this local CRS and spatial coordinates.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="transformationAccuracy" type="diggs:LengthMeasureType" minOccurs="0">
  <annotation>
    <documentation>The expected positional error, as a distance, when transforming coordinates between this local CRS and spatial coordinates.</documentation>
  </annotation>
</element>

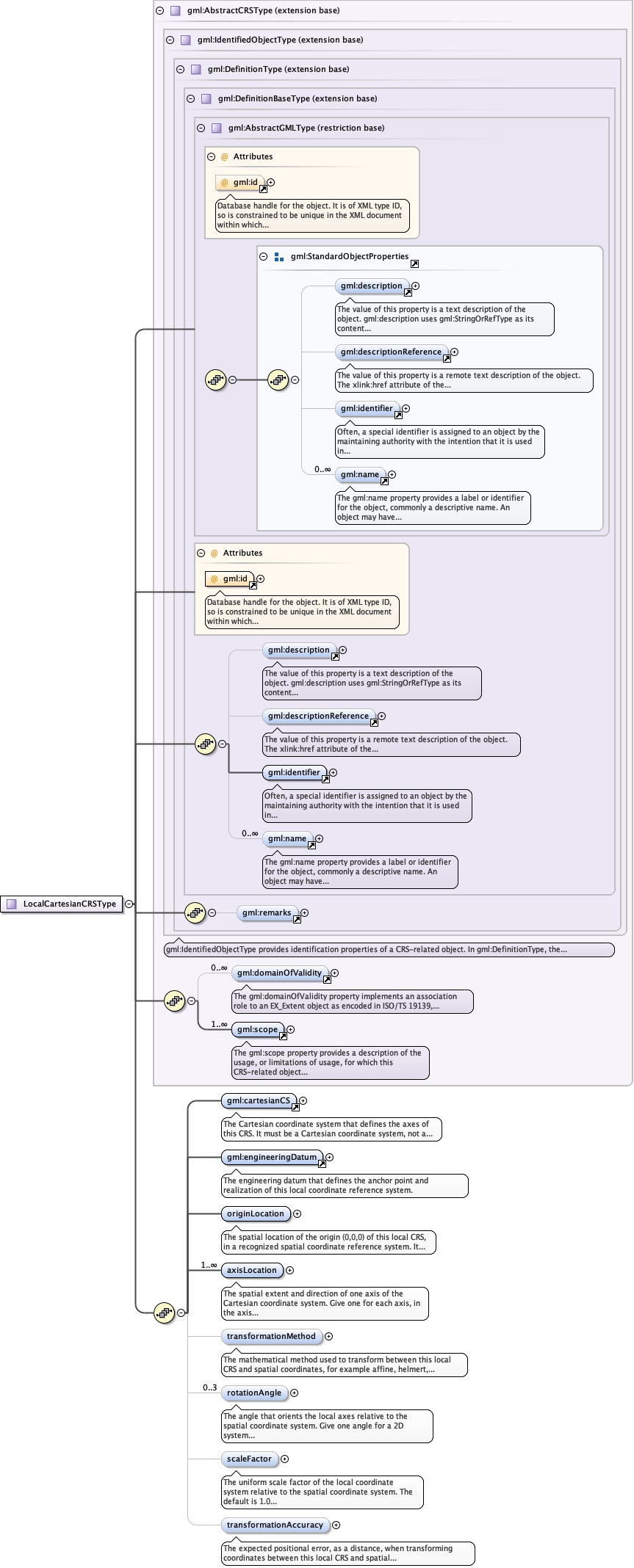

Complex Type diggs:LocalCartesianCRSType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Complex_Type_gml_DefinitionBaseType.tmp#DefinitionBaseTypegml3_2Profile_diggs_xsd_Element_gml_remarks.tmp#remarksgml3_2Profile_diggs_xsd_Complex_Type_gml_DefinitionType.tmp#DefinitionTypegml3_2Profile_diggs_xsd_Complex_Type_gml_IdentifiedObjectType.tmp#IdentifiedObjectTypegml3_2Profile_diggs_xsd_Element_gml_domainOfValidity.tmp#domainOfValiditygml3_2Profile_diggs_xsd_Element_gml_scope.tmp#scopegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractCRSType.tmp#AbstractCRSTypegml3_2Profile_diggs_xsd_Element_gml_cartesianCS.tmp#http___www.opengis.net_gml_3.2_cartesianCSgml3_2Profile_diggs_xsd_Element_gml_engineeringDatum_1.tmp#http___www.opengis.net_gml_3.2_engineeringDatumLocalReferencing_xsd_Complex_Type_diggs_LocalCartesianCRSType.tmp#LocalCartesianCRSType_originLocationLocalReferencing_xsd_Complex_Type_diggs_LocalCartesianCRSType.tmp#LocalCartesianCRSType_axisLocationLocalReferencing_xsd_Complex_Type_diggs_LocalCartesianCRSType.tmp#LocalCartesianCRSType_transformationMethodLocalReferencing_xsd_Complex_Type_diggs_LocalCartesianCRSType.tmp#LocalCartesianCRSType_rotationAngleLocalReferencing_xsd_Complex_Type_diggs_LocalCartesianCRSType.tmp#LocalCartesianCRSType_scaleFactorLocalReferencing_xsd_Complex_Type_diggs_LocalCartesianCRSType.tmp#LocalCartesianCRSType_transformationAccuracy
Type extension of gml:AbstractCRSType
Type hierarchy
Used by
Model
Children diggs:axisLocation, diggs:originLocation, diggs:rotationAngle, diggs:scaleFactor, diggs:transformationAccuracy, diggs:transformationMethod, gml:cartesianCS, gml:description, gml:descriptionReference, gml:domainOfValidity, gml:engineeringDatum, gml:identifier, gml:name, gml:remarks, gml:scope
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="LocalCartesianCRSType">
  <complexContent>
    <extension base="gml:AbstractCRSType">
      <sequence>
        <element ref="gml:cartesianCS">
          <annotation>
            <documentation>The Cartesian coordinate system that defines the axes of this CRS. It must be a Cartesian coordinate system, not a spherical, cylindrical or other type.</documentation>
          </annotation>
        </element>
        <element ref="gml:engineeringDatum">
          <annotation>
            <documentation>The engineering datum that defines the anchor point and realization of this local coordinate reference system.</documentation>
          </annotation>
        </element>
        <element name="originLocation" type="diggs:PointLocationPropertyType">
          <annotation>
            <documentation>The spatial location of the origin (0,0,0) of this local CRS, in a recognized spatial coordinate reference system. It anchors the transformation from local to spatial coordinates.</documentation>
          </annotation>
        </element>
        <element name="axisLocation" type="diggs:AxisLocationPropertyType" minOccurs="1" maxOccurs="unbounded">
          <annotation>
            <documentation>The spatial extent and direction of one axis of the Cartesian coordinate system. Give one for each axis, in the axis order of the Cartesian coordinate system.</documentation>
          </annotation>
        </element>
        <element name="transformationMethod" type="gml:CodeType" minOccurs="0">
          <annotation>
            <documentation>The mathematical method used to transform between this local CRS and spatial coordinates, for example affine, helmert, direct-linear-referencing or polynomial. No DIGGS-authored dictionary currently exists for this element.</documentation>
          </annotation>
        </element>
        <element name="rotationAngle" type="diggs:PlaneAngleMeasureType" minOccurs="0" maxOccurs="3">
          <annotation>
            <documentation>The angle that orients the local axes relative to the spatial coordinate system. Give one angle for a 2D system (rotation about the vertical axis) and up to three for a 3D system (for example Euler angles, or rotations about the X, Y and Z axes); transformationMethod determines how multiple angles are interpreted. Repeat for each angle.</documentation>
          </annotation>
        </element>
        <element name="scaleFactor" type="double" minOccurs="0" default="1.0">
          <annotation>
            <documentation>The uniform scale factor of the local coordinate system relative to the spatial coordinate system. The default is 1.0 (no scaling). A value above 1.0 means local coordinates represent larger distances than the corresponding spatial coordinates, and a value below 1.0 smaller distances.</documentation>
          </annotation>
        </element>
        <element name="transformationAccuracy" type="diggs:LengthMeasureType" minOccurs="0">
          <annotation>
            <documentation>The expected positional error, as a distance, when transforming coordinates between this local CRS and spatial coordinates.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
