Element diggs:AxisLocation
Namespace http://diggsml.org/schemas/3
Annotations

The spatial location and orientation of one axis of a local Cartesian coordinate
system, in the spatial coordinate reference system or as a unit vector in the units
of that system. It positions the axis so that local coordinates can be transformed.

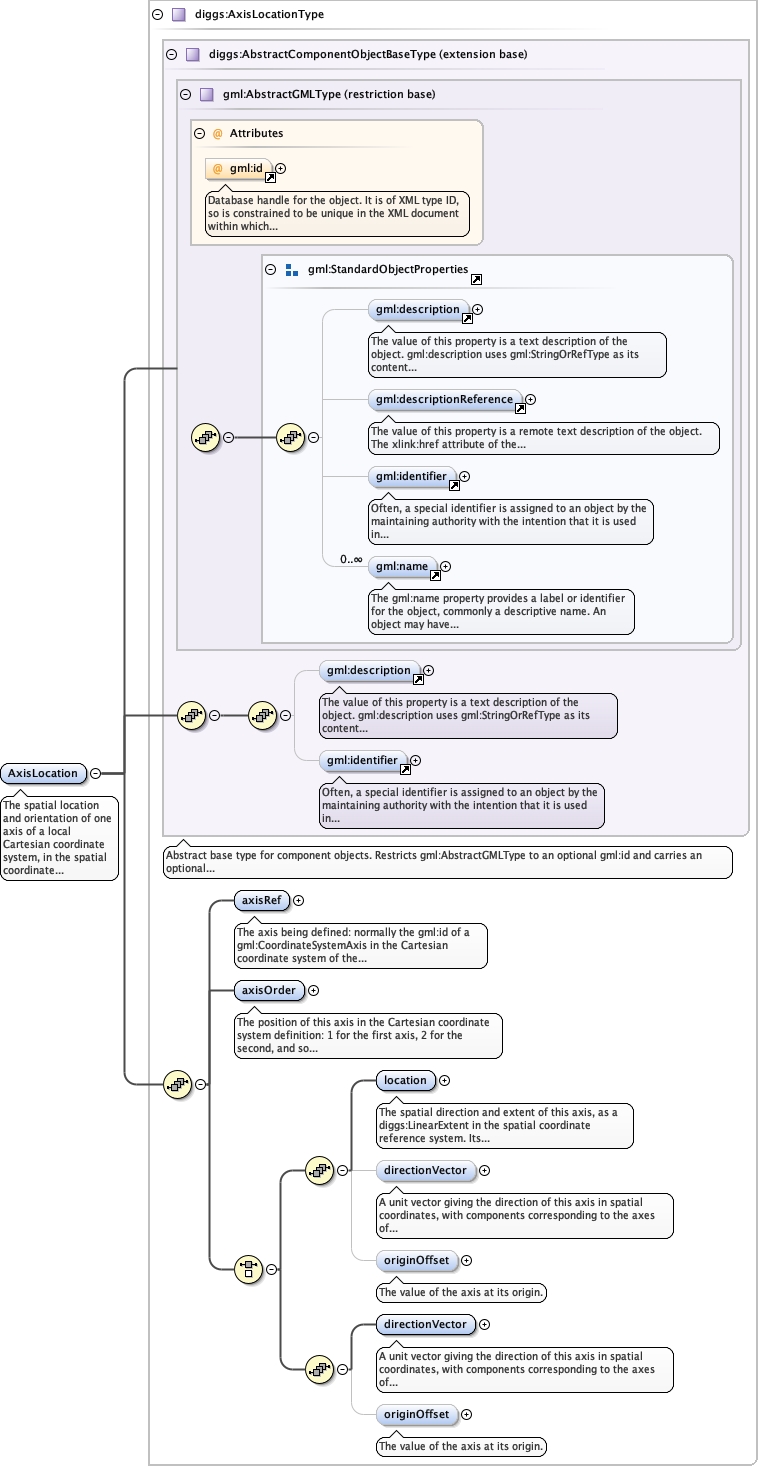

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeLocalReferencing_xsd_Complex_Type_diggs_AxisLocationType.tmp#AxisLocationType_axisRefLocalReferencing_xsd_Complex_Type_diggs_AxisLocationType.tmp#AxisLocationType_axisOrderLocalReferencing_xsd_Complex_Type_diggs_AxisLocationType.tmp#AxisLocationType_locationLocalReferencing_xsd_Complex_Type_diggs_AxisLocationType.tmp#AxisLocationType_directionVectorLocalReferencing_xsd_Complex_Type_diggs_AxisLocationType.tmp#AxisLocationType_originOffsetLocalReferencing_xsd_Complex_Type_diggs_AxisLocationType.tmp#AxisLocationType
Type diggs:AxisLocationType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:axisOrder, diggs:axisRef, diggs:directionVector, diggs:location, diggs:originOffset, gml:description, gml:identifier
Instance

<diggs:AxisLocation gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:axisRef xlink:href="" nilReason="" owns="false">{1,1}</diggs:axisRef>
  <diggs:axisOrder>{1,1}</diggs:axisOrder>
  <diggs:location owns="false" xlink:href="" nilReason="">{1,1}</diggs:location>
  <diggs:directionVector axisLabels="" srsDimension="" srsName="" uomLabels="">{0,1}</diggs:directionVector>
  <diggs:originOffset>{0,1}</diggs:originOffset>
  <diggs:directionVector axisLabels="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:directionVector>
  <diggs:originOffset>{0,1}</diggs:originOffset>
</diggs:AxisLocation>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="AxisLocation" type="diggs:AxisLocationType">
  <annotation>
    <documentation>The spatial location and orientation of one axis of a local Cartesian coordinate system, in the spatial coordinate reference system or as a unit vector in the units of that system. It positions the axis so that local coordinates can be transformed.</documentation>
  </annotation>
</element>
