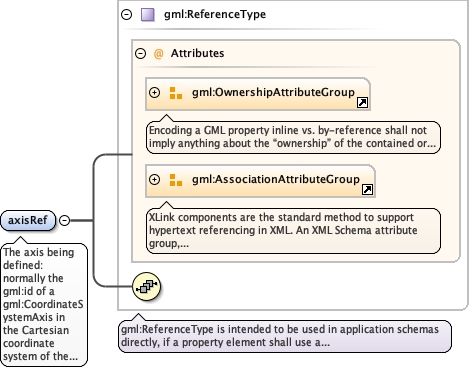

Element diggs:AxisLocationType / diggs:axisRef
Namespace http://diggsml.org/schemas/3
Annotations

The axis being defined: normally the gml:id of a
gml:CoordinateSystemAxis in the Cartesian coordinate system of the
parent diggs:LocalCartesianCRS, for example X, Y, Z, easting,
northing, elevation, station or offset.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_ReferenceType.tmp#ReferenceType
Type gml:ReferenceType
Properties
content complex
Model
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element name="axisRef" type="gml:ReferenceType">
  <annotation>
    <documentation>The axis being defined: normally the gml:id of a gml:CoordinateSystemAxis in the Cartesian coordinate system of the parent diggs:LocalCartesianCRS, for example X, Y, Z, easting, northing, elevation, station or offset.</documentation>
  </annotation>
</element>

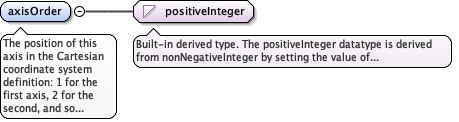

Element diggs:AxisLocationType / diggs:axisOrder
Namespace http://diggsml.org/schemas/3
Annotations

The position of this axis in the Cartesian coordinate system
definition: 1 for the first axis, 2 for the second, and so on. It
matches each axis to its spatial extent when the axis order is not
alphabetical.
Diagram
Diagram
Type positiveInteger
Properties
content simple
Source

<element name="axisOrder" type="positiveInteger">
  <annotation>
    <documentation>The position of this axis in the Cartesian coordinate system definition: 1 for the first axis, 2 for the second, and so on. It matches each axis to its spatial extent when the axis order is not alphabetical.</documentation>
  </annotation>
</element>

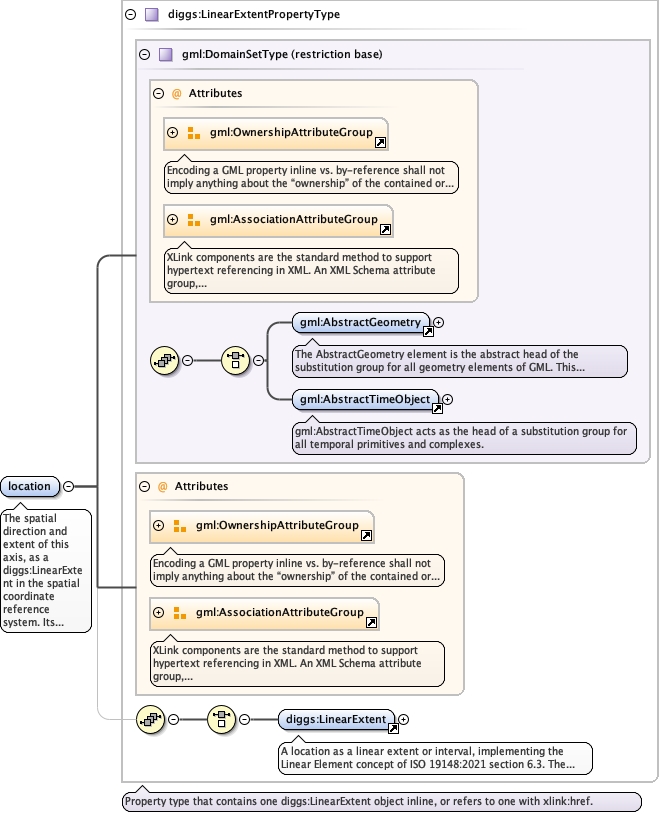

Element diggs:AxisLocationType / diggs:location
Namespace http://diggsml.org/schemas/3
Annotations

The spatial direction and extent of this axis, as a
diggs:LinearExtent in the spatial coordinate reference
system. Its start point typically corresponds to the origin
location of the parent CRS, and the vector from start to end
gives the positive direction and length of the axis. Give
either this with an optional directionVector, or
directionVector alone.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupCore_xsd_Element_diggs_LinearExtent.tmp#LinearExtentCore_xsd_Complex_Type_diggs_LinearExtentPropertyType.tmp#LinearExtentPropertyType
Type diggs:LinearExtentPropertyType
Type hierarchy
Properties
content complex
minOccurs 1
Model
Children diggs:LinearExtent
Instance

<diggs:location owns="false" xlink:href="" nilReason="" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:LinearExtent axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:LinearExtent>
</diggs:location>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element name="location" type="diggs:LinearExtentPropertyType" minOccurs="1">
  <annotation>
    <documentation>The spatial direction and extent of this axis, as a diggs:LinearExtent in the spatial coordinate reference system. Its start point typically corresponds to the origin location of the parent CRS, and the vector from start to end gives the positive direction and length of the axis. Give either this with an optional directionVector, or directionVector alone.</documentation>
  </annotation>
</element>

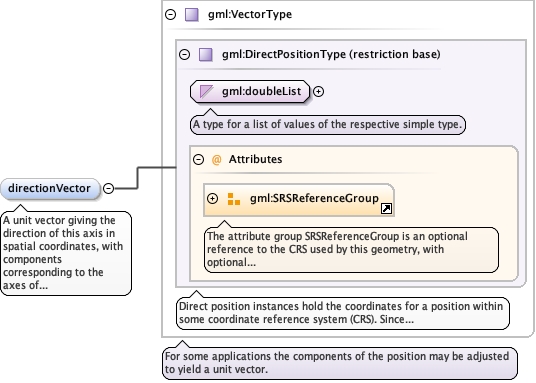

Element diggs:AxisLocationType / diggs:directionVector
Namespace http://diggsml.org/schemas/3
Annotations

A unit vector giving the direction of this axis in spatial
coordinates, with components corresponding to the axes of
the spatial CRS (typically X, Y, Z or easting, northing,
elevation). Given with location, it supplements the linear
extent and must be consistent with it.
Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_doubleList.tmp#doubleListgml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_DirectPositionType.tmp#DirectPositionTypegml3_2Profile_diggs_xsd_Complex_Type_gml_VectorType.tmp#VectorType
Type gml:VectorType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
axisLabels gml:NCNameList optional
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<element name="directionVector" type="gml:VectorType" minOccurs="0">
  <annotation>
    <documentation>A unit vector giving the direction of this axis in spatial coordinates, with components corresponding to the axes of the spatial CRS (typically X, Y, Z or easting, northing, elevation). Given with location, it supplements the linear extent and must be consistent with it.</documentation>
  </annotation>
</element>
Element diggs:AxisLocationType / diggs:originOffset
Namespace http://diggsml.org/schemas/3
Annotations

The value of the axis at its origin.
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
Source

<element name="originOffset" type="double" minOccurs="0">
  <annotation>
    <documentation>The value of the axis at its origin.</documentation>
  </annotation>
</element>

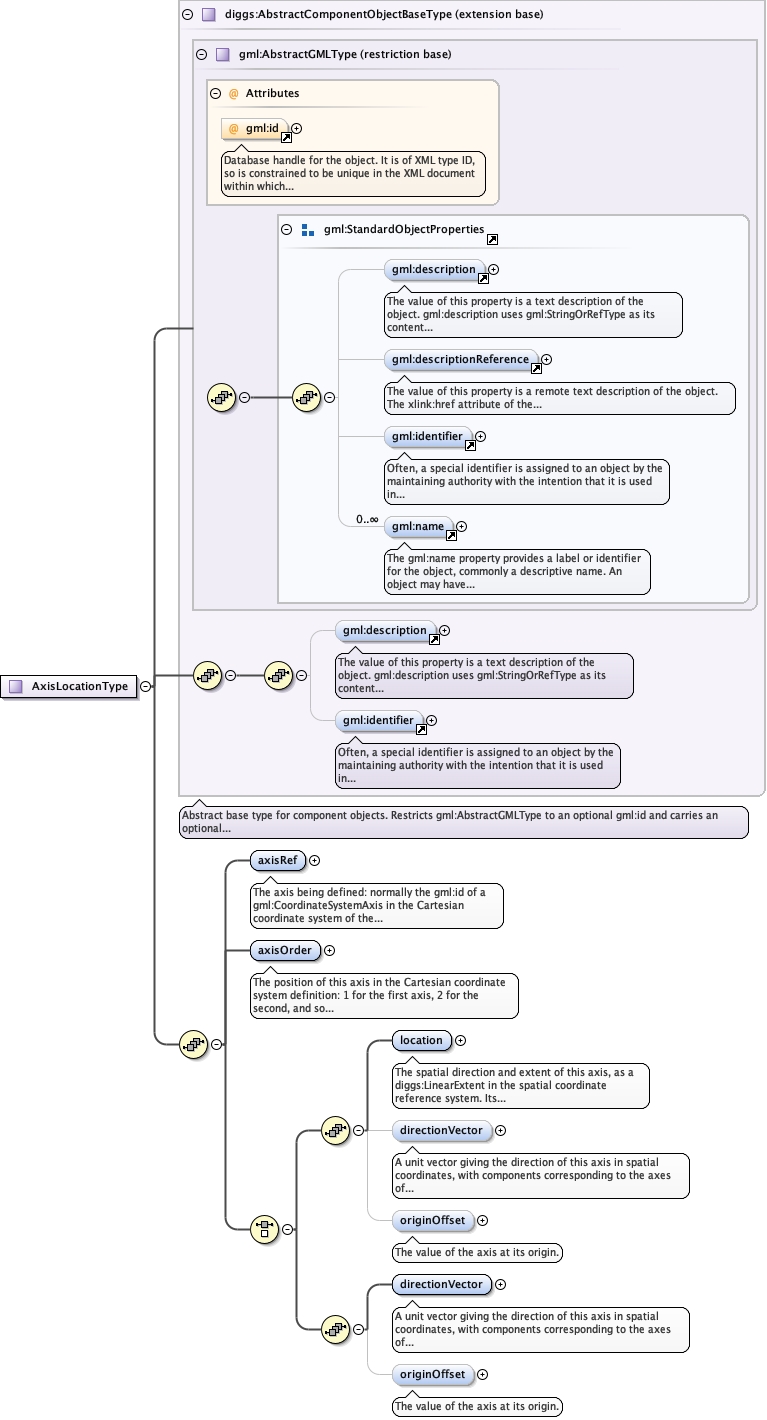

Complex Type diggs:AxisLocationType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeLocalReferencing_xsd_Complex_Type_diggs_AxisLocationType.tmp#AxisLocationType_axisRefLocalReferencing_xsd_Complex_Type_diggs_AxisLocationType.tmp#AxisLocationType_axisOrderLocalReferencing_xsd_Complex_Type_diggs_AxisLocationType.tmp#AxisLocationType_locationLocalReferencing_xsd_Complex_Type_diggs_AxisLocationType.tmp#AxisLocationType_directionVectorLocalReferencing_xsd_Complex_Type_diggs_AxisLocationType.tmp#AxisLocationType_originOffset
Type extension of diggs:AbstractComponentObjectBaseType
Type hierarchy
Used by
Model
Children diggs:axisOrder, diggs:axisRef, diggs:directionVector, diggs:location, diggs:originOffset, gml:description, gml:identifier
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="AxisLocationType">
  <complexContent>
    <extension base="diggs:AbstractComponentObjectBaseType">
      <sequence>
        <element name="axisRef" type="gml:ReferenceType">
          <annotation>
            <documentation>The axis being defined: normally the gml:id of a gml:CoordinateSystemAxis in the Cartesian coordinate system of the parent diggs:LocalCartesianCRS, for example X, Y, Z, easting, northing, elevation, station or offset.</documentation>
          </annotation>
        </element>
        <element name="axisOrder" type="positiveInteger">
          <annotation>
            <documentation>The position of this axis in the Cartesian coordinate system definition: 1 for the first axis, 2 for the second, and so on. It matches each axis to its spatial extent when the axis order is not alphabetical.</documentation>
          </annotation>
        </element>
        <choice>
          <sequence>
            <element name="location" type="diggs:LinearExtentPropertyType" minOccurs="1">
              <annotation>
                <documentation>The spatial direction and extent of this axis, as a diggs:LinearExtent in the spatial coordinate reference system. Its start point typically corresponds to the origin location of the parent CRS, and the vector from start to end gives the positive direction and length of the axis. Give either this with an optional directionVector, or directionVector alone.</documentation>
              </annotation>
            </element>
            <element name="directionVector" type="gml:VectorType" minOccurs="0">
              <annotation>
                <documentation>A unit vector giving the direction of this axis in spatial coordinates, with components corresponding to the axes of the spatial CRS (typically X, Y, Z or easting, northing, elevation). Given with location, it supplements the linear extent and must be consistent with it.</documentation>
              </annotation>
            </element>
            <element name="originOffset" type="double" minOccurs="0">
              <annotation>
                <documentation>The value of the axis at its origin.</documentation>
              </annotation>
            </element>
          </sequence>
          <sequence>
            <element name="directionVector" type="gml:VectorType" minOccurs="1">
              <annotation>
                <documentation>A unit vector giving the direction of this axis in spatial coordinates, with components corresponding to the axes of the spatial CRS (typically X, Y, Z or easting, northing, elevation). Used when location is not given.</documentation>
              </annotation>
            </element>
            <element name="originOffset" type="double" minOccurs="0">
              <annotation>
                <documentation>The value of the axis at its origin.</documentation>
              </annotation>
            </element>
          </sequence>
        </choice>
      </sequence>
    </extension>
  </complexContent>
</complexType>
