Complex Type diggs:LocalReferencingPropertyType
Namespace http://diggsml.org/schemas/3
Annotations
DEPRECATED. Use a diggs:LocalCartesianCRS declared in DocumentInformation/crs.
Property type associating a planar or volume engineering coordinate reference system
with a feature.

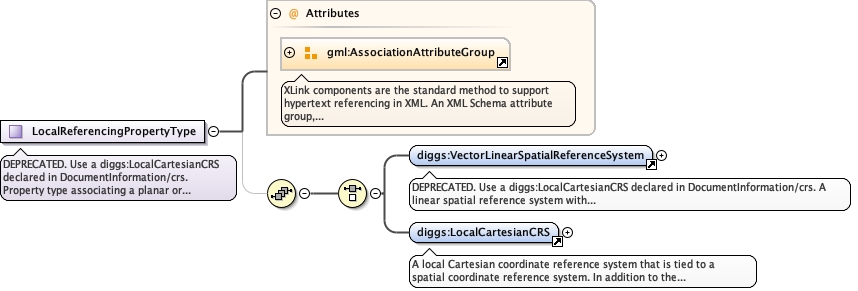

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupLinearReferencing_xsd_Element_diggs_VectorLinearSpatialReferenceSystem.tmp#VectorLinearSpatialReferenceSystemLocalReferencing_xsd_Element_diggs_LocalCartesianCRS.tmp#LocalCartesianCRS
Used by
Model
Children diggs:LocalCartesianCRS, diggs:VectorLinearSpatialReferenceSystem
Attributes
QName Type Use
nilReason gml:NilReasonType optional
xlink:href anyURI optional
Source
<complexType name="LocalReferencingPropertyType">
  <annotation>
    <appinfo>
      <diggs:deprecated since="3.0.0" replacedBy="diggs:LocalCartesianCRS" note="a diggs:LocalCartesianCRS declared in DocumentInformation/crs"/>
    </appinfo>
    <documentation>DEPRECATED. Use a diggs:LocalCartesianCRS declared in DocumentInformation/crs. Property type associating a planar or volume engineering coordinate reference system with a feature.</documentation>
  </annotation>
  <sequence minOccurs="0">
    <choice>
      <element ref="diggs:VectorLinearSpatialReferenceSystem"/>
      <element ref="diggs:LocalCartesianCRS"/>
    </choice>
  </sequence>
  <attributeGroup ref="gml:AssociationAttributeGroup"/>
</complexType>
