Schema documentation for component diggs:LateralLoadTest

A static lateral (transverse) load-deflection test applied directly to a deep foundation element or group, per ASTM D3966/D3966M or the French standard NF P94-151. It uses the same reaction system and load-increment schedule as an axial load test, so referenceSystem, maxTestLoad and increment (diggs:LoadTestIncrement) apply unchanged. ASTM D3966/D3966M names eight loading procedures (standard loading, excess loading, cyclic loading, surge loading, reverse loading, reciprocal loading, specified lateral movement, combined loading); the vocabulary of loadingProcedure carries all eight. No EN ISO 22477 part covers this scope. Cite whichever standard governs through the inherited testProcedureMethod. A single pile and a group are not distinguished by a field: ASTM D3966/D3966M covers both, and the number of diggs:RIColumn features that Test/samplingFeatureRef cites shows which. The measured lateral deflection is a result: give it on the ResultSet of Test/outcome with the property lateral_deflection from properties.xml (the property settlement is vertical only).

<diggs:LateralLoadTest gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,unbounded}</diggs:testEvent>
  <diggs:referenceSystem>{0,1}</diggs:referenceSystem>
  <diggs:maxTestLoad howDetermined="" qualifier="" uom="">{0,1}</diggs:maxTestLoad>
  <diggs:increment>{0,unbounded}</diggs:increment>
  <diggs:maxTestStress howDetermined="" qualifier="" uom="">{0,1}</diggs:maxTestStress>
  <diggs:deadLoad howDetermined="" qualifier="" uom="">{0,1}</diggs:deadLoad>
  <diggs:loadingProcedure codeSpace="">{0,1}</diggs:loadingProcedure>
  <diggs:loadApplicationPoint owns="false" xlink:href="" nilReason="">{0,1}</diggs:loadApplicationPoint>
</diggs:LateralLoadTest>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

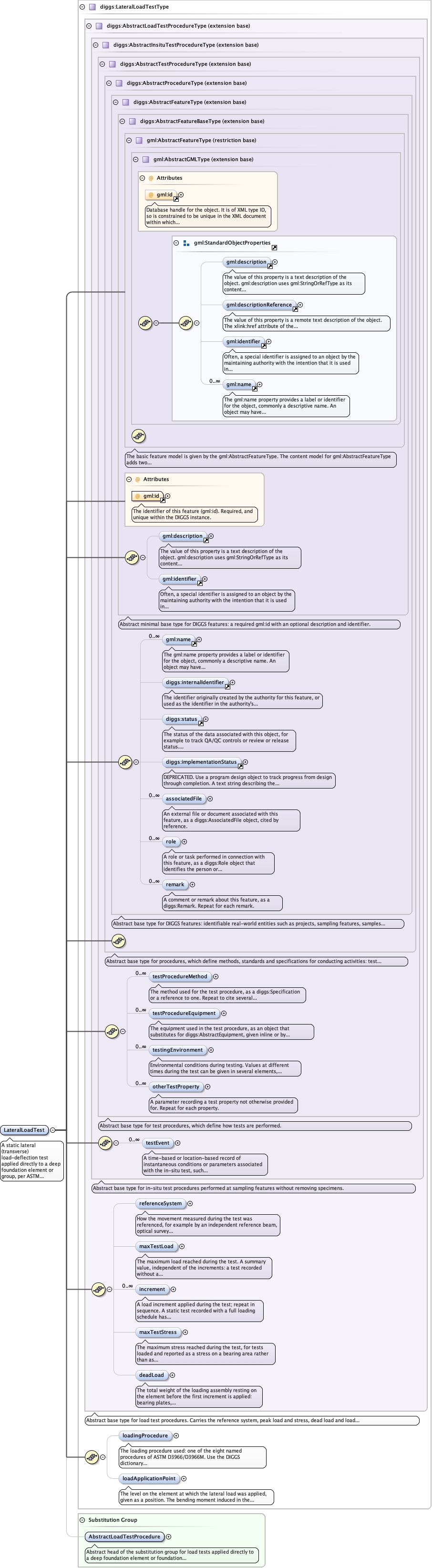

<element name="LateralLoadTest" type="diggs:LateralLoadTestType" abstract="false" substitutionGroup="diggs:AbstractLoadTestProcedure"> <annotation> <documentation>A static lateral (transverse) load-deflection test applied directly to a deep foundation element or group, per ASTM D3966/D3966M or the French standard NF P94-151. It uses the same reaction system and load-increment schedule as an axial load test, so referenceSystem, maxTestLoad and increment (diggs:LoadTestIncrement) apply unchanged. ASTM D3966/D3966M names eight loading procedures (standard loading, excess loading, cyclic loading, surge loading, reverse loading, reciprocal loading, specified lateral movement, combined loading); the vocabulary of loadingProcedure carries all eight. No EN ISO 22477 part covers this scope. Cite whichever standard governs through the inherited testProcedureMethod. A single pile and a group are not distinguished by a field: ASTM D3966/D3966M covers both, and the number of diggs:RIColumn features that Test/samplingFeatureRef cites shows which. The measured lateral deflection is a result: give it on the ResultSet of Test/outcome with the property lateral_deflection from properties.xml (the property settlement is vertical only).</documentation> </annotation> </element>
