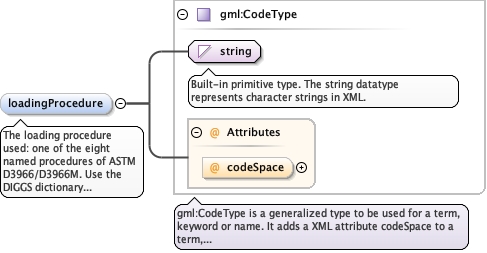

Element diggs:LateralLoadTestType / diggs:loadingProcedure
Namespace http://diggsml.org/schemas/3
Annotations

The loading procedure used: one of the eight named procedures of
ASTM D3966/D3966M. Use the DIGGS dictionary
lateralLoadTestProcedure.xml for the list of values.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="loadingProcedure" type="gml:CodeType">
  <annotation>
    <documentation>The loading procedure used: one of the eight named procedures of ASTM D3966/D3966M. Use the DIGGS dictionary lateralLoadTestProcedure.xml for the list of values.</documentation>
  </annotation>
</element>

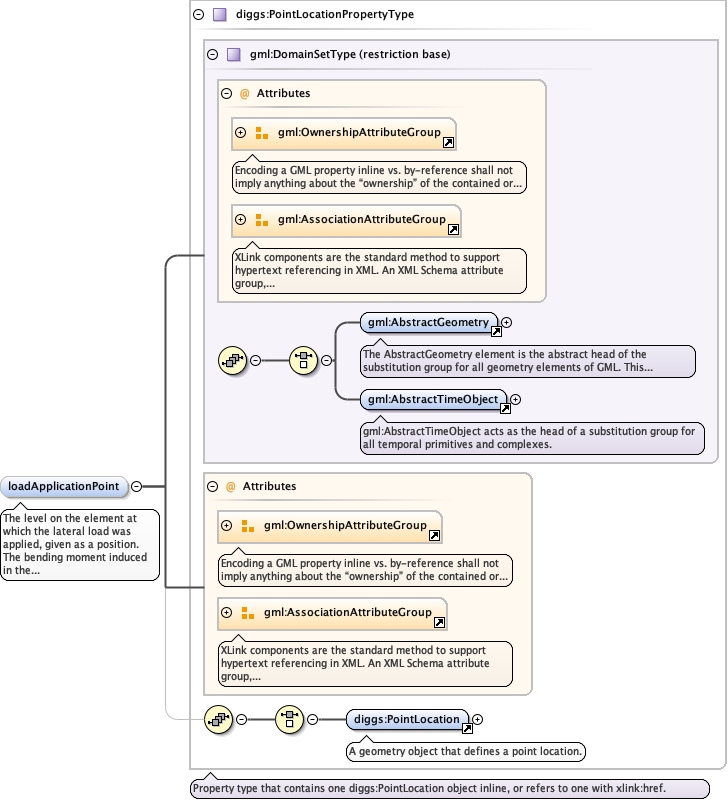

Element diggs:LateralLoadTestType / diggs:loadApplicationPoint
Namespace http://diggsml.org/schemas/3
Annotations

The level on the element at which the lateral load was applied,
given as a position. The bending moment induced in the element
depends on the eccentricity between this level and the point of
fixity in the ground.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupCore_xsd_Element_diggs_PointLocation.tmp#PointLocationCore_xsd_Complex_Type_diggs_PointLocationPropertyType.tmp#PointLocationPropertyType
Type diggs:PointLocationPropertyType
Type hierarchy
Properties
content complex
minOccurs 0
Model
Children diggs:PointLocation
Instance

<diggs:loadApplicationPoint owns="false" xlink:href="" nilReason="" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:PointLocation axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PointLocation>
</diggs:loadApplicationPoint>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element minOccurs="0" name="loadApplicationPoint" type="diggs:PointLocationPropertyType">
  <annotation>
    <documentation>The level on the element at which the lateral load was applied, given as a position. The bending moment induced in the element depends on the eccentricity between this level and the point of fixity in the ground.</documentation>
  </annotation>
</element>

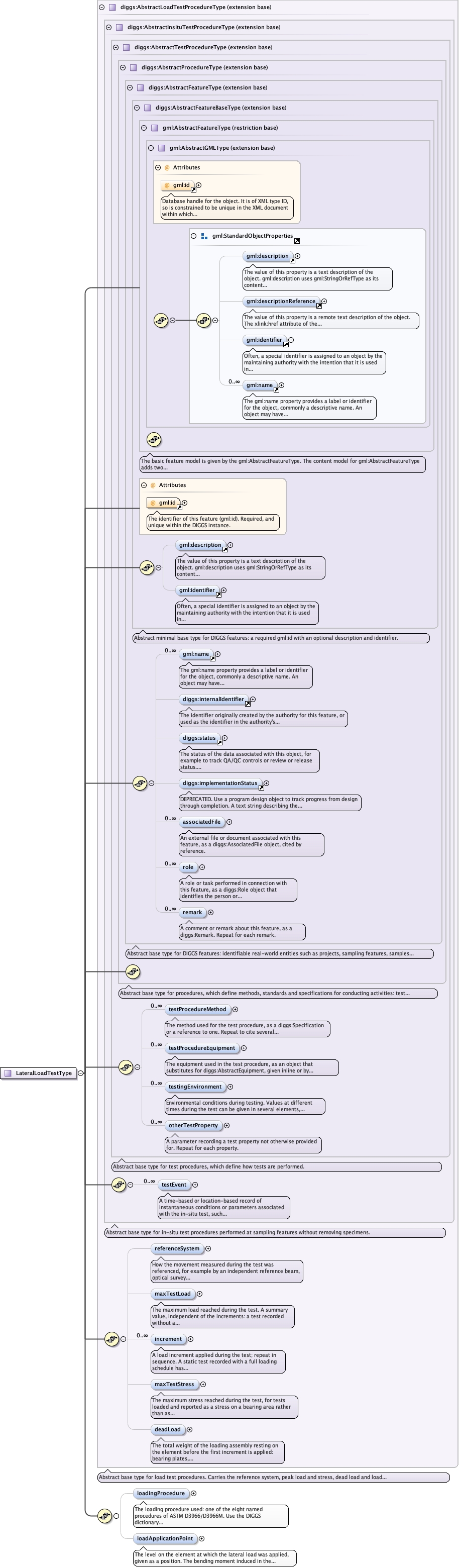

Complex Type diggs:LateralLoadTestType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEventAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractLoadTestProcedureType.tmp#AbstractLoadTestProcedureType_referenceSystemAbstractTypes_xsd_Complex_Type_diggs_AbstractLoadTestProcedureType.tmp#AbstractLoadTestProcedureType_maxTestLoadAbstractTypes_xsd_Complex_Type_diggs_AbstractLoadTestProcedureType.tmp#AbstractLoadTestProcedureType_incrementAbstractTypes_xsd_Complex_Type_diggs_AbstractLoadTestProcedureType.tmp#AbstractLoadTestProcedureType_maxTestStressAbstractTypes_xsd_Complex_Type_diggs_AbstractLoadTestProcedureType.tmp#AbstractLoadTestProcedureType_deadLoadAbstractTypes_xsd_Complex_Type_diggs_AbstractLoadTestProcedureType.tmp#AbstractLoadTestProcedureTypeExtProcedures_xsd_Complex_Type_diggs_LateralLoadTestType.tmp#LateralLoadTestType_loadingProcedureExtProcedures_xsd_Complex_Type_diggs_LateralLoadTestType.tmp#LateralLoadTestType_loadApplicationPoint
Type extension of diggs:AbstractLoadTestProcedureType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:deadLoad, diggs:implementationStatus, diggs:increment, diggs:internalIdentifier, diggs:loadApplicationPoint, diggs:loadingProcedure, diggs:maxTestLoad, diggs:maxTestStress, diggs:otherTestProperty, diggs:referenceSystem, diggs:remark, diggs:role, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="LateralLoadTestType">
  <complexContent>
    <extension base="diggs:AbstractLoadTestProcedureType">
      <sequence>
        <element minOccurs="0" name="loadingProcedure" type="gml:CodeType">
          <annotation>
            <documentation>The loading procedure used: one of the eight named procedures of ASTM D3966/D3966M. Use the DIGGS dictionary lateralLoadTestProcedure.xml for the list of values.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="loadApplicationPoint" type="diggs:PointLocationPropertyType">
          <annotation>
            <documentation>The level on the element at which the lateral load was applied, given as a position. The bending moment induced in the element depends on the eccentricity between this level and the point of fixity in the ground.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
