Element witsml:TubularComponent / witsml:TypeTubularComponent
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Connection whose type is tubular
Diagram
DiagramTubular_xsd_Simple_Type_witsml_TubularComponentType.tmp#TubularComponentType
Type witsml:TubularComponentType
Type hierarchy
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
maxLength 64
enumeration accelerator
enumeration adjustable kickoff
enumeration bit core diamond
enumeration bit core PDC
enumeration bit diamond fixed cut
enumeration bit hole opener
enumeration bit insert roller cone
enumeration bit mill tooth roller cone
enumeration bit PDC fixed cutter
enumeration bit under reamer
enumeration bridge plug
enumeration bull plug
enumeration bullnose
enumeration casing
enumeration casing crossover
enumeration casing cutter
enumeration casing head
enumeration casing inflatable packer
enumeration casing shoe screw-in
enumeration catch assembly
enumeration coiled tubing in hole
enumeration coiled tubing on coil
enumeration core barrel
enumeration core orientation barrel
enumeration die collar
enumeration die collar LH
enumeration directional guidance system
enumeration drill collar
enumeration drill collar short
enumeration drill pipe
enumeration drill pipe compressive
enumeration drill pipe LH
enumeration drill stem test BHA
enumeration drive pipe
enumeration dual catch assembly
enumeration extension bowl overshot
enumeration extension sub-overshot
enumeration float collar
enumeration float shoe
enumeration flow head
enumeration guide shoe
enumeration hanger casing subsea
enumeration hanger casing surface
enumeration hanger liner
enumeration hanger mud line
enumeration hanger tubing
enumeration heavy weight drill pipe
enumeration heavy weight drill pipe LH
enumeration jar
enumeration junk basket
enumeration junk basket reverse circulation
enumeration kelly
enumeration keyseat wiper tool
enumeration landing float collar
enumeration lead impression block
enumeration liner
enumeration logging while drilling tool
enumeration magnet
enumeration mill casing cutting
enumeration mill dress
enumeration mill flat bottom
enumeration mill hollow
enumeration mill packer picker assembly
enumeration mill pilot
enumeration mill polish
enumeration mill section
enumeration mill taper
enumeration mill washover
enumeration mill watermelon
enumeration millout extension
enumeration motor
enumeration motor instrumented
enumeration motor steerable
enumeration mule shoe
enumeration multilateral hanger running tool
enumeration MWD hang off sub
enumeration MWD pulser
enumeration non-magnetic collar
enumeration non-magnetic stabilizer
enumeration other
enumeration overshot
enumeration overshot LH
enumeration oversize lip guide overshot
enumeration packer
enumeration packer retrieve TT squeeze
enumeration packer RTTS
enumeration packer storm valve RTTS
enumeration pipe cutter
enumeration polished bore receptacle
enumeration ported stinger
enumeration prepacked screens
enumeration reamer
enumeration reversing tool
enumeration riser high pressure
enumeration riser marine
enumeration riser production
enumeration rotary steering tool
enumeration running tool
enumeration safety joint
enumeration safety joint LH
enumeration scab liner bit guide
enumeration scraper
enumeration scratchers
enumeration slotted liner
enumeration spear
enumeration stabilizer
enumeration stabilizer inline
enumeration stabilizer near bit
enumeration stabilizer near bit roller reamer
enumeration stabilizer non-rotating
enumeration stabilizer steerable
enumeration stabilizer string
enumeration stabilizer string roller reamer
enumeration stabilizer turbo back
enumeration stabilizer variable blade
enumeration stage cement collar
enumeration sub-bar catcher
enumeration sub-bent
enumeration sub-bit
enumeration sub-bumper
enumeration sub-catcher
enumeration sub-circulation
enumeration sub-cone
enumeration sub-crossover
enumeration sub-dart
enumeration sub-filter
enumeration sub-float
enumeration sub-jetting
enumeration sub-junk
enumeration sub-orienting
enumeration sub-ported
enumeration sub-pressure relief
enumeration sub-pump out
enumeration sub-restrictor
enumeration sub-saver
enumeration sub-shock
enumeration sub-side entry
enumeration sub-stop
enumeration surface pipe
enumeration taper tap
enumeration taper tap LH
enumeration thruster
enumeration tieback polished bore receptacle
enumeration tieback stinger
enumeration tubing
enumeration tubing-conveyed perforating gun
enumeration turbine
enumeration unknown
enumeration washover pipe
enumeration whipstock
enumeration whipstock anchor
Source

<xs:element name="TypeTubularComponent" type="witsml:TubularComponentType" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Connection whose type is tubular</xs:documentation>
  </xs:annotation>
</xs:element>

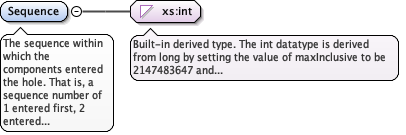

Element witsml:TubularComponent / witsml:Sequence
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

The sequence within which the components entered the hole.
That is, a sequence number of 1 entered first, 2 entered next, etc.
Diagram
Diagram
Type xs:int
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="Sequence" type="xs:int" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The sequence within which the components entered the hole. That is, a sequence number of 1 entered first, 2 entered next, etc.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:TubularComponent / witsml:Description
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Description of item and details.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_String2000.tmp#String2000
Type eml:String2000
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 2000
Source

<xs:element name="Description" type="eml:String2000" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Description of item and details.</xs:documentation>
  </xs:annotation>
</xs:element>

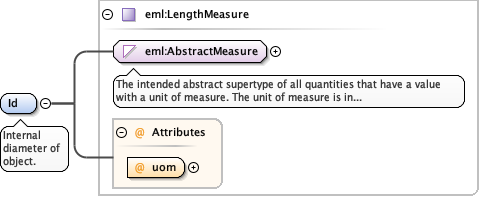

Element witsml:TubularComponent / witsml:Id
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Internal diameter of object.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<xs:element name="Id" type="eml:LengthMeasure" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Internal diameter of object.</xs:documentation>
  </xs:annotation>
</xs:element>

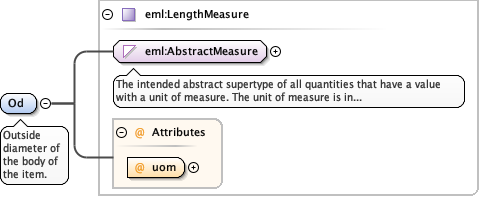

Element witsml:TubularComponent / witsml:Od
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Outside diameter of the body of the item.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<xs:element name="Od" type="eml:LengthMeasure" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Outside diameter of the body of the item.</xs:documentation>
  </xs:annotation>
</xs:element>

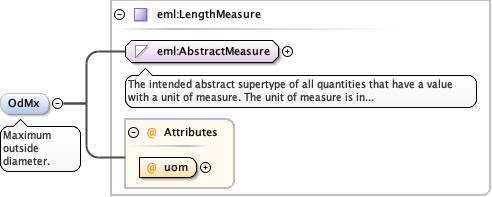

Element witsml:TubularComponent / witsml:OdMx
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Maximum outside diameter.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<xs:element name="OdMx" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Maximum outside diameter.</xs:documentation>
  </xs:annotation>
</xs:element>

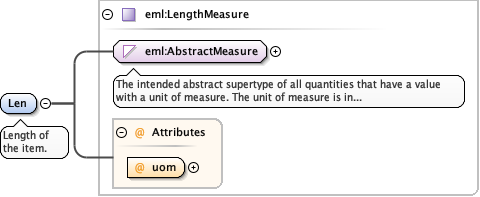

Element witsml:TubularComponent / witsml:Len
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Length of the item.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<xs:element name="Len" type="eml:LengthMeasure" minOccurs="1" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Length of the item.</xs:documentation>
  </xs:annotation>
</xs:element>

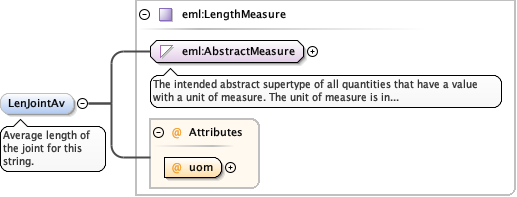

Element witsml:TubularComponent / witsml:LenJointAv
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Average length of the joint for this string.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<xs:element name="LenJointAv" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Average length of the joint for this string.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:TubularComponent / witsml:NumJointStand
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Number of joints per stand of tubulars.
Diagram
Diagram
Type xs:int
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="NumJointStand" type="xs:int" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Number of joints per stand of tubulars.</xs:documentation>
  </xs:annotation>
</xs:element>

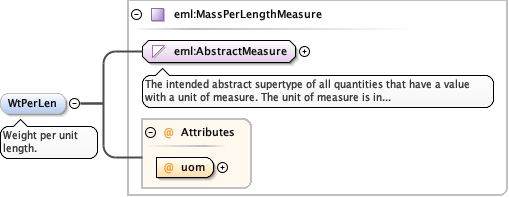

Element witsml:TubularComponent / witsml:WtPerLen
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Weight per unit length.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MassPerLengthMeasure.tmp#MassPerLengthMeasure_uomMeasureType_xsd_Complex_Type_eml_MassPerLengthMeasure.tmp#MassPerLengthMeasure
Type eml:MassPerLengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:MassPerLengthUom required
Source

<xs:element name="WtPerLen" type="eml:MassPerLengthMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Weight per unit length.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:TubularComponent / witsml:Grade
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Material grade for the tubular section.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_String64.tmp#String64
Type eml:String64
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 64
Source

<xs:element name="Grade" type="eml:String64" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Material grade for the tubular section.</xs:documentation>
  </xs:annotation>
</xs:element>

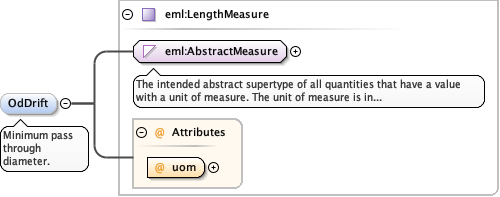

Element witsml:TubularComponent / witsml:OdDrift
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Minimum pass through diameter.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<xs:element name="OdDrift" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Minimum pass through diameter.</xs:documentation>
  </xs:annotation>
</xs:element>

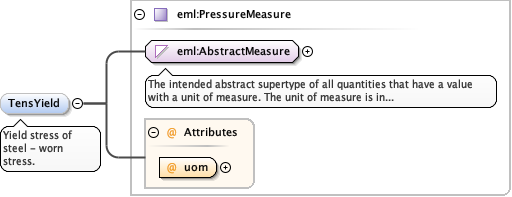

Element witsml:TubularComponent / witsml:TensYield
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Yield stress of steel - worn stress.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:PressureUom required
Source

<xs:element name="TensYield" type="eml:PressureMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Yield stress of steel - worn stress.</xs:documentation>
  </xs:annotation>
</xs:element>

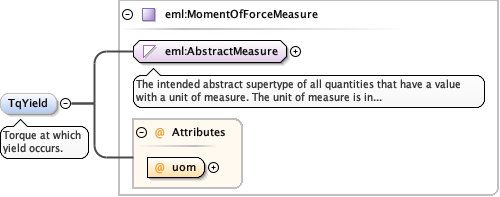

Element witsml:TubularComponent / witsml:TqYield
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Torque at which yield occurs.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_MomentOfForceMeasure.tmp#MomentOfForceMeasure_uomMeasureType_xsd_Complex_Type_eml_MomentOfForceMeasure.tmp#MomentOfForceMeasure
Type eml:MomentOfForceMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:MomentOfForceUom required
Source

<xs:element name="TqYield" type="eml:MomentOfForceMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Torque at which yield occurs.</xs:documentation>
  </xs:annotation>
</xs:element>

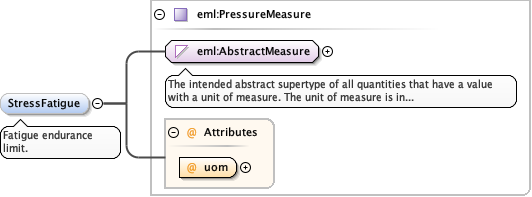

Element witsml:TubularComponent / witsml:StressFatigue
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Fatigue endurance limit.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:PressureUom required
Source

<xs:element name="StressFatigue" type="eml:PressureMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Fatigue endurance limit.</xs:documentation>
  </xs:annotation>
</xs:element>

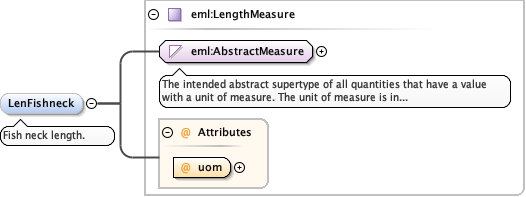

Element witsml:TubularComponent / witsml:LenFishneck
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Fish neck length.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<xs:element name="LenFishneck" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Fish neck length.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:TubularComponent / witsml:IdFishneck
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Fish neck inside diameter.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<xs:element name="IdFishneck" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Fish neck inside diameter.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:TubularComponent / witsml:OdFishneck
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Fish neck outside diameter.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<xs:element name="OdFishneck" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Fish neck outside diameter.</xs:documentation>
  </xs:annotation>
</xs:element>

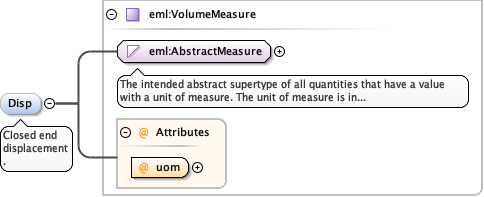

Element witsml:TubularComponent / witsml:Disp
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Closed end displacement.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure
Type eml:VolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:VolumeUom required
Source

<xs:element name="Disp" type="eml:VolumeMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Closed end displacement.</xs:documentation>
  </xs:annotation>
</xs:element>

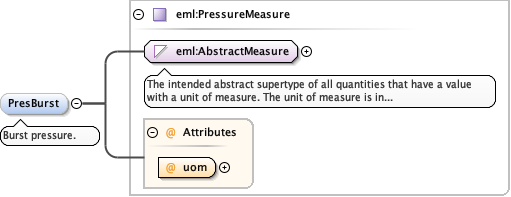

Element witsml:TubularComponent / witsml:PresBurst
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Burst pressure.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:PressureUom required
Source

<xs:element name="PresBurst" type="eml:PressureMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Burst pressure.</xs:documentation>
  </xs:annotation>
</xs:element>

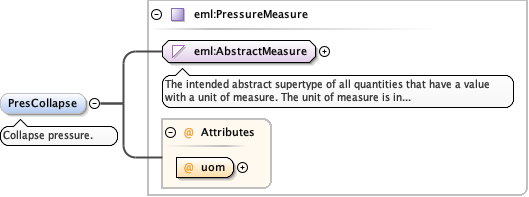

Element witsml:TubularComponent / witsml:PresCollapse
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Collapse pressure.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure_uomMeasureType_xsd_Complex_Type_eml_PressureMeasure.tmp#PressureMeasure
Type eml:PressureMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:PressureUom required
Source

<xs:element name="PresCollapse" type="eml:PressureMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Collapse pressure.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:TubularComponent / witsml:ClassService
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Service class.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_String64.tmp#String64
Type eml:String64
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 64
Source

<xs:element name="ClassService" type="eml:String64" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Service class.</xs:documentation>
  </xs:annotation>
</xs:element>

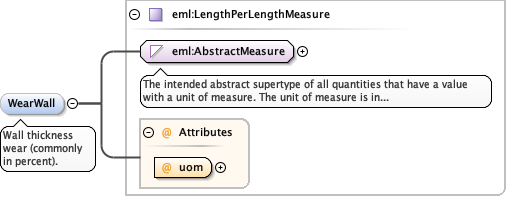

Element witsml:TubularComponent / witsml:WearWall
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Wall thickness wear (commonly in percent).
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthPerLengthMeasure.tmp#LengthPerLengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthPerLengthMeasure.tmp#LengthPerLengthMeasure
Type eml:LengthPerLengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthPerLengthUom required
Source

<xs:element name="WearWall" type="eml:LengthPerLengthMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Wall thickness wear (commonly in percent).</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:TubularComponent / witsml:ThickWall
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Wall thickness.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure_uomMeasureType_xsd_Complex_Type_eml_LengthMeasure.tmp#LengthMeasure
Type eml:LengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:LengthUom required
Source

<xs:element name="ThickWall" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Wall thickness.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:TubularComponent / witsml:ConfigCon
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Box/Pin configuration.
Diagram
DiagramTubular_xsd_Simple_Type_witsml_BoxPinConfig.tmp#BoxPinConfig
Type witsml:BoxPinConfig
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 64
enumeration bottom box
enumeration top box
enumeration top pin
enumeration bottom pin top box
enumeration bottom pin
Source

<xs:element name="ConfigCon" type="witsml:BoxPinConfig" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Box/Pin configuration.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:TubularComponent / witsml:BendStiffness
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Bending stiffness of tubular.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForcePerLengthMeasure.tmp#ForcePerLengthMeasure_uomMeasureType_xsd_Complex_Type_eml_ForcePerLengthMeasure.tmp#ForcePerLengthMeasure
Type eml:ForcePerLengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:ForcePerLengthUom required
Source

<xs:element name="BendStiffness" type="eml:ForcePerLengthMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Bending stiffness of tubular.</xs:documentation>
  </xs:annotation>
</xs:element>

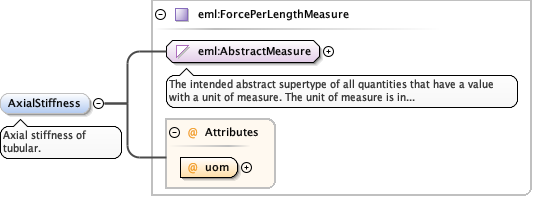

Element witsml:TubularComponent / witsml:AxialStiffness
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Axial stiffness of tubular.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForcePerLengthMeasure.tmp#ForcePerLengthMeasure_uomMeasureType_xsd_Complex_Type_eml_ForcePerLengthMeasure.tmp#ForcePerLengthMeasure
Type eml:ForcePerLengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:ForcePerLengthUom required
Source

<xs:element name="AxialStiffness" type="eml:ForcePerLengthMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Axial stiffness of tubular.</xs:documentation>
  </xs:annotation>
</xs:element>

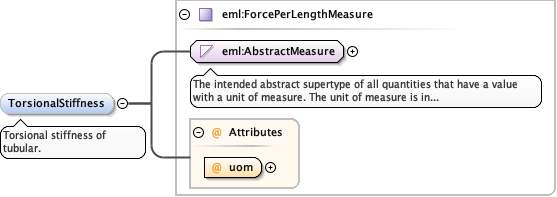

Element witsml:TubularComponent / witsml:TorsionalStiffness
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Torsional stiffness of tubular.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_ForcePerLengthMeasure.tmp#ForcePerLengthMeasure_uomMeasureType_xsd_Complex_Type_eml_ForcePerLengthMeasure.tmp#ForcePerLengthMeasure
Type eml:ForcePerLengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:ForcePerLengthUom required
Source

<xs:element name="TorsionalStiffness" type="eml:ForcePerLengthMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Torsional stiffness of tubular.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:TubularComponent / witsml:TypeMaterial
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Type of material.
Diagram
DiagramTubular_xsd_Simple_Type_witsml_MaterialType.tmp#MaterialType
Type witsml:MaterialType
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 64
enumeration aluminum
enumeration beryllium copper
enumeration chrome alloy
enumeration composite
enumeration other
enumeration non-magnetic steel
enumeration plastic
enumeration steel
enumeration steel alloy
enumeration titanium
Source

<xs:element name="TypeMaterial" type="witsml:MaterialType" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Type of material.</xs:documentation>
  </xs:annotation>
</xs:element>

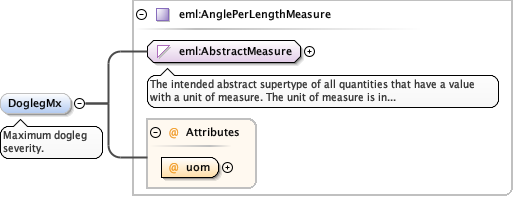

Element witsml:TubularComponent / witsml:DoglegMx
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Maximum dogleg severity.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_AnglePerLengthMeasure.tmp#AnglePerLengthMeasure_uomMeasureType_xsd_Complex_Type_eml_AnglePerLengthMeasure.tmp#AnglePerLengthMeasure
Type eml:AnglePerLengthMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:AnglePerLengthUom required
Source

<xs:element name="DoglegMx" type="eml:AnglePerLengthMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Maximum dogleg severity.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:TubularComponent / witsml:Vendor
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Name of vendor.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_String64.tmp#String64
Type eml:String64
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 64
Source

<xs:element name="Vendor" type="eml:String64" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Name of vendor.</xs:documentation>
  </xs:annotation>
</xs:element>
Element witsml:TubularComponent / witsml:Model
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Component name from manufacturer.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_String64.tmp#String64
Type eml:String64
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
maxLength 64
Source

<xs:element name="Model" type="eml:String64" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Component name from manufacturer.</xs:documentation>
  </xs:annotation>
</xs:element>

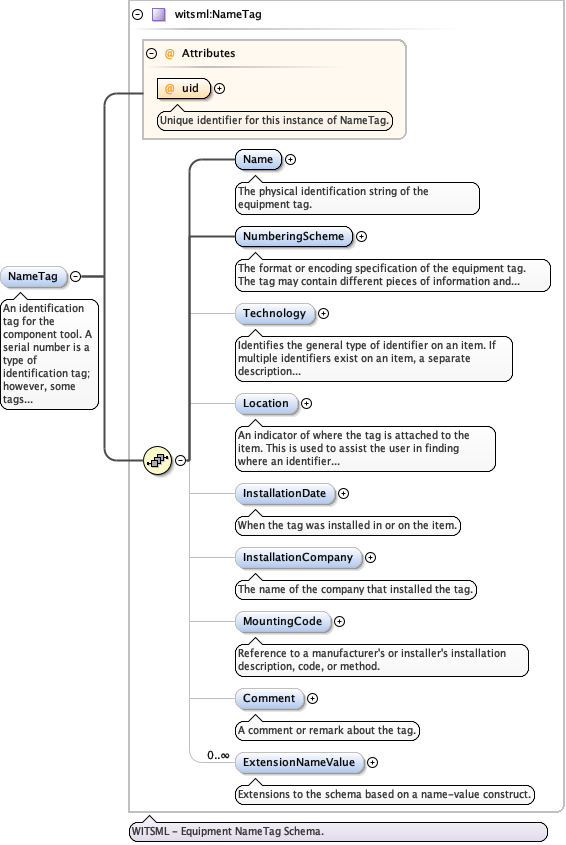

Element witsml:TubularComponent / witsml:NameTag
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

An identification tag for the component tool. A serial number is a type of identification tag; however, some tags contain many pieces of information. This element only identifies the tag; it does not describe the contents.
Diagram
DiagramWitsmlCommon_xsd_Complex_Type_witsml_NameTag.tmp#NameTag_uidWitsmlCommon_xsd_Complex_Type_witsml_NameTag.tmp#NameTag_NameWitsmlCommon_xsd_Complex_Type_witsml_NameTag.tmp#NameTag_NumberingSchemeWitsmlCommon_xsd_Complex_Type_witsml_NameTag.tmp#NameTag_TechnologyWitsmlCommon_xsd_Complex_Type_witsml_NameTag.tmp#NameTag_LocationWitsmlCommon_xsd_Complex_Type_witsml_NameTag.tmp#NameTag_InstallationDateWitsmlCommon_xsd_Complex_Type_witsml_NameTag.tmp#NameTag_InstallationCompanyWitsmlCommon_xsd_Complex_Type_witsml_NameTag.tmp#NameTag_MountingCodeWitsmlCommon_xsd_Complex_Type_witsml_NameTag.tmp#NameTag_CommentWitsmlCommon_xsd_Complex_Type_witsml_NameTag.tmp#NameTag_ExtensionNameValueWitsmlCommon_xsd_Complex_Type_witsml_NameTag.tmp#NameTag
Type witsml:NameTag
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children witsml:Comment, witsml:ExtensionNameValue, witsml:InstallationCompany, witsml:InstallationDate, witsml:Location, witsml:MountingCode, witsml:Name, witsml:NumberingScheme, witsml:Technology
Instance

<witsml:NameTag uid="" xmlns:witsml="http://www.energistics.org/energyml/data/witsmlv2">
  <witsml:Name>{1,1}</witsml:Name>
  <witsml:NumberingScheme>{1,1}</witsml:NumberingScheme>
  <witsml:Technology>{0,1}</witsml:Technology>
  <witsml:Location>{0,1}</witsml:Location>
  <witsml:InstallationDate>{0,1}</witsml:InstallationDate>
  <witsml:InstallationCompany>{0,1}</witsml:InstallationCompany>
  <witsml:MountingCode>{0,1}</witsml:MountingCode>
  <witsml:Comment>{0,1}</witsml:Comment>
  <witsml:ExtensionNameValue>{0,unbounded}</witsml:ExtensionNameValue>
</witsml:NameTag>
Attributes
QName Type Use Annotation
uid eml:String64 required
Unique identifier for this instance of NameTag.
Source

<xs:element name="NameTag" type="witsml:NameTag" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>An identification tag for the component tool. A serial number is a type of identification tag; however, some tags contain many pieces of information. This element only identifies the tag; it does not describe the contents.</xs:documentation>
  </xs:annotation>
</xs:element>

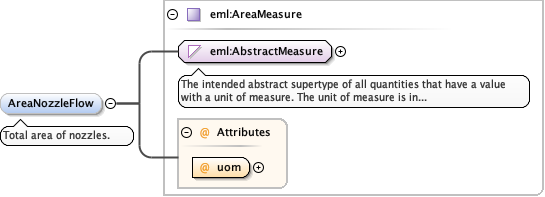

Element witsml:TubularComponent / witsml:AreaNozzleFlow
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Total area of nozzles.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_AreaMeasure.tmp#AreaMeasure_uomMeasureType_xsd_Complex_Type_eml_AreaMeasure.tmp#AreaMeasure
Type eml:AreaMeasure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
uom eml:AreaUom required
Source

<xs:element name="AreaNozzleFlow" type="eml:AreaMeasure" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Total area of nozzles.</xs:documentation>
  </xs:annotation>
</xs:element>

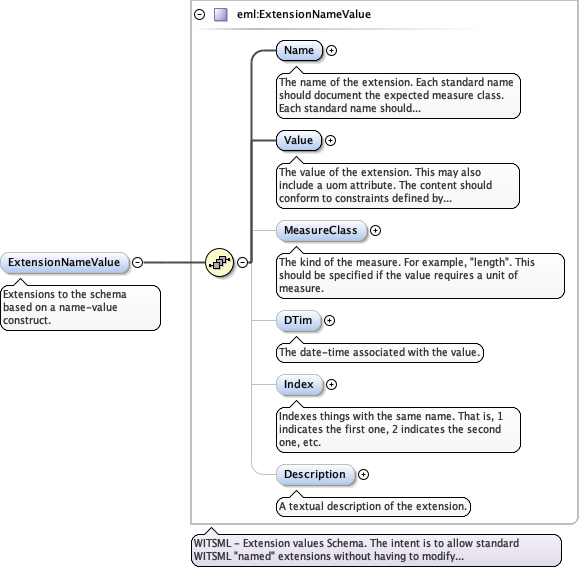

Element witsml:TubularComponent / witsml:ExtensionNameValue
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Extensions to the schema based on a name-value construct.
Diagram
DiagramAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue_NameAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue_ValueAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue_MeasureClassAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue_DTimAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue_IndexAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue_DescriptionAbstract_xsd_Complex_Type_eml_ExtensionNameValue.tmp#ExtensionNameValue
Type eml:ExtensionNameValue
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children eml:DTim, eml:Description, eml:Index, eml:MeasureClass, eml:Name, eml:Value
Instance

<witsml:ExtensionNameValue xmlns:witsml="http://www.energistics.org/energyml/data/witsmlv2" xmlns:eml="http://www.energistics.org/energyml/data/commonv2">
  <eml:Name>{1,1}</eml:Name>
  <eml:Value uom="">{1,1}</eml:Value>
  <eml:MeasureClass>{0,1}</eml:MeasureClass>
  <eml:DTim>{0,1}</eml:DTim>
  <eml:Index>{0,1}</eml:Index>
  <eml:Description>{0,1}</eml:Description>
</witsml:ExtensionNameValue>
Source

<xs:element name="ExtensionNameValue" type="eml:ExtensionNameValue" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Extensions to the schema based on a name-value construct.</xs:documentation>
  </xs:annotation>
</xs:element>

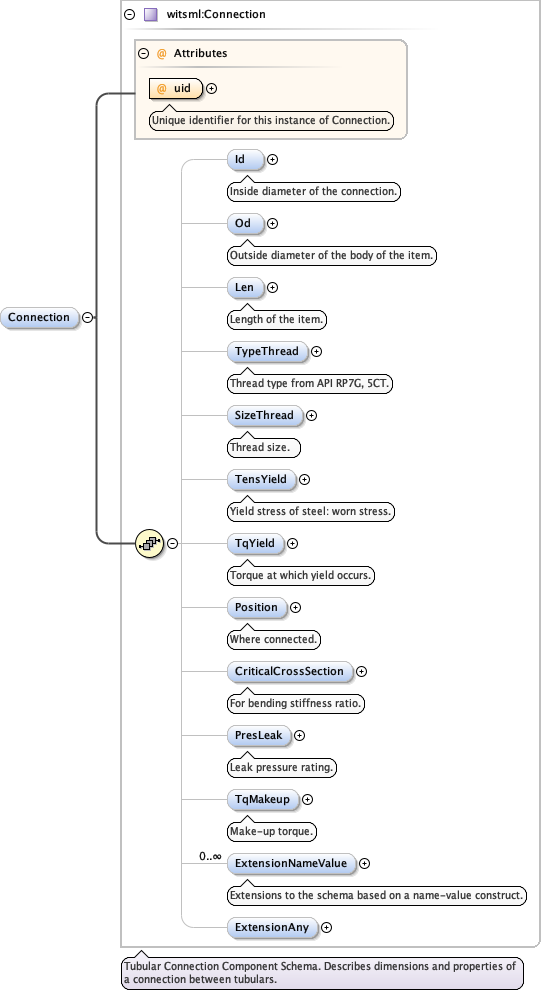

Element witsml:TubularComponent / witsml:Connection
Namespace http://www.energistics.org/energyml/data/witsmlv2
Diagram
DiagramTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_uidTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_IdTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_OdTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_LenTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_TypeThreadTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_SizeThreadTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_TensYieldTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_TqYieldTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_PositionTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_CriticalCrossSectionTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_PresLeakTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_TqMakeupTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_ExtensionNameValueTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection_ExtensionAnyTubular_xsd_Complex_Type_witsml_Connection.tmp#Connection
Type witsml:Connection
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children witsml:CriticalCrossSection, witsml:ExtensionAny, witsml:ExtensionNameValue, witsml:Id, witsml:Len, witsml:Od, witsml:Position, witsml:PresLeak, witsml:SizeThread, witsml:TensYield, witsml:TqMakeup, witsml:TqYield, witsml:TypeThread
Instance

<witsml:Connection uid="" xmlns:witsml="http://www.energistics.org/energyml/data/witsmlv2">
  <witsml:Id uom="">{0,1}</witsml:Id>
  <witsml:Od uom="">{0,1}</witsml:Od>
  <witsml:Len uom="">{0,1}</witsml:Len>
  <witsml:TypeThread>{0,1}</witsml:TypeThread>
  <witsml:SizeThread uom="">{0,1}</witsml:SizeThread>
  <witsml:TensYield uom="">{0,1}</witsml:TensYield>
  <witsml:TqYield uom="">{0,1}</witsml:TqYield>
  <witsml:Position>{0,1}</witsml:Position>
  <witsml:CriticalCrossSection uom="">{0,1}</witsml:CriticalCrossSection>
  <witsml:PresLeak uom="">{0,1}</witsml:PresLeak>
  <witsml:TqMakeup uom="">{0,1}</witsml:TqMakeup>
  <witsml:ExtensionNameValue>{0,unbounded}</witsml:ExtensionNameValue>
  <witsml:ExtensionAny>{0,1}</witsml:ExtensionAny>
</witsml:Connection>
Attributes
QName Type Use Annotation
uid eml:String64 required
Unique identifier for this instance of Connection.
Source

<xs:element name="Connection" type="witsml:Connection" minOccurs="0" maxOccurs="unbounded"/>

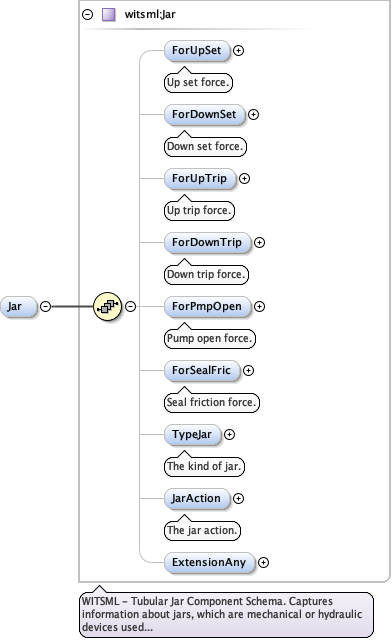

Element witsml:TubularComponent / witsml:Jar
Namespace http://www.energistics.org/energyml/data/witsmlv2
Diagram
DiagramTubular_xsd_Complex_Type_witsml_Jar.tmp#Jar_ForUpSetTubular_xsd_Complex_Type_witsml_Jar.tmp#Jar_ForDownSetTubular_xsd_Complex_Type_witsml_Jar.tmp#Jar_ForUpTripTubular_xsd_Complex_Type_witsml_Jar.tmp#Jar_ForDownTripTubular_xsd_Complex_Type_witsml_Jar.tmp#Jar_ForPmpOpenTubular_xsd_Complex_Type_witsml_Jar.tmp#Jar_ForSealFricTubular_xsd_Complex_Type_witsml_Jar.tmp#Jar_TypeJarTubular_xsd_Complex_Type_witsml_Jar.tmp#Jar_JarActionTubular_xsd_Complex_Type_witsml_Jar.tmp#Jar_ExtensionAnyTubular_xsd_Complex_Type_witsml_Jar.tmp#Jar
Type witsml:Jar
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children witsml:ExtensionAny, witsml:ForDownSet, witsml:ForDownTrip, witsml:ForPmpOpen, witsml:ForSealFric, witsml:ForUpSet, witsml:ForUpTrip, witsml:JarAction, witsml:TypeJar
Instance

<witsml:Jar xmlns:witsml="http://www.energistics.org/energyml/data/witsmlv2">
  <witsml:ForUpSet uom="">{0,1}</witsml:ForUpSet>
  <witsml:ForDownSet uom="">{0,1}</witsml:ForDownSet>
  <witsml:ForUpTrip uom="">{0,1}</witsml:ForUpTrip>
  <witsml:ForDownTrip uom="">{0,1}</witsml:ForDownTrip>
  <witsml:ForPmpOpen uom="">{0,1}</witsml:ForPmpOpen>
  <witsml:ForSealFric uom="">{0,1}</witsml:ForSealFric>
  <witsml:TypeJar>{0,1}</witsml:TypeJar>
  <witsml:JarAction>{0,1}</witsml:JarAction>
  <witsml:ExtensionAny>{0,1}</witsml:ExtensionAny>
</witsml:Jar>
Source

<xs:element name="Jar" type="witsml:Jar" minOccurs="0" maxOccurs="1"/>

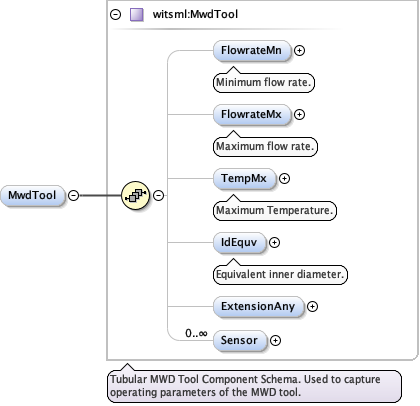

Element witsml:TubularComponent / witsml:MwdTool
Namespace http://www.energistics.org/energyml/data/witsmlv2
Diagram
DiagramTubular_xsd_Complex_Type_witsml_MwdTool.tmp#MwdTool_FlowrateMnTubular_xsd_Complex_Type_witsml_MwdTool.tmp#MwdTool_FlowrateMxTubular_xsd_Complex_Type_witsml_MwdTool.tmp#MwdTool_TempMxTubular_xsd_Complex_Type_witsml_MwdTool.tmp#MwdTool_IdEquvTubular_xsd_Complex_Type_witsml_MwdTool.tmp#MwdTool_ExtensionAnyTubular_xsd_Complex_Type_witsml_MwdTool.tmp#MwdTool_SensorTubular_xsd_Complex_Type_witsml_MwdTool.tmp#MwdTool
Type witsml:MwdTool
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children witsml:ExtensionAny, witsml:FlowrateMn, witsml:FlowrateMx, witsml:IdEquv, witsml:Sensor, witsml:TempMx
Instance

<witsml:MwdTool xmlns:witsml="http://www.energistics.org/energyml/data/witsmlv2">
  <witsml:FlowrateMn uom="">{0,1}</witsml:FlowrateMn>
  <witsml:FlowrateMx uom="">{0,1}</witsml:FlowrateMx>
  <witsml:TempMx uom="">{0,1}</witsml:TempMx>
  <witsml:IdEquv uom="">{0,1}</witsml:IdEquv>
  <witsml:ExtensionAny>{0,1}</witsml:ExtensionAny>
  <witsml:Sensor uid="">{0,unbounded}</witsml:Sensor>
</witsml:MwdTool>
Source

<xs:element name="MwdTool" type="witsml:MwdTool" minOccurs="0" maxOccurs="1"/>

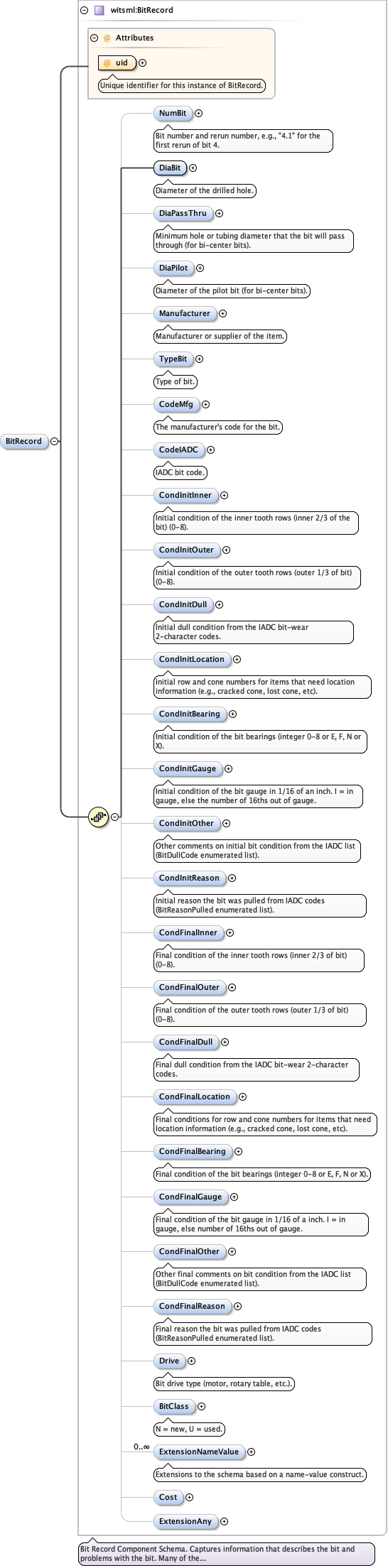

Element witsml:TubularComponent / witsml:BitRecord
Namespace http://www.energistics.org/energyml/data/witsmlv2
Diagram
DiagramTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_uidTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_NumBitTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_DiaBitTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_DiaPassThruTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_DiaPilotTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_ManufacturerTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_TypeBitTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_CodeMfgTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_CodeIADCTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_CondInitInnerTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_CondInitOuterTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_CondInitDullTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_CondInitLocationTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_CondInitBearingTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_CondInitGaugeTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_CondInitOtherTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_CondInitReasonTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_CondFinalInnerTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_CondFinalOuterTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_CondFinalDullTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_CondFinalLocationTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_CondFinalBearingTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_CondFinalGaugeTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_CondFinalOtherTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_CondFinalReasonTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_DriveTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_BitClassTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_ExtensionNameValueTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_CostTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord_ExtensionAnyTubular_xsd_Complex_Type_witsml_BitRecord.tmp#BitRecord
Type witsml:BitRecord
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children witsml:BitClass, witsml:CodeIADC, witsml:CodeMfg, witsml:CondFinalBearing, witsml:CondFinalDull, witsml:CondFinalGauge, witsml:CondFinalInner, witsml:CondFinalLocation, witsml:CondFinalOther, witsml:CondFinalOuter, witsml:CondFinalReason, witsml:CondInitBearing, witsml:CondInitDull, witsml:CondInitGauge, witsml:CondInitInner, witsml:CondInitLocation, witsml:CondInitOther, witsml:CondInitOuter, witsml:CondInitReason, witsml:Cost, witsml:DiaBit, witsml:DiaPassThru, witsml:DiaPilot, witsml:Drive, witsml:ExtensionAny, witsml:ExtensionNameValue, witsml:Manufacturer, witsml:NumBit, witsml:TypeBit
Instance

<witsml:BitRecord uid="" xmlns:witsml="http://www.energistics.org/energyml/data/witsmlv2">
  <witsml:NumBit>{0,1}</witsml:NumBit>
  <witsml:DiaBit uom="">{1,1}</witsml:DiaBit>
  <witsml:DiaPassThru uom="">{0,1}</witsml:DiaPassThru>
  <witsml:DiaPilot uom="">{0,1}</witsml:DiaPilot>
  <witsml:Manufacturer>{0,1}</witsml:Manufacturer>
  <witsml:TypeBit>{0,1}</witsml:TypeBit>
  <witsml:CodeMfg>{0,1}</witsml:CodeMfg>
  <witsml:CodeIADC>{0,1}</witsml:CodeIADC>
  <witsml:CondInitInner>{0,1}</witsml:CondInitInner>
  <witsml:CondInitOuter>{0,1}</witsml:CondInitOuter>
  <witsml:CondInitDull>{0,1}</witsml:CondInitDull>
  <witsml:CondInitLocation>{0,1}</witsml:CondInitLocation>
  <witsml:CondInitBearing>{0,1}</witsml:CondInitBearing>
  <witsml:CondInitGauge>{0,1}</witsml:CondInitGauge>
  <witsml:CondInitOther>{0,1}</witsml:CondInitOther>
  <witsml:CondInitReason>{0,1}</witsml:CondInitReason>
  <witsml:CondFinalInner>{0,1}</witsml:CondFinalInner>
  <witsml:CondFinalOuter>{0,1}</witsml:CondFinalOuter>
  <witsml:CondFinalDull>{0,1}</witsml:CondFinalDull>
  <witsml:CondFinalLocation>{0,1}</witsml:CondFinalLocation>
  <witsml:CondFinalBearing>{0,1}</witsml:CondFinalBearing>
  <witsml:CondFinalGauge>{0,1}</witsml:CondFinalGauge>
  <witsml:CondFinalOther>{0,1}</witsml:CondFinalOther>
  <witsml:CondFinalReason>{0,1}</witsml:CondFinalReason>
  <witsml:Drive>{0,1}</witsml:Drive>
  <witsml:BitClass>{0,1}</witsml:BitClass>
  <witsml:ExtensionNameValue>{0,unbounded}</witsml:ExtensionNameValue>
  <witsml:Cost currency="">{0,1}</witsml:Cost>
  <witsml:ExtensionAny>{0,1}</witsml:ExtensionAny>
</witsml:BitRecord>
Attributes
QName Type Use Annotation
uid eml:String64 required
Unique identifier for this instance of BitRecord.
Source

<xs:element name="BitRecord" type="witsml:BitRecord" minOccurs="0" maxOccurs="1"/>

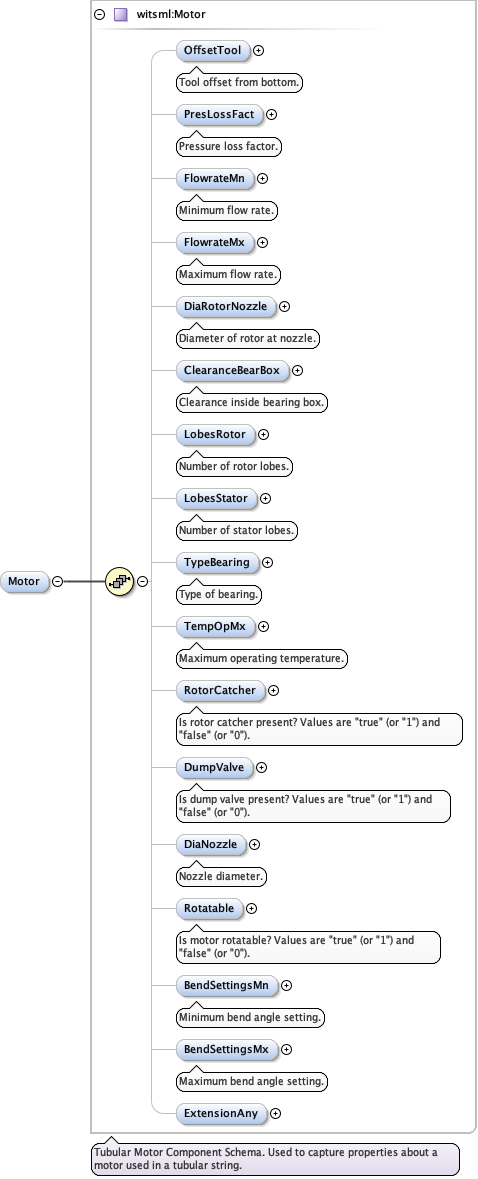

Element witsml:TubularComponent / witsml:Motor
Namespace http://www.energistics.org/energyml/data/witsmlv2
Diagram
DiagramTubular_xsd_Complex_Type_witsml_Motor.tmp#Motor_OffsetToolTubular_xsd_Complex_Type_witsml_Motor.tmp#Motor_PresLossFactTubular_xsd_Complex_Type_witsml_Motor.tmp#Motor_FlowrateMnTubular_xsd_Complex_Type_witsml_Motor.tmp#Motor_FlowrateMxTubular_xsd_Complex_Type_witsml_Motor.tmp#Motor_DiaRotorNozzleTubular_xsd_Complex_Type_witsml_Motor.tmp#Motor_ClearanceBearBoxTubular_xsd_Complex_Type_witsml_Motor.tmp#Motor_LobesRotorTubular_xsd_Complex_Type_witsml_Motor.tmp#Motor_LobesStatorTubular_xsd_Complex_Type_witsml_Motor.tmp#Motor_TypeBearingTubular_xsd_Complex_Type_witsml_Motor.tmp#Motor_TempOpMxTubular_xsd_Complex_Type_witsml_Motor.tmp#Motor_RotorCatcherTubular_xsd_Complex_Type_witsml_Motor.tmp#Motor_DumpValveTubular_xsd_Complex_Type_witsml_Motor.tmp#Motor_DiaNozzleTubular_xsd_Complex_Type_witsml_Motor.tmp#Motor_RotatableTubular_xsd_Complex_Type_witsml_Motor.tmp#Motor_BendSettingsMnTubular_xsd_Complex_Type_witsml_Motor.tmp#Motor_BendSettingsMxTubular_xsd_Complex_Type_witsml_Motor.tmp#Motor_ExtensionAnyTubular_xsd_Complex_Type_witsml_Motor.tmp#Motor
Type witsml:Motor
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children witsml:BendSettingsMn, witsml:BendSettingsMx, witsml:ClearanceBearBox, witsml:DiaNozzle, witsml:DiaRotorNozzle, witsml:DumpValve, witsml:ExtensionAny, witsml:FlowrateMn, witsml:FlowrateMx, witsml:LobesRotor, witsml:LobesStator, witsml:OffsetTool, witsml:PresLossFact, witsml:Rotatable, witsml:RotorCatcher, witsml:TempOpMx, witsml:TypeBearing
Instance

<witsml:Motor xmlns:witsml="http://www.energistics.org/energyml/data/witsmlv2">
  <witsml:OffsetTool uom="">{0,1}</witsml:OffsetTool>
  <witsml:PresLossFact>{0,1}</witsml:PresLossFact>
  <witsml:FlowrateMn uom="">{0,1}</witsml:FlowrateMn>
  <witsml:FlowrateMx uom="">{0,1}</witsml:FlowrateMx>
  <witsml:DiaRotorNozzle uom="">{0,1}</witsml:DiaRotorNozzle>
  <witsml:ClearanceBearBox uom="">{0,1}</witsml:ClearanceBearBox>
  <witsml:LobesRotor>{0,1}</witsml:LobesRotor>
  <witsml:LobesStator>{0,1}</witsml:LobesStator>
  <witsml:TypeBearing>{0,1}</witsml:TypeBearing>
  <witsml:TempOpMx uom="">{0,1}</witsml:TempOpMx>
  <witsml:RotorCatcher>{0,1}</witsml:RotorCatcher>
  <witsml:DumpValve>{0,1}</witsml:DumpValve>
  <witsml:DiaNozzle uom="">{0,1}</witsml:DiaNozzle>
  <witsml:Rotatable>{0,1}</witsml:Rotatable>
  <witsml:BendSettingsMn uom="">{0,1}</witsml:BendSettingsMn>
  <witsml:BendSettingsMx uom="">{0,1}</witsml:BendSettingsMx>
  <witsml:ExtensionAny>{0,1}</witsml:ExtensionAny>
</witsml:Motor>
Source

<xs:element name="Motor" type="witsml:Motor" minOccurs="0" maxOccurs="1"/>

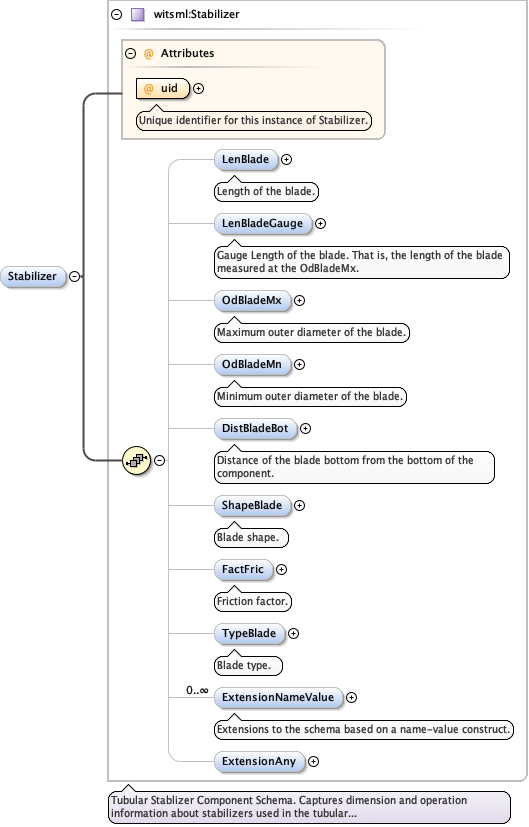

Element witsml:TubularComponent / witsml:Stabilizer
Namespace http://www.energistics.org/energyml/data/witsmlv2
Diagram
DiagramTubular_xsd_Complex_Type_witsml_Stabilizer.tmp#Stabilizer_uidTubular_xsd_Complex_Type_witsml_Stabilizer.tmp#Stabilizer_LenBladeTubular_xsd_Complex_Type_witsml_Stabilizer.tmp#Stabilizer_LenBladeGaugeTubular_xsd_Complex_Type_witsml_Stabilizer.tmp#Stabilizer_OdBladeMxTubular_xsd_Complex_Type_witsml_Stabilizer.tmp#Stabilizer_OdBladeMnTubular_xsd_Complex_Type_witsml_Stabilizer.tmp#Stabilizer_DistBladeBotTubular_xsd_Complex_Type_witsml_Stabilizer.tmp#Stabilizer_ShapeBladeTubular_xsd_Complex_Type_witsml_Stabilizer.tmp#Stabilizer_FactFricTubular_xsd_Complex_Type_witsml_Stabilizer.tmp#Stabilizer_TypeBladeTubular_xsd_Complex_Type_witsml_Stabilizer.tmp#Stabilizer_ExtensionNameValueTubular_xsd_Complex_Type_witsml_Stabilizer.tmp#Stabilizer_ExtensionAnyTubular_xsd_Complex_Type_witsml_Stabilizer.tmp#Stabilizer
Type witsml:Stabilizer
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children witsml:DistBladeBot, witsml:ExtensionAny, witsml:ExtensionNameValue, witsml:FactFric, witsml:LenBlade, witsml:LenBladeGauge, witsml:OdBladeMn, witsml:OdBladeMx, witsml:ShapeBlade, witsml:TypeBlade
Instance

<witsml:Stabilizer uid="" xmlns:witsml="http://www.energistics.org/energyml/data/witsmlv2">
  <witsml:LenBlade uom="">{0,1}</witsml:LenBlade>
  <witsml:LenBladeGauge uom="">{0,1}</witsml:LenBladeGauge>
  <witsml:OdBladeMx uom="">{0,1}</witsml:OdBladeMx>
  <witsml:OdBladeMn uom="">{0,1}</witsml:OdBladeMn>
  <witsml:DistBladeBot uom="">{0,1}</witsml:DistBladeBot>
  <witsml:ShapeBlade>{0,1}</witsml:ShapeBlade>
  <witsml:FactFric>{0,1}</witsml:FactFric>
  <witsml:TypeBlade>{0,1}</witsml:TypeBlade>
  <witsml:ExtensionNameValue>{0,unbounded}</witsml:ExtensionNameValue>
  <witsml:ExtensionAny>{0,1}</witsml:ExtensionAny>
</witsml:Stabilizer>
Attributes
QName Type Use Annotation
uid eml:String64 required
Unique identifier for this instance of Stabilizer.
Source

<xs:element name="Stabilizer" type="witsml:Stabilizer" minOccurs="0" maxOccurs="unbounded"/>

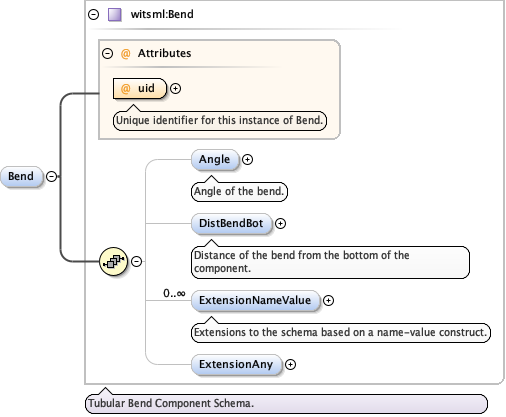

Element witsml:TubularComponent / witsml:Bend
Namespace http://www.energistics.org/energyml/data/witsmlv2
Diagram
DiagramTubular_xsd_Complex_Type_witsml_Bend.tmp#Bend_uidTubular_xsd_Complex_Type_witsml_Bend.tmp#Bend_AngleTubular_xsd_Complex_Type_witsml_Bend.tmp#Bend_DistBendBotTubular_xsd_Complex_Type_witsml_Bend.tmp#Bend_ExtensionNameValueTubular_xsd_Complex_Type_witsml_Bend.tmp#Bend_ExtensionAnyTubular_xsd_Complex_Type_witsml_Bend.tmp#Bend
Type witsml:Bend
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children witsml:Angle, witsml:DistBendBot, witsml:ExtensionAny, witsml:ExtensionNameValue
Instance

<witsml:Bend uid="" xmlns:witsml="http://www.energistics.org/energyml/data/witsmlv2">
  <witsml:Angle uom="">{0,1}</witsml:Angle>
  <witsml:DistBendBot uom="">{0,1}</witsml:DistBendBot>
  <witsml:ExtensionNameValue>{0,unbounded}</witsml:ExtensionNameValue>
  <witsml:ExtensionAny>{0,1}</witsml:ExtensionAny>
</witsml:Bend>
Attributes
QName Type Use Annotation
uid eml:String64 required
Unique identifier for this instance of Bend.
Source

<xs:element name="Bend" type="witsml:Bend" minOccurs="0" maxOccurs="unbounded"/>

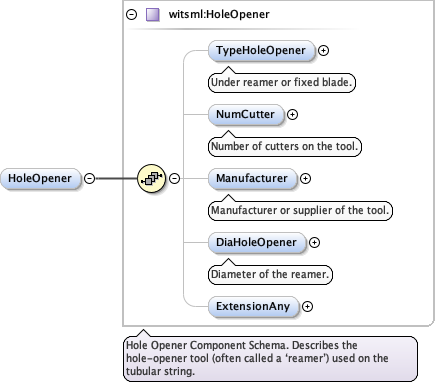

Element witsml:TubularComponent / witsml:HoleOpener
Namespace http://www.energistics.org/energyml/data/witsmlv2
Diagram
DiagramTubular_xsd_Complex_Type_witsml_HoleOpener.tmp#HoleOpener_TypeHoleOpenerTubular_xsd_Complex_Type_witsml_HoleOpener.tmp#HoleOpener_NumCutterTubular_xsd_Complex_Type_witsml_HoleOpener.tmp#HoleOpener_ManufacturerTubular_xsd_Complex_Type_witsml_HoleOpener.tmp#HoleOpener_DiaHoleOpenerTubular_xsd_Complex_Type_witsml_HoleOpener.tmp#HoleOpener_ExtensionAnyTubular_xsd_Complex_Type_witsml_HoleOpener.tmp#HoleOpener
Type witsml:HoleOpener
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children witsml:DiaHoleOpener, witsml:ExtensionAny, witsml:Manufacturer, witsml:NumCutter, witsml:TypeHoleOpener
Instance

<witsml:HoleOpener xmlns:witsml="http://www.energistics.org/energyml/data/witsmlv2">
  <witsml:TypeHoleOpener>{0,1}</witsml:TypeHoleOpener>
  <witsml:NumCutter>{0,1}</witsml:NumCutter>
  <witsml:Manufacturer>{0,1}</witsml:Manufacturer>
  <witsml:DiaHoleOpener uom="">{0,1}</witsml:DiaHoleOpener>
  <witsml:ExtensionAny>{0,1}</witsml:ExtensionAny>
</witsml:HoleOpener>
Source

<xs:element name="HoleOpener" type="witsml:HoleOpener" minOccurs="0" maxOccurs="1"/>

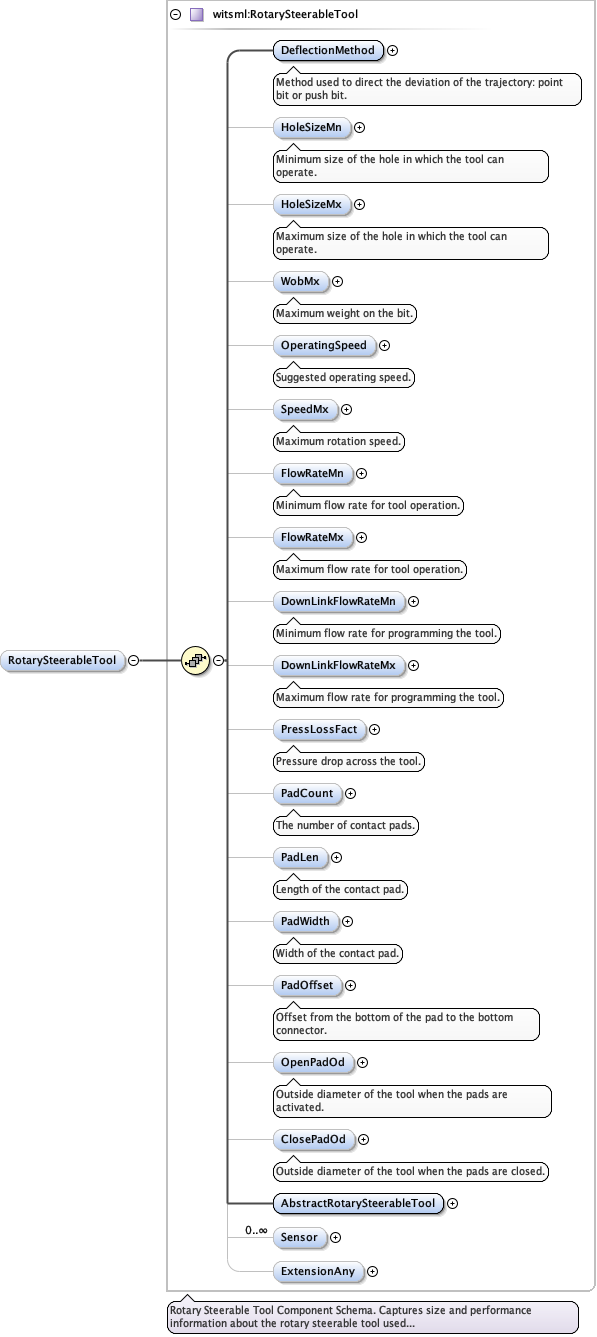

Element witsml:TubularComponent / witsml:RotarySteerableTool
Namespace http://www.energistics.org/energyml/data/witsmlv2
Diagram
DiagramTubular_xsd_Complex_Type_witsml_RotarySteerableTool.tmp#RotarySteerableTool_DeflectionMethodTubular_xsd_Complex_Type_witsml_RotarySteerableTool.tmp#RotarySteerableTool_HoleSizeMnTubular_xsd_Complex_Type_witsml_RotarySteerableTool.tmp#RotarySteerableTool_HoleSizeMxTubular_xsd_Complex_Type_witsml_RotarySteerableTool.tmp#RotarySteerableTool_WobMxTubular_xsd_Complex_Type_witsml_RotarySteerableTool.tmp#RotarySteerableTool_OperatingSpeedTubular_xsd_Complex_Type_witsml_RotarySteerableTool.tmp#RotarySteerableTool_SpeedMxTubular_xsd_Complex_Type_witsml_RotarySteerableTool.tmp#RotarySteerableTool_FlowRateMnTubular_xsd_Complex_Type_witsml_RotarySteerableTool.tmp#RotarySteerableTool_FlowRateMxTubular_xsd_Complex_Type_witsml_RotarySteerableTool.tmp#RotarySteerableTool_DownLinkFlowRateMnTubular_xsd_Complex_Type_witsml_RotarySteerableTool.tmp#RotarySteerableTool_DownLinkFlowRateMxTubular_xsd_Complex_Type_witsml_RotarySteerableTool.tmp#RotarySteerableTool_PressLossFactTubular_xsd_Complex_Type_witsml_RotarySteerableTool.tmp#RotarySteerableTool_PadCountTubular_xsd_Complex_Type_witsml_RotarySteerableTool.tmp#RotarySteerableTool_PadLenTubular_xsd_Complex_Type_witsml_RotarySteerableTool.tmp#RotarySteerableTool_PadWidthTubular_xsd_Complex_Type_witsml_RotarySteerableTool.tmp#RotarySteerableTool_PadOffsetTubular_xsd_Complex_Type_witsml_RotarySteerableTool.tmp#RotarySteerableTool_OpenPadOdTubular_xsd_Complex_Type_witsml_RotarySteerableTool.tmp#RotarySteerableTool_ClosePadOdTubular_xsd_Complex_Type_witsml_RotarySteerableTool.tmp#RotarySteerableTool_AbstractRotarySteerableToolTubular_xsd_Complex_Type_witsml_RotarySteerableTool.tmp#RotarySteerableTool_SensorTubular_xsd_Complex_Type_witsml_RotarySteerableTool.tmp#RotarySteerableTool_ExtensionAnyTubular_xsd_Complex_Type_witsml_RotarySteerableTool.tmp#RotarySteerableTool
Type witsml:RotarySteerableTool
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children witsml:AbstractRotarySteerableTool, witsml:ClosePadOd, witsml:DeflectionMethod, witsml:DownLinkFlowRateMn, witsml:DownLinkFlowRateMx, witsml:ExtensionAny, witsml:FlowRateMn, witsml:FlowRateMx, witsml:HoleSizeMn, witsml:HoleSizeMx, witsml:OpenPadOd, witsml:OperatingSpeed, witsml:PadCount, witsml:PadLen, witsml:PadOffset, witsml:PadWidth, witsml:PressLossFact, witsml:Sensor, witsml:SpeedMx, witsml:WobMx
Instance

<witsml:RotarySteerableTool xmlns:witsml="http://www.energistics.org/energyml/data/witsmlv2">
  <witsml:DeflectionMethod>{1,1}</witsml:DeflectionMethod>
  <witsml:HoleSizeMn uom="">{0,1}</witsml:HoleSizeMn>
  <witsml:HoleSizeMx uom="">{0,1}</witsml:HoleSizeMx>
  <witsml:WobMx uom="">{0,1}</witsml:WobMx>
  <witsml:OperatingSpeed uom="">{0,1}</witsml:OperatingSpeed>
  <witsml:SpeedMx uom="">{0,1}</witsml:SpeedMx>
  <witsml:FlowRateMn uom="">{0,1}</witsml:FlowRateMn>
  <witsml:FlowRateMx uom="">{0,1}</witsml:FlowRateMx>
  <witsml:DownLinkFlowRateMn uom="">{0,1}</witsml:DownLinkFlowRateMn>
  <witsml:DownLinkFlowRateMx uom="">{0,1}</witsml:DownLinkFlowRateMx>
  <witsml:PressLossFact>{0,1}</witsml:PressLossFact>
  <witsml:PadCount>{0,1}</witsml:PadCount>
  <witsml:PadLen uom="">{0,1}</witsml:PadLen>
  <witsml:PadWidth uom="">{0,1}</witsml:PadWidth>
  <witsml:PadOffset uom="">{0,1}</witsml:PadOffset>
  <witsml:OpenPadOd uom="">{0,1}</witsml:OpenPadOd>
  <witsml:ClosePadOd uom="">{0,1}</witsml:ClosePadOd>
  <witsml:AbstractRotarySteerableTool>{1,1}</witsml:AbstractRotarySteerableTool>
  <witsml:Sensor uid="">{0,unbounded}</witsml:Sensor>
  <witsml:ExtensionAny>{0,1}</witsml:ExtensionAny>
</witsml:RotarySteerableTool>
Source

<xs:element name="RotarySteerableTool" type="witsml:RotarySteerableTool" minOccurs="0" maxOccurs="1"/>

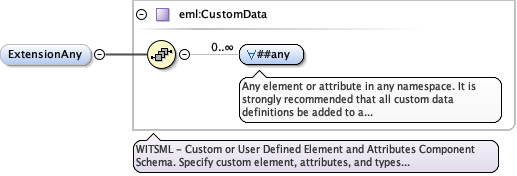

Element witsml:TubularComponent / witsml:ExtensionAny
Namespace http://www.energistics.org/energyml/data/witsmlv2
Diagram
DiagramAbstract_xsd_Complex_Type_eml_CustomData.tmp#CustomData
Type eml:CustomData
Properties
content complex
minOccurs 0
maxOccurs 1
Model
ANY element from ANY namespace
Source

<xs:element name="ExtensionAny" type="eml:CustomData" minOccurs="0" maxOccurs="1"/>

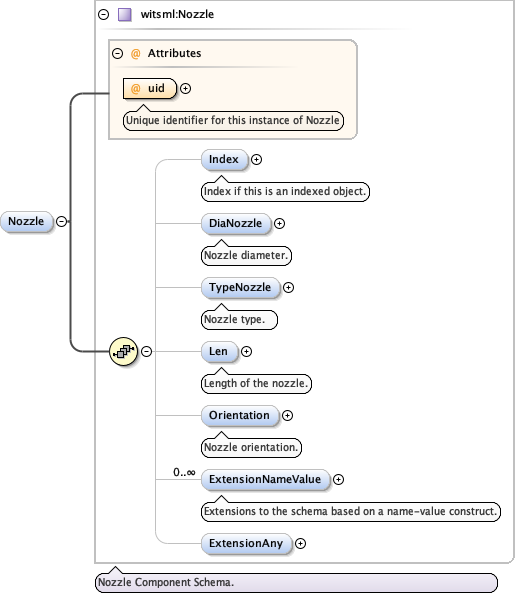

Element witsml:TubularComponent / witsml:Nozzle
Namespace http://www.energistics.org/energyml/data/witsmlv2
Diagram
DiagramTubular_xsd_Complex_Type_witsml_Nozzle.tmp#Nozzle_uidTubular_xsd_Complex_Type_witsml_Nozzle.tmp#Nozzle_IndexTubular_xsd_Complex_Type_witsml_Nozzle.tmp#Nozzle_DiaNozzleTubular_xsd_Complex_Type_witsml_Nozzle.tmp#Nozzle_TypeNozzleTubular_xsd_Complex_Type_witsml_Nozzle.tmp#Nozzle_LenTubular_xsd_Complex_Type_witsml_Nozzle.tmp#Nozzle_OrientationTubular_xsd_Complex_Type_witsml_Nozzle.tmp#Nozzle_ExtensionNameValueTubular_xsd_Complex_Type_witsml_Nozzle.tmp#Nozzle_ExtensionAnyTubular_xsd_Complex_Type_witsml_Nozzle.tmp#Nozzle
Type witsml:Nozzle
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children witsml:DiaNozzle, witsml:ExtensionAny, witsml:ExtensionNameValue, witsml:Index, witsml:Len, witsml:Orientation, witsml:TypeNozzle
Instance

<witsml:Nozzle uid="" xmlns:witsml="http://www.energistics.org/energyml/data/witsmlv2">
  <witsml:Index>{0,1}</witsml:Index>
  <witsml:DiaNozzle uom="">{0,1}</witsml:DiaNozzle>
  <witsml:TypeNozzle>{0,1}</witsml:TypeNozzle>
  <witsml:Len uom="">{0,1}</witsml:Len>
  <witsml:Orientation>{0,1}</witsml:Orientation>
  <witsml:ExtensionNameValue>{0,unbounded}</witsml:ExtensionNameValue>
  <witsml:ExtensionAny>{0,1}</witsml:ExtensionAny>
</witsml:Nozzle>
Attributes
QName Type Use Annotation
uid eml:String64 required
Unique identifier for this instance of Nozzle
Source

<xs:element name="Nozzle" type="witsml:Nozzle" minOccurs="0" maxOccurs="unbounded"/>

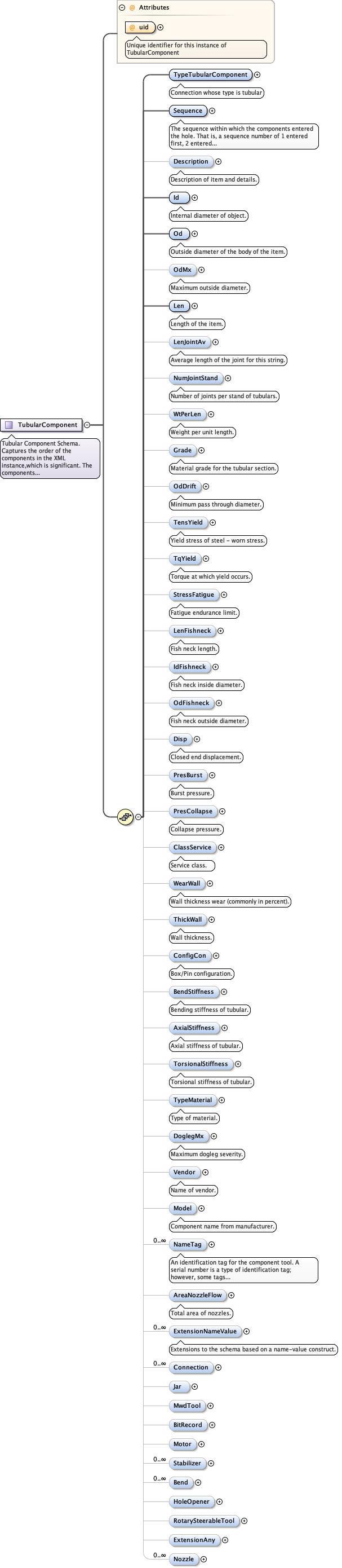

Complex Type witsml:TubularComponent
Namespace http://www.energistics.org/energyml/data/witsmlv2
Annotations

Tubular Component Schema. Captures the order of the components in the XML instance,which is significant. The components are listed in the order in which they enter the hole. That is, the first component is the bit.
Diagram
DiagramTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_uidTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_TypeTubularComponentTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_SequenceTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_DescriptionTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_IdTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_OdTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_OdMxTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_LenTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_LenJointAvTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_NumJointStandTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_WtPerLenTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_GradeTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_OdDriftTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_TensYieldTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_TqYieldTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_StressFatigueTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_LenFishneckTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_IdFishneckTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_OdFishneckTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_DispTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_PresBurstTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_PresCollapseTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_ClassServiceTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_WearWallTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_ThickWallTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_ConfigConTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_BendStiffnessTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_AxialStiffnessTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_TorsionalStiffnessTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_TypeMaterialTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_DoglegMxTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_VendorTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_ModelTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_NameTagTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_AreaNozzleFlowTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_ExtensionNameValueTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_ConnectionTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_JarTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_MwdToolTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_BitRecordTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_MotorTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_StabilizerTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_BendTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_HoleOpenerTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_RotarySteerableToolTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_ExtensionAnyTubular_xsd_Complex_Type_witsml_TubularComponent.tmp#TubularComponent_Nozzle
Used by
Model
Children witsml:AreaNozzleFlow, witsml:AxialStiffness, witsml:Bend, witsml:BendStiffness, witsml:BitRecord, witsml:ClassService, witsml:ConfigCon, witsml:Connection, witsml:Description, witsml:Disp, witsml:DoglegMx, witsml:ExtensionAny, witsml:ExtensionNameValue, witsml:Grade, witsml:HoleOpener, witsml:Id, witsml:IdFishneck, witsml:Jar, witsml:Len, witsml:LenFishneck, witsml:LenJointAv, witsml:Model, witsml:Motor, witsml:MwdTool, witsml:NameTag, witsml:Nozzle, witsml:NumJointStand, witsml:Od, witsml:OdDrift, witsml:OdFishneck, witsml:OdMx, witsml:PresBurst, witsml:PresCollapse, witsml:RotarySteerableTool, witsml:Sequence, witsml:Stabilizer, witsml:StressFatigue, witsml:TensYield, witsml:ThickWall, witsml:TorsionalStiffness, witsml:TqYield, witsml:TypeMaterial, witsml:TypeTubularComponent, witsml:Vendor, witsml:WearWall, witsml:WtPerLen
Attributes
QName Type Use Annotation
uid eml:String64 required
Unique identifier for this instance of TubularComponent
Source

<xs:complexType name="TubularComponent">
  <xs:annotation>
    <xs:documentation>Tubular Component Schema. Captures the order of the components in the XML instance,which is significant. The components are listed in the order in which they enter the hole. That is, the first component is the bit.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="TypeTubularComponent" type="witsml:TubularComponentType" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Connection whose type is tubular</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Sequence" type="xs:int" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>The sequence within which the components entered the hole. That is, a sequence number of 1 entered first, 2 entered next, etc.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Description" type="eml:String2000" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Description of item and details.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Id" type="eml:LengthMeasure" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Internal diameter of object.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Od" type="eml:LengthMeasure" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Outside diameter of the body of the item.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="OdMx" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Maximum outside diameter.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Len" type="eml:LengthMeasure" minOccurs="1" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Length of the item.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="LenJointAv" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Average length of the joint for this string.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="NumJointStand" type="xs:int" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Number of joints per stand of tubulars.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WtPerLen" type="eml:MassPerLengthMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Weight per unit length.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Grade" type="eml:String64" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Material grade for the tubular section.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="OdDrift" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Minimum pass through diameter.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="TensYield" type="eml:PressureMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Yield stress of steel - worn stress.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="TqYield" type="eml:MomentOfForceMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Torque at which yield occurs.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="StressFatigue" type="eml:PressureMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Fatigue endurance limit.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="LenFishneck" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Fish neck length.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="IdFishneck" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Fish neck inside diameter.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="OdFishneck" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Fish neck outside diameter.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Disp" type="eml:VolumeMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Closed end displacement.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="PresBurst" type="eml:PressureMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Burst pressure.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="PresCollapse" type="eml:PressureMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Collapse pressure.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ClassService" type="eml:String64" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Service class.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="WearWall" type="eml:LengthPerLengthMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Wall thickness wear (commonly in percent).</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ThickWall" type="eml:LengthMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Wall thickness.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ConfigCon" type="witsml:BoxPinConfig" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Box/Pin configuration.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="BendStiffness" type="eml:ForcePerLengthMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Bending stiffness of tubular.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="AxialStiffness" type="eml:ForcePerLengthMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Axial stiffness of tubular.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="TorsionalStiffness" type="eml:ForcePerLengthMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Torsional stiffness of tubular.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="TypeMaterial" type="witsml:MaterialType" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Type of material.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="DoglegMx" type="eml:AnglePerLengthMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Maximum dogleg severity.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Vendor" type="eml:String64" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Name of vendor.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Model" type="eml:String64" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Component name from manufacturer.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="NameTag" type="witsml:NameTag" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>An identification tag for the component tool. A serial number is a type of identification tag; however, some tags contain many pieces of information. This element only identifies the tag; it does not describe the contents.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="AreaNozzleFlow" type="eml:AreaMeasure" minOccurs="0" maxOccurs="1">
      <xs:annotation>
        <xs:documentation>Total area of nozzles.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="ExtensionNameValue" type="eml:ExtensionNameValue" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Extensions to the schema based on a name-value construct.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Connection" type="witsml:Connection" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="Jar" type="witsml:Jar" minOccurs="0" maxOccurs="1"/>
    <xs:element name="MwdTool" type="witsml:MwdTool" minOccurs="0" maxOccurs="1"/>
    <xs:element name="BitRecord" type="witsml:BitRecord" minOccurs="0" maxOccurs="1"/>
    <xs:element name="Motor" type="witsml:Motor" minOccurs="0" maxOccurs="1"/>
    <xs:element name="Stabilizer" type="witsml:Stabilizer" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="Bend" type="witsml:Bend" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="HoleOpener" type="witsml:HoleOpener" minOccurs="0" maxOccurs="1"/>
    <xs:element name="RotarySteerableTool" type="witsml:RotarySteerableTool" minOccurs="0" maxOccurs="1"/>
    <xs:element name="ExtensionAny" type="eml:CustomData" minOccurs="0" maxOccurs="1"/>
    <xs:element name="Nozzle" type="witsml:Nozzle" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
  <xs:attribute name="uid" use="required" type="eml:String64">
    <xs:annotation>
      <xs:documentation>Unique identifier for this instance of TubularComponent</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
Attribute witsml:TubularComponent / @uid
Namespace No namespace
Annotations

Unique identifier for this instance of TubularComponent
Type eml:String64
Type hierarchy
Properties
use required
Facets
maxLength 64
Used by
Source

<xs:attribute name="uid" use="required" type="eml:String64">
  <xs:annotation>
    <xs:documentation>Unique identifier for this instance of TubularComponent</xs:documentation>
  </xs:annotation>
</xs:attribute>
XML Schema documentation generated by ® XML Editor.
