Complex Type eml:AnglePerLengthMeasure
Namespace http://www.energistics.org/energyml/data/commonv2

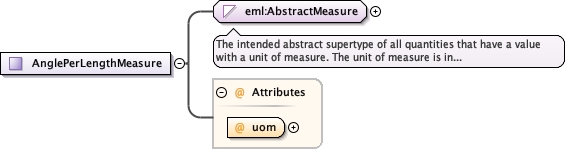

Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_AnglePerLengthMeasure.tmp#AnglePerLengthMeasure_uom
Type extension of eml:AbstractMeasure
Type hierarchy
Attributes
QName Type Use
uom eml:AnglePerLengthUom required
Source

<xs:complexType name="AnglePerLengthMeasure">
  <xs:simpleContent>
    <xs:extension base="eml:AbstractMeasure">
      <xs:attribute name="uom" use="required" type="eml:AnglePerLengthUom"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>
Attribute eml:AnglePerLengthMeasure / @uom
Namespace No namespace
Type eml:AnglePerLengthUom
Type hierarchy
Properties
use required
Facets
maxLength 32
enumeration 0.01 dega/ft
angular degree per hundred foot
enumeration 1/30 dega/ft
angular degree per thirty foot
enumeration 1/30 dega/m
angular degree per thirty metre
enumeration dega/ft
angular degree per foot
enumeration dega/m
angular degree per metre
enumeration rad/ft
radian per foot
enumeration rad/m
radian per metre
enumeration rev/ft
revolution per foot
enumeration rev/m
revolution per metre
Used by
Source

<xs:attribute name="uom" use="required" type="eml:AnglePerLengthUom"/>
