Element diggs:GeosyntheticType / diggs:reinforcementType
Namespace http://diggsml.org/schemas/3
Annotations

The type of geosynthetic reinforcement used. It parallels
diggs:DesignGeosyntheticLayerType/reinforcementType, and takes its
values from the same list. Use the DIGGS dictionary
geosyntheticReinforcementType.xml for the list of values.

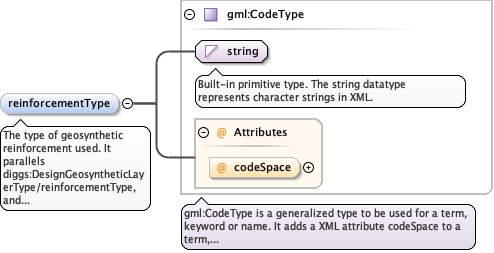

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="reinforcementType" type="gml:CodeType">
  <annotation>
    <documentation>The type of geosynthetic reinforcement used. It parallels diggs:DesignGeosyntheticLayerType/reinforcementType, and takes its values from the same list. Use the DIGGS dictionary geosyntheticReinforcementType.xml for the list of values.</documentation>
  </annotation>
</element>
Element diggs:GeosyntheticType / diggs:heightAboveWorkingPlatform
Namespace http://diggsml.org/schemas/3
Annotations

The measured height of the geosynthetic above the working platform.
Diagram

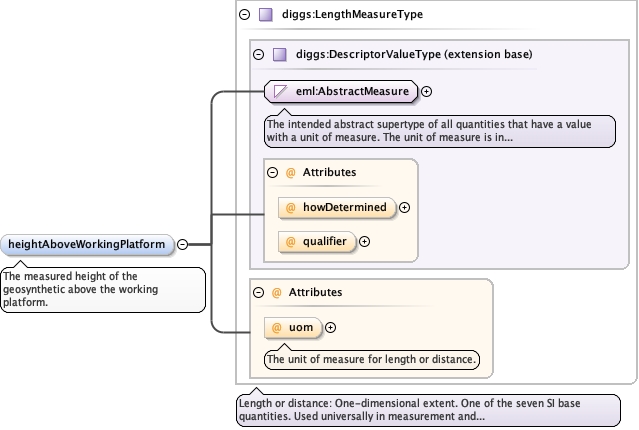

DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element maxOccurs="1" minOccurs="0" name="heightAboveWorkingPlatform" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The measured height of the geosynthetic above the working platform.</documentation>
  </annotation>
</element>
Element diggs:GeosyntheticType / diggs:elevation
Namespace http://diggsml.org/schemas/3
Annotations

The elevation of the geosynthetic layer within the LTP.

                                An elevation is a position, not a length. Use srsName on the
                                PointLocation to state the vertical CRS, and populate uomLabels so
                                the unit is readable without resolving it. This is a convenience property, only necessary where extent is not reported in a 3D CRS.
Diagram

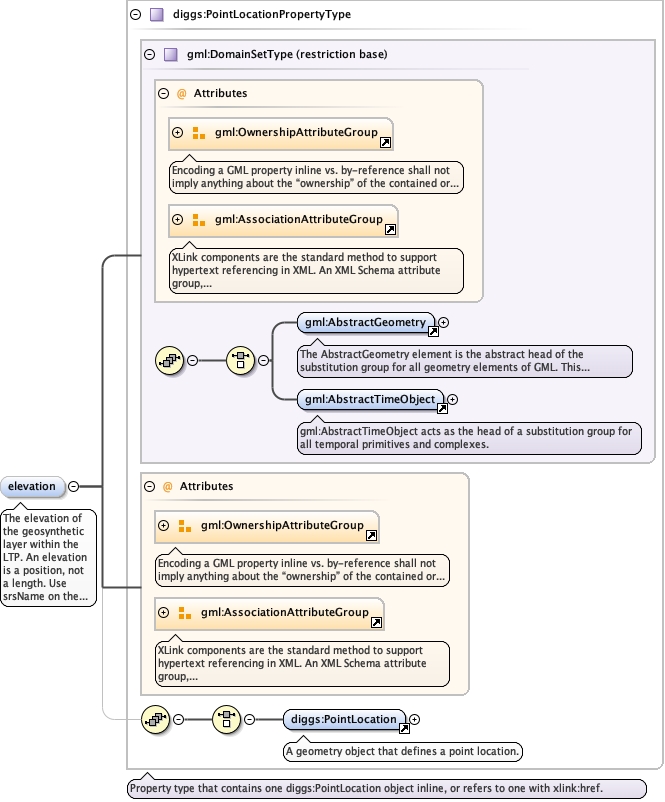

Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupCore_xsd_Element_diggs_PointLocation.tmp#PointLocationCore_xsd_Complex_Type_diggs_PointLocationPropertyType.tmp#PointLocationPropertyType
Type diggs:PointLocationPropertyType
Type hierarchy
Properties
content complex
minOccurs 0
Model
Children diggs:PointLocation
Instance

<diggs:elevation owns="false" xlink:href="" nilReason="" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:PointLocation axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PointLocation>
</diggs:elevation>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element minOccurs="0" name="elevation" type="diggs:PointLocationPropertyType">
  <annotation>
    <documentation>The elevation of the geosynthetic layer within the LTP. An elevation is a position, not a length. Use srsName on the PointLocation to state the vertical CRS, and populate uomLabels so the unit is readable without resolving it. This is a convenience property, only necessary where extent is not reported in a 3D CRS.</documentation>
  </annotation>
</element>
Element diggs:GeosyntheticType / diggs:extent
Namespace http://diggsml.org/schemas/3
Annotations

A planar surface (polygon) whose geospatial coordinates mark the
lateral extent of the geosynthetic within the LTP. If it is not
present, the geosynthetic is assumed to extend across the entire
LTP.
Diagram

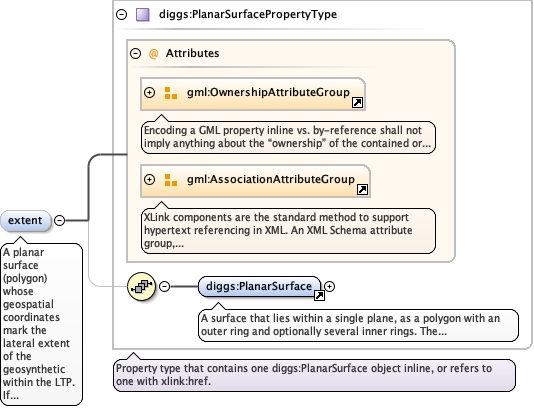

Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupCore_xsd_Element_diggs_PlanarSurface.tmp#PlanarSurfaceCore_xsd_Complex_Type_diggs_PlanarSurfacePropertyType.tmp#PlanarSurfacePropertyType
Type diggs:PlanarSurfacePropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:PlanarSurface
Instance

<diggs:extent xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:PlanarSurface axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PlanarSurface>
</diggs:extent>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element minOccurs="0" name="extent" type="diggs:PlanarSurfacePropertyType">
  <annotation>
    <documentation>A planar surface (polygon) whose geospatial coordinates mark the lateral extent of the geosynthetic within the LTP. If it is not present, the geosynthetic is assumed to extend across the entire LTP.</documentation>
  </annotation>
</element>
Element diggs:GeosyntheticType / diggs:direction
Namespace http://diggsml.org/schemas/3
Annotations

The as-installed orientation of the geosynthetic: machine,
cross-machine, normal or planar. It is named direction to match
diggs:DesignGeosyntheticLayerType/direction, the design counterpart
this value is checked against. Values come from the enumerated list,
or "Other: xx", where xx is a user-defined term whose meaning
differs from every listed value (not a synonym of one).
Diagram

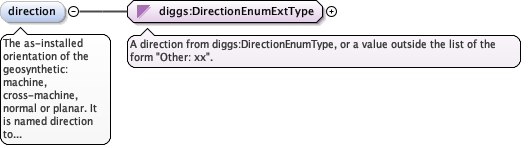

DiagramCommon_xsd_Simple_Type_diggs_DirectionEnumExtType.tmp#DirectionEnumExtType
Type diggs:DirectionEnumExtType
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="direction" type="diggs:DirectionEnumExtType">
  <annotation>
    <documentation>The as-installed orientation of the geosynthetic: machine, cross-machine, normal or planar. It is named direction to match diggs:DesignGeosyntheticLayerType/direction, the design counterpart this value is checked against. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).</documentation>
  </annotation>
</element>
Element diggs:GeosyntheticType / diggs:installedTension
Namespace http://diggsml.org/schemas/3
Annotations

The tensile force per unit width measured or recorded at
installation. Compare
diggs:DesignGeosyntheticLayerType/designTension, the design
counterpart, which is split by load path (arching, lateral
spreading); this is the single as-installed value that an inspection
and test plan records, with no load-path split.
Diagram

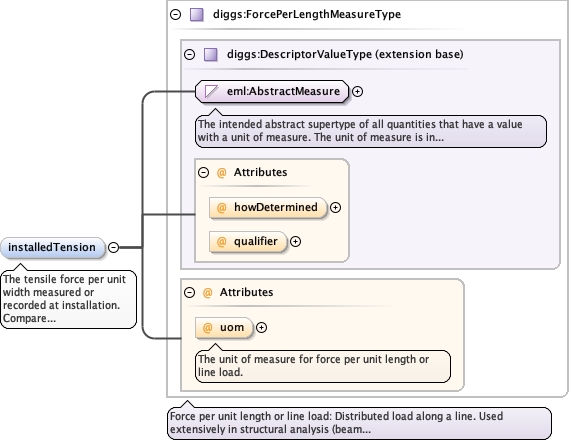

DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForcePerLengthMeasureType.tmp#ForcePerLengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForcePerLengthMeasureType.tmp#ForcePerLengthMeasureType
Type diggs:ForcePerLengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForcePerLengthUomEnumType optional
The unit of measure for force per unit length or line load.
Source

<element minOccurs="0" name="installedTension" type="diggs:ForcePerLengthMeasureType">
  <annotation>
    <documentation>The tensile force per unit width measured or recorded at installation. Compare diggs:DesignGeosyntheticLayerType/designTension, the design counterpart, which is split by load path (arching, lateral spreading); this is the single as-installed value that an inspection and test plan records, with no load-path split.</documentation>
  </annotation>
</element>
Element diggs:GeosyntheticType / diggs:overlapLength
Namespace http://diggsml.org/schemas/3
Annotations

The overlap between this panel and the adjacent
one.
Diagram

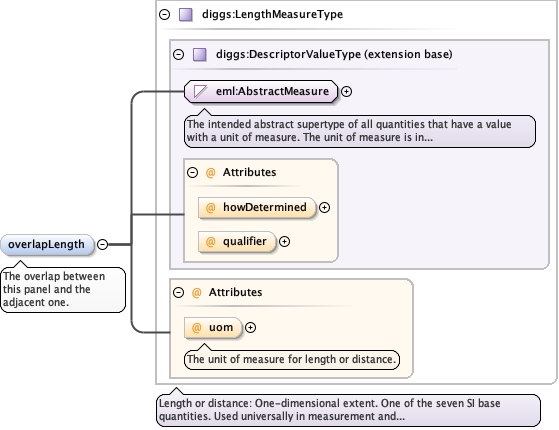

DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="overlapLength" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The overlap between this panel and the adjacent one.</documentation>
  </annotation>
</element>
Element diggs:GeosyntheticType / diggs:coverThickness
Namespace http://diggsml.org/schemas/3
Annotations

The thickness of fill placed over this layer.
Distinct from heightAboveWorkingPlatform (the layer's own height
above the working platform) and elevation (the layer's absolute
level): this is the depth of material subsequently placed on top of
it, which neither existing element states.
Diagram

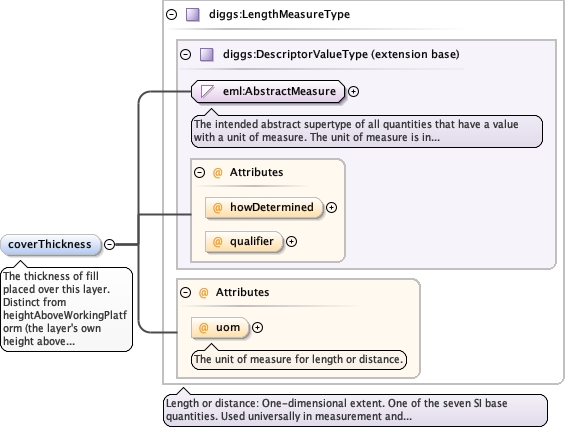

DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="coverThickness" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The thickness of fill placed over this layer. Distinct from heightAboveWorkingPlatform (the layer's own height above the working platform) and elevation (the layer's absolute level): this is the depth of material subsequently placed on top of it, which neither existing element states.</documentation>
  </annotation>
</element>
Complex Type diggs:GeosyntheticType
Namespace http://diggsml.org/schemas/3
Diagram

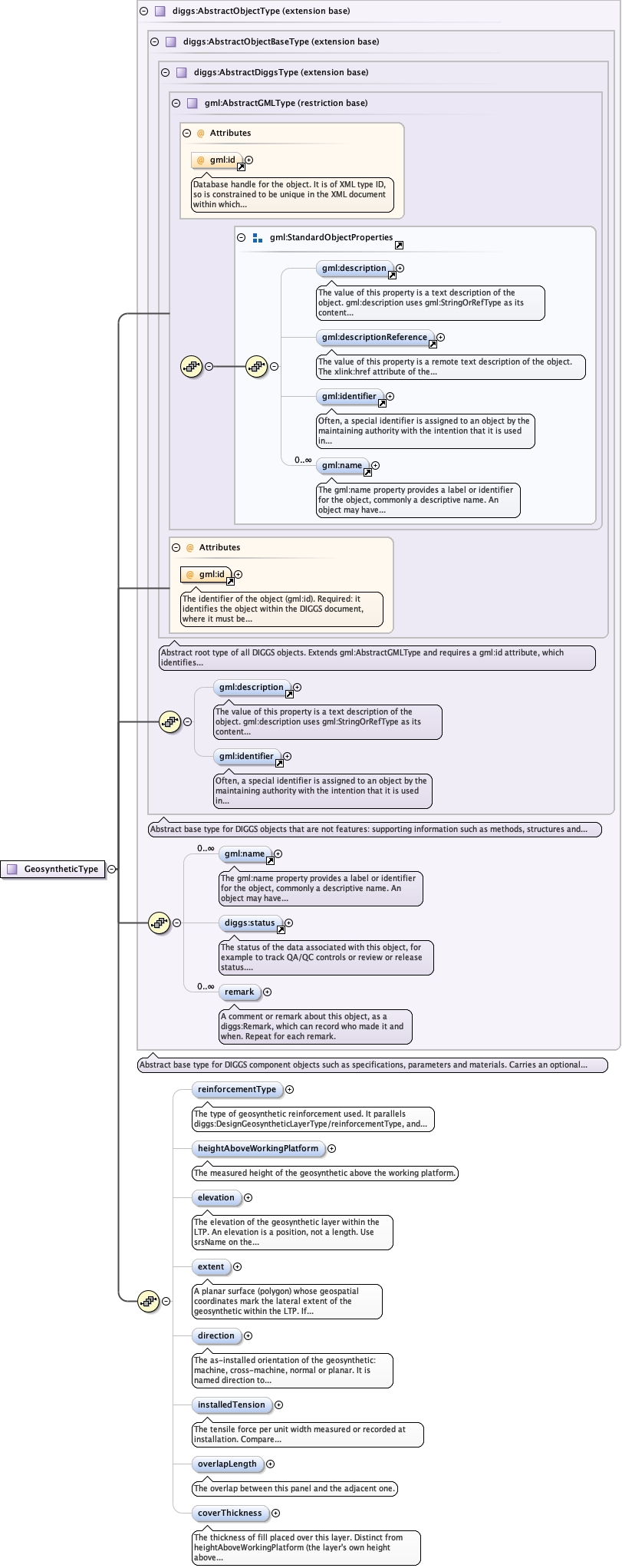

Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeRigidInclusions_xsd_Complex_Type_diggs_GeosyntheticType.tmp#GeosyntheticType_reinforcementTypeRigidInclusions_xsd_Complex_Type_diggs_GeosyntheticType.tmp#GeosyntheticType_heightAboveWorkingPlatformRigidInclusions_xsd_Complex_Type_diggs_GeosyntheticType.tmp#GeosyntheticType_elevationRigidInclusions_xsd_Complex_Type_diggs_GeosyntheticType.tmp#GeosyntheticType_extentRigidInclusions_xsd_Complex_Type_diggs_GeosyntheticType.tmp#GeosyntheticType_directionRigidInclusions_xsd_Complex_Type_diggs_GeosyntheticType.tmp#GeosyntheticType_installedTensionRigidInclusions_xsd_Complex_Type_diggs_GeosyntheticType.tmp#GeosyntheticType_overlapLengthRigidInclusions_xsd_Complex_Type_diggs_GeosyntheticType.tmp#GeosyntheticType_coverThickness
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:coverThickness, diggs:direction, diggs:elevation, diggs:extent, diggs:heightAboveWorkingPlatform, diggs:installedTension, diggs:overlapLength, diggs:reinforcementType, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="GeosyntheticType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" name="reinforcementType" type="gml:CodeType">
          <annotation>
            <documentation>The type of geosynthetic reinforcement used. It parallels diggs:DesignGeosyntheticLayerType/reinforcementType, and takes its values from the same list. Use the DIGGS dictionary geosyntheticReinforcementType.xml for the list of values.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="heightAboveWorkingPlatform" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The measured height of the geosynthetic above the working platform.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="elevation" type="diggs:PointLocationPropertyType">
          <annotation>
            <documentation>The elevation of the geosynthetic layer within the LTP. An elevation is a position, not a length. Use srsName on the PointLocation to state the vertical CRS, and populate uomLabels so the unit is readable without resolving it. This is a convenience property, only necessary where extent is not reported in a 3D CRS.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="extent" type="diggs:PlanarSurfacePropertyType">
          <annotation>
            <documentation>A planar surface (polygon) whose geospatial coordinates mark the lateral extent of the geosynthetic within the LTP. If it is not present, the geosynthetic is assumed to extend across the entire LTP.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="direction" type="diggs:DirectionEnumExtType">
          <annotation>
            <documentation>The as-installed orientation of the geosynthetic: machine, cross-machine, normal or planar. It is named direction to match diggs:DesignGeosyntheticLayerType/direction, the design counterpart this value is checked against. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one).</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="installedTension" type="diggs:ForcePerLengthMeasureType">
          <annotation>
            <documentation>The tensile force per unit width measured or recorded at installation. Compare diggs:DesignGeosyntheticLayerType/designTension, the design counterpart, which is split by load path (arching, lateral spreading); this is the single as-installed value that an inspection and test plan records, with no load-path split.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="overlapLength" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The overlap between this panel and the adjacent one.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="coverThickness" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The thickness of fill placed over this layer. Distinct from heightAboveWorkingPlatform (the layer's own height above the working platform) and elevation (the layer's absolute level): this is the depth of material subsequently placed on top of it, which neither existing element states.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
