Element diggs:Geosynthetic
Namespace http://diggsml.org/schemas/3
Annotations

A geosynthetic layer, such as a geogrid, installed within a load transfer platform,
as built. It is a sheet at a level, with its own extent, and a component object of
the diggs:LoadTransferPlatform that contains it, not a sampling feature. Compare
diggs:DesignGeosyntheticLayerType, its design counterpart.

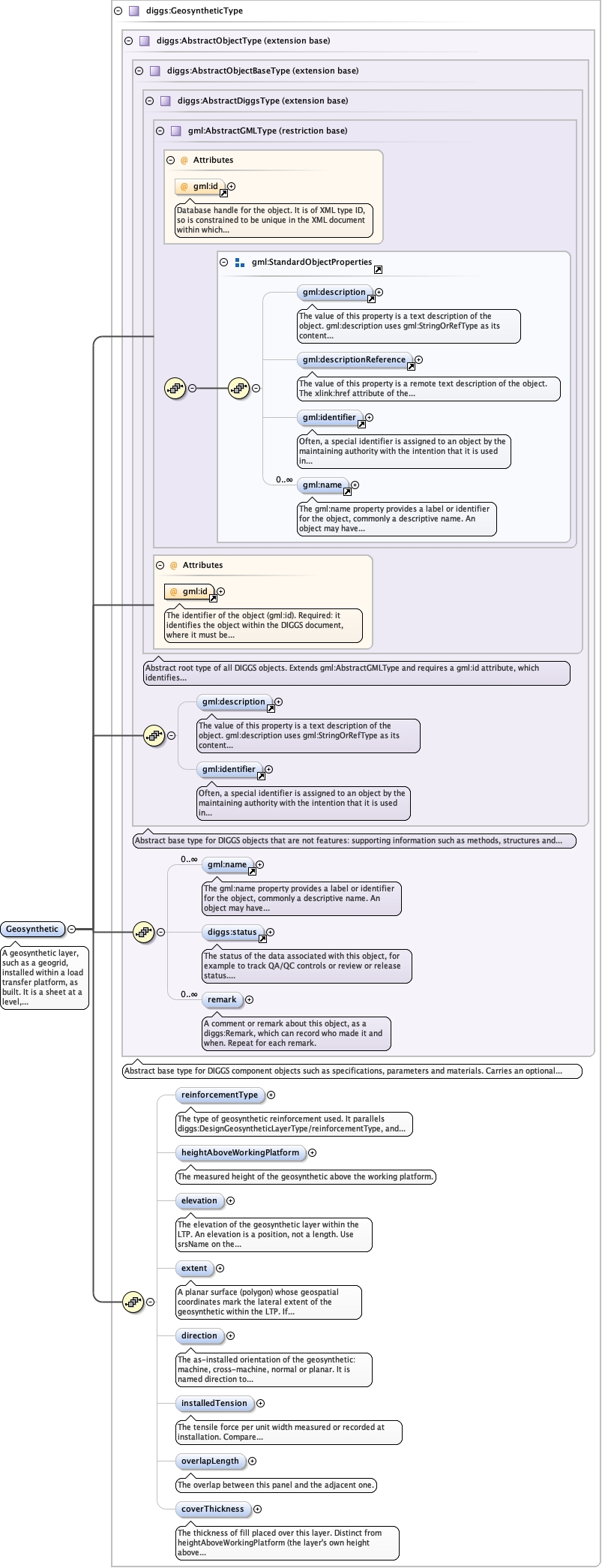

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeRigidInclusions_xsd_Complex_Type_diggs_GeosyntheticType.tmp#GeosyntheticType_reinforcementTypeRigidInclusions_xsd_Complex_Type_diggs_GeosyntheticType.tmp#GeosyntheticType_heightAboveWorkingPlatformRigidInclusions_xsd_Complex_Type_diggs_GeosyntheticType.tmp#GeosyntheticType_elevationRigidInclusions_xsd_Complex_Type_diggs_GeosyntheticType.tmp#GeosyntheticType_extentRigidInclusions_xsd_Complex_Type_diggs_GeosyntheticType.tmp#GeosyntheticType_directionRigidInclusions_xsd_Complex_Type_diggs_GeosyntheticType.tmp#GeosyntheticType_installedTensionRigidInclusions_xsd_Complex_Type_diggs_GeosyntheticType.tmp#GeosyntheticType_overlapLengthRigidInclusions_xsd_Complex_Type_diggs_GeosyntheticType.tmp#GeosyntheticType_coverThicknessRigidInclusions_xsd_Complex_Type_diggs_GeosyntheticType.tmp#GeosyntheticType
Type diggs:GeosyntheticType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:coverThickness, diggs:direction, diggs:elevation, diggs:extent, diggs:heightAboveWorkingPlatform, diggs:installedTension, diggs:overlapLength, diggs:reinforcementType, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:Geosynthetic gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:reinforcementType codeSpace="">{0,1}</diggs:reinforcementType>
  <diggs:heightAboveWorkingPlatform howDetermined="" qualifier="" uom="">{0,1}</diggs:heightAboveWorkingPlatform>
  <diggs:elevation owns="false" xlink:href="" nilReason="">{0,1}</diggs:elevation>
  <diggs:extent xlink:href="" nilReason="" owns="false">{0,1}</diggs:extent>
  <diggs:direction>{0,1}</diggs:direction>
  <diggs:installedTension howDetermined="" qualifier="" uom="">{0,1}</diggs:installedTension>
  <diggs:overlapLength howDetermined="" qualifier="" uom="">{0,1}</diggs:overlapLength>
  <diggs:coverThickness howDetermined="" qualifier="" uom="">{0,1}</diggs:coverThickness>
</diggs:Geosynthetic>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="Geosynthetic" type="diggs:GeosyntheticType">
  <annotation>
    <documentation>A geosynthetic layer, such as a geogrid, installed within a load transfer platform, as built. It is a sheet at a level, with its own extent, and a component object of the diggs:LoadTransferPlatform that contains it, not a sampling feature. Compare diggs:DesignGeosyntheticLayerType, its design counterpart.</documentation>
  </annotation>
</element>
