Namespace http://diggsml.org/schemas/3
Annotations
A specialization of Sample that contains properties describing the
characteristics of a batch of grout used for production purposes. This object is
expected to reference the diggs:DesignGroutMix it was produced to through its
sampling activity's currentDesign (diggs:AbstractSamplingActivityType) - a batching
activity that mixed to more than one design over time is stated as separate
SamplingActivity instances, one per design, each citing the batches it
produced.

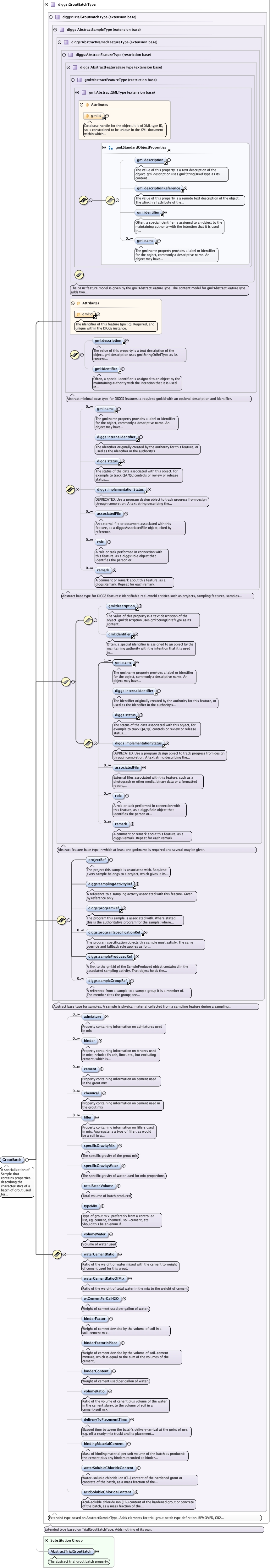

Diagram
Type diggs:GroutBatchType
Type hierarchy
Properties
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name+ ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:projectRef ,
diggs:samplingActivityRef ,
diggs:programRef{0,1} ,
diggs:programSpecificationRef* ,
diggs:sampleProducedRef ,
diggs:sampleGroupRef* ,
diggs:admixture* ,
diggs:binder* ,
diggs:cement* ,
diggs:chemical* ,
diggs:filler* ,
diggs:specificGravityMix{0,1} ,
diggs:specificGravityWater{0,1} ,
diggs:totalBatchVolume{0,1} ,
diggs:typeMix{0,1} ,
diggs:volumeWater{0,1} ,
diggs:waterCementRatio{0,1} ,
diggs:waterCementRatioOfMix{0,1} ,
diggs:wtCementPerGalH2O{0,1} ,
diggs:binderFactor{0,1} ,
diggs:binderFactorInPlace{0,1} ,
diggs:binderContent{0,1} ,
diggs:volumeRatio{0,1} ,
diggs:deliveryToPlacementTime{0,1} ,
diggs:bindingMaterialContent{0,1} ,
diggs:waterSolubleChlorideContent{0,1} ,
diggs:acidSolubleChlorideContent{0,1}
Children diggs:acidSolubleChlorideContent diggs:admixture diggs:associatedFile diggs:binder diggs:binderContent diggs:binderFactor diggs:binderFactorInPlace diggs:bindingMaterialContent diggs:cement diggs:chemical diggs:deliveryToPlacementTime diggs:filler diggs:implementationStatus diggs:internalIdentifier diggs:programRef diggs:programSpecificationRef diggs:projectRef diggs:remark diggs:role diggs:sampleGroupRef diggs:sampleProducedRef diggs:samplingActivityRef diggs:specificGravityMix diggs:specificGravityWater diggs:status diggs:totalBatchVolume diggs:typeMix diggs:volumeRatio diggs:volumeWater diggs:waterCementRatio diggs:waterCementRatioOfMix diggs:waterSolubleChlorideContent diggs:wtCementPerGalH2O gml:description gml:identifier gml:name
Instance
<diggs:GroutBatch gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:href= "" nilReason= "" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {1,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:href= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:projectRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {1,1} </diggs:projectRef>
<diggs:samplingActivityRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {1,1} </diggs:samplingActivityRef>
<diggs:programRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,1} </diggs:programRef>
<diggs:programSpecificationRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:programSpecificationRef>
<diggs:sampleProducedRef xlink:href= "" nilReason= "" owns= "false" > {1,1} </diggs:sampleProducedRef>
<diggs:sampleGroupRef xlink:href= "" identifierRef= "" nilReason= "" owns= "false" > {0,unbounded} </diggs:sampleGroupRef>
<diggs:admixture > {0,unbounded} </diggs:admixture>
<diggs:binder > {0,unbounded} </diggs:binder>
<diggs:cement > {0,unbounded} </diggs:cement>
<diggs:chemical > {0,unbounded} </diggs:chemical>
<diggs:filler > {0,unbounded} </diggs:filler>
<diggs:specificGravityMix howDetermined= "" qualifier= "" waterTemperature= "" > {0,1} </diggs:specificGravityMix>
<diggs:specificGravityWater howDetermined= "" qualifier= "" waterTemperature= "" > {0,1} </diggs:specificGravityWater>
<diggs:totalBatchVolume howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:totalBatchVolume>
<diggs:typeMix codeSpace= "" > {0,1} </diggs:typeMix>
<diggs:volumeWater howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:volumeWater>
<diggs:waterCementRatio howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:waterCementRatio>
<diggs:waterCementRatioOfMix howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:waterCementRatioOfMix>
<diggs:wtCementPerGalH2O howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:wtCementPerGalH2O>
<diggs:binderFactor howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:binderFactor>
<diggs:binderFactorInPlace howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:binderFactorInPlace>
<diggs:binderContent howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:binderContent>
<diggs:volumeRatio howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:volumeRatio>
<diggs:deliveryToPlacementTime howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:deliveryToPlacementTime>
<diggs:bindingMaterialContent howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:bindingMaterialContent>
<diggs:waterSolubleChlorideContent howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:waterSolubleChlorideContent>
<diggs:acidSolubleChlorideContent howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:acidSolubleChlorideContent>
</diggs:GroutBatch>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element name= "GroutBatch" substitutionGroup= "diggs:AbstractTrialGroutBatch" type= "diggs:GroutBatchType" >
<annotation >
<documentation > A specialization of Sample that contains properties describing the characteristics of a batch of grout used for production purposes. This object is expected to reference the diggs:DesignGroutMix it was produced to through its sampling activity's currentDesign (diggs:AbstractSamplingActivityType) - a batching activity that mixed to more than one design over time is stated as separate SamplingActivity instances, one per design, each citing the batches it produced. </documentation>
</annotation>
</element>
