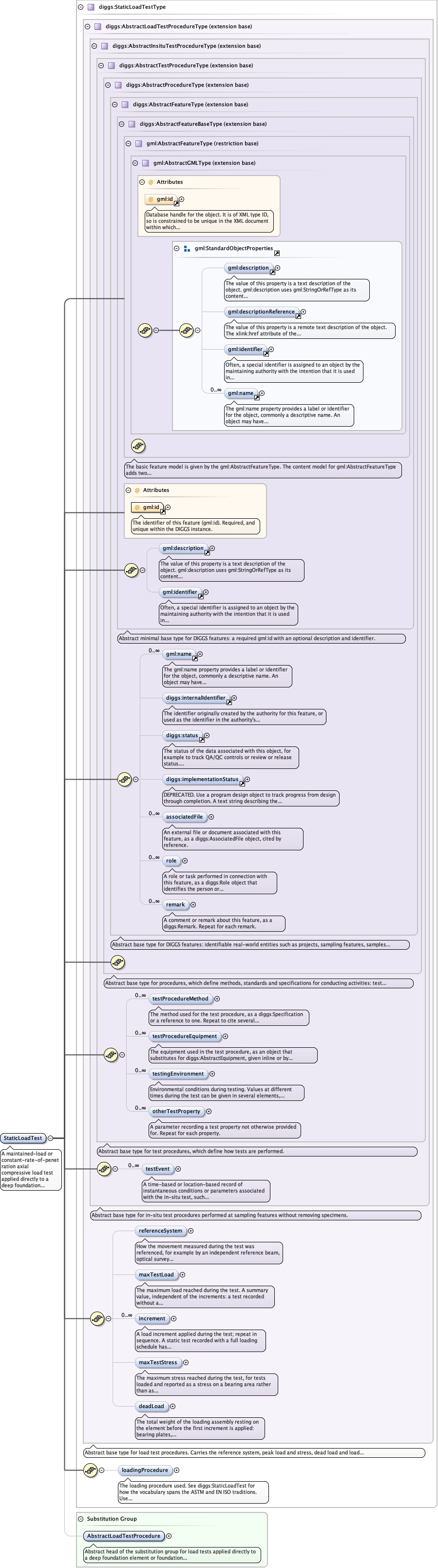

Schema documentation for component diggs:StaticLoadTest

A maintained-load or constant-rate-of-penetration axial compressive load test applied directly to a deep foundation element, per ASTM D1143/D1143M or EN ISO 22477-1 (or their national equivalents). ASTM D1143 names seven loading procedures (Quick Test, Maintained Test, Loading in Excess of Maintained Test, Constant Time Interval, Constant Rate of Penetration, Constant Movement Increment, Cyclic Loading); EN ISO 22477-1 covers only the maintained-load family and excludes the constant-rate-of-penetration and cyclic variants. The vocabulary of loadingProcedure carries all of ASTM's named options, and its maintained_load entry is the value both traditions share. Cite the governing standard through the inherited testProcedureMethod: loadingProcedure names the loading method, and testProcedureMethod names the standard that specifies it.

<diggs:StaticLoadTest gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,unbounded}</diggs:testEvent>
  <diggs:referenceSystem>{0,1}</diggs:referenceSystem>
  <diggs:maxTestLoad howDetermined="" qualifier="" uom="">{0,1}</diggs:maxTestLoad>
  <diggs:increment>{0,unbounded}</diggs:increment>
  <diggs:maxTestStress howDetermined="" qualifier="" uom="">{0,1}</diggs:maxTestStress>
  <diggs:deadLoad howDetermined="" qualifier="" uom="">{0,1}</diggs:deadLoad>
  <diggs:loadingProcedure codeSpace="">{0,1}</diggs:loadingProcedure>
</diggs:StaticLoadTest>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="StaticLoadTest" type="diggs:StaticLoadTestType" abstract="false" substitutionGroup="diggs:AbstractLoadTestProcedure"> <annotation> <documentation>A maintained-load or constant-rate-of-penetration axial compressive load test applied directly to a deep foundation element, per ASTM D1143/D1143M or EN ISO 22477-1 (or their national equivalents). ASTM D1143 names seven loading procedures (Quick Test, Maintained Test, Loading in Excess of Maintained Test, Constant Time Interval, Constant Rate of Penetration, Constant Movement Increment, Cyclic Loading); EN ISO 22477-1 covers only the maintained-load family and excludes the constant-rate-of-penetration and cyclic variants. The vocabulary of loadingProcedure carries all of ASTM's named options, and its maintained_load entry is the value both traditions share. Cite the governing standard through the inherited testProcedureMethod: loadingProcedure names the loading method, and testProcedureMethod names the standard that specifies it.</documentation> </annotation> </element>

Showing:
