Element diggs:GeoUnitSystem
Namespace http://diggsml.org/schemas/3
Annotations

A system of geotechnical unit observations. Geotechnical units are bodies of earth
material distinguished by one or more characteristic engineering properties. The
observations in a system do not overlap.

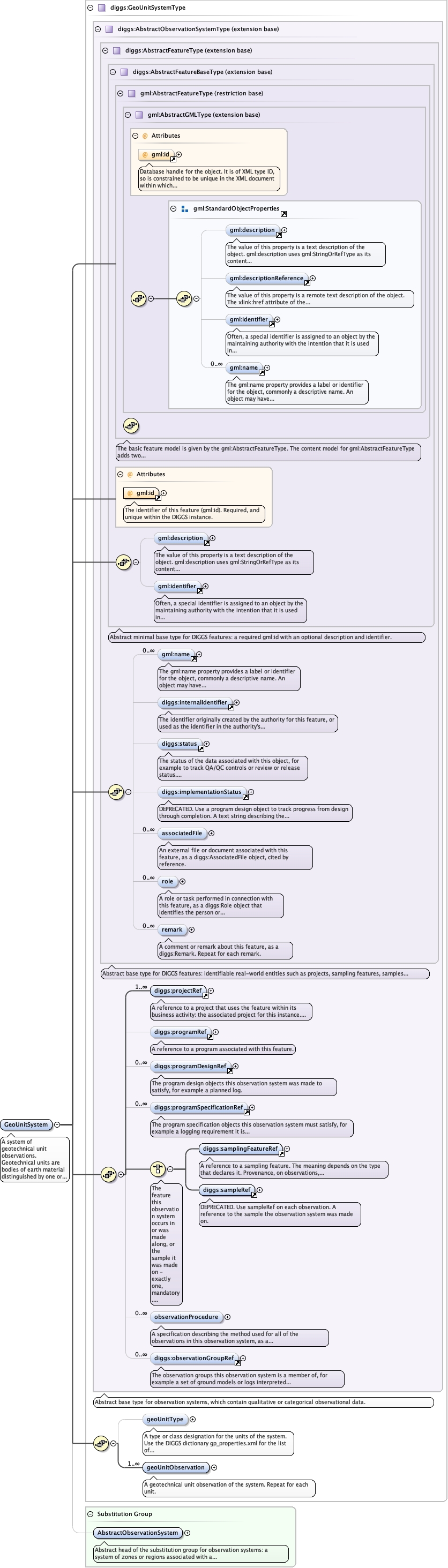

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeCommon_xsd_Element_diggs_projectRef.tmp#projectRefCommon_xsd_Element_diggs_programRef.tmp#programRefCommon_xsd_Element_diggs_programDesignRef.tmp#programDesignRefCommon_xsd_Element_diggs_programSpecificationRef.tmp#programSpecificationRefCommon_xsd_Element_diggs_samplingFeatureRef.tmp#samplingFeatureRefCommon_xsd_Element_diggs_sampleRef.tmp#sampleRefAbstractTypes_xsd_Complex_Type_diggs_AbstractObservationSystemType.tmp#AbstractObservationSystemType_observationProcedureCommon_xsd_Element_diggs_observationGroupRef.tmp#observationGroupRefAbstractTypes_xsd_Complex_Type_diggs_AbstractObservationSystemType.tmp#AbstractObservationSystemTypeCore_xsd_Complex_Type_diggs_GeoUnitSystemType.tmp#GeoUnitSystemType_geoUnitTypeCore_xsd_Complex_Type_diggs_GeoUnitSystemType.tmp#GeoUnitSystemType_geoUnitObservationCore_xsd_Complex_Type_diggs_GeoUnitSystemType.tmp#GeoUnitSystemTypeAbstractTypes_xsd_Element_diggs_AbstractObservationSystem.tmp#AbstractObservationSystem
Type diggs:GeoUnitSystemType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children diggs:associatedFile, diggs:geoUnitObservation, diggs:geoUnitType, diggs:implementationStatus, diggs:internalIdentifier, diggs:observationGroupRef, diggs:observationProcedure, diggs:programDesignRef, diggs:programRef, diggs:programSpecificationRef, diggs:projectRef, diggs:remark, diggs:role, diggs:sampleRef, diggs:samplingFeatureRef, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:GeoUnitSystem gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:projectRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:projectRef>
  <diggs:programRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:programRef>
  <diggs:programDesignRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:programDesignRef>
  <diggs:programSpecificationRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:programSpecificationRef>
  <diggs:samplingFeatureRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,1}</diggs:samplingFeatureRef>
  <diggs:sampleRef xlink:href="" identifierRef="" nilReason="" owns="false" percentage="">{1,1}</diggs:sampleRef>
  <diggs:observationProcedure xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:observationProcedure>
  <diggs:observationGroupRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:observationGroupRef>
  <diggs:geoUnitType codeSpace="">{0,1}</diggs:geoUnitType>
  <diggs:geoUnitObservation xlink:href="" nilReason="">{1,unbounded}</diggs:geoUnitObservation>
</diggs:GeoUnitSystem>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="GeoUnitSystem" substitutionGroup="diggs:AbstractObservationSystem" type="diggs:GeoUnitSystemType">
  <annotation>
    <documentation>A system of geotechnical unit observations. Geotechnical units are bodies of earth material distinguished by one or more characteristic engineering properties. The observations in a system do not overlap.</documentation>
  </annotation>
</element>
