Element diggs:AbstractProjectGroup
Namespace http://diggsml.org/schemas/3
Annotations

Abstract head of the substitution group for groups whose members are projects. A
member joins by carrying diggs:projectGroupRef, declared on
diggs:AbstractProjectType. No concrete type substitutes this head yet. This is a
group of projects, not a group belonging to a project: it still carries the
mandatory projectRef it inherits, naming the project under which the grouping is
made.

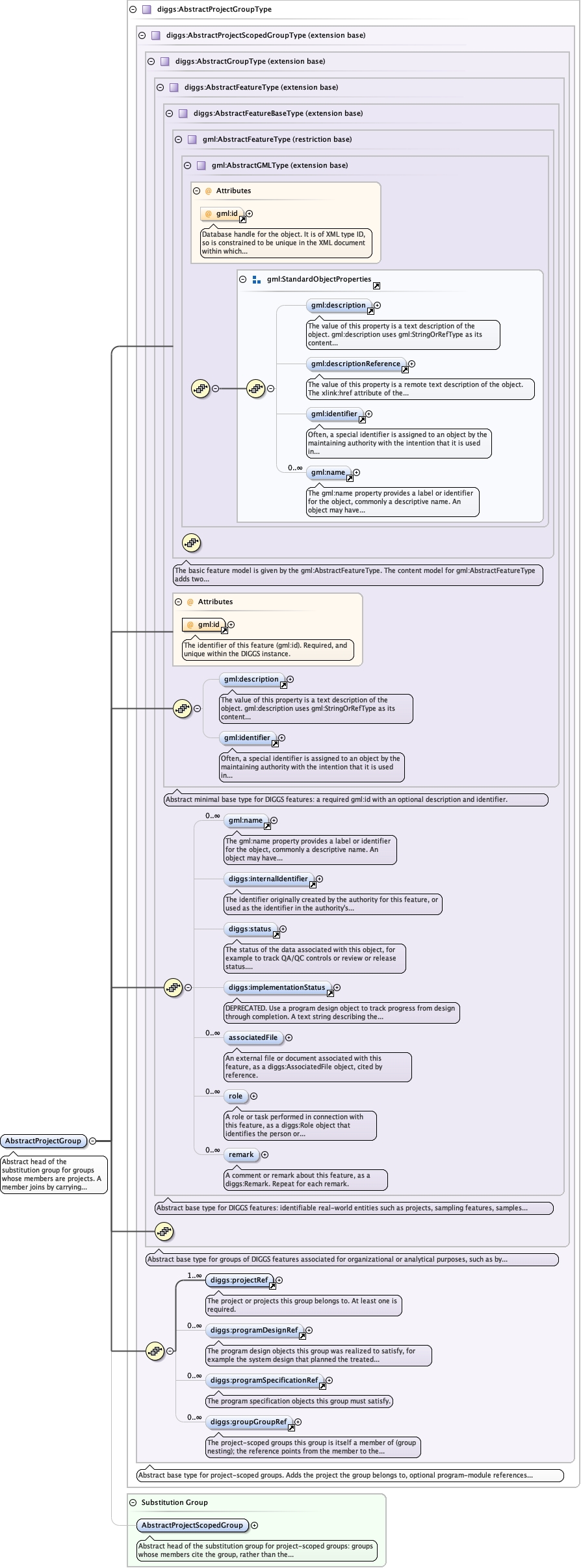

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractGroupType.tmp#AbstractGroupTypeCommon_xsd_Element_diggs_projectRef.tmp#projectRefCommon_xsd_Element_diggs_programDesignRef.tmp#programDesignRefCommon_xsd_Element_diggs_programSpecificationRef.tmp#programSpecificationRefCommon_xsd_Element_diggs_groupGroupRef.tmp#groupGroupRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProjectScopedGroupType.tmp#AbstractProjectScopedGroupTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProjectGroupType.tmp#AbstractProjectGroupTypeAbstractTypes_xsd_Element_diggs_AbstractProjectScopedGroup.tmp#AbstractProjectScopedGroup
Type diggs:AbstractProjectGroupType
Type hierarchy
Properties
content complex
abstract true
Substitution Group Affiliation
Model
Children diggs:associatedFile, diggs:groupGroupRef, diggs:implementationStatus, diggs:internalIdentifier, diggs:programDesignRef, diggs:programSpecificationRef, diggs:projectRef, diggs:remark, diggs:role, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:AbstractProjectGroup gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:projectRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:projectRef>
  <diggs:programDesignRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:programDesignRef>
  <diggs:programSpecificationRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:programSpecificationRef>
  <diggs:groupGroupRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:groupGroupRef>
</diggs:AbstractProjectGroup>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="AbstractProjectGroup" type="diggs:AbstractProjectGroupType" substitutionGroup="diggs:AbstractProjectScopedGroup" abstract="true">
  <annotation>
    <documentation>Abstract head of the substitution group for groups whose members are projects. A member joins by carrying diggs:projectGroupRef, declared on diggs:AbstractProjectType. No concrete type substitutes this head yet. This is a group of projects, not a group belonging to a project: it still carries the mandatory projectRef it inherits, naming the project under which the grouping is made.</documentation>
  </annotation>
</element>
