Element diggs:AbstractObservationGroup
Namespace http://diggsml.org/schemas/3
Annotations

Abstract head of the substitution group for groups whose members are observation
systems: ground models, logs and other interpreted characterizations. A member joins
by carrying diggs:observationGroupRef, declared on
diggs:AbstractObservationSystemType. No concrete type substitutes this head yet.
Several observation systems may be meaningful only when read together, for example
two ground models of the same site built on different assumptions, or logs that form
one cross-section.

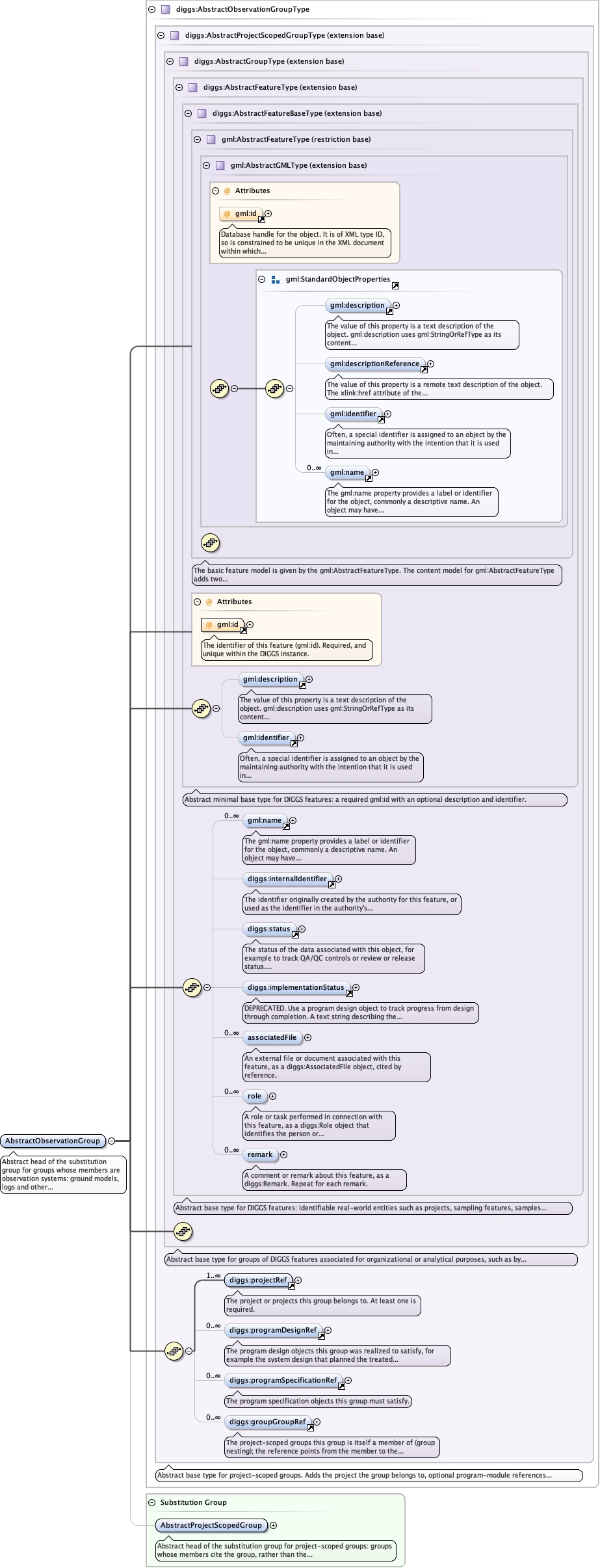

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractGroupType.tmp#AbstractGroupTypeCommon_xsd_Element_diggs_projectRef.tmp#projectRefCommon_xsd_Element_diggs_programDesignRef.tmp#programDesignRefCommon_xsd_Element_diggs_programSpecificationRef.tmp#programSpecificationRefCommon_xsd_Element_diggs_groupGroupRef.tmp#groupGroupRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProjectScopedGroupType.tmp#AbstractProjectScopedGroupTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractObservationGroupType.tmp#AbstractObservationGroupTypeAbstractTypes_xsd_Element_diggs_AbstractProjectScopedGroup.tmp#AbstractProjectScopedGroup
Type diggs:AbstractObservationGroupType
Type hierarchy
Properties
content complex
abstract true
Substitution Group Affiliation
Model
Children diggs:associatedFile, diggs:groupGroupRef, diggs:implementationStatus, diggs:internalIdentifier, diggs:programDesignRef, diggs:programSpecificationRef, diggs:projectRef, diggs:remark, diggs:role, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:AbstractObservationGroup gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:projectRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:projectRef>
  <diggs:programDesignRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:programDesignRef>
  <diggs:programSpecificationRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:programSpecificationRef>
  <diggs:groupGroupRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:groupGroupRef>
</diggs:AbstractObservationGroup>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="AbstractObservationGroup" type="diggs:AbstractObservationGroupType" substitutionGroup="diggs:AbstractProjectScopedGroup" abstract="true">
  <annotation>
    <documentation>Abstract head of the substitution group for groups whose members are observation systems: ground models, logs and other interpreted characterizations. A member joins by carrying diggs:observationGroupRef, declared on diggs:AbstractObservationSystemType. No concrete type substitutes this head yet. Several observation systems may be meaningful only when read together, for example two ground models of the same site built on different assumptions, or logs that form one cross-section.</documentation>
  </annotation>
</element>
