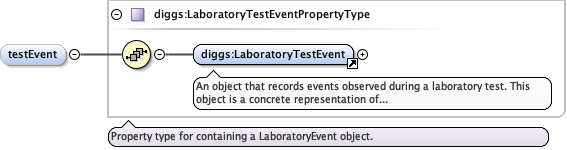

Element diggs:AbstractMaterialTestlProcedureType / diggs:testEvent
Namespace http://diggsml.org/schemas/3
Diagram
DiagramCommon_xsd_Element_diggs_LaboratoryTestEvent.tmp#LaboratoryTestEventCommon_xsd_Complex_Type_diggs_LaboratoryTestEventPropertyType.tmp#LaboratoryTestEventPropertyType
Type diggs:LaboratoryTestEventPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:LaboratoryTestEvent
Instance

<diggs:testEvent xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:LaboratoryTestEvent gml:id="">{1,1}</diggs:LaboratoryTestEvent>
</diggs:testEvent>
Source

<element minOccurs="0" name="testEvent" type="diggs:LaboratoryTestEventPropertyType"/>

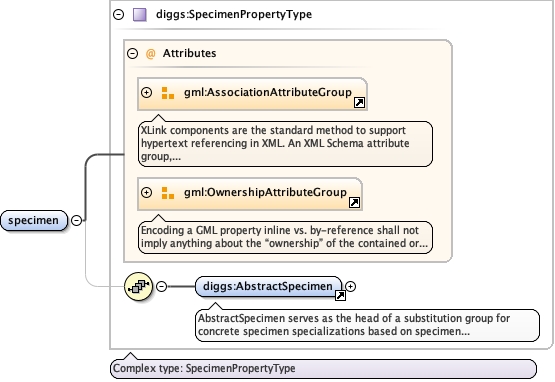

Element diggs:AbstractMaterialTestlProcedureType / diggs:specimen
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupAbstractTypes_xsd_Element_diggs_AbstractSpecimen.tmp#AbstractSpecimenCommon_xsd_Complex_Type_diggs_SpecimenPropertyType.tmp#SpecimenPropertyType
Type diggs:SpecimenPropertyType
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children diggs:AbstractSpecimen
Instance

<diggs:specimen xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AbstractSpecimen gml:id="">{1,1}</diggs:AbstractSpecimen>
</diggs:specimen>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element maxOccurs="unbounded" minOccurs="1" name="specimen" type="diggs:SpecimenPropertyType"/>

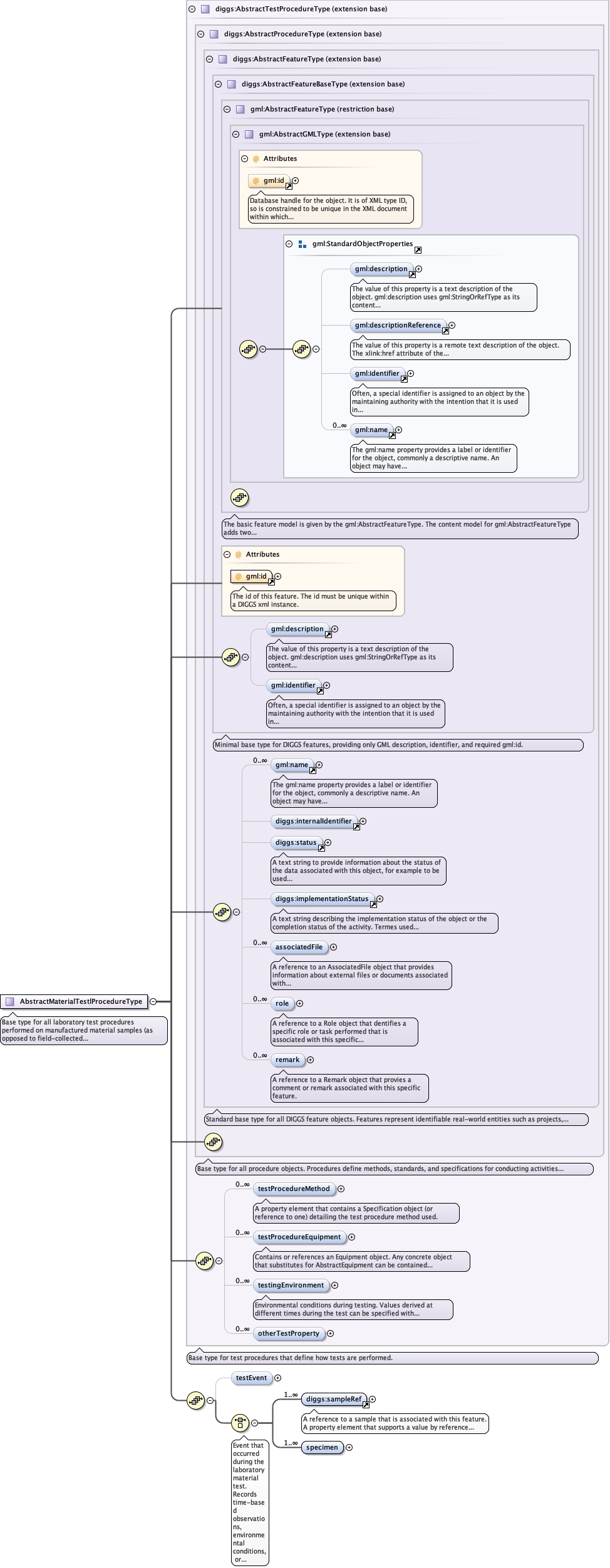

Complex Type diggs:AbstractMaterialTestlProcedureType
Namespace http://diggsml.org/schemas/3
Annotations

Base type for all laboratory test procedures performed on manufactured material samples (as opposed to field-collected samples). Material tests include procedures on grout, concrete, slurry, and other engineered materials. These tests differ from standard laboratory tests in that they are performed on specially prepared specimens rather than samples extracted from a sampling feature.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractMaterialTestlProcedureType.tmp#AbstractMaterialTestlProcedureType_testEventCommon_xsd_Element_diggs_sampleRef.tmp#sampleRefAbstractTypes_xsd_Complex_Type_diggs_AbstractMaterialTestlProcedureType.tmp#AbstractMaterialTestlProcedureType_specimen
Type extension of diggs:AbstractTestProcedureType
Type hierarchy
Properties
abstract true
Used by
Model
Children diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherTestProperty, diggs:remark, diggs:role, diggs:sampleRef, diggs:specimen, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="AbstractMaterialTestlProcedureType" abstract="true">
  <annotation>
    <documentation>Base type for all laboratory test procedures performed on manufactured material samples (as opposed to field-collected samples). Material tests include procedures on grout, concrete, slurry, and other engineered materials. These tests differ from standard laboratory tests in that they are performed on specially prepared specimens rather than samples extracted from a sampling feature.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractTestProcedureType">
      <sequence>
        <element minOccurs="0" name="testEvent" type="diggs:LaboratoryTestEventPropertyType"/>
        <choice>
          <annotation>
            <documentation>Event that occurred during the laboratory material test. Records time-based observations, environmental conditions, or procedural notes made during test execution on manufactured material specimens.</documentation>
          </annotation>
          <element maxOccurs="unbounded" minOccurs="1" ref="diggs:sampleRef"/>
          <element maxOccurs="unbounded" minOccurs="1" name="specimen" type="diggs:SpecimenPropertyType"/>
        </choice>
      </sequence>
    </extension>
  </complexContent>
</complexType>
