Element diggs:AbstractSpecimen
Namespace http://diggsml.org/schemas/3
Annotations

AbstractSpecimen serves as the head of a substitution group for concrete
specimen specializations based on specimen state or type: eg. soil, liquid, gas,
rock. A specimen derives from one or more Samples, is created as part of a test
procedure, and exists only in the context of the test procedure that creates
it.

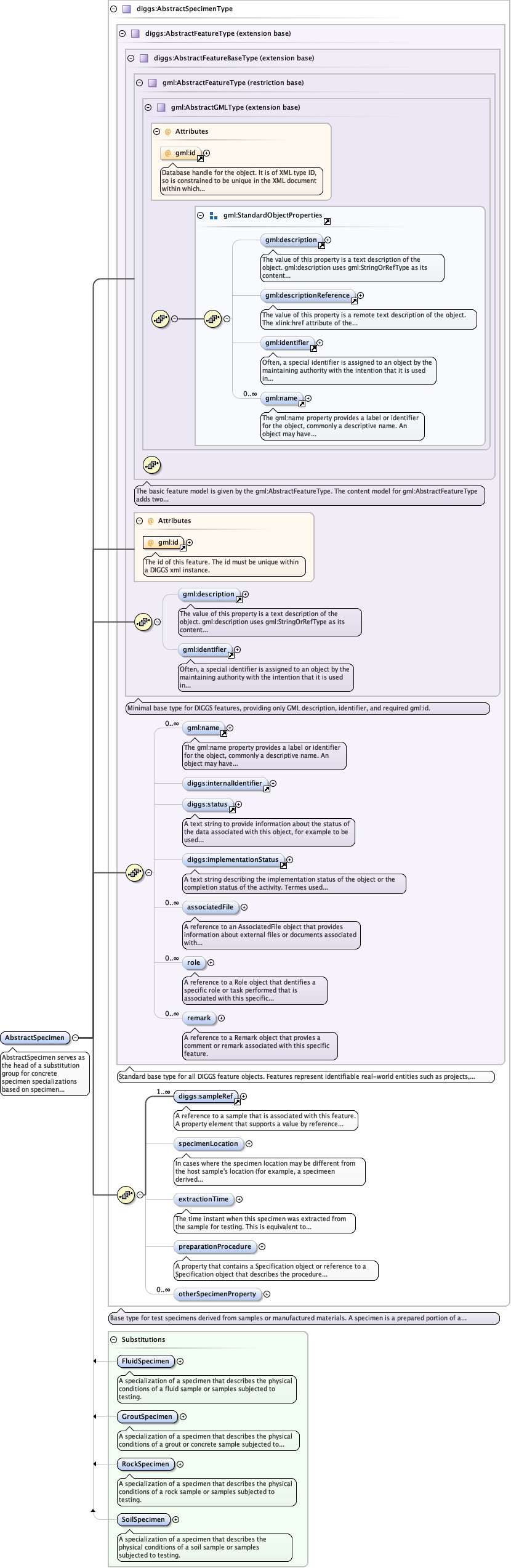

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeCommon_xsd_Element_diggs_sampleRef.tmp#sampleRefAbstractTypes_xsd_Complex_Type_diggs_AbstractSpecimenType.tmp#AbstractSpecimenType_specimenLocationAbstractTypes_xsd_Complex_Type_diggs_AbstractSpecimenType.tmp#AbstractSpecimenType_extractionTimeAbstractTypes_xsd_Complex_Type_diggs_AbstractSpecimenType.tmp#AbstractSpecimenType_preparationProcedureAbstractTypes_xsd_Complex_Type_diggs_AbstractSpecimenType.tmp#AbstractSpecimenType_otherSpecimenPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractSpecimenType.tmp#AbstractSpecimenTypeExtProcedures_xsd_Element_diggs_FluidSpecimen.tmp#FluidSpecimenGrouting_xsd_Element_diggs_GroutSpecimen.tmp#GroutSpecimenCore_xsd_Element_diggs_RockSpecimen.tmp#RockSpecimenCore_xsd_Element_diggs_SoilSpecimen.tmp#SoilSpecimen
Type diggs:AbstractSpecimenType
Type hierarchy
Properties
content complex
abstract true
Substitution Group
Used by
Model
Children diggs:associatedFile, diggs:extractionTime, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherSpecimenProperty, diggs:preparationProcedure, diggs:remark, diggs:role, diggs:sampleRef, diggs:specimenLocation, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:AbstractSpecimen gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:sampleRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" percentage="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,unbounded}</diggs:sampleRef>
  <diggs:specimenLocation xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{0,1}</diggs:specimenLocation>
  <diggs:extractionTime calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:extractionTime>
  <diggs:preparationProcedure xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:preparationProcedure>
  <diggs:otherSpecimenProperty>{0,unbounded}</diggs:otherSpecimenProperty>
</diggs:AbstractSpecimen>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element abstract="true" name="AbstractSpecimen" type="diggs:AbstractSpecimenType">
  <annotation>
    <documentation>AbstractSpecimen serves as the head of a substitution group for concrete specimen specializations based on specimen state or type: eg. soil, liquid, gas, rock. A specimen derives from one or more Samples, is created as part of a test procedure, and exists only in the context of the test procedure that creates it.</documentation>
  </annotation>
</element>
