Element diggs:RockSpecimen
Namespace http://diggsml.org/schemas/3
Annotations

A specialization of a specimen that describes the physical conditions of
a rock sample or samples subjected to testing.

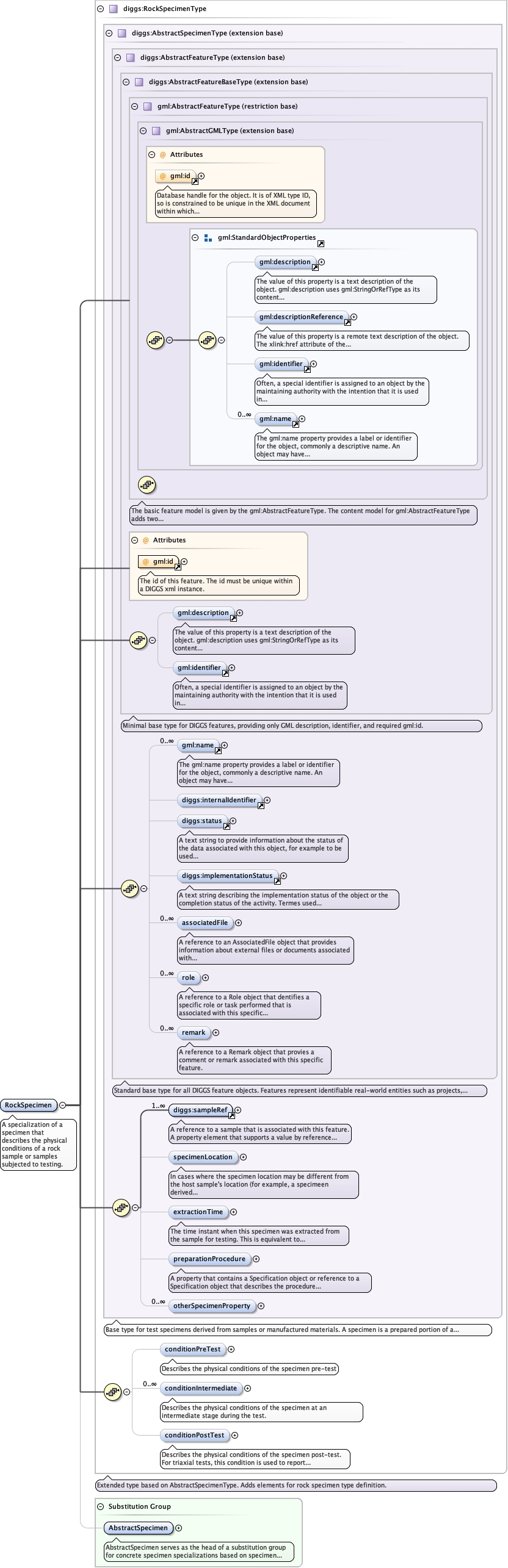

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeCommon_xsd_Element_diggs_sampleRef.tmp#sampleRefAbstractTypes_xsd_Complex_Type_diggs_AbstractSpecimenType.tmp#AbstractSpecimenType_specimenLocationAbstractTypes_xsd_Complex_Type_diggs_AbstractSpecimenType.tmp#AbstractSpecimenType_extractionTimeAbstractTypes_xsd_Complex_Type_diggs_AbstractSpecimenType.tmp#AbstractSpecimenType_preparationProcedureAbstractTypes_xsd_Complex_Type_diggs_AbstractSpecimenType.tmp#AbstractSpecimenType_otherSpecimenPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractSpecimenType.tmp#AbstractSpecimenTypeCore_xsd_Complex_Type_diggs_RockSpecimenType.tmp#RockSpecimenType_conditionPreTestCore_xsd_Complex_Type_diggs_RockSpecimenType.tmp#RockSpecimenType_conditionIntermediateCore_xsd_Complex_Type_diggs_RockSpecimenType.tmp#RockSpecimenType_conditionPostTestCore_xsd_Complex_Type_diggs_RockSpecimenType.tmp#RockSpecimenTypeAbstractTypes_xsd_Element_diggs_AbstractSpecimen.tmp#AbstractSpecimen
Type diggs:RockSpecimenType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children diggs:associatedFile, diggs:conditionIntermediate, diggs:conditionPostTest, diggs:conditionPreTest, diggs:extractionTime, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherSpecimenProperty, diggs:preparationProcedure, diggs:remark, diggs:role, diggs:sampleRef, diggs:specimenLocation, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:RockSpecimen gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:sampleRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" percentage="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,unbounded}</diggs:sampleRef>
  <diggs:specimenLocation xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{0,1}</diggs:specimenLocation>
  <diggs:extractionTime calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:extractionTime>
  <diggs:preparationProcedure xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:preparationProcedure>
  <diggs:otherSpecimenProperty>{0,unbounded}</diggs:otherSpecimenProperty>
  <diggs:conditionPreTest>{0,1}</diggs:conditionPreTest>
  <diggs:conditionIntermediate>{0,unbounded}</diggs:conditionIntermediate>
  <diggs:conditionPostTest>{0,1}</diggs:conditionPostTest>
</diggs:RockSpecimen>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="RockSpecimen" type="diggs:RockSpecimenType" substitutionGroup="diggs:AbstractSpecimen">
  <annotation>
    <documentation>A specialization of a specimen that describes the physical conditions of a rock sample or samples subjected to testing.</documentation>
  </annotation>
</element>
