Element diggs:ViscometerTestType / diggs:startingTemperature
Namespace http://diggsml.org/schemas/3
Annotations

Temperature of specimen and temperature bath at start of
test

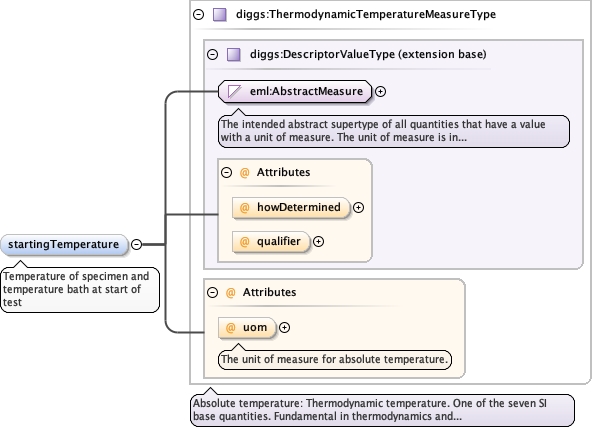

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ThermodynamicTemperatureMeasureType.tmp#ThermodynamicTemperatureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ThermodynamicTemperatureMeasureType.tmp#ThermodynamicTemperatureMeasureType
Type diggs:ThermodynamicTemperatureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ThermodynamicTemperatureUomEnumType optional
The unit of measure for absolute temperature.
Source

<element minOccurs="0" name="startingTemperature" type="diggs:ThermodynamicTemperatureMeasureType">
  <annotation>
    <documentation>Temperature of specimen and temperature bath at start of test</documentation>
  </annotation>
</element>
Element diggs:ViscometerTestType / diggs:endingTemperature
Namespace http://diggsml.org/schemas/3
Annotations

Temperature of specimen at end of test

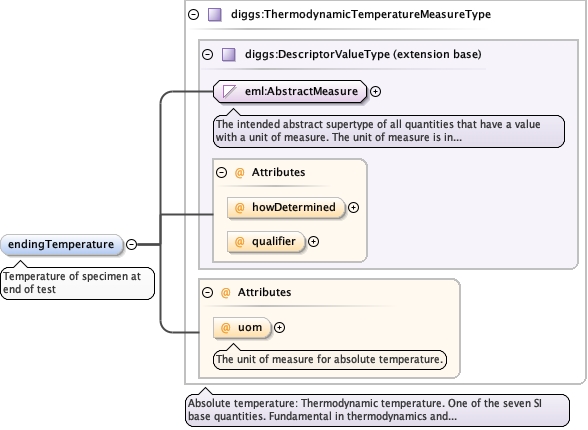

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ThermodynamicTemperatureMeasureType.tmp#ThermodynamicTemperatureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ThermodynamicTemperatureMeasureType.tmp#ThermodynamicTemperatureMeasureType
Type diggs:ThermodynamicTemperatureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ThermodynamicTemperatureUomEnumType optional
The unit of measure for absolute temperature.
Source

<element minOccurs="0" name="endingTemperature" type="diggs:ThermodynamicTemperatureMeasureType">
  <annotation>
    <documentation>Temperature of specimen at end of test</documentation>
  </annotation>
</element>
Element diggs:ViscometerTestType / diggs:viscocityReading
Namespace http://diggsml.org/schemas/3
Annotations

The viscocity reading property.

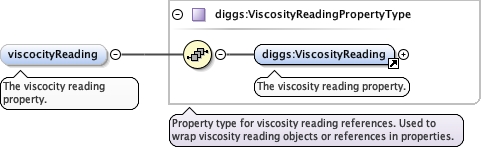

Diagram
DiagramGrouting_xsd_Element_diggs_ViscosityReading.tmp#ViscosityReadingGrouting_xsd_Complex_Type_diggs_ViscosityReadingPropertyType.tmp#ViscosityReadingPropertyType
Type diggs:ViscosityReadingPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:ViscosityReading
Instance

<diggs:viscocityReading xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:ViscosityReading owns="false">{1,1}</diggs:ViscosityReading>
</diggs:viscocityReading>
Source

<element maxOccurs="unbounded" minOccurs="0" name="viscocityReading" type="diggs:ViscosityReadingPropertyType">
  <annotation>
    <documentation>The viscocity reading property.</documentation>
  </annotation>
</element>
Complex Type diggs:ViscometerTestType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractMaterialTestlProcedureType. Adds elements for viscometer test type definition.

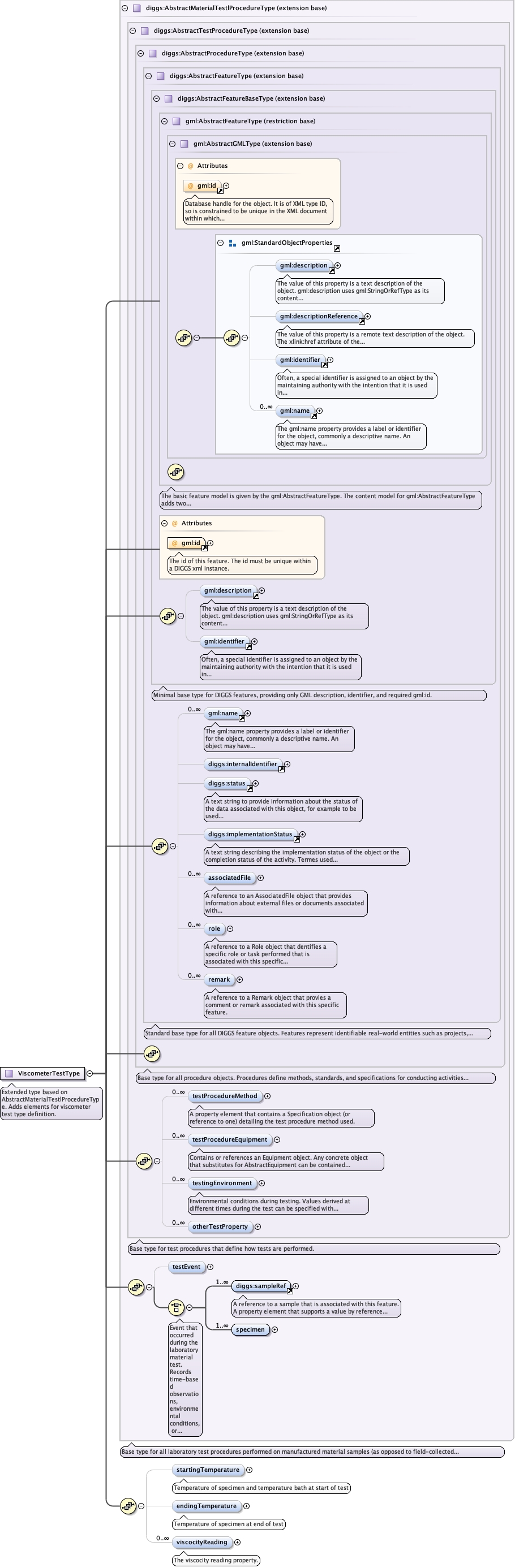

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractMaterialTestlProcedureType.tmp#AbstractMaterialTestlProcedureType_testEventCommon_xsd_Element_diggs_sampleRef.tmp#sampleRefAbstractTypes_xsd_Complex_Type_diggs_AbstractMaterialTestlProcedureType.tmp#AbstractMaterialTestlProcedureType_specimenAbstractTypes_xsd_Complex_Type_diggs_AbstractMaterialTestlProcedureType.tmp#AbstractMaterialTestlProcedureTypeGrouting_xsd_Complex_Type_diggs_ViscometerTestType.tmp#ViscometerTestType_startingTemperatureGrouting_xsd_Complex_Type_diggs_ViscometerTestType.tmp#ViscometerTestType_endingTemperatureGrouting_xsd_Complex_Type_diggs_ViscometerTestType.tmp#ViscometerTestType_viscocityReading
Type extension of diggs:AbstractMaterialTestlProcedureType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:endingTemperature, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherTestProperty, diggs:remark, diggs:role, diggs:sampleRef, diggs:specimen, diggs:startingTemperature, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, diggs:viscocityReading, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="ViscometerTestType">
  <annotation>
    <documentation>Extended type based on AbstractMaterialTestlProcedureType. Adds elements for viscometer test type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractMaterialTestlProcedureType">
      <sequence>
        <element minOccurs="0" name="startingTemperature" type="diggs:ThermodynamicTemperatureMeasureType">
          <annotation>
            <documentation>Temperature of specimen and temperature bath at start of test</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="endingTemperature" type="diggs:ThermodynamicTemperatureMeasureType">
          <annotation>
            <documentation>Temperature of specimen at end of test</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="viscocityReading" type="diggs:ViscosityReadingPropertyType">
          <annotation>
            <documentation>The viscocity reading property.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
