Complex Type diggs:ThermodynamicTemperatureMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Absolute temperature: Thermodynamic temperature. One of the seven SI base quantities. Fundamental in thermodynamics and thermal analysis. Common units include kelvin (K), degree Celsius (°C), degree Fahrenheit (°F), and degree Rankine (°R).

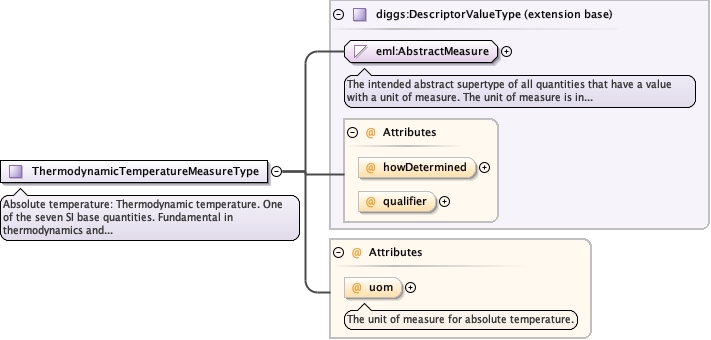

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ThermodynamicTemperatureMeasureType.tmp#ThermodynamicTemperatureMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Used by
Elements diggs:AggregateSlakeDurabilityTestType/diggs:averageFluidTemperature, diggs:AggregateSlakeDurabilityTestType/diggs:maximumFluidTemperature, diggs:AggregateSlakeDurabilityTestType/diggs:minimumFluidTemperature, diggs:ConsolidationTestTrialType/diggs:averageTemperature, diggs:ContinuousGroutingType/diggs:Fluid_3Temperature, diggs:ContinuousGroutingType/diggs:fluid_2Temperature, diggs:ContinuousGroutingType/diggs:groutTemperature, diggs:ContinuousGroutingType/diggs:penetrationGroutTemperature, diggs:ContinuousGroutingType/diggs:withdrawalGroutTemperature, diggs:EnvironmentType/diggs:ambientTemperature, diggs:LabPermeationTrialType/diggs:tempEndOfTrial, diggs:LabPermeationTrialType/diggs:tempStartOfTrial, diggs:LossOnIgnitionTestType/diggs:dryingTemperature, diggs:LossOnIgnitionTestType/diggs:ignitionTemperature, diggs:PropertyType/diggs:atTemperature, diggs:RockPorosityDensityTestType/diggs:dryingTemperature, diggs:SedimentationType/diggs:temperature, diggs:SpecificGravityTestType/diggs:temperatureWaterAndSoil, diggs:SpecificGravityTestType/diggs:waterTemperature, diggs:TemperatureMeasurementType/diggs:temperature, diggs:ViscometerTestType/diggs:endingTemperature, diggs:ViscometerTestType/diggs:startingTemperature, diggs:ViscosityReadingType/diggs:temperature, diggs:WaterContentTestType/diggs:dryingTemperature, diggs_geo:ConsolidationTestTrialType/diggs_geo:averageTemperature, diggs_geo:LabPermeationTrial/diggs_geo:tempEndOfTrial, diggs_geo:LabPermeationTrial/diggs_geo:tempStartOfTrial, diggs_geo:LossOnIgnitionTestType/diggs_geo:dryingTemperature, diggs_geo:LossOnIgnitionTestType/diggs_geo:ignitionTemperature, diggs_geo:PorePressureDissipationPropType/diggs_geo:atTemperature, diggs_geo:SedimentationType/diggs_geo:temperature, diggs_geo:SpecificGravityTestType/diggs_geo:temperatureWaterAndSoil, diggs_geo:SpecificGravityTestType/diggs_geo:waterTemperature, diggs_geo:WaterContentTestType/diggs_geo:dryingTemperature
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ThermodynamicTemperatureUomEnumType optional
The unit of measure for absolute temperature.
Source

<complexType name="ThermodynamicTemperatureMeasureType">
  <annotation>
    <documentation>Absolute temperature: Thermodynamic temperature. One of the seven SI base quantities. Fundamental in thermodynamics and thermal analysis. Common units include kelvin (K), degree Celsius (°C), degree Fahrenheit (°F), and degree Rankine (°R).</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:ThermodynamicTemperatureUomEnumType">
        <annotation>
          <documentation>The unit of measure for absolute temperature.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:ThermodynamicTemperatureMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for absolute temperature.
Type diggs:ThermodynamicTemperatureUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:ThermodynamicTemperatureUomEnumType">
  <annotation>
    <documentation>The unit of measure for absolute temperature.</documentation>
  </annotation>
</attribute>
