Element diggs:AbstractMaterialTestProcedure
Namespace http://diggsml.org/schemas/3
Annotations

Base type for all test procedures performed only on manufactured samples
-eg. those that are created by aggregation of other samples or materials and where
the sample has no location relevance. Material test procedures must reference or
describe the samples and/or specimens upon which the test is performed. This
category was developed for test procedures developed for characterizing grout
samples but could be used for other types of samples where the results of the
procedure relate to the characteristics of the sample only, and does not relate to
the properties of a geographic feature of interest

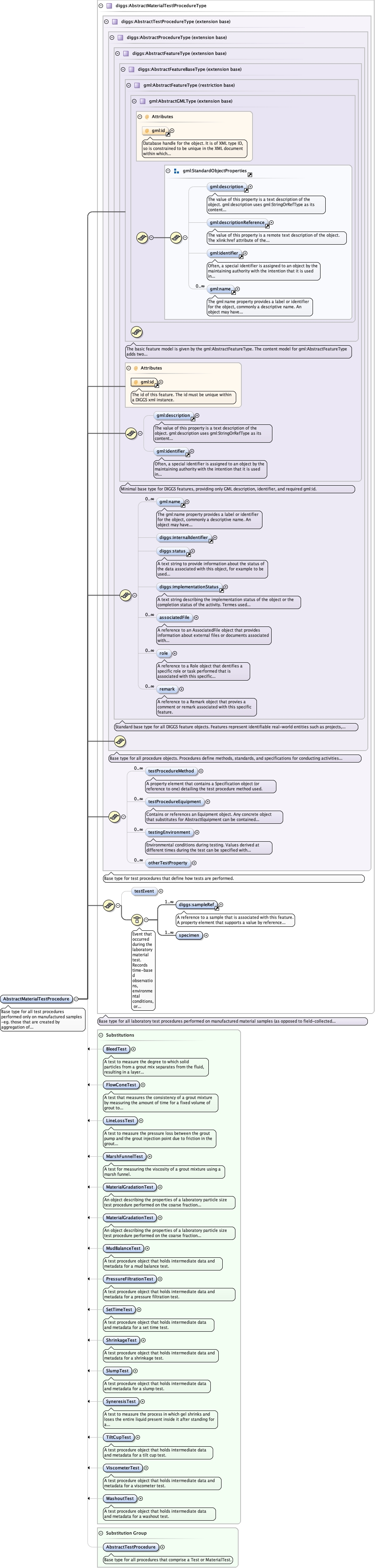

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractMaterialTestlProcedureType.tmp#AbstractMaterialTestlProcedureType_testEventCommon_xsd_Element_diggs_sampleRef.tmp#sampleRefAbstractTypes_xsd_Complex_Type_diggs_AbstractMaterialTestlProcedureType.tmp#AbstractMaterialTestlProcedureType_specimenAbstractTypes_xsd_Complex_Type_diggs_AbstractMaterialTestlProcedureType.tmp#AbstractMaterialTestlProcedureTypeGrouting_xsd_Element_diggs_BleedTest.tmp#BleedTestGrouting_xsd_Element_diggs_FlowConeTest.tmp#FlowConeTestGrouting_xsd_Element_diggs_LineLossTest.tmp#LineLossTestGrouting_xsd_Element_diggs_MarshFunnelTest.tmp#MarshFunnelTestExtProcedures_xsd_Element_diggs_MaterialGradationTest.tmp#http___diggsml.org_schemas_3_MaterialGradationTestDiggs_geo_deprecated_xsd_Element_diggs_geo_MaterialGradationTest.tmp#MaterialGradationTestGrouting_xsd_Element_diggs_MudBalanceTest.tmp#MudBalanceTestGrouting_xsd_Element_diggs_PressureFiltrationTest.tmp#PressureFiltrationTestGrouting_xsd_Element_diggs_SetTimeTest.tmp#SetTimeTestGrouting_xsd_Element_diggs_ShrinkageTest.tmp#ShrinkageTestGrouting_xsd_Element_diggs_SlumpTest.tmp#SlumpTestGrouting_xsd_Element_diggs_SyneresisTest.tmp#SyneresisTestGrouting_xsd_Element_diggs_TiltCupTest.tmp#TiltCupTestGrouting_xsd_Element_diggs_ViscometerTest.tmp#ViscometerTestGrouting_xsd_Element_diggs_WashoutTest.tmp#WashoutTestAbstractTypes_xsd_Element_diggs_AbstractTestProcedure.tmp#AbstractTestProcedure
Type diggs:AbstractMaterialTestlProcedureType
Type hierarchy
Properties
content complex
abstract true
Substitution Group
Substitution Group Affiliation
Used by
Model
Children diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherTestProperty, diggs:remark, diggs:role, diggs:sampleRef, diggs:specimen, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, gml:description, gml:identifier, gml:name
Instance

<diggs:AbstractMaterialTestProcedure gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment>{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,1}</diggs:testEvent>
  <diggs:sampleRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" percentage="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,unbounded}</diggs:sampleRef>
  <diggs:specimen xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,unbounded}</diggs:specimen>
</diggs:AbstractMaterialTestProcedure>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element abstract="true" name="AbstractMaterialTestProcedure" substitutionGroup="diggs:AbstractTestProcedure" type="diggs:AbstractMaterialTestlProcedureType">
  <annotation>
    <documentation>Base type for all test procedures performed only on manufactured samples -eg. those that are created by aggregation of other samples or materials and where the sample has no location relevance. Material test procedures must reference or describe the samples and/or specimens upon which the test is performed. This category was developed for test procedures developed for characterizing grout samples but could be used for other types of samples where the results of the procedure relate to the characteristics of the sample only, and does not relate to the properties of a geographic feature of interest</documentation>
  </annotation>
</element>
