Namespace http://diggsml.org/schemas/3
Annotations
A test to measure the pressure loss between the grout pump and the grout
injection point due to friction in the grout lines.

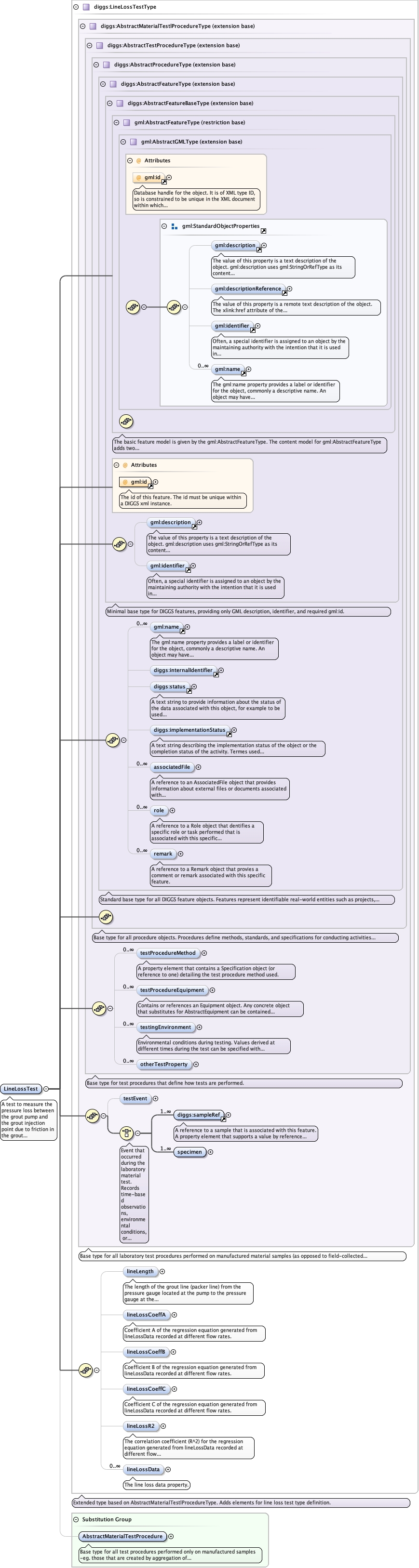

Diagram
Type diggs:LineLossTestType
Type hierarchy
Properties
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:testProcedureMethod* ,
diggs:testProcedureEquipment* ,
diggs:testingEnvironment* ,
diggs:otherTestProperty* ,
diggs:testEvent{0,1} , (
diggs:sampleRef+ |
diggs:specimen+ ) ,
diggs:lineLength{0,1} ,
diggs:lineLossCoeffA{0,1} ,
diggs:lineLossCoeffB{0,1} ,
diggs:lineLossCoeffC{0,1} ,
diggs:lineLossR2{0,1} ,
diggs:lineLossData*
Children diggs:associatedFile diggs:implementationStatus diggs:internalIdentifier diggs:lineLength diggs:lineLossCoeffA diggs:lineLossCoeffB diggs:lineLossCoeffC diggs:lineLossData diggs:lineLossR2 diggs:otherTestProperty diggs:remark diggs:role diggs:sampleRef diggs:specimen diggs:status diggs:testEvent diggs:testProcedureEquipment diggs:testProcedureMethod diggs:testingEnvironment gml:description gml:identifier gml:name
Instance
<diggs:LineLossTest gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:testProcedureMethod xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:testProcedureMethod>
<diggs:testProcedureEquipment xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:testProcedureEquipment>
<diggs:testingEnvironment > {0,unbounded} </diggs:testingEnvironment>
<diggs:otherTestProperty > {0,unbounded} </diggs:otherTestProperty>
<diggs:testEvent > {0,1} </diggs:testEvent>
<diggs:sampleRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" percentage= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,unbounded} </diggs:sampleRef>
<diggs:specimen xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,unbounded} </diggs:specimen>
<diggs:lineLength howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:lineLength>
<diggs:lineLossCoeffA > {0,1} </diggs:lineLossCoeffA>
<diggs:lineLossCoeffB > {0,1} </diggs:lineLossCoeffB>
<diggs:lineLossCoeffC > {0,1} </diggs:lineLossCoeffC>
<diggs:lineLossR2 > {0,1} </diggs:lineLossR2>
<diggs:lineLossData > {0,unbounded} </diggs:lineLossData>
</diggs:LineLossTest>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element name= "LineLossTest" type= "diggs:LineLossTestType" substitutionGroup= "diggs:AbstractMaterialTestProcedure" >
<annotation >
<documentation > A test to measure the pressure loss between the grout pump and the grout injection point due to friction in the grout lines. </documentation>
</annotation>
</element>
