Namespace http://diggsml.org/schemas/3
Annotations
A test to measure the degree to which solid particles from a grout mix
separates from the fluid, resulting in a layer of clear water at the surface of the
grout..

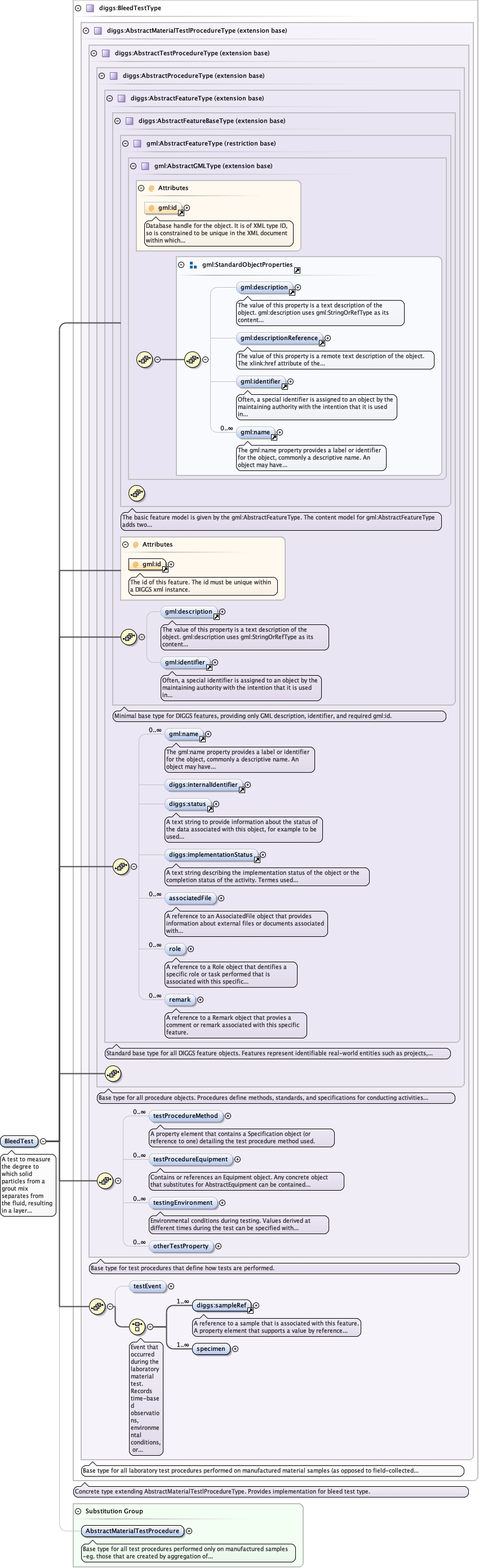

Diagram
Type diggs:BleedTestType
Type hierarchy
Properties
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:testProcedureMethod* ,
diggs:testProcedureEquipment* ,
diggs:testingEnvironment* ,
diggs:otherTestProperty* ,
diggs:testEvent{0,1} , (
diggs:sampleRef+ |
diggs:specimen+ )
Children diggs:associatedFile diggs:implementationStatus diggs:internalIdentifier diggs:otherTestProperty diggs:remark diggs:role diggs:sampleRef diggs:specimen diggs:status diggs:testEvent diggs:testProcedureEquipment diggs:testProcedureMethod diggs:testingEnvironment gml:description gml:identifier gml:name
Instance
<diggs:BleedTest gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:testProcedureMethod xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:testProcedureMethod>
<diggs:testProcedureEquipment xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:testProcedureEquipment>
<diggs:testingEnvironment > {0,unbounded} </diggs:testingEnvironment>
<diggs:otherTestProperty > {0,unbounded} </diggs:otherTestProperty>
<diggs:testEvent > {0,1} </diggs:testEvent>
<diggs:sampleRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" percentage= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,unbounded} </diggs:sampleRef>
<diggs:specimen xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,unbounded} </diggs:specimen>
</diggs:BleedTest>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element name= "BleedTest" type= "diggs:BleedTestType" substitutionGroup= "diggs:AbstractMaterialTestProcedure" >
<annotation >
<documentation > A test to measure the degree to which solid particles from a grout mix separates from the fluid, resulting in a layer of clear water at the surface of the grout.. </documentation>
</annotation>
</element>
