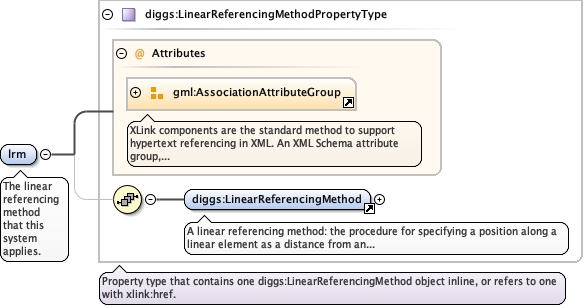

Element diggs:LinearSpatialReferenceSystemType / diggs:lrm
Namespace http://diggsml.org/schemas/3
Annotations

The linear referencing method that this system applies.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupLinearReferencing_xsd_Element_diggs_LinearReferencingMethod.tmp#LinearReferencingMethodLinearReferencing_xsd_Complex_Type_diggs_LinearReferencingMethodPropertyType.tmp#LinearReferencingMethodPropertyType
Type diggs:LinearReferencingMethodPropertyType
Properties
content complex
Model
Children diggs:LinearReferencingMethod
Instance

<diggs:lrm xlink:href="" nilReason="" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:LinearReferencingMethod gml:id="">{1,1}</diggs:LinearReferencingMethod>
</diggs:lrm>
Attributes
QName Type Use
nilReason gml:NilReasonType optional
xlink:href anyURI optional
Source

<element name="lrm" type="diggs:LinearReferencingMethodPropertyType">
  <annotation>
    <documentation>The linear referencing method that this system applies.</documentation>
  </annotation>
</element>

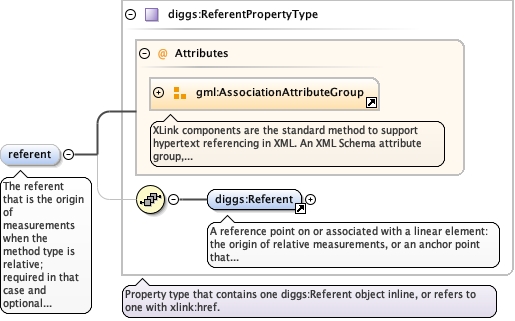

Element diggs:LinearSpatialReferenceSystemType / diggs:referent
Namespace http://diggsml.org/schemas/3
Annotations

The referent that is the origin of measurements when the method type
is relative; required in that case and optional otherwise. For a
system of depth below ground surface, it is the ground surface
referent on the linear element.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupLinearReferencing_xsd_Element_diggs_Referent.tmp#ReferentLinearReferencing_xsd_Complex_Type_diggs_ReferentPropertyType.tmp#ReferentPropertyType
Type diggs:ReferentPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:Referent
Instance

<diggs:referent xlink:href="" nilReason="" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Referent gml:id="">{1,1}</diggs:Referent>
</diggs:referent>
Attributes
QName Type Use
nilReason gml:NilReasonType optional
xlink:href anyURI optional
Source

<element name="referent" type="diggs:ReferentPropertyType" minOccurs="0">
  <annotation>
    <documentation>The referent that is the origin of measurements when the method type is relative; required in that case and optional otherwise. For a system of depth below ground surface, it is the ground surface referent on the linear element.</documentation>
  </annotation>
</element>

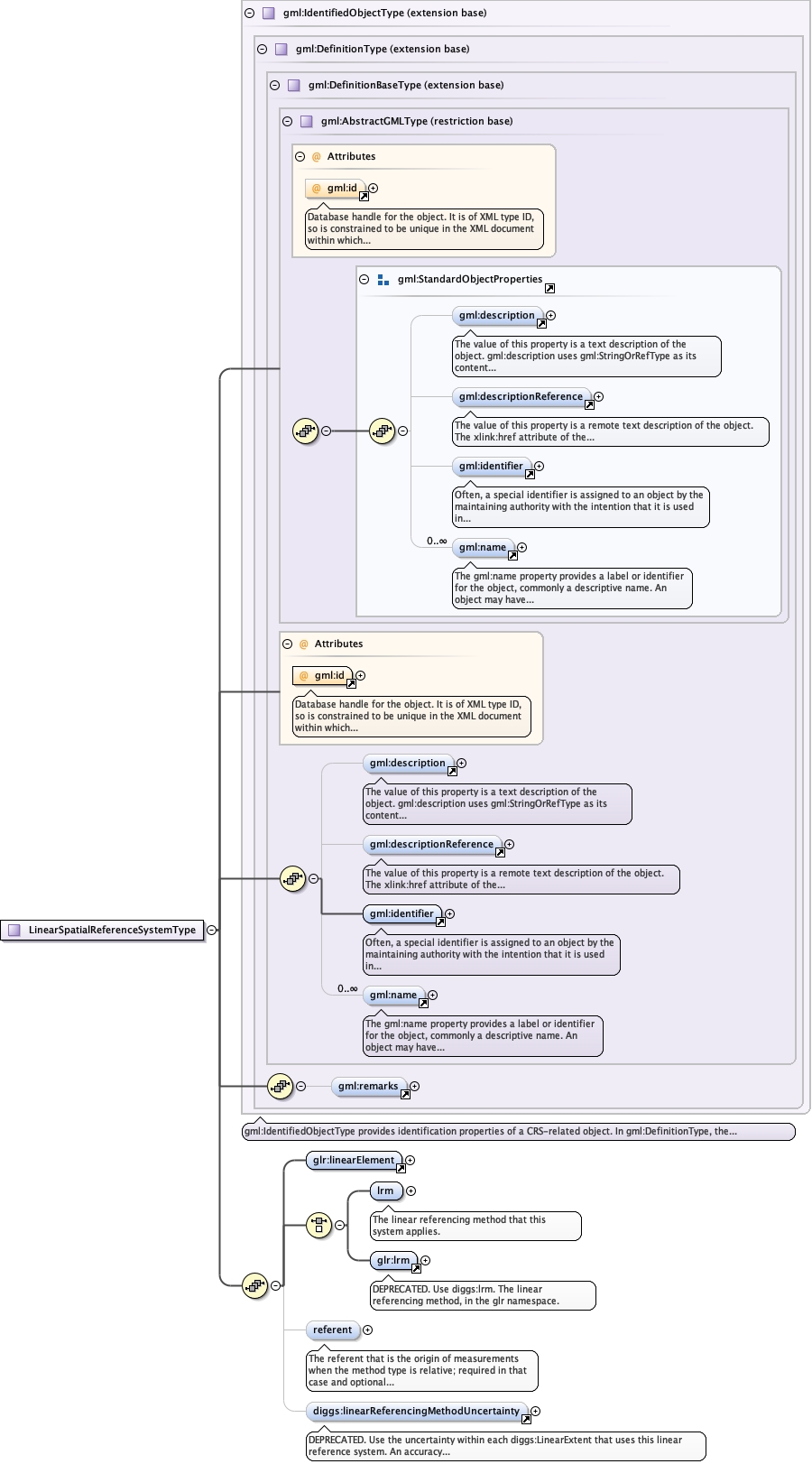

Complex Type diggs:LinearSpatialReferenceSystemType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Complex_Type_gml_DefinitionBaseType.tmp#DefinitionBaseTypegml3_2Profile_diggs_xsd_Element_gml_remarks.tmp#remarksgml3_2Profile_diggs_xsd_Complex_Type_gml_DefinitionType.tmp#DefinitionTypegml3_2Profile_diggs_xsd_Complex_Type_gml_IdentifiedObjectType.tmp#IdentifiedObjectTypeglrProfile_diggs_xsd_Element_glr_linearElement.tmp#linearElementLinearReferencing_xsd_Complex_Type_diggs_LinearSpatialReferenceSystemType.tmp#LinearSpatialReferenceSystemType_lrmglrProfile_diggs_xsd_Element_glr_lrm.tmp#lrmLinearReferencing_xsd_Complex_Type_diggs_LinearSpatialReferenceSystemType.tmp#LinearSpatialReferenceSystemType_referentLinearReferencing_xsd_Element_diggs_linearReferencingMethodUncertainty.tmp#linearReferencingMethodUncertainty
Type extension of gml:IdentifiedObjectType
Type hierarchy
Used by
Model
Children diggs:linearReferencingMethodUncertainty, diggs:lrm, diggs:referent, glr:linearElement, glr:lrm, gml:description, gml:descriptionReference, gml:identifier, gml:name, gml:remarks
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="LinearSpatialReferenceSystemType">
  <complexContent>
    <extension base="gml:IdentifiedObjectType">
      <sequence>
        <element ref="glr:linearElement"/>
        <choice>
          <element name="lrm" type="diggs:LinearReferencingMethodPropertyType">
            <annotation>
              <documentation>The linear referencing method that this system applies.</documentation>
            </annotation>
          </element>
          <element ref="glr:lrm">
            <annotation>
              <appinfo>
                <diggs:deprecated since="3.1.0" replacedBy="diggs:lrm"/>
              </appinfo>
              <documentation>DEPRECATED. Use diggs:lrm. The linear referencing method, in the glr namespace.</documentation>
            </annotation>
          </element>
        </choice>
        <element name="referent" type="diggs:ReferentPropertyType" minOccurs="0">
          <annotation>
            <documentation>The referent that is the origin of measurements when the method type is relative; required in that case and optional otherwise. For a system of depth below ground surface, it is the ground surface referent on the linear element.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" ref="diggs:linearReferencingMethodUncertainty"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
