Schema documentation for component diggs:LinearReferencingMethod

Showing:

Annotations

Attributes

Diagrams

Instances

Model

Properties

Source

Used by

Element diggs:LinearReferencingMethod

Namespace

http://diggsml.org/schemas/3

Annotations

A linear referencing method: the procedure for specifying a position along a linear
element as a distance from an origin, optionally with a lateral offset (ISO
19148:2021, section 6.2). It fixes the method name and category, the unit of
distance, the positive direction and whether lateral offsets are supported.

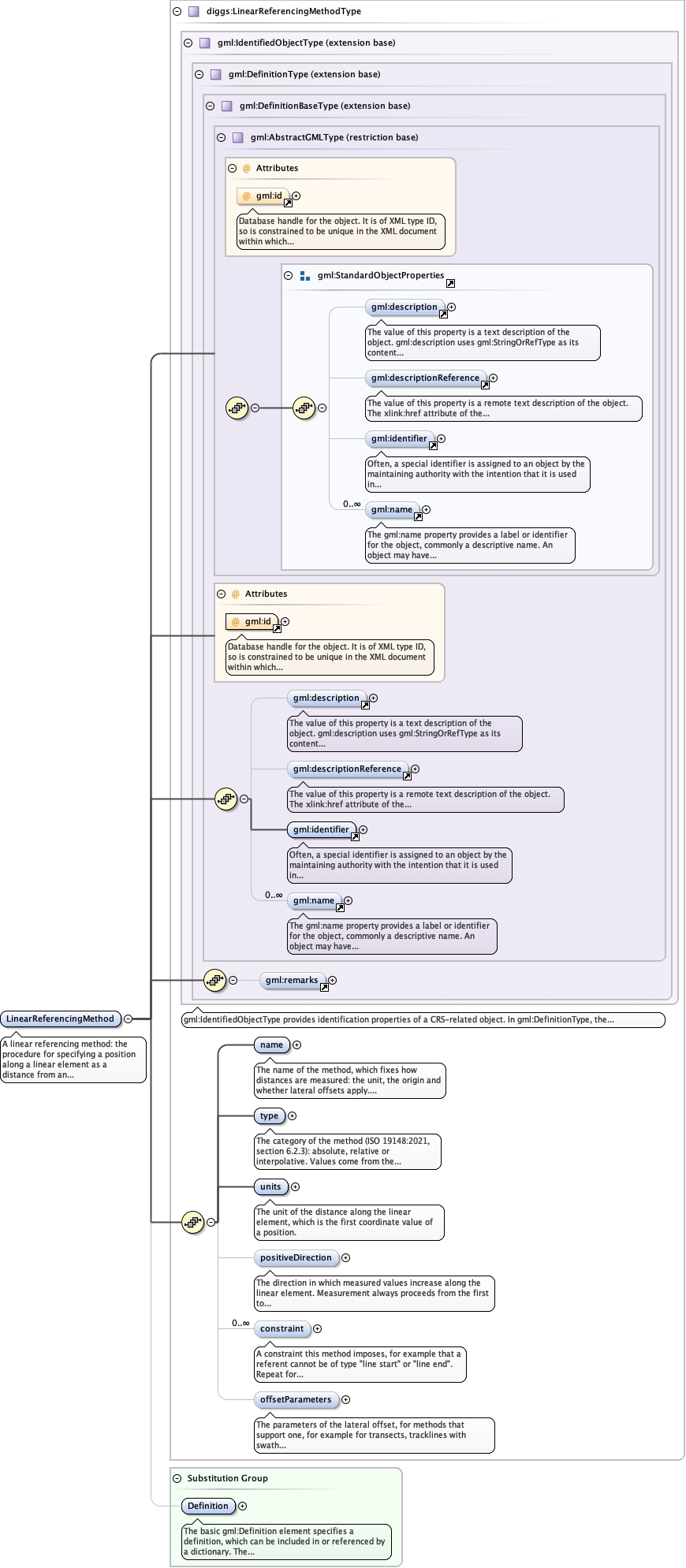

Diagram

Type

diggs:LinearReferencingMethodType

Type hierarchy

gml:AbstractGMLType
- gml:DefinitionBaseType
  - gml:DefinitionType
    - gml:IdentifiedObjectType
      - diggs:LinearReferencingMethodType

Properties

content

complex

Substitution Group Affiliation

gml:Definition

Used by

Complex Type

diggs:LinearReferencingMethodPropertyType

Model

gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier , gml:name* , gml:remarks{0,1} , diggs:name , diggs:type , diggs:units , diggs:positiveDirection{0,1} , diggs:constraint* , diggs:offsetParameters{0,1}

Children

diggs:constraint, diggs:name, diggs:offsetParameters, diggs:positiveDirection, diggs:type, diggs:units, gml:description, gml:descriptionReference, gml:identifier, gml:name, gml:remarks

Instance

<diggs:LinearReferencingMethod gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:descriptionReference xlink:href="" nilReason="" owns="false">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{1,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:remarks>{0,1}</gml:remarks>
  <diggs:name>{1,1}</diggs:name>
  <diggs:type>{1,1}</diggs:type>
  <diggs:units>{1,1}</diggs:units>
  <diggs:positiveDirection>{0,1}</diggs:positiveDirection>
  <diggs:constraint>{0,unbounded}</diggs:constraint>
  <diggs:offsetParameters xlink:href="" nilReason="">{0,1}</diggs:offsetParameters>
</diggs:LinearReferencingMethod>

Attributes

QName

Type

Use

Annotation

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

Source

<element name="LinearReferencingMethod" type="diggs:LinearReferencingMethodType" substitutionGroup="gml:Definition">
  <annotation>
    <documentation>A linear referencing method: the procedure for specifying a position along a linear element as a distance from an origin, optionally with a lateral offset (ISO 19148:2021, section 6.2). It fixes the method name and category, the unit of distance, the positive direction and whether lateral offsets are supported.</documentation>
  </annotation>
</element>
