Element diggs:LinearSpatialReferenceSystem

Namespace

http://diggsml.org/schemas/3

Annotations

A linear spatial reference system for a sampling feature: positions along a linear
element given as distances under a linear referencing method, measured from a
referent when the method is relative.

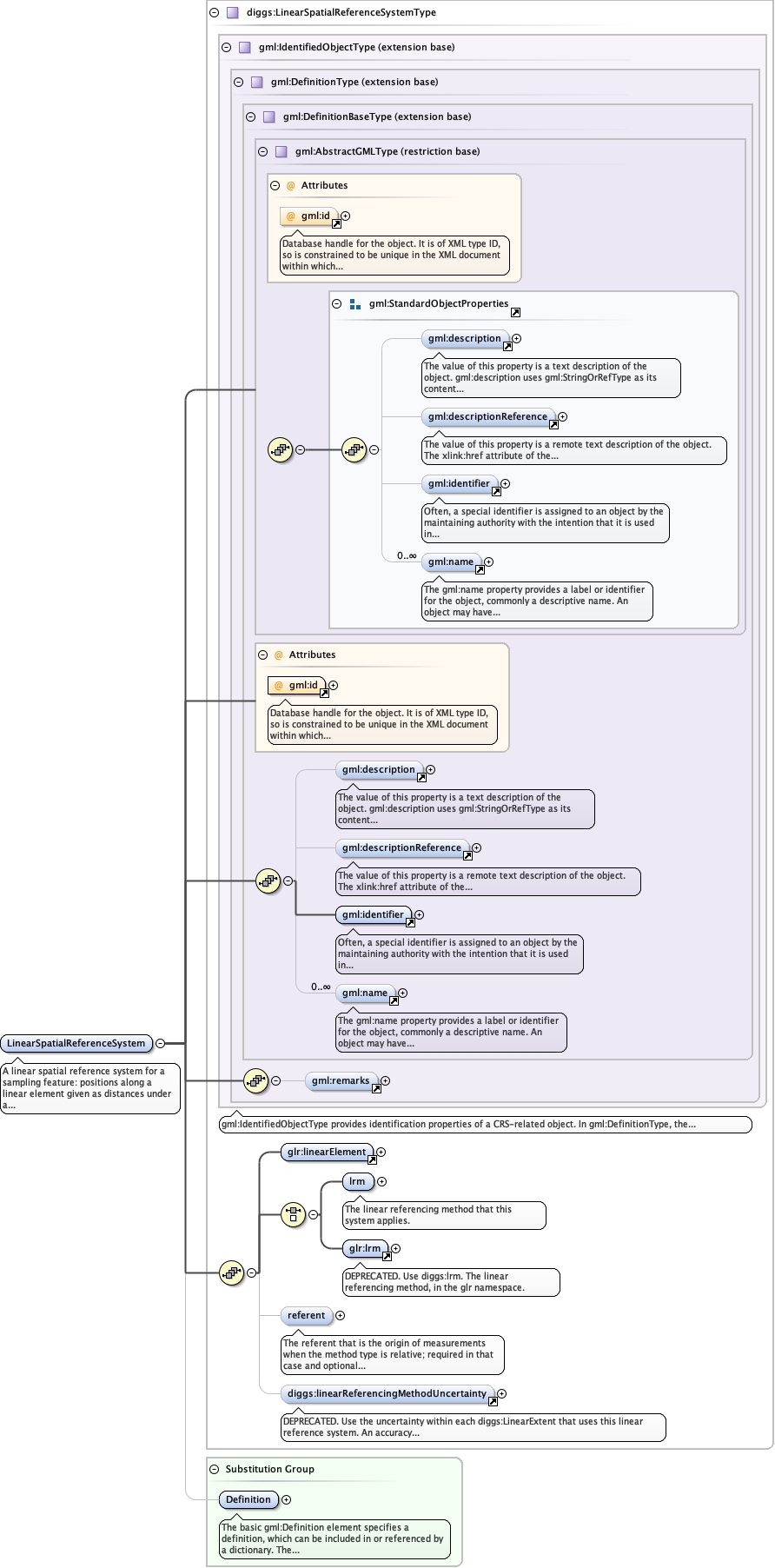

Diagram

Type

diggs:LinearSpatialReferenceSystemType

Type hierarchy

gml:AbstractGMLType
- gml:DefinitionBaseType
  - gml:DefinitionType
    - gml:IdentifiedObjectType
      - diggs:LinearSpatialReferenceSystemType

Properties

content

complex

Substitution Group Affiliation

gml:Definition

Used by

Complex Types

diggs:LinearSpatialReferenceSystemPropertyType, diggs:RelativeReferenceSystemPropertyType

Model

gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier , gml:name* , gml:remarks{0,1} , glr:linearElement , (diggs:lrm | glr:lrm) , diggs:referent{0,1} , diggs:linearReferencingMethodUncertainty{0,1}

Children

diggs:linearReferencingMethodUncertainty, diggs:lrm, diggs:referent, glr:linearElement, glr:lrm, gml:description, gml:descriptionReference, gml:identifier, gml:name, gml:remarks

Instance

<diggs:LinearSpatialReferenceSystem gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:glr="http://www.opengis.net/gml/3.3/lr">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:descriptionReference xlink:href="" nilReason="" owns="false">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{1,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:remarks>{0,1}</gml:remarks>
  <glr:linearElement xlink:href="" nilReason="">{1,1}</glr:linearElement>
  <diggs:lrm xlink:href="" nilReason="">{1,1}</diggs:lrm>
  <glr:lrm xlink:href="" nilReason="">{1,1}</glr:lrm>
  <diggs:referent xlink:href="" nilReason="">{0,1}</diggs:referent>
  <diggs:linearReferencingMethodUncertainty>{0,1}</diggs:linearReferencingMethodUncertainty>
</diggs:LinearSpatialReferenceSystem>

Attributes

QName

Type

Use

Annotation

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

Source

<element name="LinearSpatialReferenceSystem" substitutionGroup="gml:Definition" type="diggs:LinearSpatialReferenceSystemType">
  <annotation>
    <documentation>A linear spatial reference system for a sampling feature: positions along a linear element given as distances under a linear referencing method, measured from a referent when the method is relative.</documentation>
  </annotation>
</element>
