Element diggs:FluidSpecimenType / diggs:dilutionFactor
Namespace http://diggsml.org/schemas/3
Annotations

For fluid samples that must be diluted before testing, the unitless
ratio of the total specimen volume to the solute (original sample)
volume.

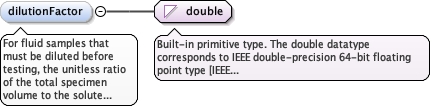

Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="dilutionFactor" type="double">
  <annotation>
    <documentation>For fluid samples that must be diluted before testing, the unitless ratio of the total specimen volume to the solute (original sample) volume.</documentation>
  </annotation>
</element>
Element diggs:FluidSpecimenType / diggs:leachatePreparationDateTime
Namespace http://diggsml.org/schemas/3
Annotations

The time when a leachate was prepared.

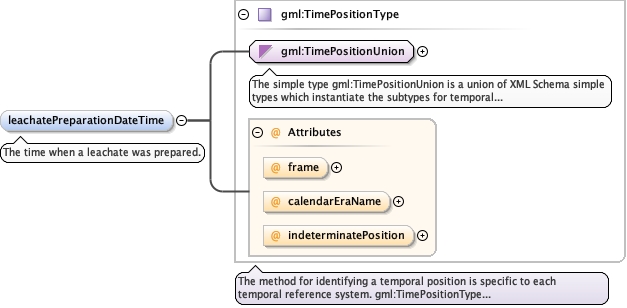

Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_TimePositionUnion.tmp#TimePositionUniongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_framegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_calendarEraNamegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_indeterminatePositiongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType
Type gml:TimePositionType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Default Use
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element minOccurs="0" name="leachatePreparationDateTime" type="gml:TimePositionType">
  <annotation>
    <documentation>The time when a leachate was prepared.</documentation>
  </annotation>
</element>
Element diggs:FluidSpecimenType / diggs:leachatePreparationMethod
Namespace http://diggsml.org/schemas/3
Annotations

The Specification that defines the method of leachate preparation.

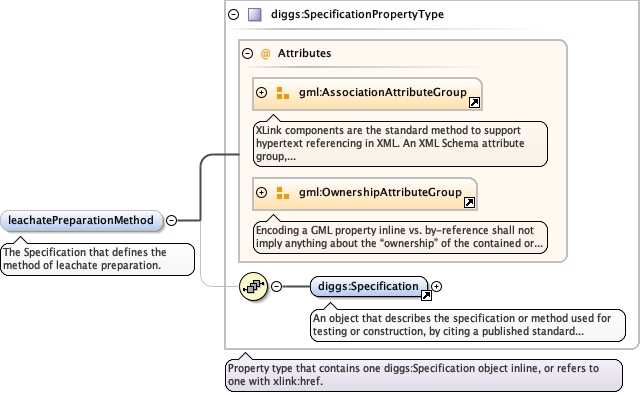

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupCommon_xsd_Element_diggs_Specification.tmp#SpecificationCommon_xsd_Complex_Type_diggs_SpecificationPropertyType.tmp#SpecificationPropertyType
Type diggs:SpecificationPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:Specification
Instance

<diggs:leachatePreparationMethod xlink:href="" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Specification gml:id="">{1,1}</diggs:Specification>
</diggs:leachatePreparationMethod>
Attributes
QName Type Default Use
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:href anyURI optional
Source

<element minOccurs="0" name="leachatePreparationMethod" type="diggs:SpecificationPropertyType">
  <annotation>
    <documentation>The Specification that defines the method of leachate preparation.</documentation>
  </annotation>
</element>
Complex Type diggs:FluidSpecimenType
Namespace http://diggsml.org/schemas/3

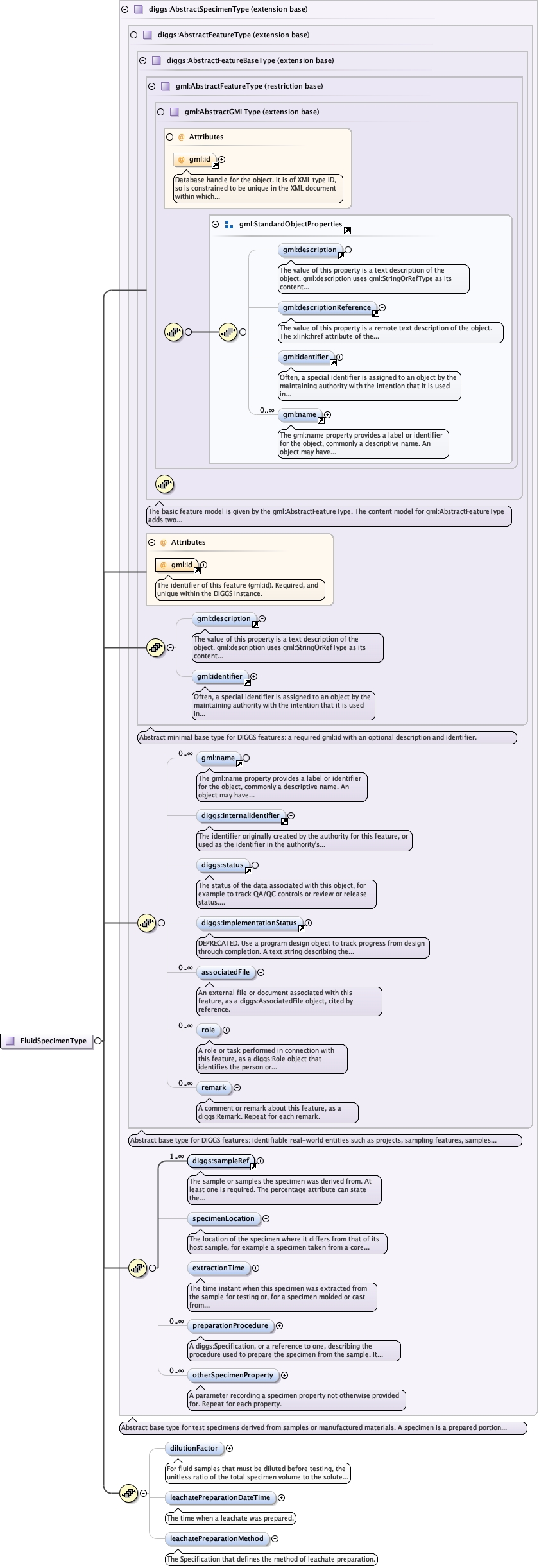

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeCommon_xsd_Element_diggs_sampleRef.tmp#sampleRefAbstractTypes_xsd_Complex_Type_diggs_AbstractSpecimenType.tmp#AbstractSpecimenType_specimenLocationAbstractTypes_xsd_Complex_Type_diggs_AbstractSpecimenType.tmp#AbstractSpecimenType_extractionTimeAbstractTypes_xsd_Complex_Type_diggs_AbstractSpecimenType.tmp#AbstractSpecimenType_preparationProcedureAbstractTypes_xsd_Complex_Type_diggs_AbstractSpecimenType.tmp#AbstractSpecimenType_otherSpecimenPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractSpecimenType.tmp#AbstractSpecimenTypeExtProcedures_xsd_Complex_Type_diggs_FluidSpecimenType.tmp#FluidSpecimenType_dilutionFactorExtProcedures_xsd_Complex_Type_diggs_FluidSpecimenType.tmp#FluidSpecimenType_leachatePreparationDateTimeExtProcedures_xsd_Complex_Type_diggs_FluidSpecimenType.tmp#FluidSpecimenType_leachatePreparationMethod
Type extension of diggs:AbstractSpecimenType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:dilutionFactor, diggs:extractionTime, diggs:implementationStatus, diggs:internalIdentifier, diggs:leachatePreparationDateTime, diggs:leachatePreparationMethod, diggs:otherSpecimenProperty, diggs:preparationProcedure, diggs:remark, diggs:role, diggs:sampleRef, diggs:specimenLocation, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="FluidSpecimenType">
  <complexContent>
    <extension base="diggs:AbstractSpecimenType">
      <sequence>
        <element minOccurs="0" name="dilutionFactor" type="double">
          <annotation>
            <documentation>For fluid samples that must be diluted before testing, the unitless ratio of the total specimen volume to the solute (original sample) volume.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="leachatePreparationDateTime" type="gml:TimePositionType">
          <annotation>
            <documentation>The time when a leachate was prepared.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="leachatePreparationMethod" type="diggs:SpecificationPropertyType">
          <annotation>
            <documentation>The Specification that defines the method of leachate preparation.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
