Element diggs:TestingSchedule
Namespace http://diggsml.org/schemas/3
Annotations

A schedule of tests submitted to a receiving entity, typically a laboratory, for
analysis.

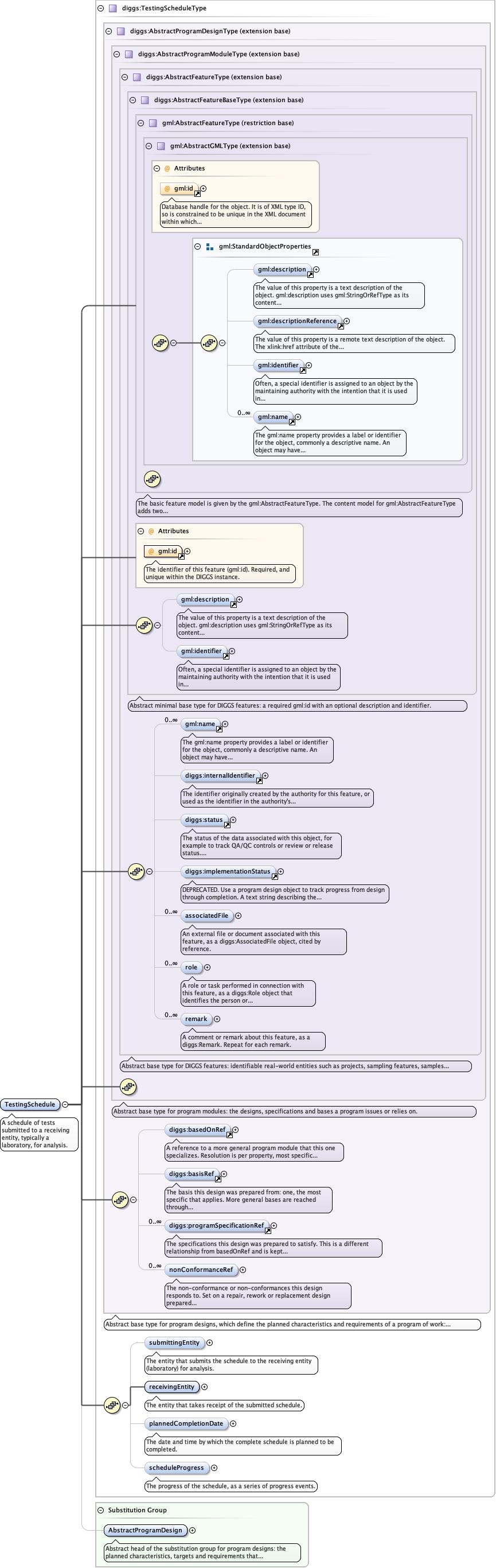

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramModuleType.tmp#AbstractProgramModuleTypeCommon_xsd_Element_diggs_basedOnRef.tmp#basedOnRefCommon_xsd_Element_diggs_basisRef.tmp#basisRefCommon_xsd_Element_diggs_programSpecificationRef.tmp#programSpecificationRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramDesignType.tmp#AbstractProgramDesignType_nonConformanceRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramDesignType.tmp#AbstractProgramDesignTypeCore_xsd_Complex_Type_diggs_TestingScheduleType.tmp#TestingScheduleType_submittingEntityCore_xsd_Complex_Type_diggs_TestingScheduleType.tmp#TestingScheduleType_receivingEntityCore_xsd_Complex_Type_diggs_TestingScheduleType.tmp#TestingScheduleType_plannedCompletionDateCore_xsd_Complex_Type_diggs_TestingScheduleType.tmp#TestingScheduleType_scheduleProgressCore_xsd_Complex_Type_diggs_TestingScheduleType.tmp#TestingScheduleTypeAbstractTypes_xsd_Element_diggs_AbstractProgramDesign.tmp#AbstractProgramDesign
Type diggs:TestingScheduleType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children diggs:associatedFile, diggs:basedOnRef, diggs:basisRef, diggs:implementationStatus, diggs:internalIdentifier, diggs:nonConformanceRef, diggs:plannedCompletionDate, diggs:programSpecificationRef, diggs:receivingEntity, diggs:remark, diggs:role, diggs:scheduleProgress, diggs:status, diggs:submittingEntity, gml:description, gml:identifier, gml:name
Instance

<diggs:TestingSchedule gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:basedOnRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basedOnRef>
  <diggs:basisRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basisRef>
  <diggs:programSpecificationRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:programSpecificationRef>
  <diggs:nonConformanceRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:nonConformanceRef>
  <diggs:submittingEntity xlink:href="" nilReason="" owns="false">{0,1}</diggs:submittingEntity>
  <diggs:receivingEntity xlink:href="" nilReason="" owns="false">{1,1}</diggs:receivingEntity>
  <diggs:plannedCompletionDate xlink:href="" nilReason="" owns="false">{0,1}</diggs:plannedCompletionDate>
  <diggs:scheduleProgress>{0,1}</diggs:scheduleProgress>
</diggs:TestingSchedule>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="TestingSchedule" substitutionGroup="diggs:AbstractProgramDesign" type="diggs:TestingScheduleType">
  <annotation>
    <documentation>A schedule of tests submitted to a receiving entity, typically a laboratory, for analysis.</documentation>
  </annotation>
</element>
